LIVEO-530 BTBK 5.25" 2-Way Active Wall-Mount Speaker Pair with BT control, Black

Download product sheet

The new LIVEO BT series combines the simplicity, elegance and ease of installation – already characteristic of the previous passive series – with the flexibility of active wireless systems.

Thanks to the innovative state-of-the-art Bluetooth wireless technology, it is now possible to manage a higher number of speakers compared to the only two allowed until no... Read more

The new LIVEO BT series combines the simplicity, elegance and ease of installation – already characteristic of the previous passive series – with the flexibility of active wireless systems.

Thanks to the innovative state-of-the-art Bluetooth wireless technology, it is now possible to manage a higher number of speakers compared to the only two allowed until now by normal Bluetooth technology; the only limit is 25-30m distance from the transmitter and that's it. It is then possible to make a small-to-medium-sized audio system even without any low-impedance connection or constant voltage line; just make sure that mains power is available.

The housing, with minimalist and elegant lines, is made of Polypropylene with UV-resistant treatment; this ensures robustness and greater durability to exposure to sun, moisture and rain. Plastic woofer, Mylar tweeter and plastic cover of rear connections make these speakers completely waterproof. Both transducers are selected to offer not only waterproofness and high durability, but also an excellent level of audio quality.

Each Liveo series speaker, in order to simplify installation as much as possible, comes with both a "C" bracket and a "ball-shaped" bracket, both with adjustable horizontal and vertical positions.

Collapse text

Product downloads

Highlights

Innovative Wireless BT System

The brand-new BT technology behind the new LIVEO BT speakers allows the creation of up to 16 independent wireless audio systems consisting of a single wireless transmitter and a huge number of speakers within a 30-meter radius. In the case of multiple systems in nearby areas, simply assign transmitter and its receivers to one of the 16 available channels.

For each speaker, you can choose whether to amplify the mono, left or right signal coming from the transmitter or the AUX input. The transmitter, in addition to having a normal Bluetooth connection that can be connected to mobile phones, tablets, etc., has a stereo AUX input. There is also an additional stereo AUX output to connect the audio system to an additional power amplifier.

Designed for easy installation in any condition

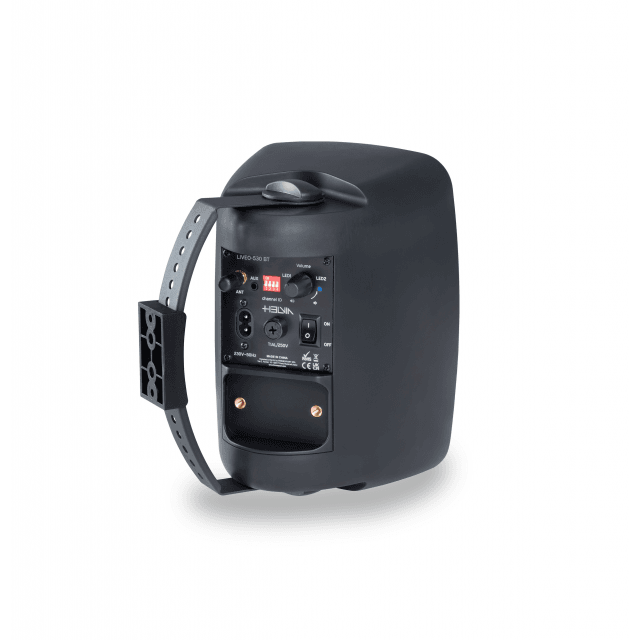

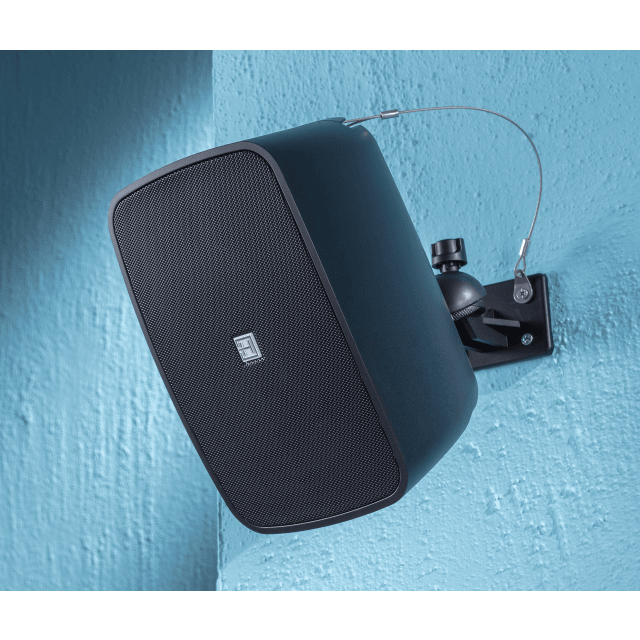

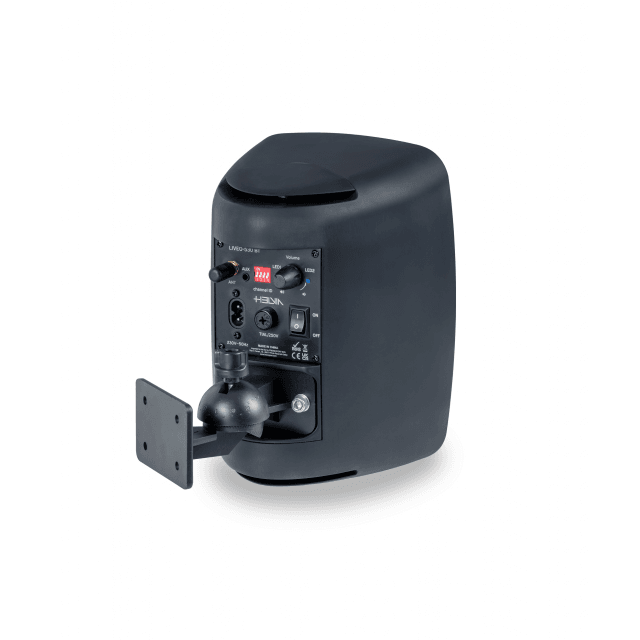

Each Liveo series speaker comes with two brackets for wall mounting. You can choose to use either the pan/tilt adjustable "C" bracket designed to mount the speaker mainly in a horizontal position; or the ball-shaped bracket that allows larger horizontal/vertical adjustment angles than the C bracket and is designed for mounting the speaker horizontally.

In addition to the screws and washers for attaching the brackets to the speaker, two hex wrenches and a steel safety cable are included for each case.

Grille with rotatable logo

The logo in the center of the grille can be rotated by a simple spring mechanism to fit perfectly in both horizontal and vertical installation.

2-Way Speaker
Bluetooth
Class-D

Product details

Key features

  • 2-Way Active Speakers
  • Class-D Power Amplifier with 20W Powers
  • 5.25" Waterproof Woofer and 0.5" Mylar Dome Tweeter
  • Multi-Point BT connection with 16 system ID
  • BT, Stereo AUX input for all transmitters and speakers
  • Stereo AUX output on transmitters
  • Black Finish
  • UV-Resistant PP Housing
  • Horizontal and Vertical adjustable C-Bracket and Ball-Shaped bracket
  • Security Wire included
  • Paintable Housing and Grille
  • More Less

Specifications

  • Speaker Type
    2-way Active
  • Built-in Amplifier
    15W RMS - 20W Nominal
  • Frequency Response (-10dB)
    100Hz-20kHz
  • Sensitivity (1W @ 1m)
    85dB
  • Maximum SPL (peak)
    100dB
  • Woofer
    5.25” (135mm), PP cone
  • Woofer Impedance
    8ohm
  • Tweeter
    0.5” (13mm), Mylar dome
  • Crossover Frequency
    3.5kHz
  • Bluetooth Transmitting/Receiving Distance
    30m
  • Housing
    UV-Resistant PP, paintable

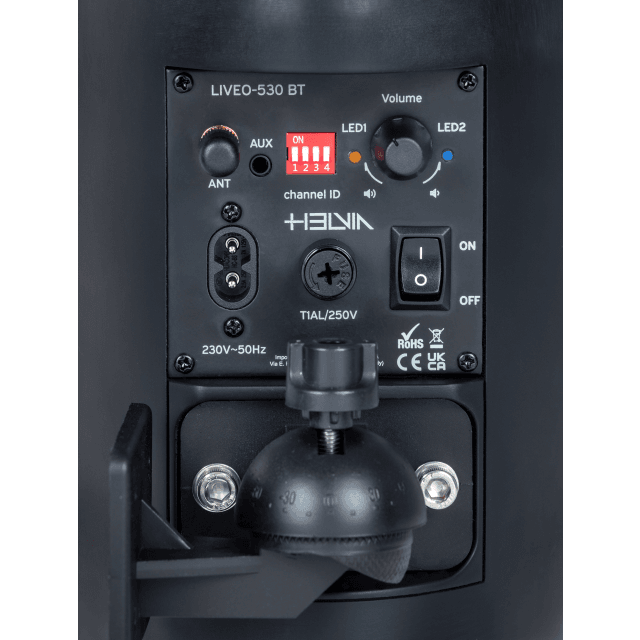

  • Controls
    Level /Data Entry Knob, 4-way DIP switch
  • Led Indicators
    Led 1 (Mode), Led 2 (Status)
  • Connectors
    1/8” Stereo Jack (AUX In), Power Input
  • Enclosure Material
    ABS
  • Bracket
    C-Bracket and Ball-shaped Bracket with Pan/Tilt adjustable angles and stainless-steel screws
  • Grille
    Perforated aluminum, powder coated paint, acoustic transparent, paintable
  • Color
    Black
  • Product Size - No Bracket (WxDxH)
    156 x 156 x 227 mm (6.1 x 6.1 x 8.9 inch)
  • Speaker Weight (single unit, no bracket)
    2.2kg
  • Packing Size (WxDxH) (pair)
    420 x 195 x 255 mm (16.5 x 7.7 x 10 inch)
  • Packing Weight (pair)
    5.6kg (12.35 lbs.)
