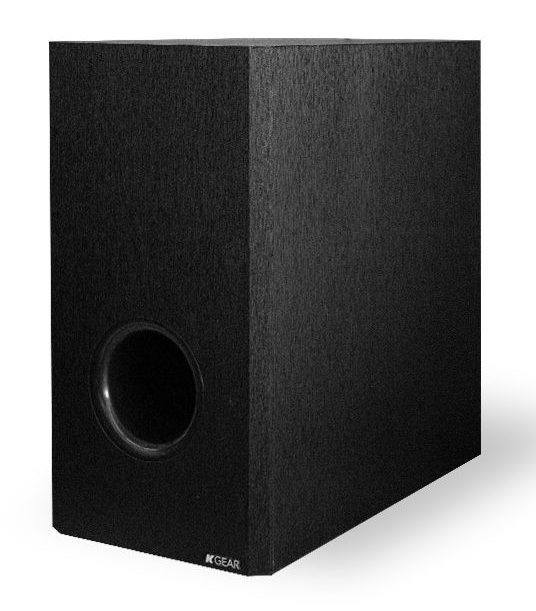

GS6A 6" compact high-performance active subwoofer
Download product sheetGS6A is a 6” active subwoofer designed for permanent installations where visual impact and space efficiency matter. With its sleek, low-profile design, it's ideal for commercial or residential spaces like restaurants, hotels, retail stores, and private homes.
Equipped with a built-in 100W Class-D amplifier, GS6A removes the need for an external amp, simplifyi... Read more
GS6A is a 6” active subwoofer designed for permanent installations where visual impact and space efficiency matter. With its sleek, low-profile design, it's ideal for commercial or residential spaces like restaurants, hotels, retail stores, and private homes.
Equipped with a built-in 100W Class-D amplifier, GS6A removes the need for an external amp, simplifying installation and saving space. Just plug in a 12–24 VDC power supply, and you're set.
GS6A isn’t just a bass box—it can power an additional passive speaker from the GF, GG, or GC series, thanks to its integrated powered output (up to 60W @ 4Ω). A space-saving, all-in-one solution for distributed systems.
With a built-in low-pass filter, GS6A can share the same line with your satellite speakers, no DSP or extra EQ needed. Less equipment, faster setup, full control.
Product downloads
Highlights
A combination of power and compactness
The GS6A is all about effortless audio performance. Its plug-and-play design and built-in amp module that provides powerful low-end make it an essential tool for audio pros who want clean, compact bass without complication.
Product details
Key features
- 100W Built-in Amplifier: GS6A includes a powerful 100W Class D amplifier, eliminating the need for external electronics and making installation quicker and tidier.
- Compact design, surprising performance With small dimensions and a discreet aesthetic, GS6A offers deep and defined bass, ideal for environments where space is limited but quality is essential.
- Built-in low-pass filter, no need for external DSP
Specifications
-
TypeActive Subwoofer
-
Transducers6" ferrite woofer
-
Frequency Response55Hz - 140kHz (-6 dB)
-
Max SPL108dB
-
Power handling100 W
-
Nominal Impedance4 Ohm
-
CoverageOmni
-
Dimensions (W x H x D)170 x 310 x 310 mm (6,7 x 12,2 x 12,2 in)
-
Weight3,2 kg (7 lb)
-
MaterialBirch Plywood
-
ColorBlack
-
Connectors2x Phoenix connector (4-pin euroblock) Balanced Line in, Mute contact, Power out, 24V DC IN (power supply not included)
-
Mains Connector5PIN Euroblock, Phoenix 1,5/ 4-ST-3,81 compatible
-
Amp Module1-channel Class-D audio amplifier
-
Output Power100W @ 2Ω (24V power)
-
Power Consumption30W Rated Load 1/8 Max Power
-
ProtectionsThermal Protections (Power limiting - Thermal Shutdown), Short-circuit/overload output protections
-
Operating Range12-24 V DC
-
IP RatingIP43
- More Less
