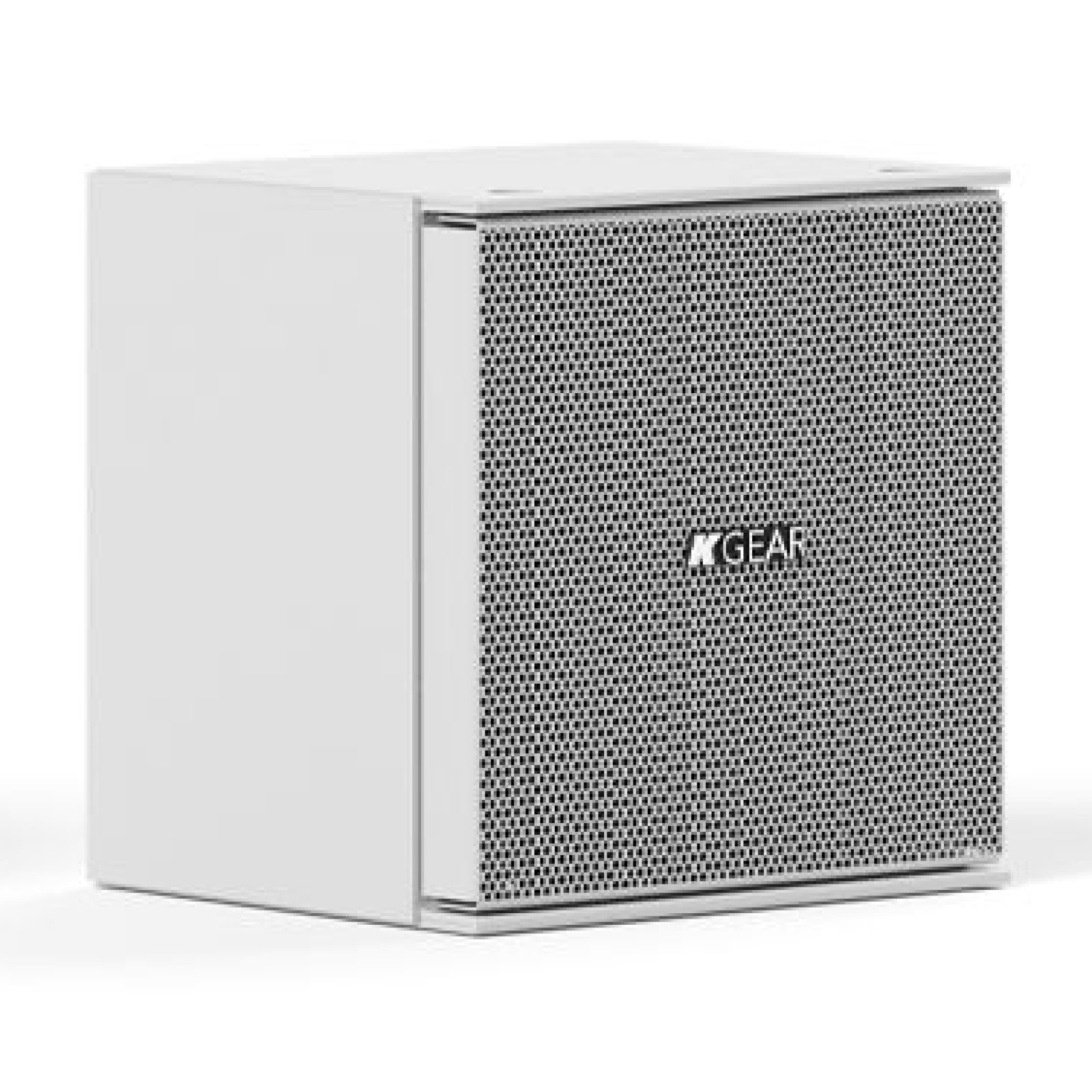

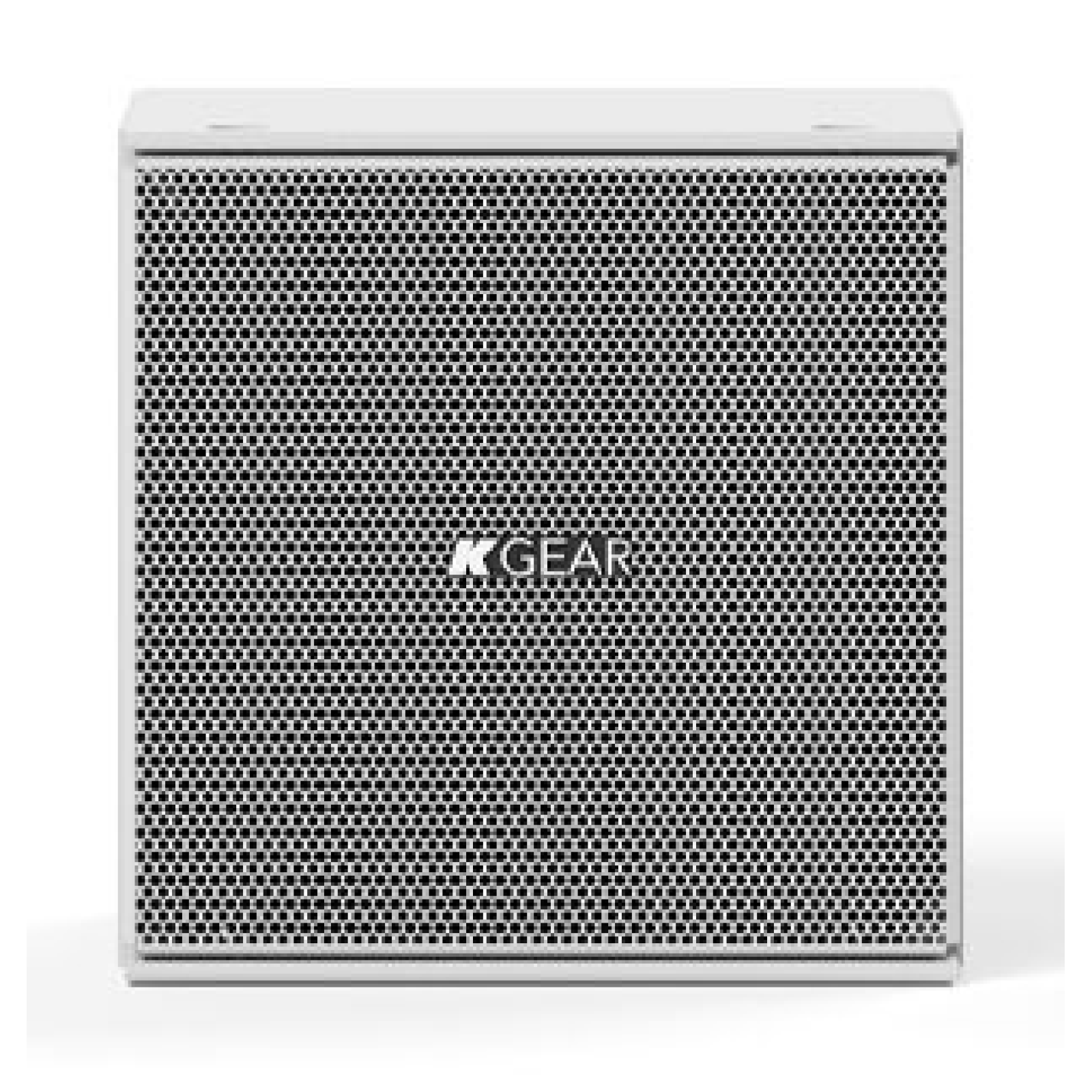

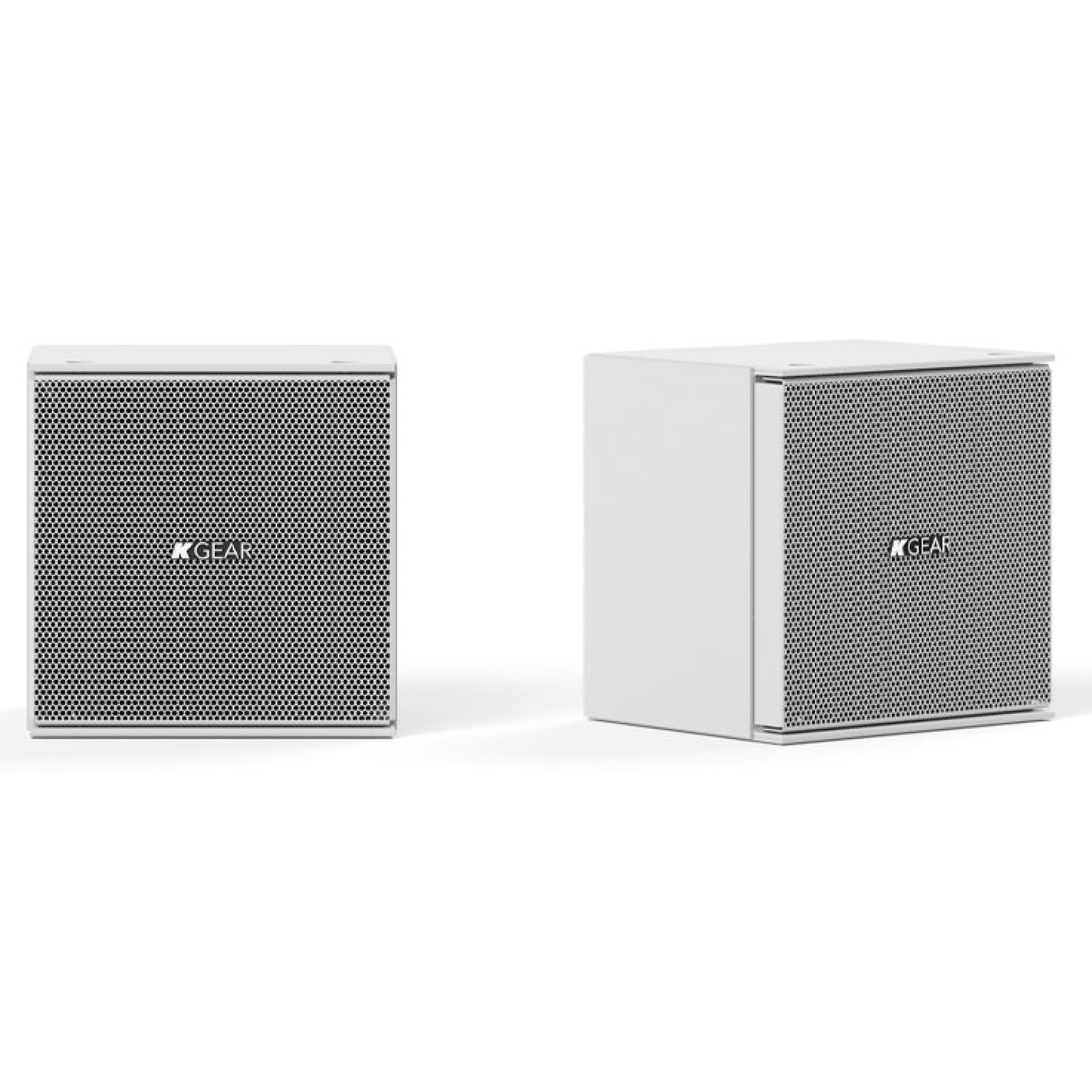

GH4AW Ultra-compact 4’ full range active satellite speaker (white)
Download product sheetThe GH4A is a compact active satellite speaker designed for professional applications requiring clear and directional sound, even in acoustically challenging spaces. It features a 60W Class D amplifier, allowing it to power an additional KGEAR passive speaker or subwoofer, reducing external components.
Its 4" full-range driver with dual-coil neodymium magnet ... Read more
The GH4A is a compact active satellite speaker designed for professional applications requiring clear and directional sound, even in acoustically challenging spaces. It features a 60W Class D amplifier, allowing it to power an additional KGEAR passive speaker or subwoofer, reducing external components.
Its 4" full-range driver with dual-coil neodymium magnet ensures accurate and powerful audio. The optimized enclosure minimizes rear emission, increasing system efficiency. Stainless steel build with IP64 rating (with G-IPCAP1) makes it suitable for indoor and outdoor use.

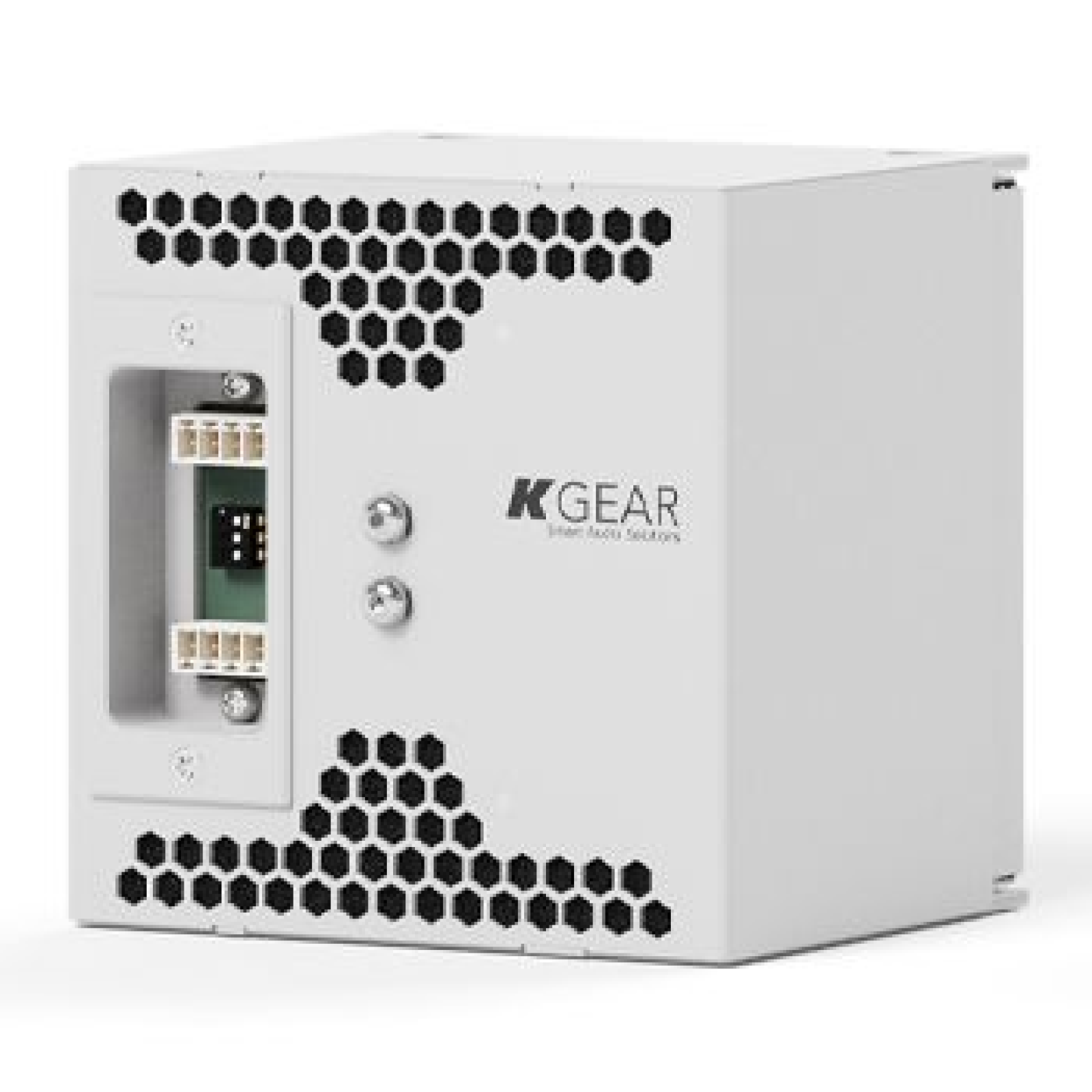

Equipped with Phoenix connectors, DC 24V input, audio output, mute contact, and auto ON/OFF function. Wall-mountable via GF-WALL bracket, and usable alone or in array configurations.
Collapse textProduct downloads
Highlights
Built-in amplification
The integrated amplifier allows you to drive a second speaker or passive subwoofer. This greatly simplifies installation, reduces the number of components required and makes it perfect for compact, elegant and highly efficient solutions.
Weather-Resistant Construction
Product details
Key features
- Wall Mount Included: The GF-WALL swivel mount is included for easy and precise installation.
- Compact design, high performance: 4" full-range driver with dual-frequency neodymium magnet
- Reduced Rear Emission: the optimised cabinet design reduces rear dispersion, improving sound directionality and reducing unwanted reflections.
- Wall Mount Included: The GF-WALL swivel mount is included for easy and precise installation.
Specifications
-
TypeActive loudspeaker
-
Transducers4” neodymium magnet full-range driver
-
Frequency Response150 Hz - 20 kHz (-6dB)
-
Max SPL116 dB
-
Rated Power140 W
-
CoverageV. 90° | H. 90°
-
Connectors2x Phoenix connector (4-pin euroblock), Balanced Line in, Mute contact Power out, 24V DC IN (power supply not included)
-
Mains Connector4PIN Euroblock, 2x Phoenix 1,5/ 4-ST-3,81 compatible
-
Nominal Impedance4 Ω
-
Amp Module1-channel Class-D audio amplifier
-
Output Power100W @ 2Ω (24V power)
-
Power Consumption30W Rated Load 1/8 Max Power
-
ProtectionsThermal Protections (Power limiting - Thermal Shutdown), Short-circuit/overload output protections
-
Operating Range12-24 V DC
-
Dimensions (W x H x D)112x112x94 mm (4.41x4.41x3.70 in)
-
Weight1,2 kg (2,65 lb)
-
MaterialStainless steel
-
ColorsWhite
-
IP RatingIP64 (G-IPCAP1 accessory required)
- More Less
