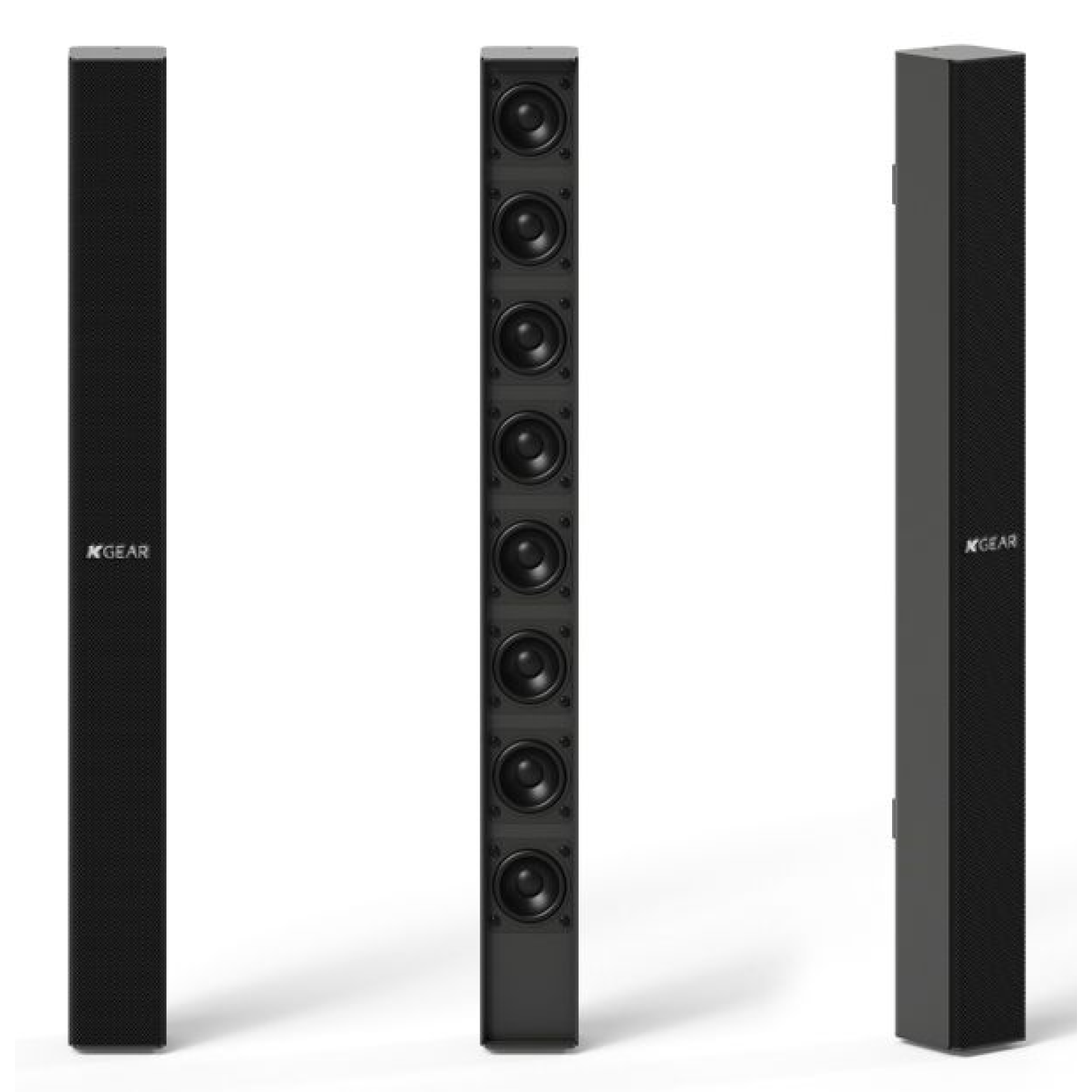

GF82A Ultra-compact 8x2" line array column active speaker (black)

Download product sheet

Active performance in an ultra-compact format

GF82A is an active column speaker with 8x2" drivers and a built-in amplifier, designed with K-array™ PAT® (Pure Array Technology). It delivers excellent speech intelligibility and controlled dispersion, typical of line arrays, in a sleek and minimal design.

Compact, powerful and ready to go

With up to 100W RMS o... Read more

Active performance in an ultra-compact format

GF82A is an active column speaker with 8x2" drivers and a built-in amplifier, designed with K-array™ PAT® (Pure Array Technology). It delivers excellent speech intelligibility and controlled dispersion, typical of line arrays, in a sleek and minimal design.

Compact, powerful and ready to go

With up to 100W RMS output and 24V DC power supply, the GF82A is a versatile and easy-to-integrate solution, ideal for a wide range of professional installations. The built-in Class-D amplifier and comprehensive protection circuitry ensure reliable performance in any application.

Designed for any environment

Thanks to its compact size and durable ABS enclosure with IP54 rating, GF82A is ideal for both indoor and outdoor use — from hospitality venues and restaurants to public areas, transport hubs, and conference rooms.

Enhanced with dedicated subwoofers

For extended low-frequency response in music applications, GF82A can be paired with the GS6 subwoofer, creating a compact and high-performing full-range audio system.

Collapse text

Product downloads

Highlights

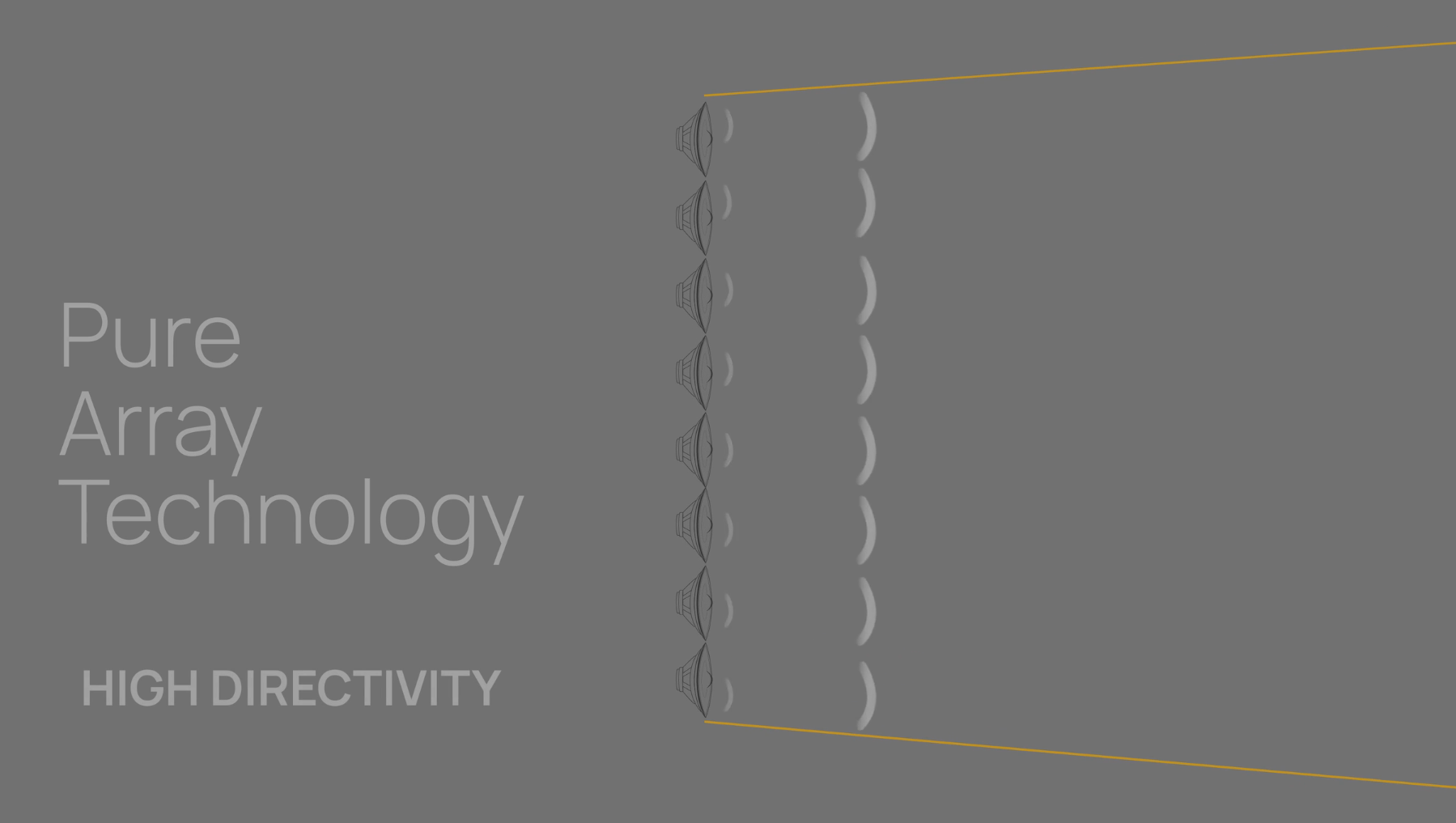

Pure Array Technology (PAT®)

This technology enables direct, intelligible and controlled sound, even in reverberant or complex environments, without the need for large spaces or bulky loudspeakers.

Ultra-compact format and IP54 rating for discreet indoor/outdoor installations

Just 60 mm wide, with dust and splash protection—perfect for elegant applications in both public and private venues.
Class-D

Product details

Key features

  • 100W RMS Class D Integrated Amplifier: Reduces the need for external amplifiers, simplifying installation and optimizing costs for the integrator.
  • Ultra compact and discreet design (60x600x65 mm, only 1.6 kg): perfect for installations where space is limited or aesthetics are fundamental (hotels, restaurants, meeting rooms).

Specifications

  • Type
    Active loudspeaker
  • Transducers
    8x2” ferrite magnet woofer
  • Frequency Response
    150 Hz - 20 kHz (-6dB)
  • Max SPL
    105 dB
  • Rated Power
    200 W
  • Coverage
    V. 15° | H. 90°
  • Connectors
    2x Phoenix connector (4-pin euroblock) Balanced Line in Mute contact Power out 24V DC IN (power supply not included)
  • Mains Connector
    4PIN Euroblock, 2x Phoenix 1,5/ 4-ST-3,81 compatible
  • Nominal Impedance
    16 Ω
  • Amp Module
    1-channel Class-D audio amplifier
  • Output Power
    100W @ 2Ω (24V power)
  • Power Consumption
    30W Rated Load 1/8 Max Power
  • Protections
    Thermal Protections (Power limiting - Thermal Shutdown), Short-circuit/overload output protections
  • Operating Range
    12-24 V DC
  • Dimensions (W x H x D)
    60x600x65 mm (2.36x23.62x2.56 in)
  • Weight
    1,6 kg (3.53 lbs)
  • Material
    ABS
  • Colors
    Black
  • IP Rating
    IP54
  • More Less
