GPZ Audio system consisting of a 2x18“ Passive Sub + 2x12” Slim Array Black

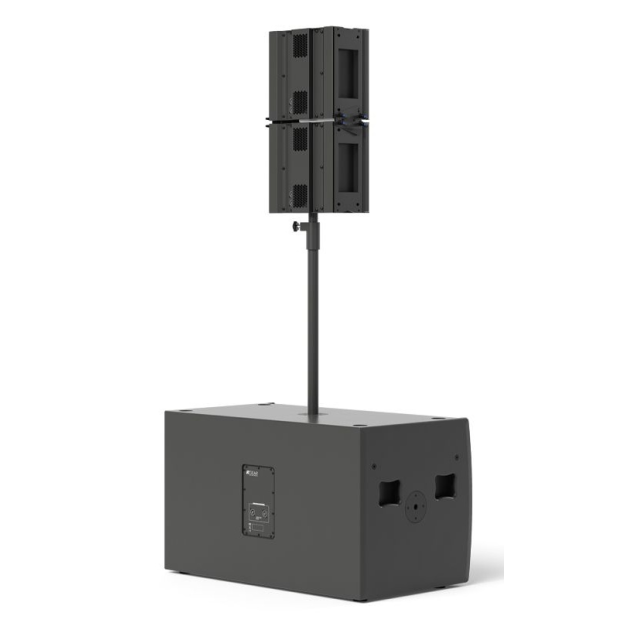

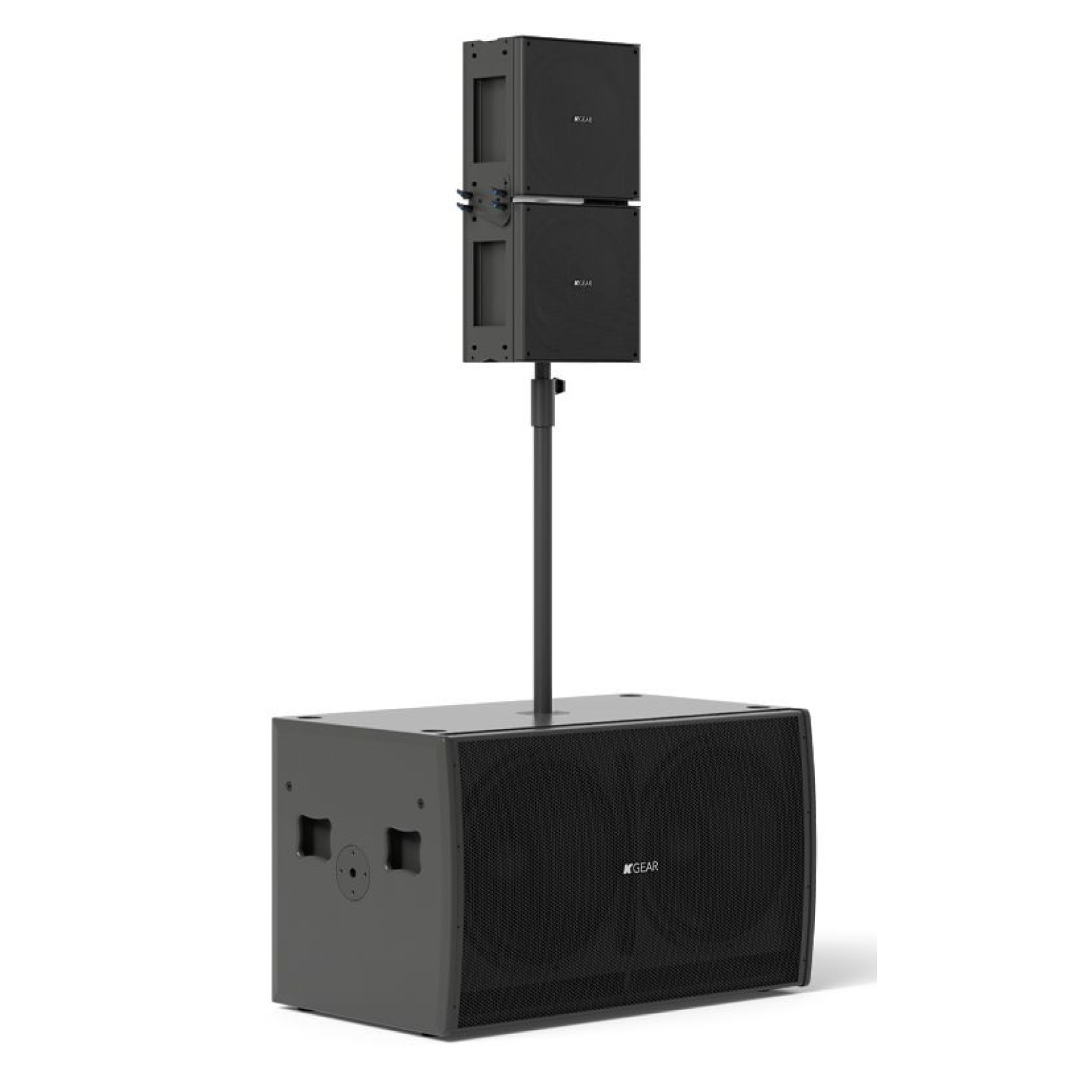

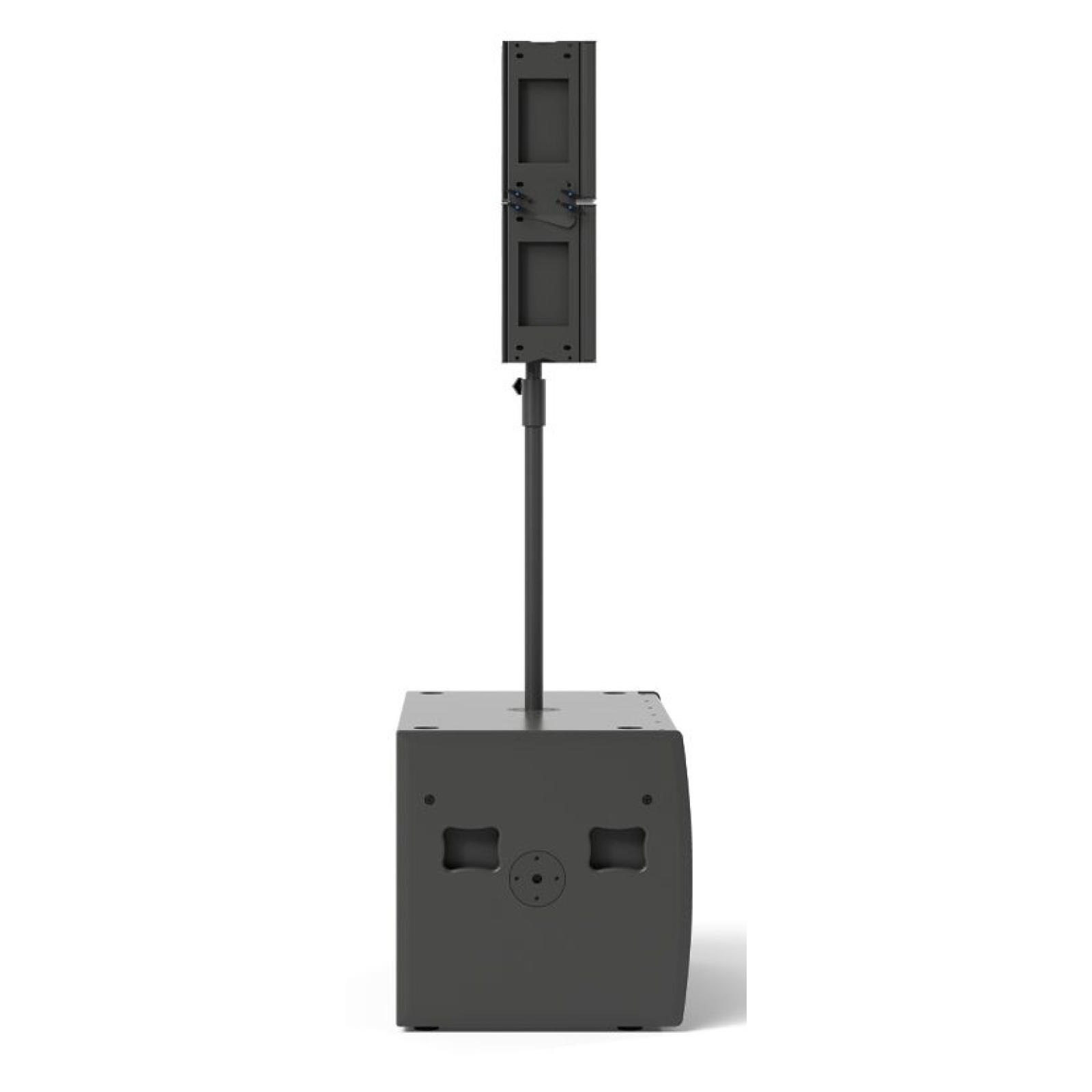

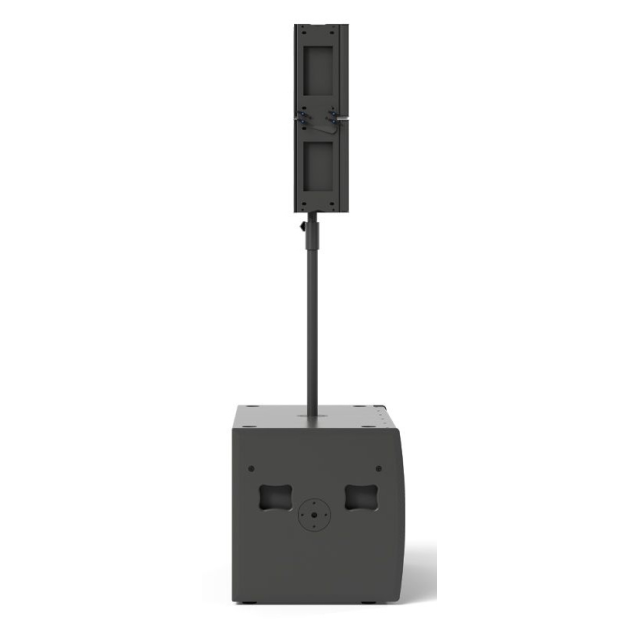

Download product sheetGPZ is a powerful and versatile passive audio system that combines a 2x18” powered subwoofer with 2 GH12 12” passive coaxial satellites featuring K-array™ SAT® (Slim Array Technology) and a stainless steel cabinet. This high-performance system can be driven by GPZA active system in a stereo configuration or by an external GA46 power amplifier.
Thanks to its i... Read more
GPZ is a powerful and versatile passive audio system that combines a 2x18” powered subwoofer with 2 GH12 12” passive coaxial satellites featuring K-array™ SAT® (Slim Array Technology) and a stainless steel cabinet. This high-performance system can be driven by GPZA active system in a stereo configuration or by an external GA46 power amplifier.
Thanks to its impressive overall performance and the compact format of the satellites, GPZ is perfect for high-quality sound in a variety of settings, from large auditoriums, stadia, and theme parks to clubs, pubs, and other indoor/outdoor venues. Whether for rental or permanent installation, this system delivers exceptional sound quality and durability.
This passive system can also be combine with the active model (GPZA), whether it's for stereo configurations or to extend the satellite cluster and form an array.
Product downloads
Highlights
Maximum directional precision and intelligibility thanks to K-array™ SAT® technology

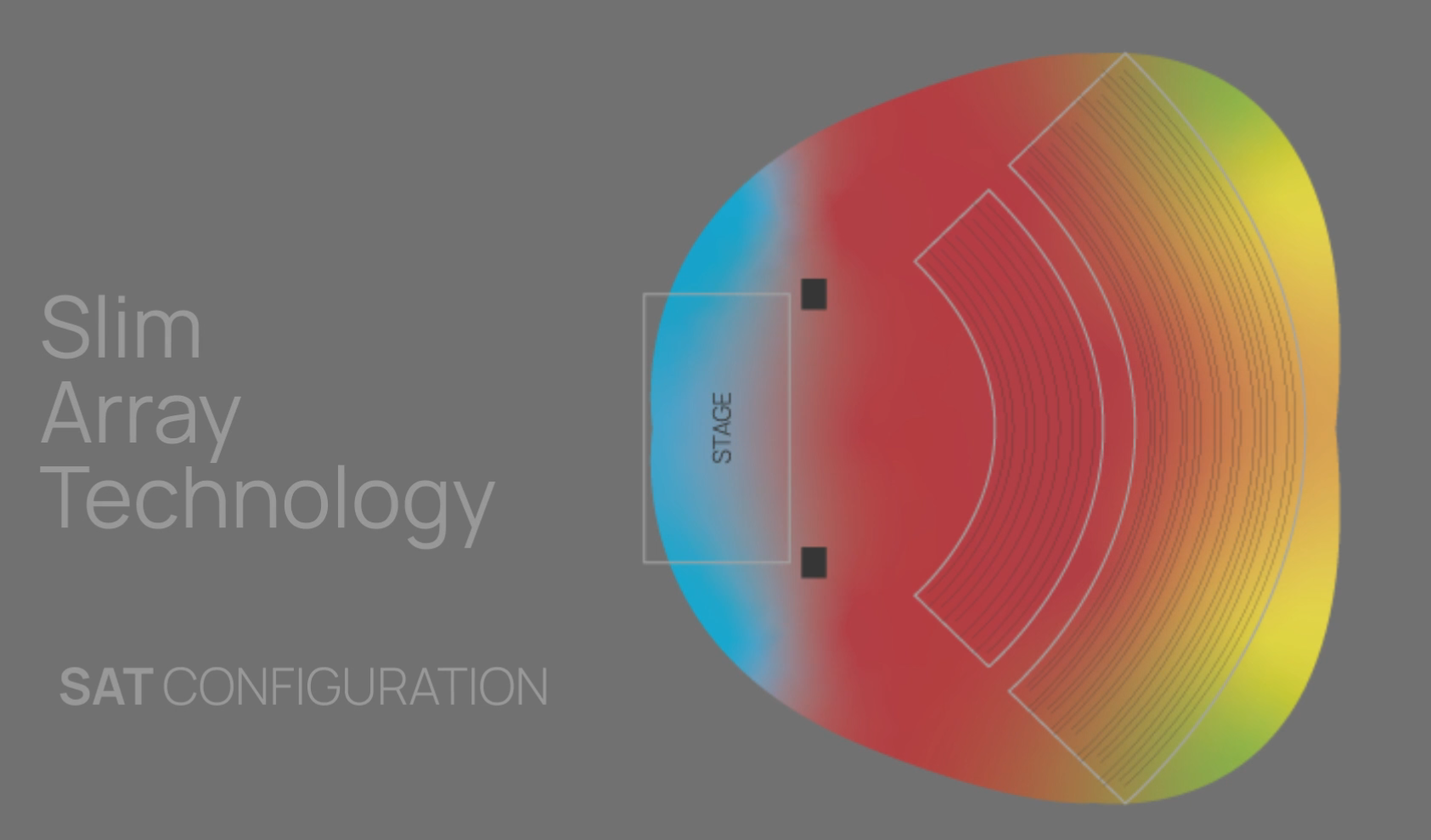

SAT® (Slim Array Technology) combines high sound pressure and phase coherence in a slim cabinet, ensuring powerful acoustic performance with precise long-range projection. The result is a lightweight yet high-efficiency system, perfect for professional applications that demand discreet design and superior sound quality.
Resistant and versatile (SAT IP54, SUB IP43)
Product details
Key features
- Powerful and versatile passive audio system designed to deliver high audio performance in various applications while maintaining flexibility of use in both mobile and fixed configurations.
- Subwoofer (3000W power) with two 18-inch cones for deep, immersive bass.
- Two passive “GH12” satellites with 12-inch coaxial drivers each for clarity and detail in the mid-high frequencies.
- K-array Slim Array technology that enables wide and uniform sound coverage from compact and slim speakers, improving aesthetic and acoustic integration.
- Ideal for both indoor and outdoor environments, for fixed or mobile applications.
- Using the GPZA active model, stereo systems can be created or the number of satellites can be extended to form arrays, optimizing cost and sound coverage.
Specifications
-
TypePowered 2x18” sub + 2x12” Slim Array Elements
-
TransducersSUB
-
Frequency Response30Hz – 20KHz (-6dB average)
-
Max SPL137 dB
-
Rated PowerSUB
-
CoverageV.30° - H.90°
-

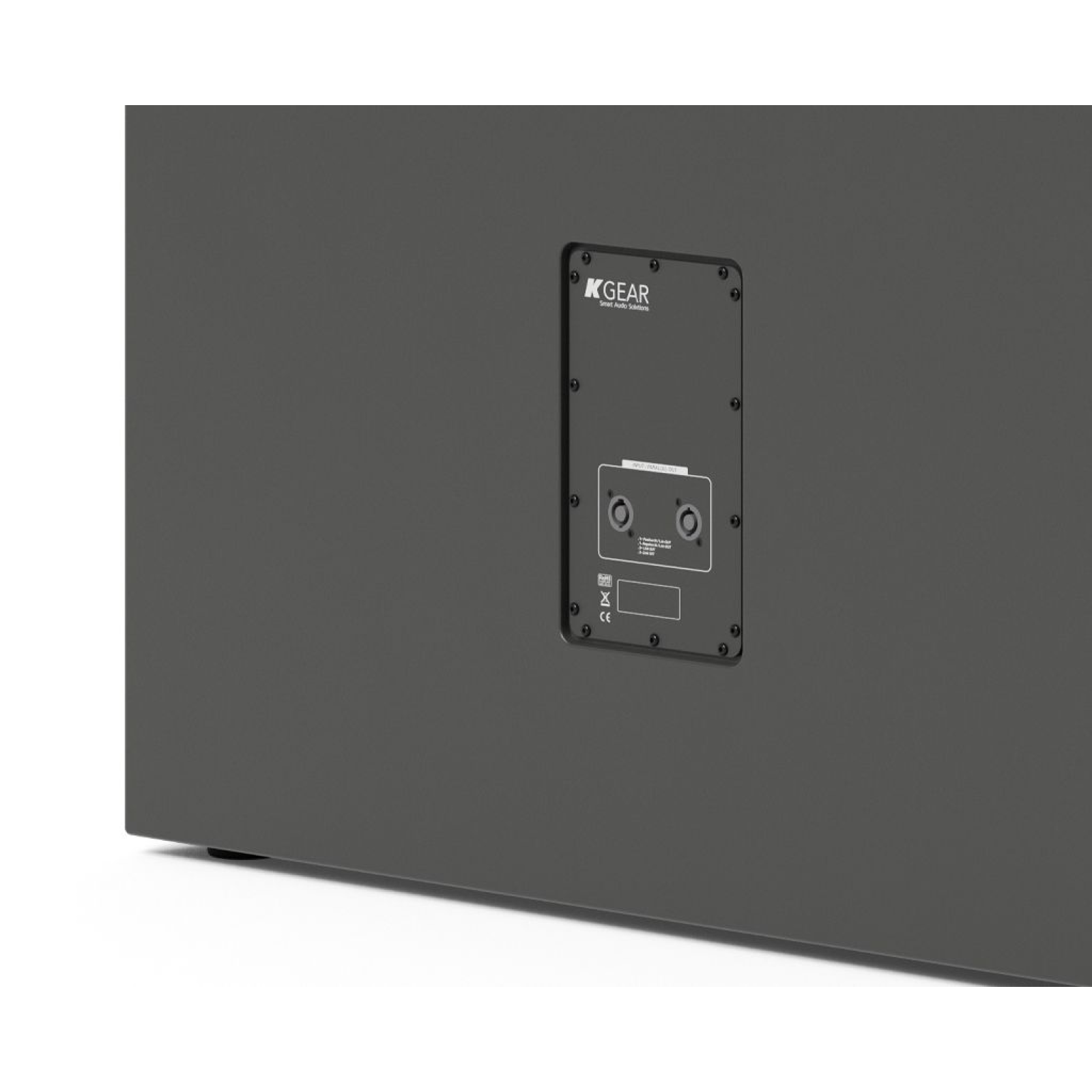

Connectors2x Speakon NL4
-
Nominal ImpedanceSUB
-
Dimensions (W x H x D)1035x2040x600 mm (40.75x80.31x23.6 in)
-
Weight89kg (199.21lbs)
-
MaterialSUB
-
ColorsBlack
-
IP RatingSUB
- More Less
