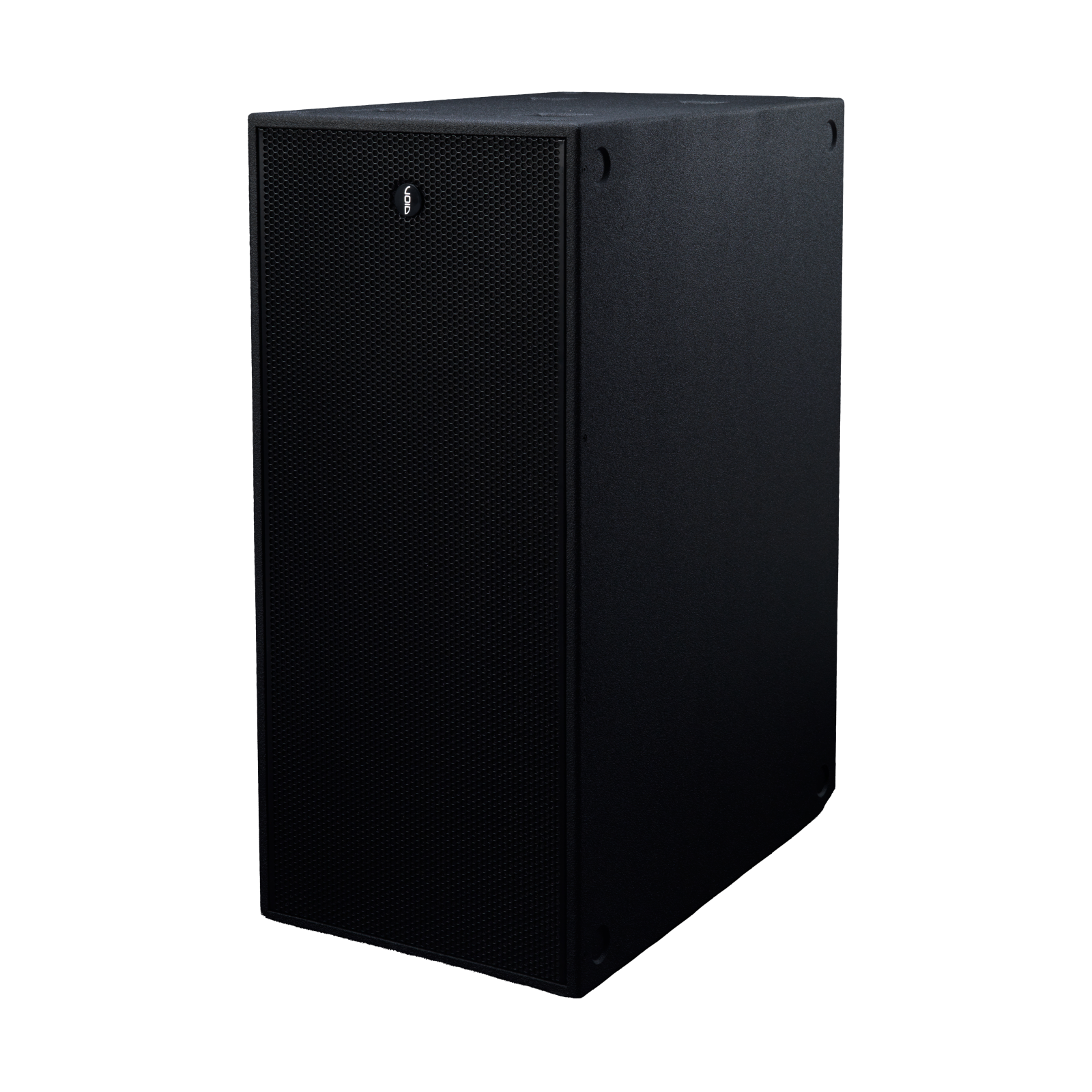

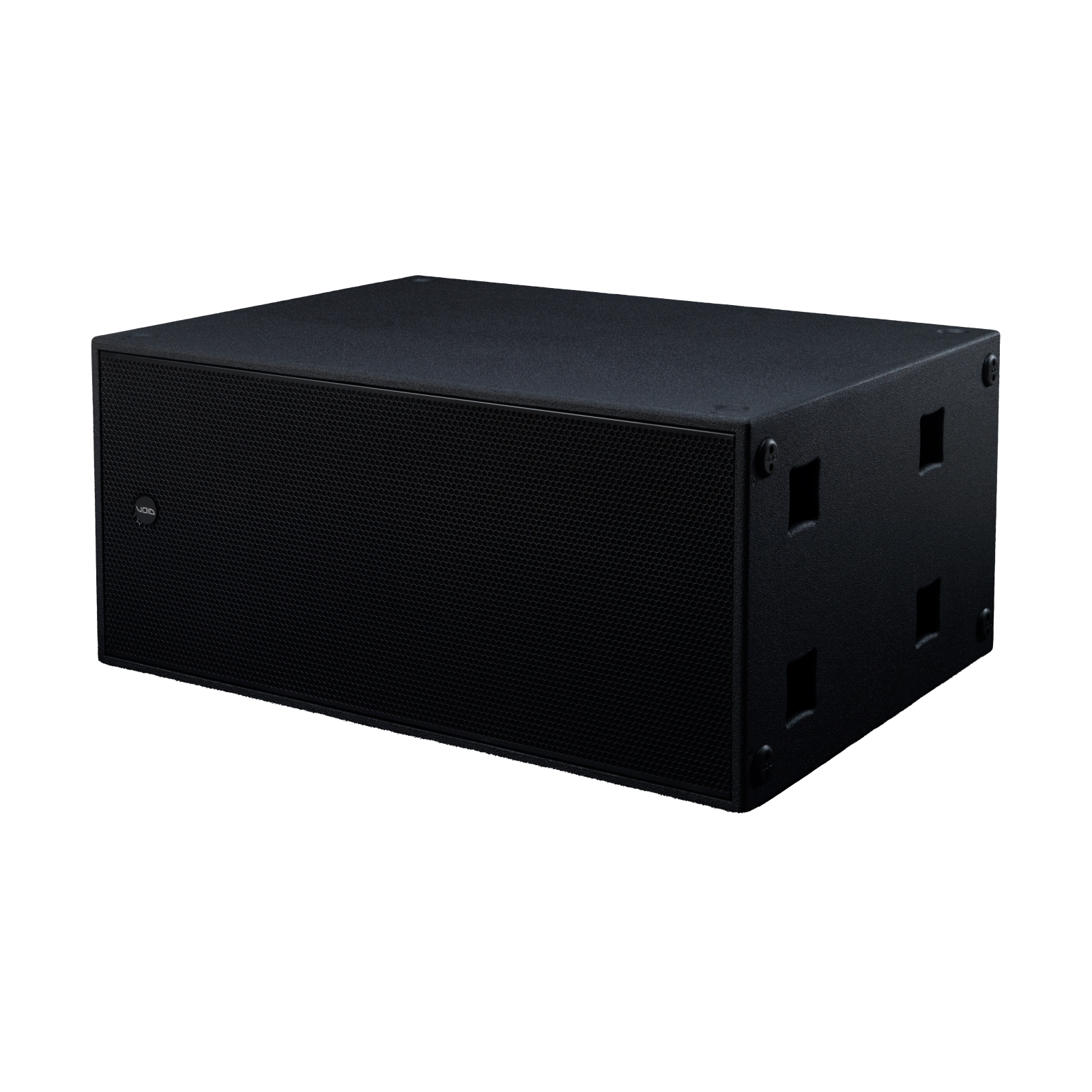

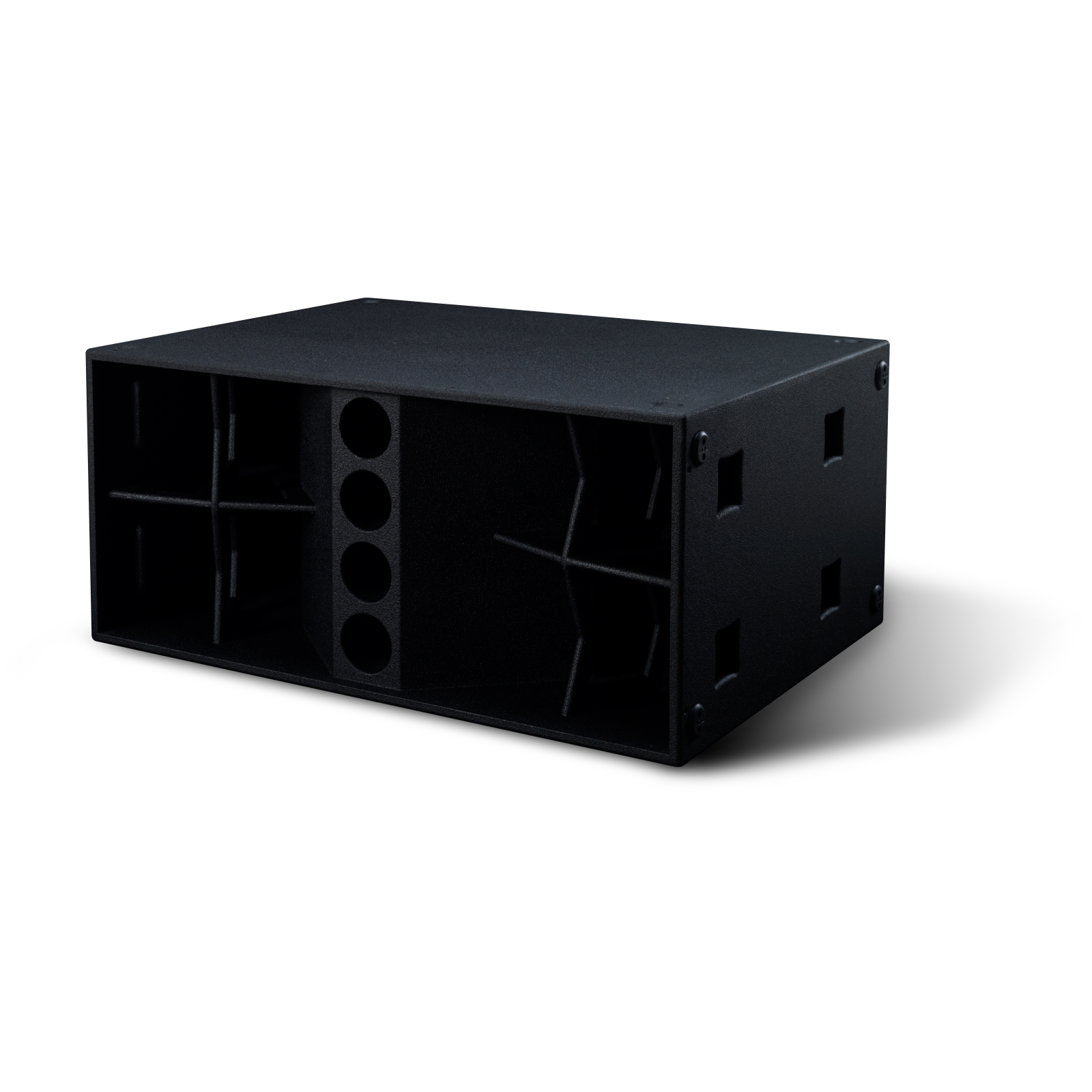

STASYS XV2 Dual 18” horn-loaded subwoofer – 3200 W AES – 4 Ohm

Download product sheet

The Stasys XV2 is a dual 18” horn-loaded subwoofer built for high-impact, large-scale touring environments, delivering exceptional low-end extension and control. Through a complete redesign of its internal resonant chambers, airflow is optimized to achieve highly efficient passive cooling, eliminating the need for external heatsinks and minimizing power compre... Read more

The Stasys XV2 is a dual 18” horn-loaded subwoofer built for high-impact, large-scale touring environments, delivering exceptional low-end extension and control. Through a complete redesign of its internal resonant chambers, airflow is optimized to achieve highly efficient passive cooling, eliminating the need for external heatsinks and minimizing power compression.

This internal refinement also enhances transient response, phase alignment, and timing accuracy, offering greater predictability and uniform output when arrayed in demanding live applications. The cabinet is made from 18 mm birch plywood with a tough TourCoat finish, and features eight integrated handles and truck pack-friendly dimensions for efficient logistics on the road.

Collapse text

Product downloads

Media

Media

Highlights

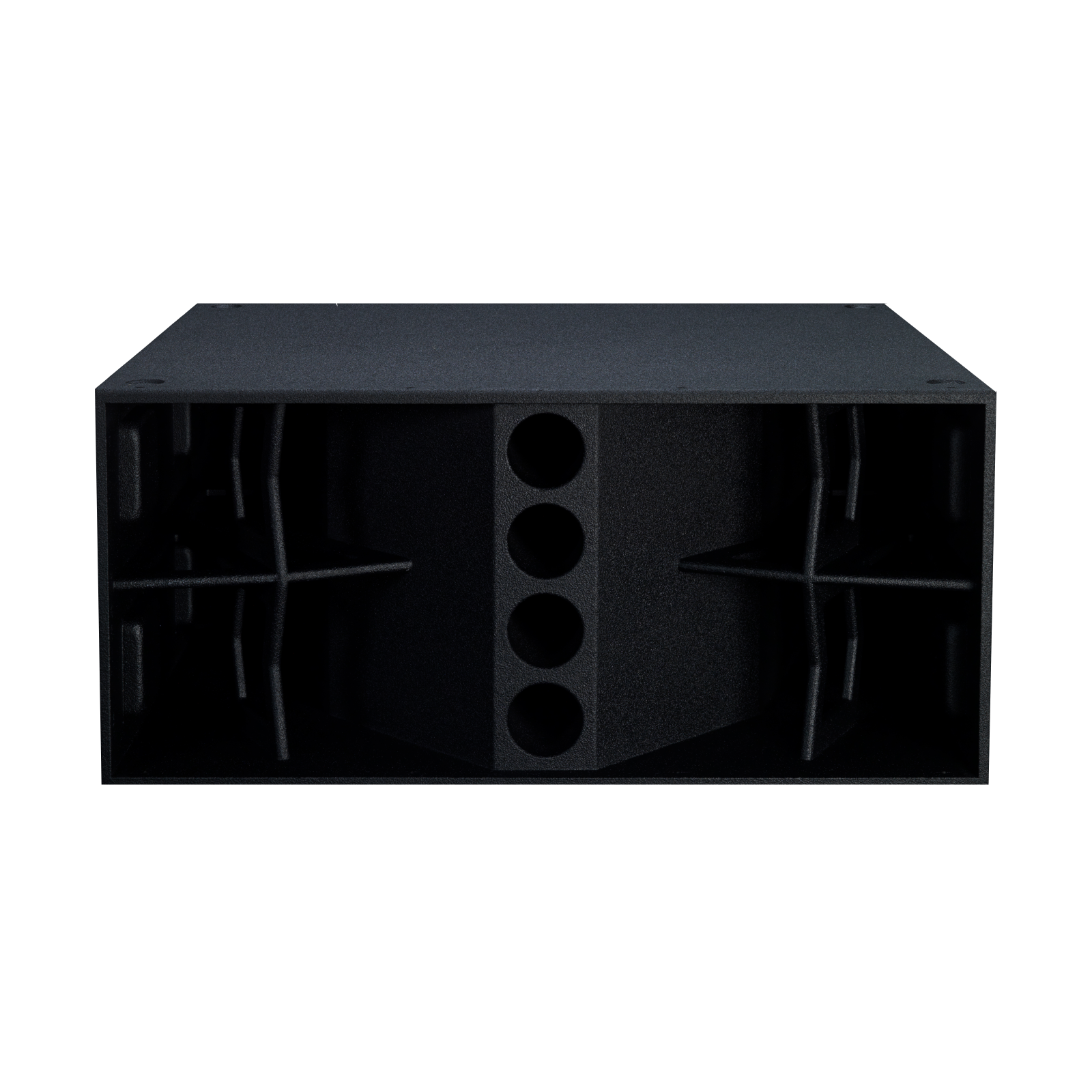

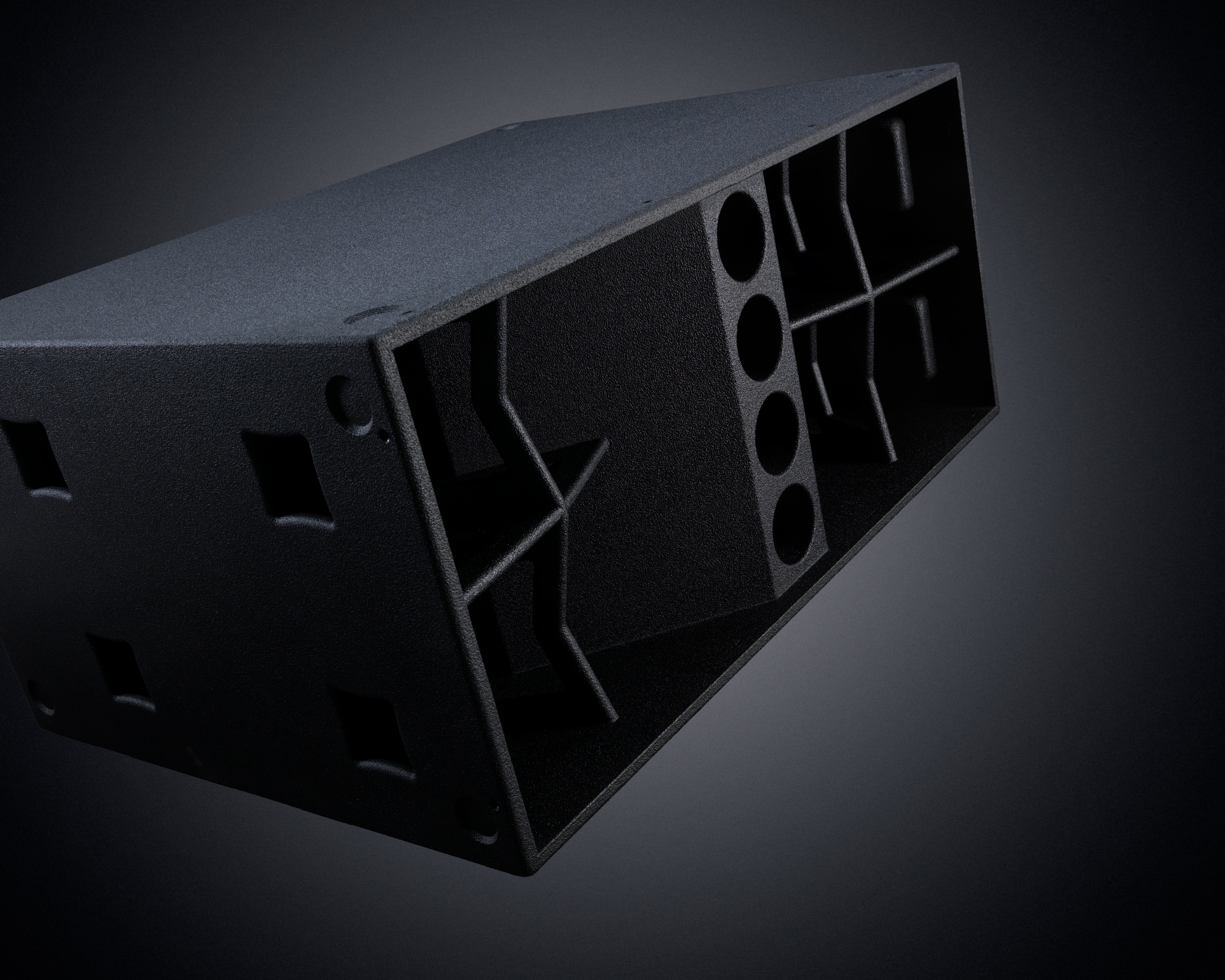

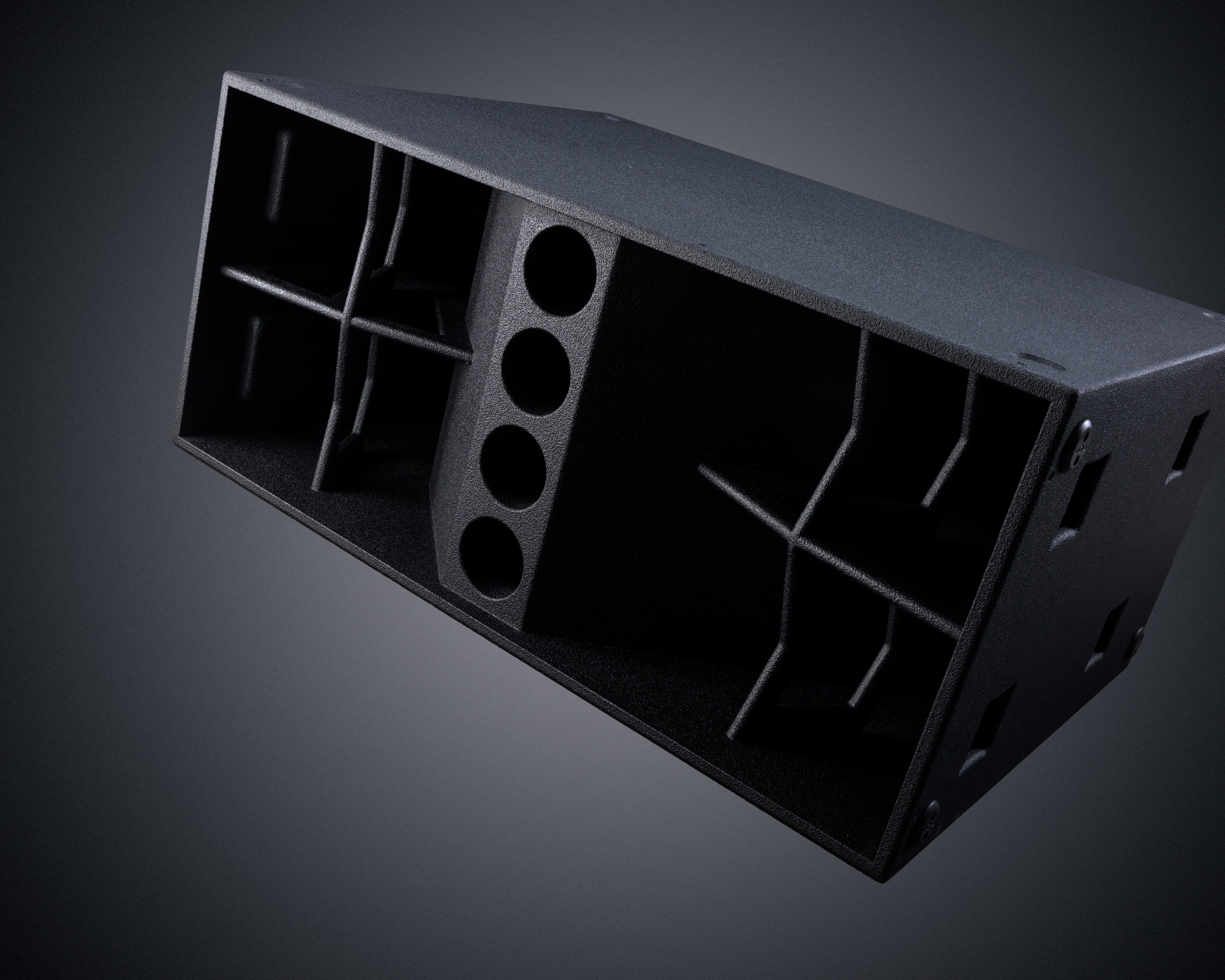

Optimized resonant chamber configuration

The reconfigured resonant chambers optimise airflow, enabling highly efficient natural cooling that removes the need for external heatsinks and minimises power compression. This update also enhances transient response, phase consistency, and timing uniformity, making the system more stable and predictable in any setup.

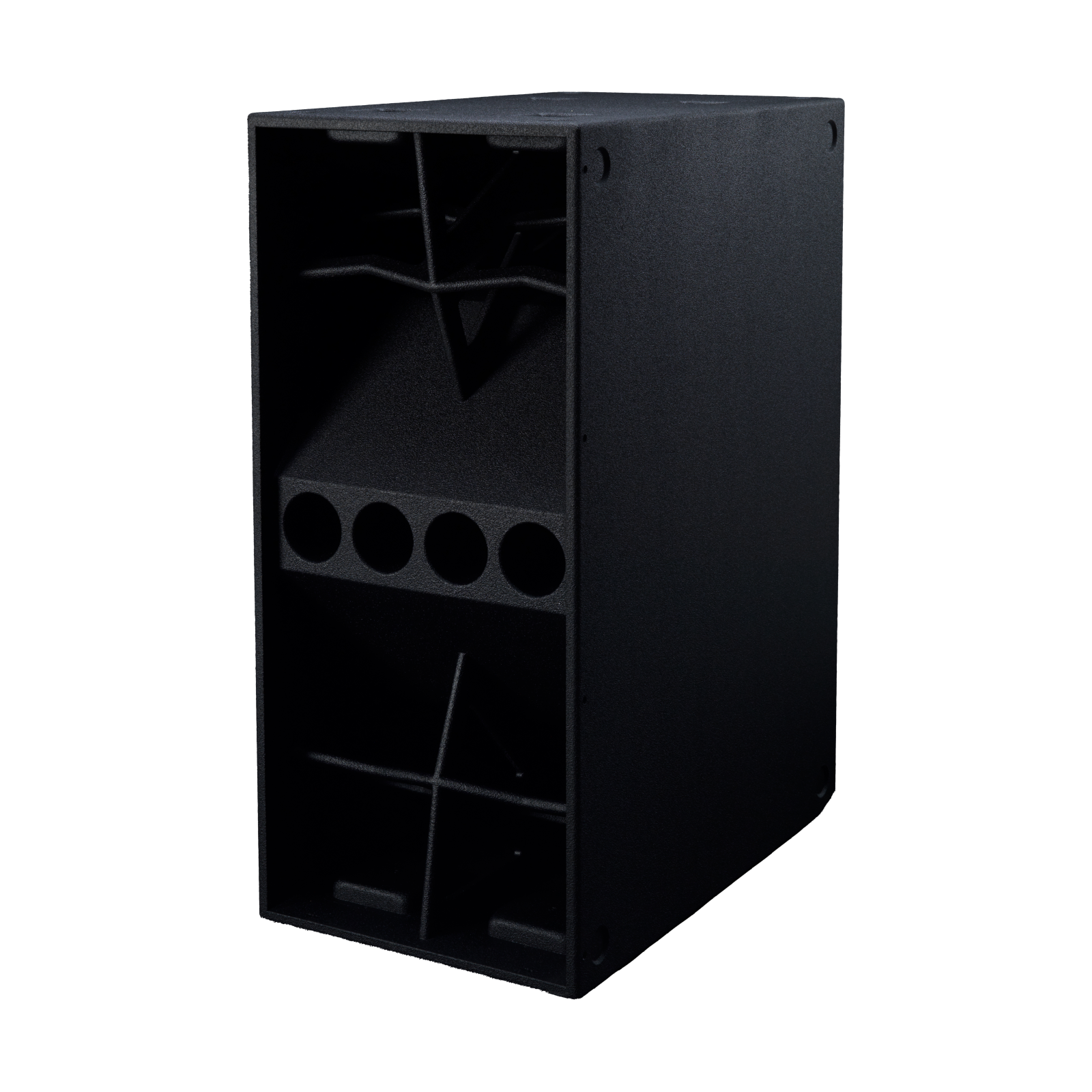

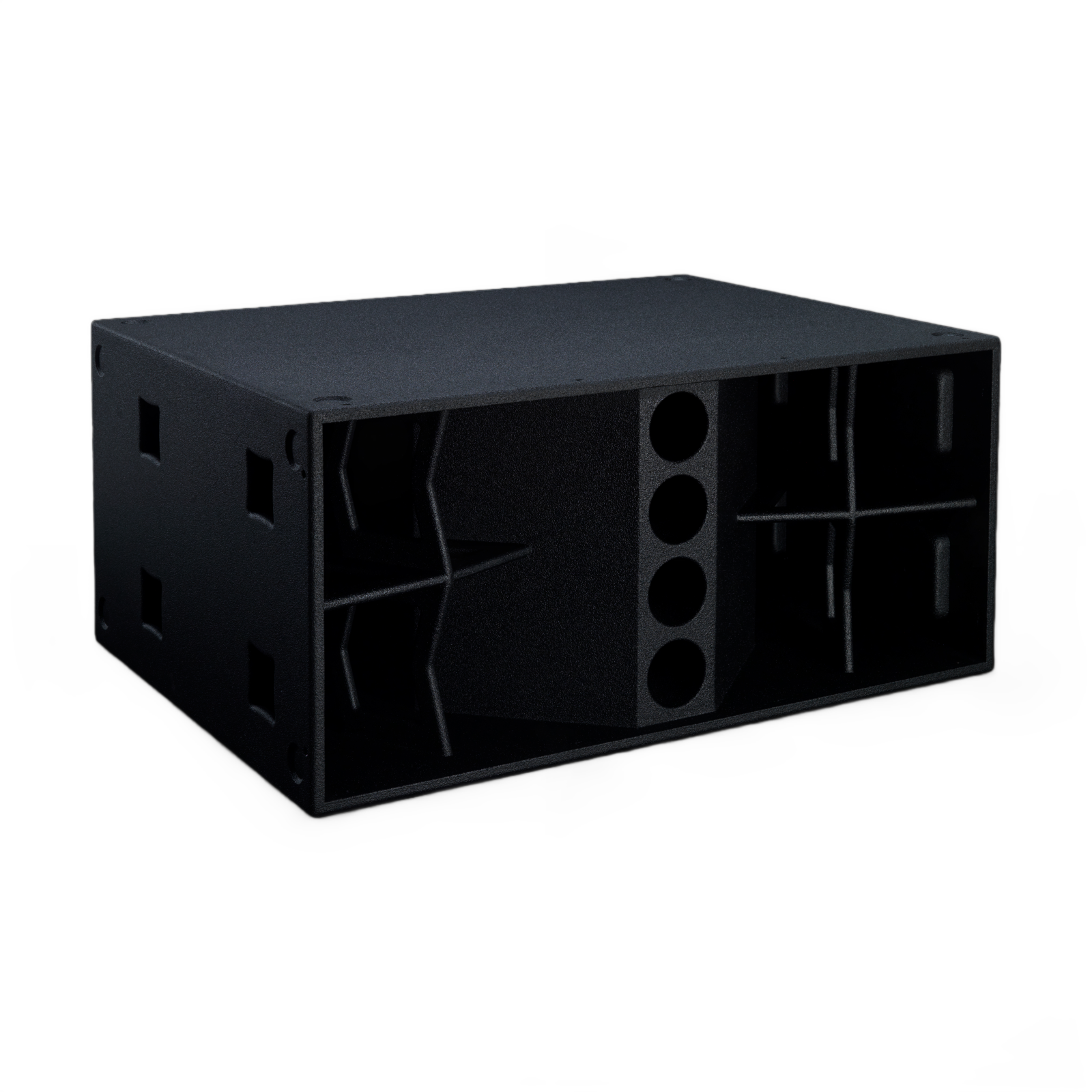

Horn loading with dual 18” transducers

Designed to deliver extremely powerful and articulated sound output, capable of covering large surfaces with precise and deep low-frequency extension. This system guarantees high energy efficiency and a rapid dynamic response, ideal for high-impact sound applications and large spaces.

Product details

Key features

  • Very high acoustic efficiency (103.8 dB 1W/1m) with maximum SPL up to 144 dB
  • Durable 18 mm birch plywood enclosure with TourCoat finish, ideal for heavy-duty touring use
  • Array-friendly response and predictable behaviour, ideal for large system configurations
  • Eight ergonomic handles, allowing efficient and safe manual handling

Specifications

  • Frequency response
    30 Hz - 180 Hz ±3 dB
  • Efficiency
    103.8 dB 1W/1m
  • Crossover points
    38 Hz Hi Pass 24 dB/oct, 100 Hz - 145 Hz Lo Pass 24 dB/oct
  • Nominal impedance
    4 Ω
  • Power handling
    3200 W AES
  • Maximum output
    138 dB cont, 144 dB peak
  • Driver configuration
    2x 18” LF
  • Dispersion
    Array dependent
  • Connectors

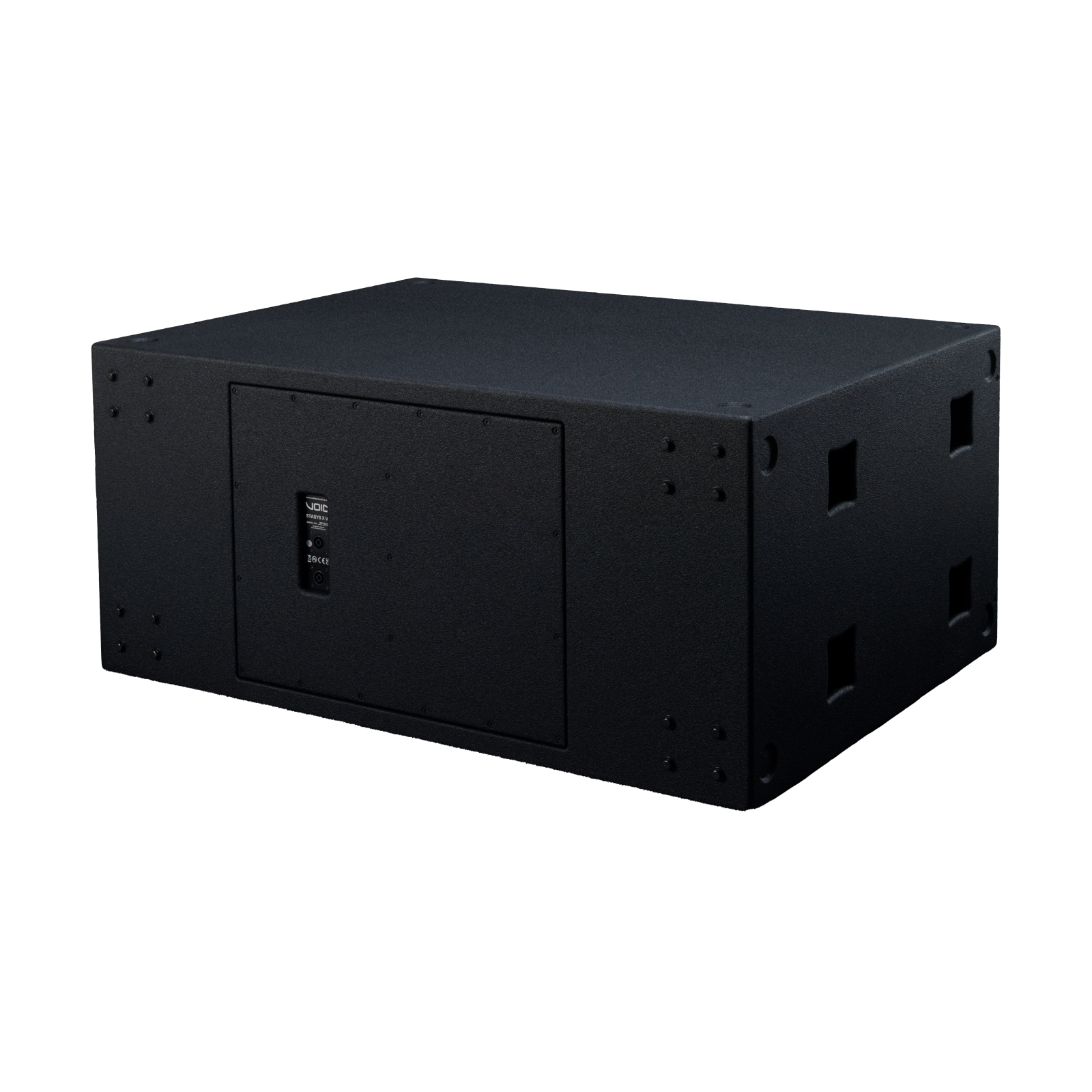

    2x 4-pole speakON™ NL4
  • Weight
    130 kg (286.6 lbs)
  • Dimensions (W x H x D)
    1218mm x 562mm x 896mm
  • Enclosure
    18 mm birch plywood
  • Finish
    Textured ‘TourCoat’ polyurea
  • Grille
    Perforated steel with foam filter
  • Colors
    Black
