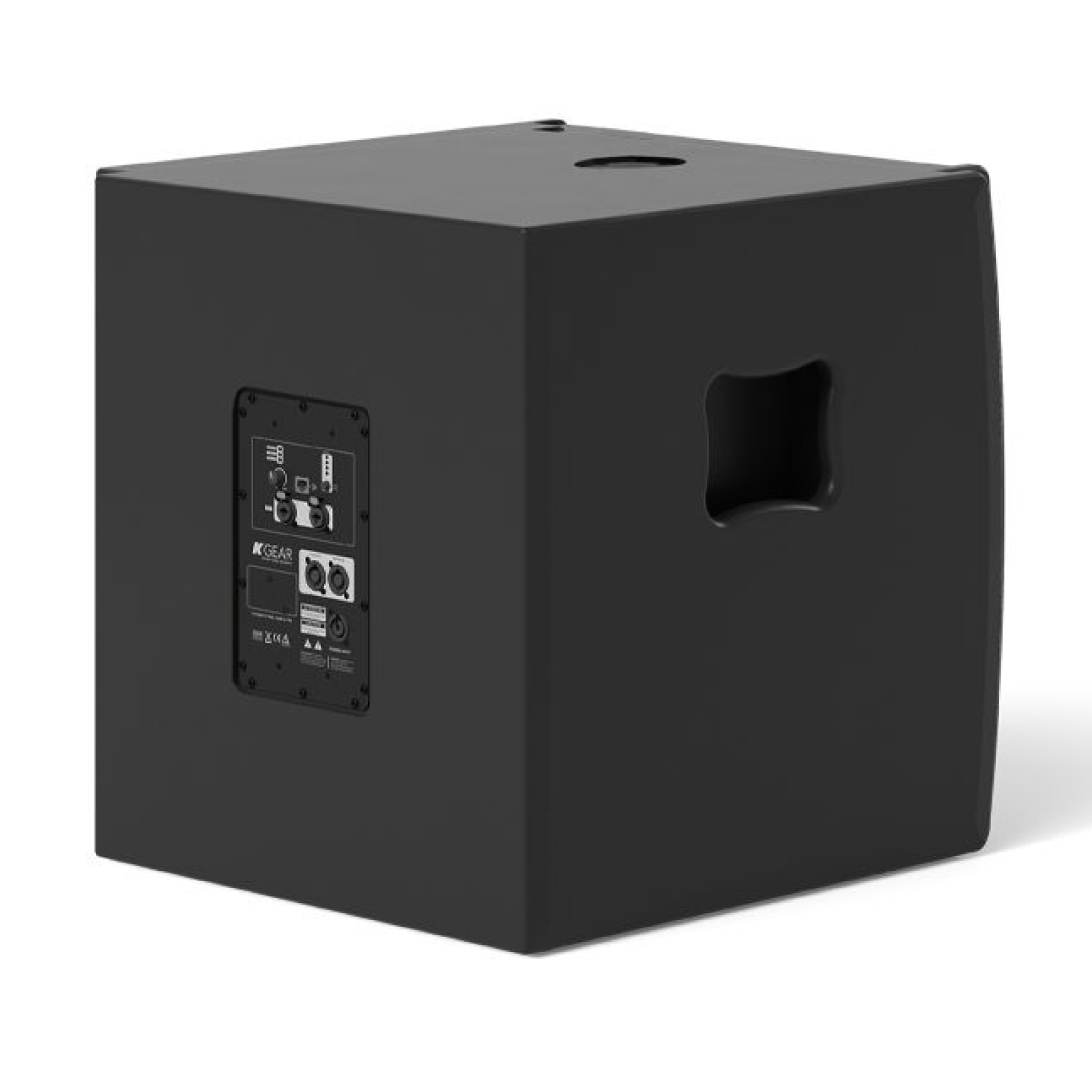

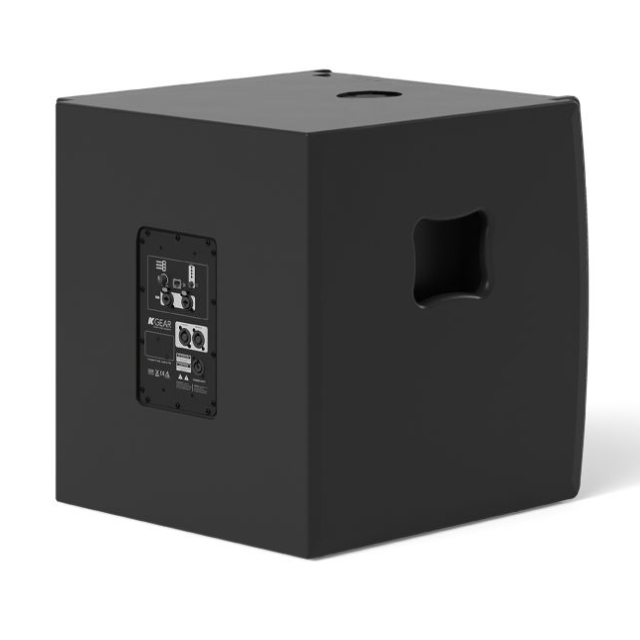

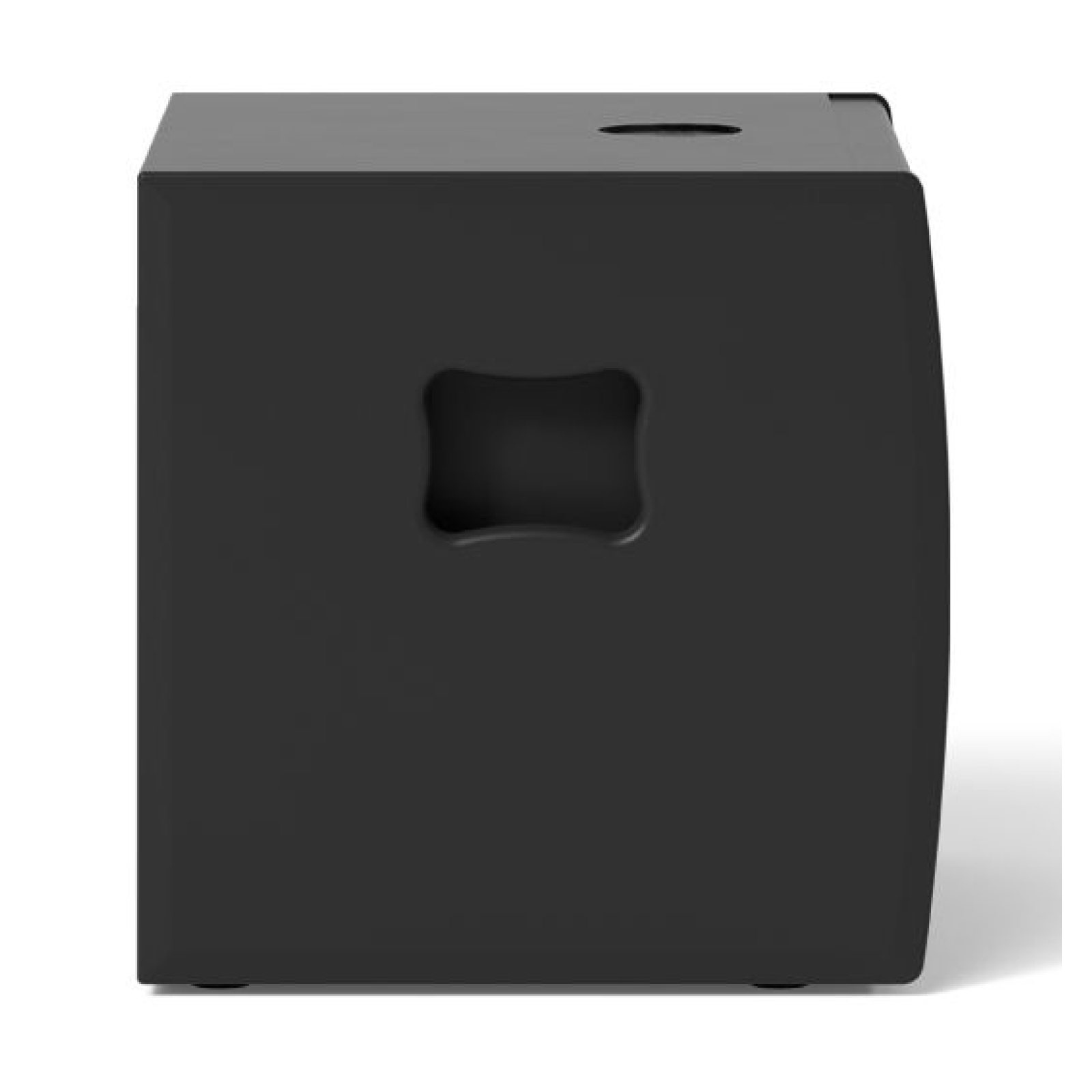

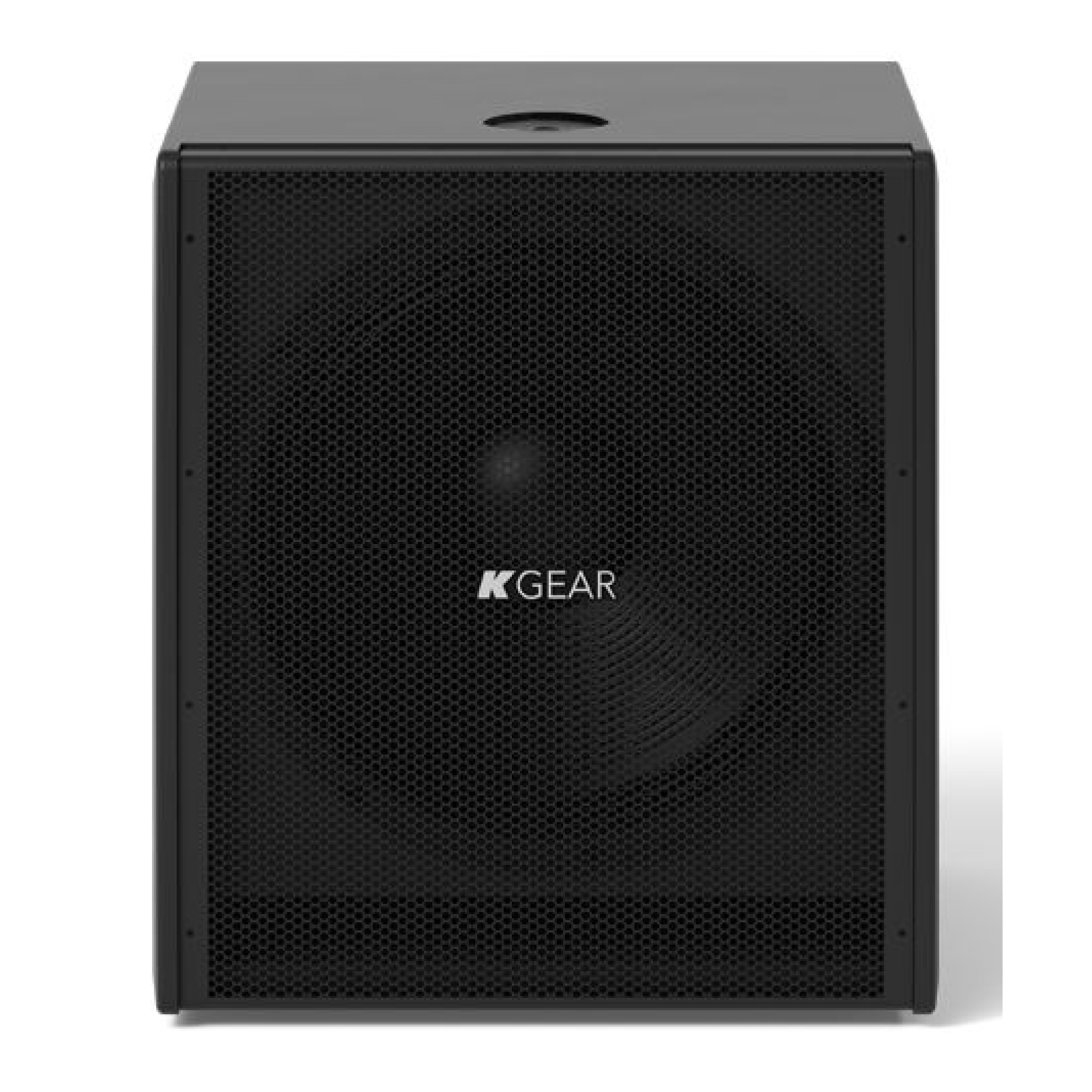

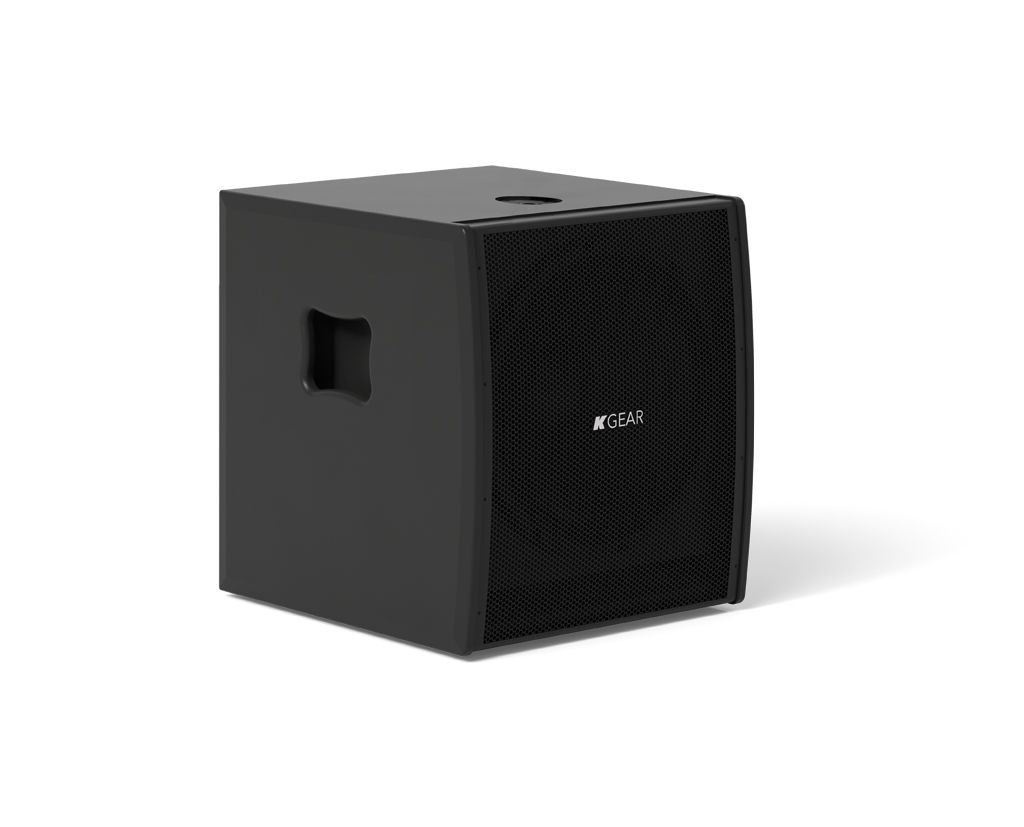

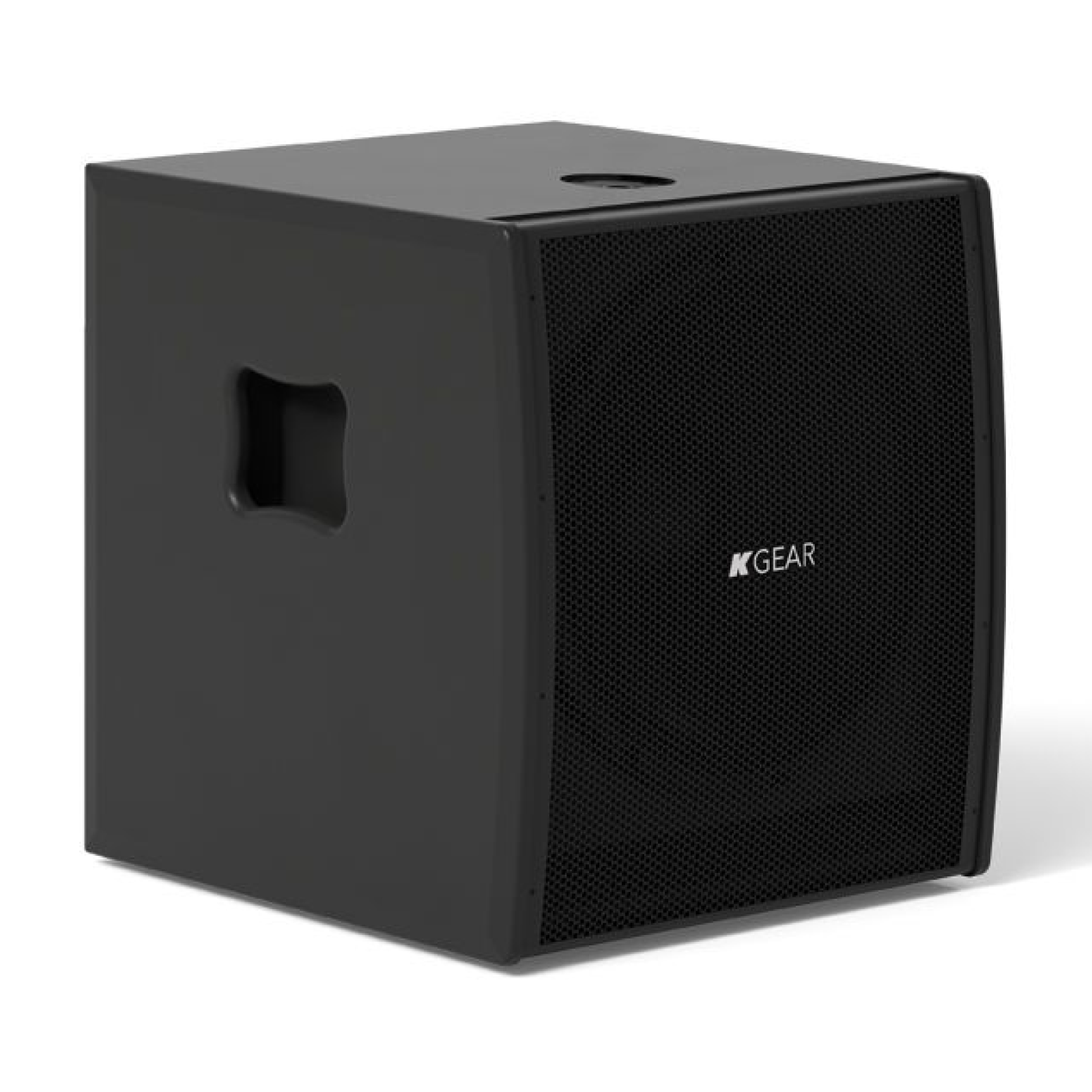

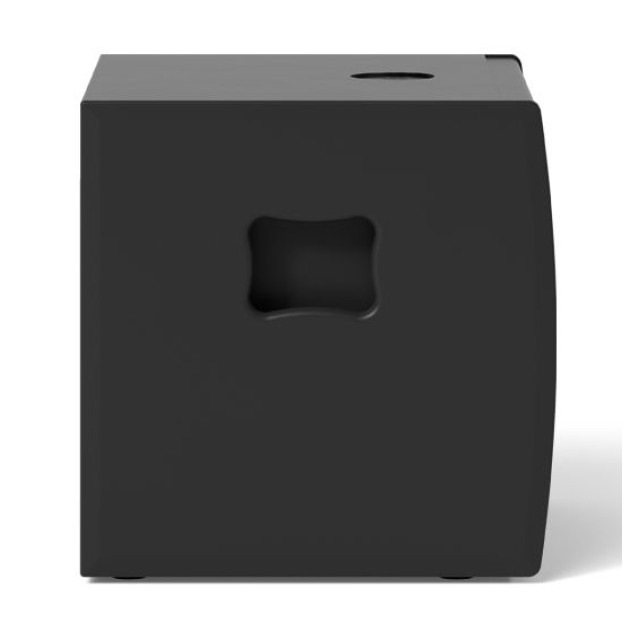

GS12A 12" class-D compact high-performance active subwoofer

Download product sheet

The GS12A is a 12" powered subwoofer designed to deliver deep, high-quality bass in a compact yet powerful package. Its compact size makes it the perfect choice for small to medium-sized environments, such as clubs, bars, restaurants, houses of worship, events, and private studios.

Exceptional Performance in a Small Footprint

Don’t be deceived by its size: t... Read more

The GS12A is a 12" powered subwoofer designed to deliver deep, high-quality bass in a compact yet powerful package. Its compact size makes it the perfect choice for small to medium-sized environments, such as clubs, bars, restaurants, houses of worship, events, and private studios.

Exceptional Performance in a Small Footprint

Don’t be deceived by its size: the GS12A offers an extended frequency response (down to 37 Hz) and a maximum SPL of 122 dB. Its power and versatility make it ideal for confined spaces, delivering high-quality sound performance that meets the needs of those seeking a powerful subwoofer with minimal footprint.

Advanced Technology for Outstanding Sound

The GS12A is equipped with a 4-channel Class-D amplifier and a Powersoft™ DSP module, offering precise and optimized sound management. With Ethernet connectivity and Armonía™ control software, you can easily monitor and adjust the system settings for optimal performance. It pairs perfectly with KGEAR speakers like GH4, GF82, or the passive GS12, enhancing their low-frequency output for a comprehensive, powerful audio system.

Seamless Integration with KGEAR Systems

Easily connect to your KGEAR speakers and amplifiers with the SpeakON and RJ45 connectors on the GS12A. Designed for maximum flexibility in any setup, it ensures perfect integration with other KGEAR products. This powered subwoofer extends the low frequencies of any audio system, enhancing the overall sound experience.

Versatility and Compactness for Every Environment

Thanks to its compact design, robust birch plywood construction, and IP43 rating, the GS12A is perfect for both fixed and mobile installations in a wide range of professional environments. Its discreet aesthetic and controlled power make it an ideal choice for those seeking high performance without sacrificing space.

Collapse text

Product downloads

Highlights

Powersoft™ Integrated Amplifier with DSP and Remote Control

Thanks to the integrated Powersoft amplifier with DSP, the GS12A guarantees professional audio performance, maximum energy efficiency, advanced protections and the possibility of managing the entire system remotely with surgical precision, transforming it into a powerful and intelligent all-in-one solution.

A combination of power and compactness

The GS12A is all about effortless audio performance. Its design and powerful low-end make it an essential tool for audio pros who want clean, compact bass without complication.
Class-D
DSP

Product details

Key features

  • Powerful yet compact: Featuring a 12" woofer with ferrite magnet and 3.5" voice coil, the GS12A delivers deep, dynamic bass in a surprisingly compact and robust birch plywood cabinet.
  • Professional connectivity: Equipped with XLR/jack combo inputs, SpeakON outputs and an RJ45 port, the GS12A integrates easily into any audio system, offering total flexibility in fixed or mobile installations.
  • High sound pressure: with a maximum SPL of 122 dB, GS12A is capable of providing sound in medium-small environments with powerful and clear output even at low frequencies.
  • Versatile and discreet design: the compact black cabinet with IP43 protection rating makes it suitable for installations in clubs, restaurants, houses of worship, events and studios, with a sober and professional aesthetic.

Specifications

  • Type
    active subwoofer
  • Frequency Response
    37Hz - 150Hz (-6dB)
  • Max SPL
    122 dB
  • Rated Power
    1200 W
  • Transducers
    12” ferrite magnet woofer
  • Connectors
    2x Combo jack-XLR female 1x RJ45 2x SpeakON
  • Nominal Impedance
    4 Ω
  • Amp Module
    4-channel Class-D audio amplifier
  • Output Power
    4x 750W @4Ω
  • Power Consumption
    375W Rated Load ¼ Max Power @8Ω
  • Protections
    Thermal protectios (power limiting - Thermal Shotdown Short-circuit/overload output, stationary high frequency protection peak limiter, RMS limiter, frequency dependent RMS limiter clip limiter
  • Operating Range
    100-240V AC, 50-60 Hz
  • Dimensions (W x H x D)
    410x445x430 mm (16.1x17.5x17 in)
  • Weight
    20 kg (44,09 lbs)
  • Material
    Birch Plywood
  • Colors
    Black
  • IP Rating
    IP43
  • Coverage
    Omni
  • More Less
