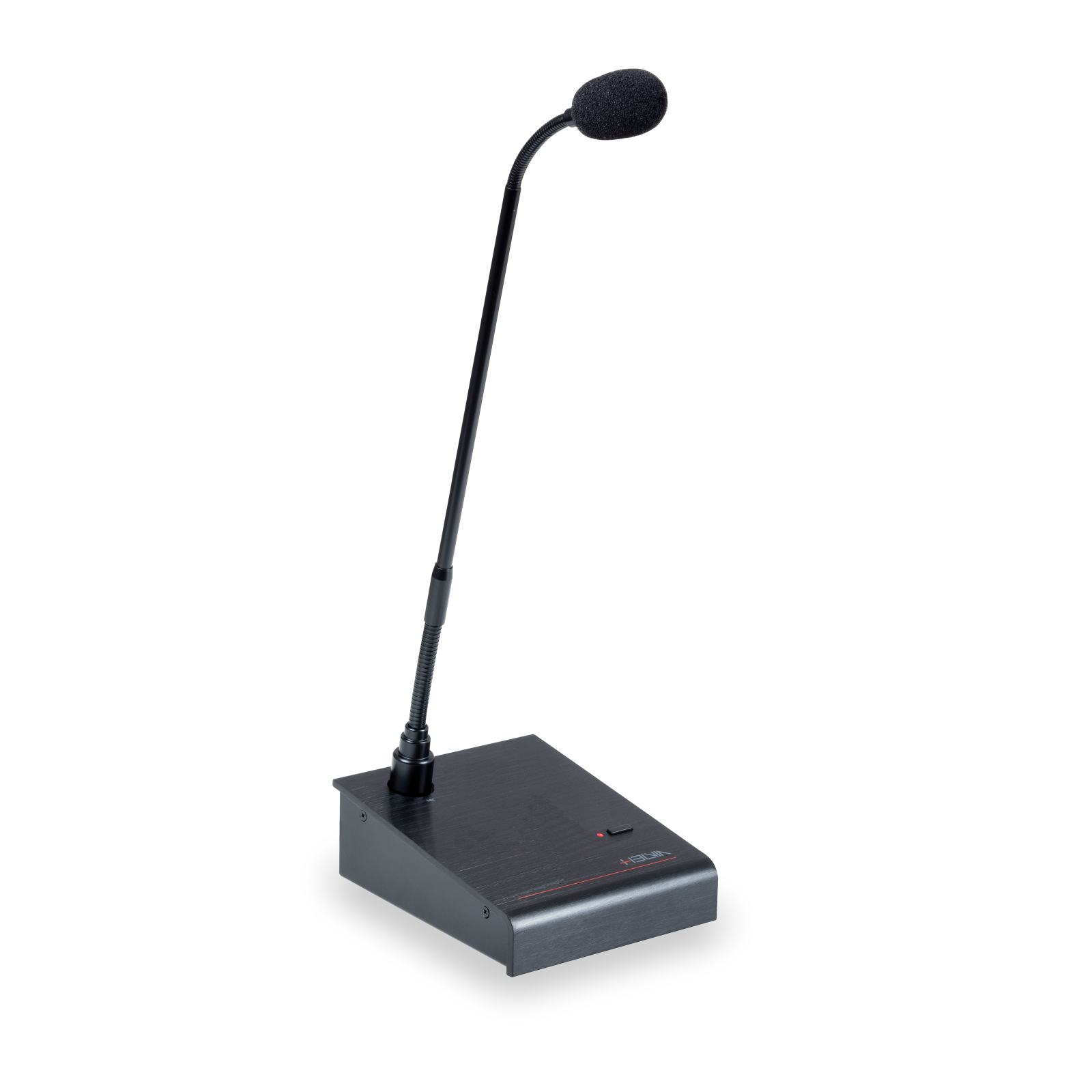

REPO-MIC Universal Microphone Base with Electret Gooseneck, Paging Button and 5-pin Phoenix Terminal
Download product sheetThe Repo-Mic is the ideal complement for all paging needs related to the use of any mixer-amplifier or any other equipment requiring a paging microphone with on/off contact. It is perfectly compatible with the HELVIA REPO series mixer-amplifiers.
The gooseneck microphone has a cardioid electret condenser capsule and requires 48V phantom power for polarizati... Read more
The Repo-Mic is the ideal complement for all paging needs related to the use of any mixer-amplifier or any other equipment requiring a paging microphone with on/off contact. It is perfectly compatible with the HELVIA REPO series mixer-amplifiers.
The gooseneck microphone has a cardioid electret condenser capsule and requires 48V phantom power for polarization (received directly from the audio terminals).

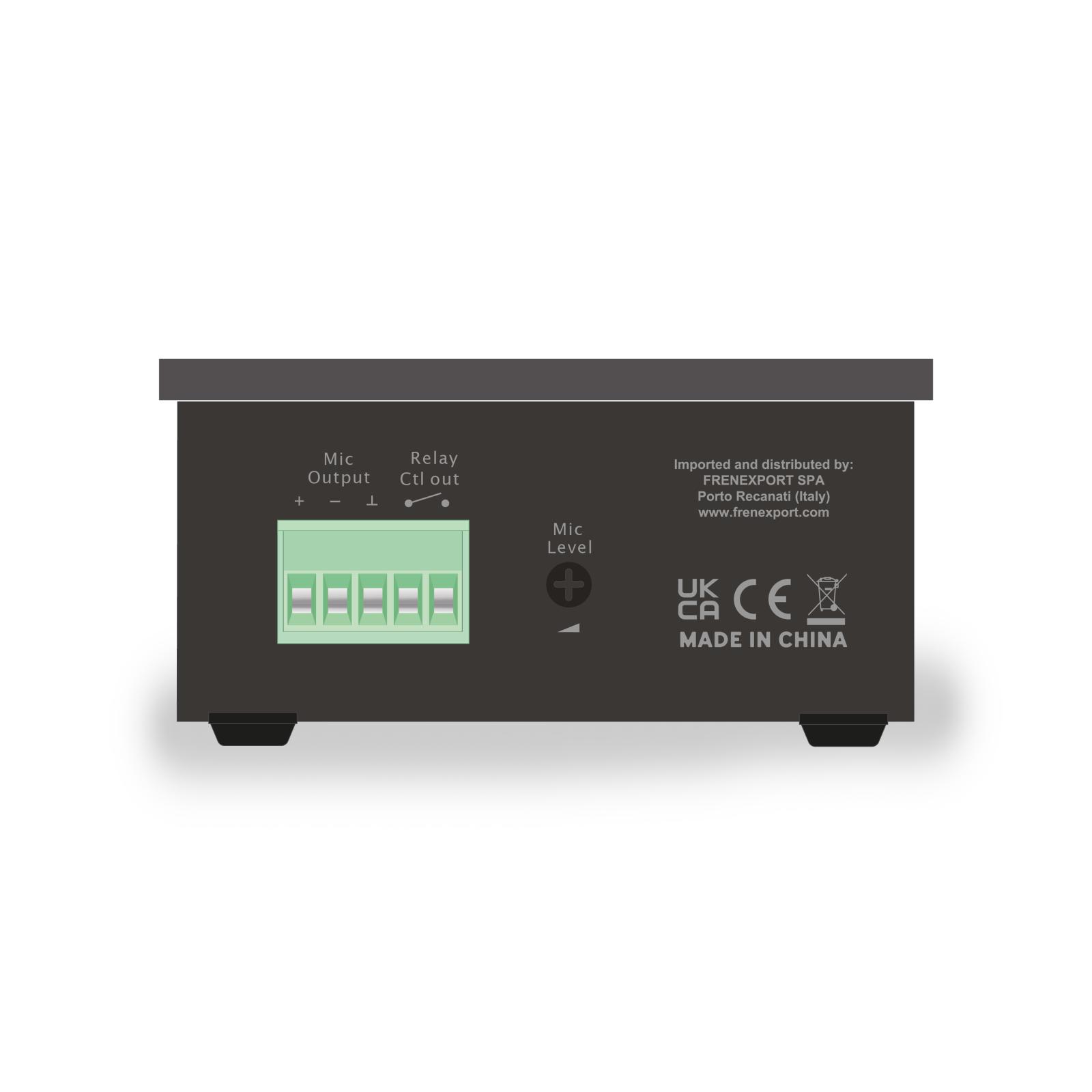

The microphone base is equipped with an on/off switch on top, and level control on the rear panel. The connection, via a 5-pin Phoenix terminal, includes both the microphone signal contacts (hot, cold, and ground) and the two on/off switch contacts.
The Repo Mic can not only be used on the HELVIA REPO 240A / 350A mixer-amplifiers, but can be coupled to any installation audio equipment that accepts a microphone input signal, supplies 48V Phantom power and requires (but is not essential) an On/Off closure contact for paging.
Collapse textProduct downloads
Product details
Specifications
-
Compatible with REPO-240A and REPO-350A Mixer Amplifiers
-
CapsuleBack electret condenser
-
Polar PatternCardioid
-
Phantom Power+48V
-
ControlMic level, Page switch
-
Connectors5-pin Phoenix (Euroblock)
-
Frequency Response (-3dB)150Hz - 22kHz
-
Input Level Mic-46dBV
-
Input Impedance Mic600 Ohms
-
Output Level 10dBV
-
Output Impedance balanced600 Ohms
-
S/N Ratio-60dB
-
Product Size (WxDxH)100 x 141 x 445/52 mm (with Mic/without Mic) (3.94 x 5.55 x 17.52/2.05 in)
-
Product Weight566 g. (1.25 lbs.)
-
Packing Size (WxDxH)430 x 235 x 65 mm (16.93 x 9.25 x 2.56 in)
-
Packing Weight1.01 kg (2.23 lbs.)
