Void Acoustics

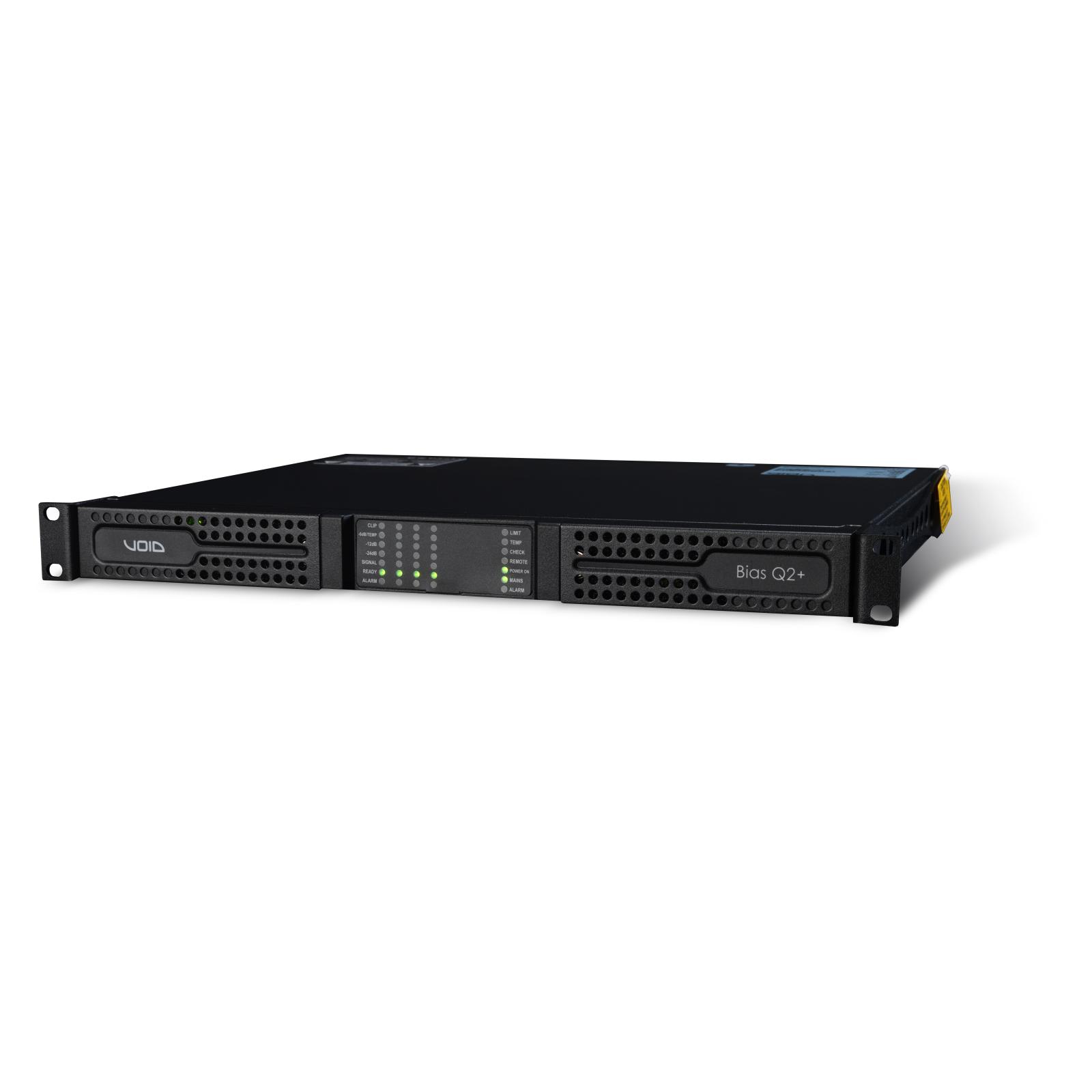

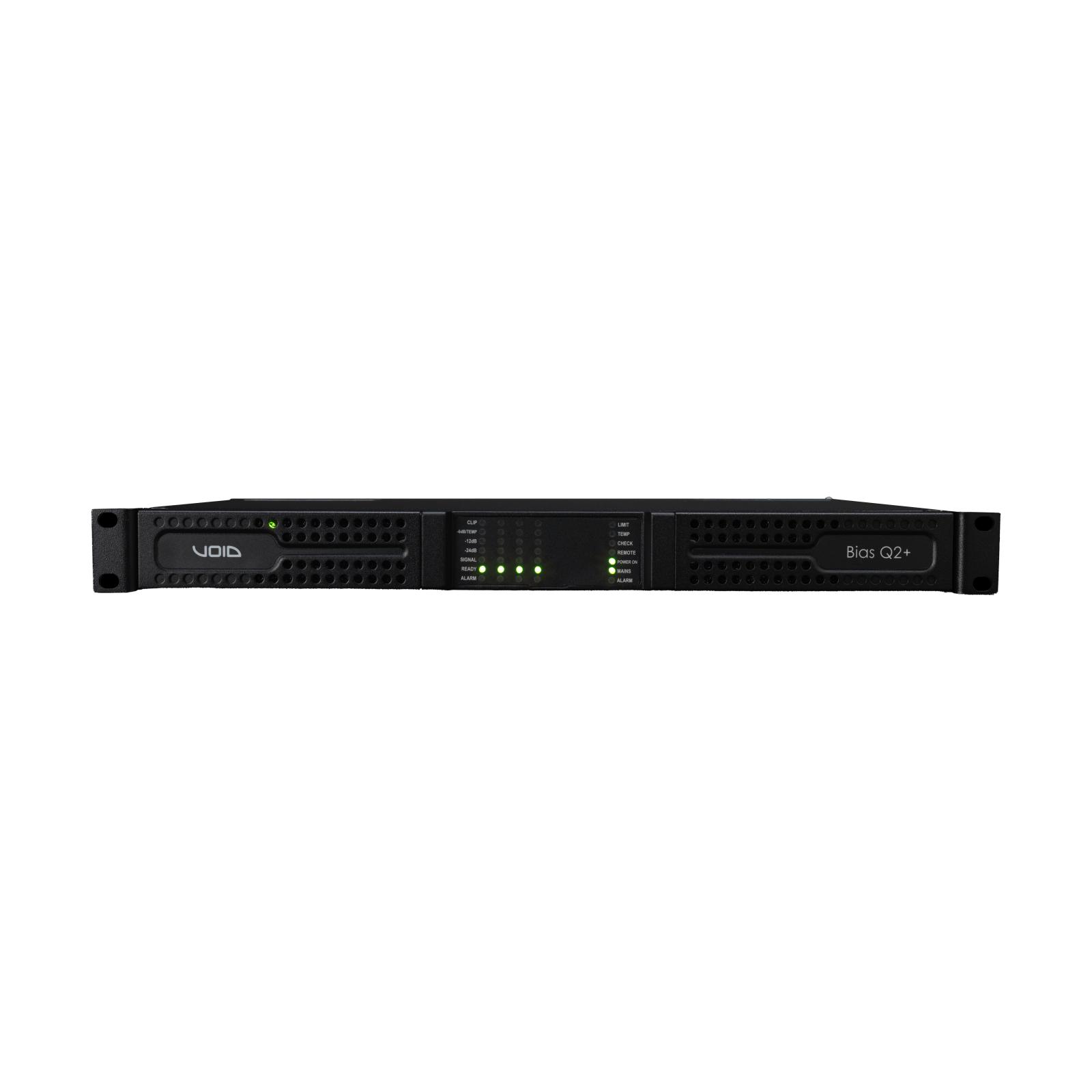

Q2+ 4-channel installation amplifier, 1500 W @ 2 Ω, integrated DSP

Download product sheet
Bias Q2 4-channel amplifier in a 1 RU format is designed to deliver reliable audio performance, energy efficiency, and installation flexibility, all within a lightweight and compact chassis. With a power output of 1500 W per channel at 2 Ω (up to 3000 W bridged at 4 Ω), it is ideal for fixed or mobile applications that demand high power density in a small foot... Read more
Bias Q2 4-channel amplifier in a 1 RU format is designed to deliver reliable audio performance, energy efficiency, and installation flexibility, all within a lightweight and compact chassis. With a power output of 1500 W per channel at 2 Ω (up to 3000 W bridged at 4 Ω), it is ideal for fixed or mobile applications that demand high power density in a small footprint. The high-efficiency power supply, controlled by a microprocessor and featuring Power Factor Correction (PFC), ensures stable operation across any mains voltage from 85 to 275 VAC, with peak tolerance up to 400 V. The SRM (Smart Rails Management) technology dynamically optimizes internal voltage delivery, resulting in lower power consumption, reduced heat dissipation, and optimal management under variable loads. The amplifier is compatible with both Lo-Z systems (from 2 Ω) and 70V/100V distributed lines, including mixed configurations. DSP+ versions integrate digital signal processing and AES67 audio networking, allowing flexible routing, advanced EQ, FIR filters, limiters, delays, and polarity management via dedicated software. Compact, powerful, and ready for seamless AV integration, this unit is a perfect solution for clubs, hotels, retail environments, hospitality venues, and public spaces. Collapse text

Buy this product online

Search Google Shopping

Product downloads

Media

Media

Void Acoustics: Amplifier Firmware Upgrade

Highlights

Advanced integrated DSP

The Bias Q2 integrates an advanced hardware DSP designed to provide precise, secure and fully customizable audio management.
The DSP+ version expands functionality with native support for the AES67 standard, enabling audio routing over IP networks and integration into complex digital systems. Everything is manageable in real time via ArmoníaPlus, for complete control over filters, limiters, signal and diagnostics, even remotely.

Versatile Application, Consistent Performance

Designed to work with lo-Z (from 2 Ω) and 70V/100V distributed lines, any mixed configuration of low and high impedance output loads is possible, making the Bias Q2 suitable for all applications in installed sound reinforcement systems.

Intelligent efficiency with SRM™ technology

The Bias Q2 incorporates Smart Rails Management™ technology, which adapts power draw in real time based on the load and audio signal. The result? Reduced power consumption, lower thermal dissipation, and maximum operating efficiency, even with UPS or limited power lines.

PFC (Power Factor Correction) for flawless worldwide operation

Highly efficient, microprocessor-controlled power supply with built in PFC (Power Factor Correction) for flawless worldwide operation with any AC mains voltage in the range 85-275 VAC tolerant to peak up to 400 V

    Intelligent variable speed ventilation

    Ventilation is controlled by internal temperature, with front-to-rear airflow for rack mounting.

    70V-100V Line
    DSP
    Eco Friendly
    Fan Controlled by Processor

    Product details

    Key features

    • High power for its size, with 4 channels of 1500 W into 2 Ω and up to 3000 W in bridge
    • Native compatibility with 70V and 100V lines, allowing use in high-impedance distributed systems without the need for external transformers.
    • Ultra-compact construction in 1U rack format, weighing only 7 kg, designed for discreet integration in fixed professional installations.
    • Presets optimized for Void speakers, ensuring maximum sound output and simplified integration into existing systems.

    Specifications

    • Number of channels
      4
    • Power rating
      1200 watts per channel @ 8 Ω, 1200 watts per channel @ 4 Ω, 1500 watts per channel @ 2 Ω | BRIDGE MODE
    • AD converters
      24 Bit Tandem™ @ 48 kHz 125 dB-A Dynamic Range - 0.005 % THD+N
    • DA converters
      24 Bit Tandem™ @ 48 kHz 117 dB-A Dynamic Range - 0.003 % THD+N
    • Sample rate converter
      24 Bit @ 44.1 kHz to 192 kHz 140 dB Dynamic Range - 0.0001 % THD+N
    • Internal precision
      32 bit floating point
    • Latency
      2.5 ms (fixed)
    • Preset Memory
      128 MB (RAM) plus 512 MB flash for presets
    • Delay
      2 s input + 100 ms output for time alignment
    • Equalizers
      parametric IIR (peaking, hi/lo-shelving, band-pass, band-stop, all-pass, hi/lo-pass) | custom FIR | Raised-cosine
    • Crossover
      FIR linear phase | Butterworth | Linkwitz-Riley | Bessel 6 to 48 dB/oct (IIR)
    • Limiter
      TruePower™, RMS voltage, RMS current, Peak
    • Damping Control
      Active DampingControl™ and LiveImpedance™
    • Selectable gains
      26 / 29 / 32 / 35 dB
    • Input sensitivity @ 8 Ω
      4.9 Vrms for 26dB / 3.47Vrms for 29dB / 2.45Vrms for 32dB / 1.73 Vrms for 35dB
    • Maximum input level
      20 dBu
    • Frequency response (±0.5 dB , 1 W @ 8 Ω)
      20 Hz - 20 kHz
    • Crosstalk (1 kHz)
      Typical -70 dB
    • Signal-to-noise ratio (32 dB gain)
      >110 dB(A)
    • Input impedance
      20 kΩ balanced
    • THD+N (from 0.1 W to maximum power)
      <0.1% (typical <0.05%)
    • DIM (from 0.1 W to Full Power)
      < 0.05%
    • Slew rate
      >50 V/µs (input filter bypassed)
    • Output channels
      4x channels (Hi-Z or Lo-Z, bridgeable)

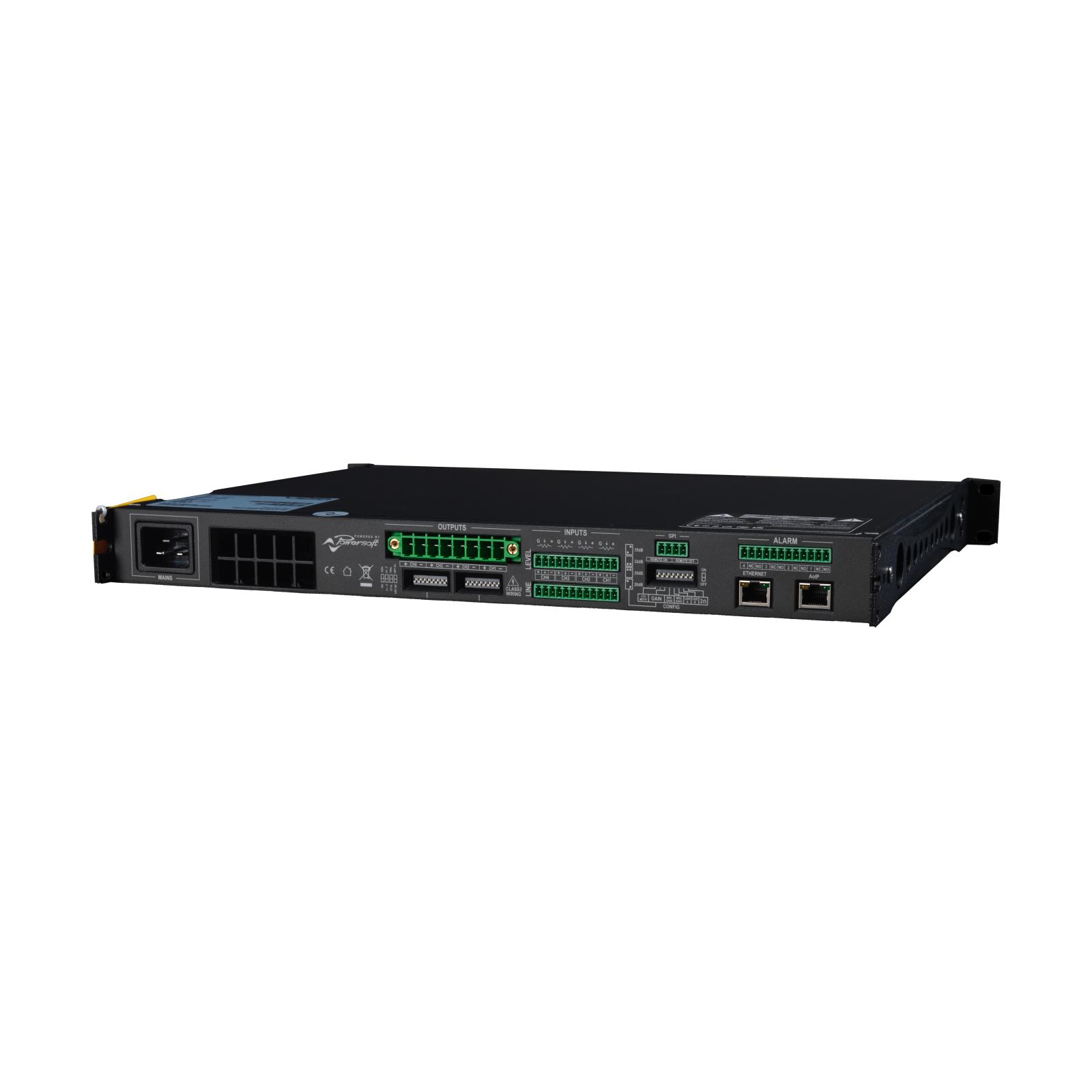

    • Analog inputs
      4x Phoenix MC 1.5/12-ST-3.81
    • AES67 digital inputs
      4 channels (1 x RJ45)
    • Output Connectors
      Phoenix PC 5/8-STF1-7.62
    • Dimensions (W x H x D)
      483mm x 44.5mm x 358mm
    • Weight
      7.0 kg (15.4 lb)
    • Power Supply Type
      Universal regulated switching with PFC and SRM
    • Rated voltage
      100-240 V ±10%, 50-60 Hz
    • Power factor (above 500 W)
      >0.95
    • AC Mains connector
      IEC C20 (max 20 A) region-specific power cord provided
    • Current draw and consumption
      idle (DSP+D) 33.6 W (0.5 A @ 115 V / 33.7 W (0.25 A @ 230 V) | 1/8 power @ 4 Ω 850 W (9.16 A @ 115 V) / 826.8 W (5.02 A @ 230 V) | 1/8 power @ 4 Ω 1718 W (15.96 A @ 115 V) / 1651 W (9.41 A @ 230 V)
    • Operating temperature
      -10° - +35° C (14° - 95° F)
    • Cooling
      Variable-speed fan, front-to-rear flow
    • Heat dissipation
      Idle
    • Maximum undistorted voltage
      139 V peak @ 8 Ω
    • Maximum output current
      45 A peak
    • Hi-Z distribuited line power rating
      1200 W @ 100 V / 1200 W @ 70 V
    • IP rating
      IP20
    • More Less
