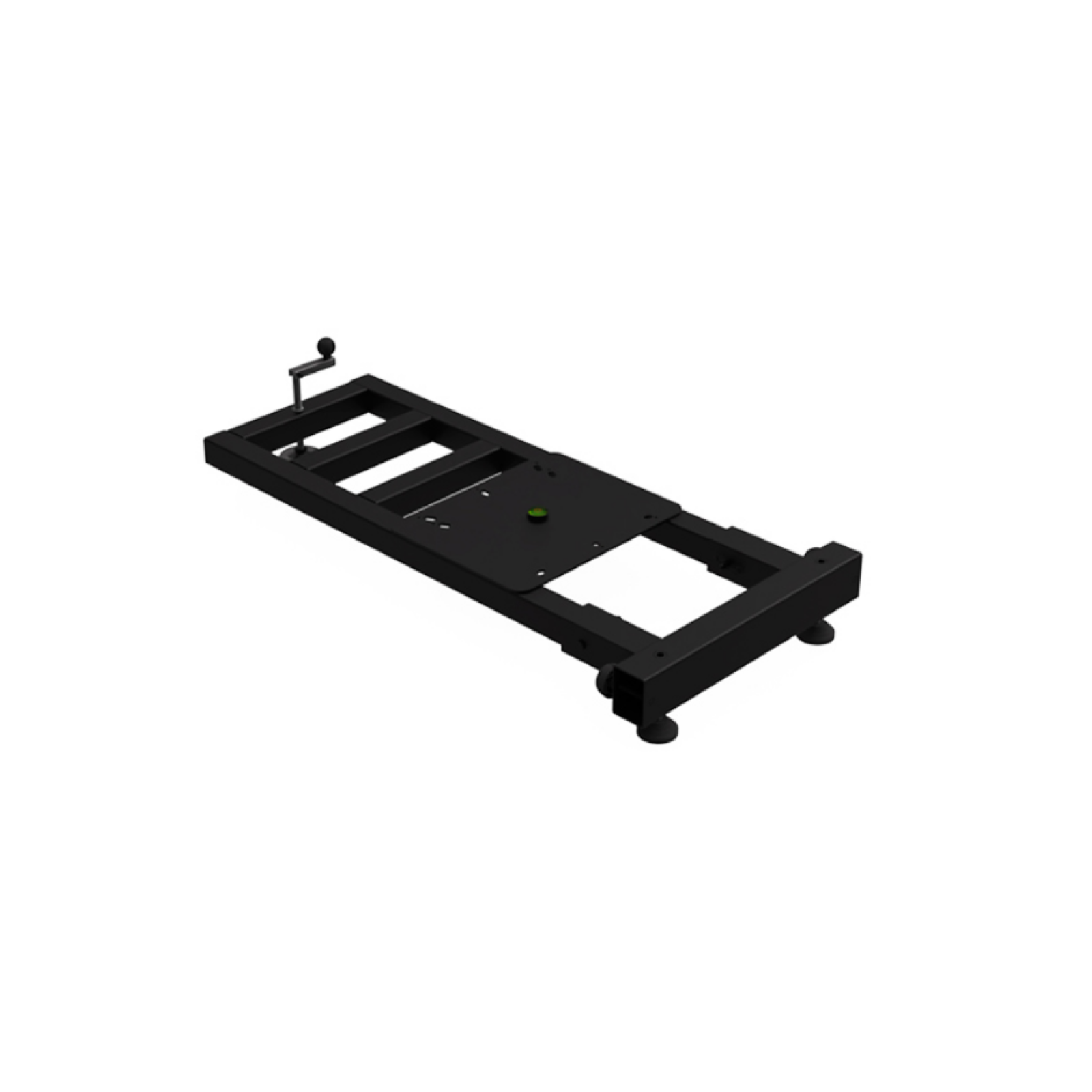

ATL BS050 Support Base for ATLAS LED Wall Support Systems (F70ATL050)
Download product sheetThe screen support base is designed to enable floor-mounted LED screen installations. It features two adjustable front spindles and one rear spindle, ensuring precise leveling of the LED screen. The 29 cm ladder truss is securely attached to the base using two CBC50PDC double-cone connectors, which are included with the truss.
The screen support base is designed to enable floor-mounted LED screen installations. It features two adjustable front spindles and one rear spindle, ensuring precise leveling of the LED screen. The 29 cm ladder truss is securely attached to the base using two CBC50PDC double-cone connectors, which are included with the truss.
Product downloads
Product details
Key features
- Two adjustable front leveling M12 spindles.
- An adjustable rear leveling M14 x 150 mm spindle.
- Spirit leveller included.
Specifications
-
Compatible TrussSPLFT29L
-
Heightadjustable (110 mm / 4.33 in. minimum)
-
Lenght998 mm / 39.29 in
-
Depth1112 mm / 43.78 in
-
MaterialSteel
