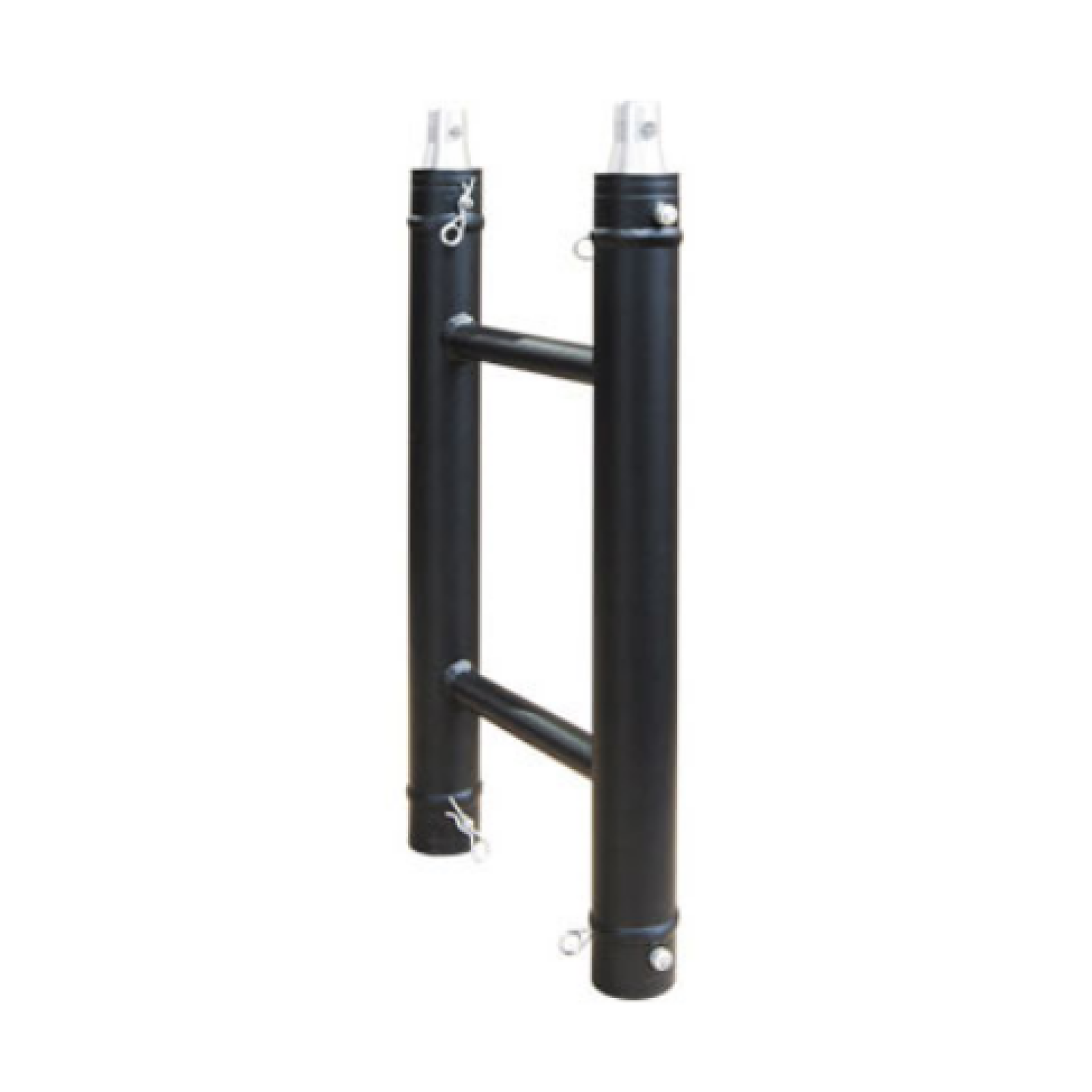

ATL29 H050 0,5 Meters Parallel Ladder Truss for ATLAS LED Wall Support Systems (F70ATL005)
Download product sheetParallel truss structure section of 29 cm per side, manufactured with a main tube of 50 mm diameter and 4 mm thick, and an auxiliary tube of 25 mm diameter and 3 mm thick. With perpendicular crossbars (known as "ladder truss"). Includes 2 double cones, 2 pins, 2 threaded pins and 2 'R' safety clips.
Parallel truss structure section of 29 cm per side, manufactured with a main tube of 50 mm diameter and 4 mm thick, and an auxiliary tube of 25 mm diameter and 3 mm thick. With perpendicular crossbars (known as "ladder truss"). Includes 2 double cones, 2 pins, 2 threaded pins and 2 'R' safety clips.
Product downloads
Product details
Key features
- Available in black color.
- Connections included.
Specifications
-
Main Tube Section50 x 4 mm / 1,97 x 0,16 in
-
Main Tube AlloyEN AW 6082T6
-
Braces Section25 x 3 mm / 0,98 x 0,12 in
-
Braces AlloyEN AW 6082T6
-
Complete Truss Surface Area6,03 cm² / 0,9347 in²
-
Coupling SystemCBC50PDC
-
Lenght0,5 M / 1,64 ft
-
Weight2,63 Kg / 5,79 lb
