Fantek

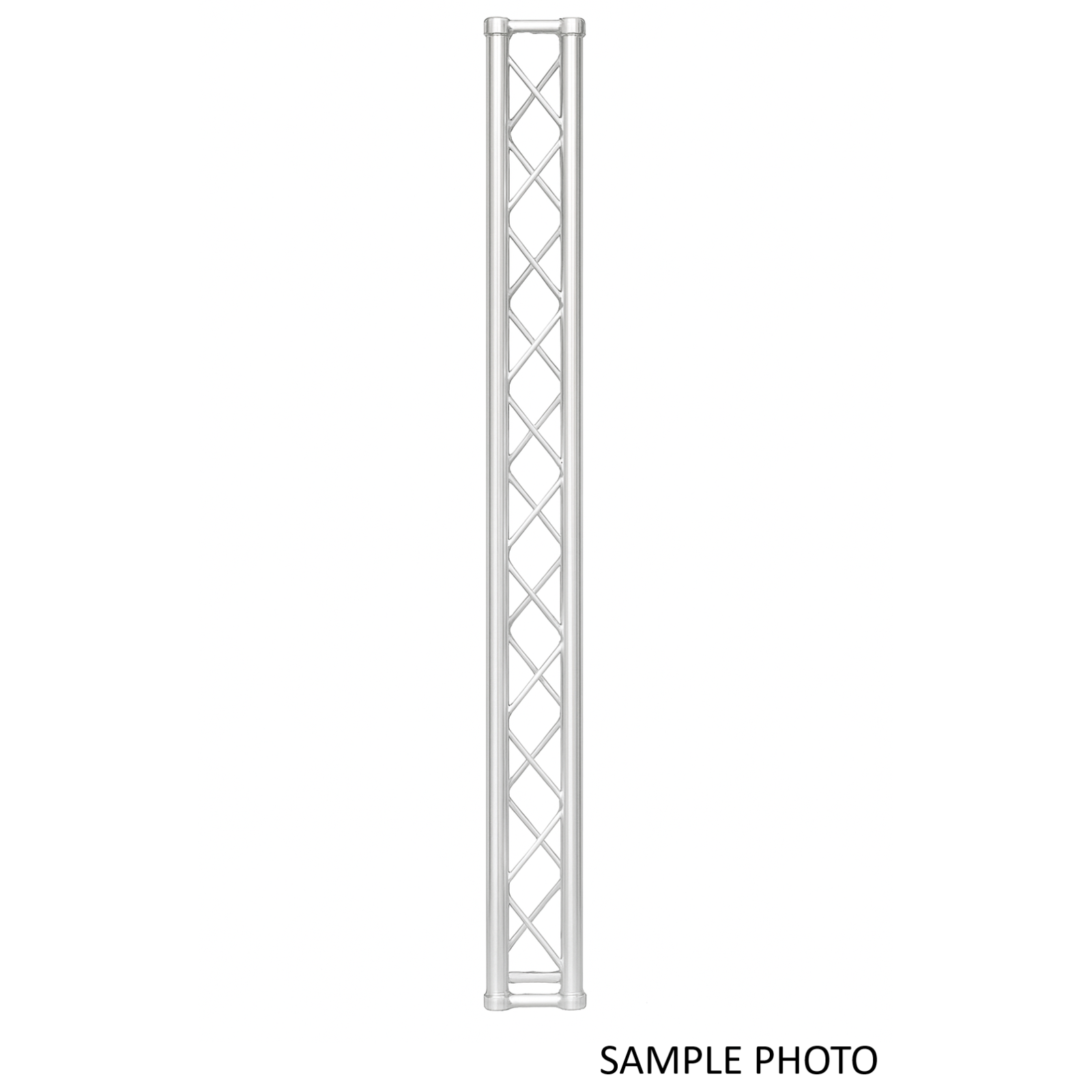

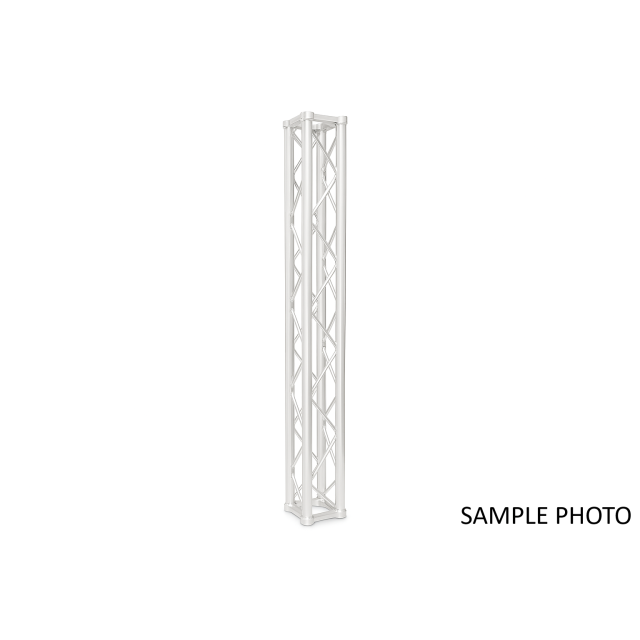

FK11 200 2 Meters Mini Truss (F70EST231)

Download product sheet

Structure designed for stands or displays that do not require heavy load adaptation. Its dimensions of 112 x 112 mm allow for a compact and very stable assembly. Different lenghts available. To complete the structure, the series includes a square corner block, a hinge adapter, as well as a base plate for securing vertical pillars and joint connectors between sections.

Structure designed for stands or displays that do not require heavy load adaptation. Its dimensions of 112 x 112 mm allow for a compact and very stable assembly. Different lenghts available. To complete the structure, the series includes a square corner block, a hinge adapter, as well as a base plate for securing vertical pillars and joint connectors between sections.

Buy this product online

Search Google Shopping

Product downloads

Product details

Key features

  • Available in silver and black color.

Specifications

  • Main Tube Diameter
    21 mm / 0,82 in
  • Auxiliary Tube Diameter
    6 mm / 0,23 in
  • Aluminium Thickness
    2 mm / 0,07 in
  • Distribuited Load
    186 Kg / 410,05 lb (6 m section)
  • Deflection (distribuited)
    32 mm / 1,25 in (6 m section)
  • Point Load
    173 Kg / 381,39 lb (6 m section)
  • Deflection (point)
    46 mm / 1,81 in (6 m section)
  • Dimensions
    112 x 112 x 2000 mm / 4,40 x 4,40 x 78,74 in
  • Weight
    3,2 Kg / 7,05 lb
  • Material
    Aluminum
  • Color
    Silver
  • More Less
