ATL AD Multi-Connection Plate for ATLAS AD LED Screen Structure

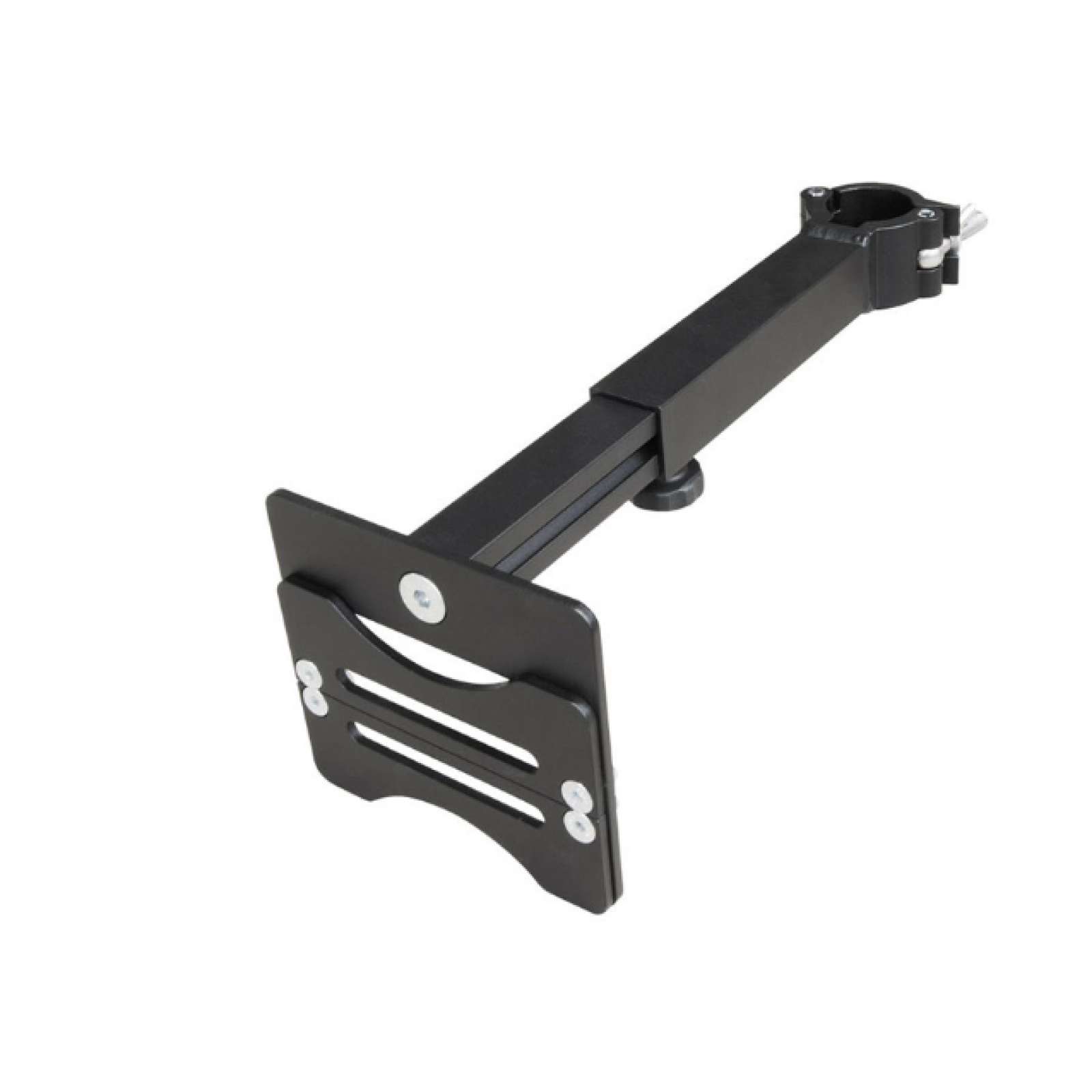

Download product sheetThe multi-connection plate allows any type of LED screen to be connected to the support. It is attached to the truss using a 40 x 40 mm extendable aluminum profile and a clamp that allows it to be anchored at the desired height on the truss.
The multi-connection plate allows any type of LED screen to be connected to the support. It is attached to the truss using a 40 x 40 mm extendable aluminum profile and a clamp that allows it to be anchored at the desired height on the truss.
Product downloads
Media
Product details
Key features
- 40x40 mm extendable arm with clamp.
- Adjustable length (200-350 mm).
- 175x150x5 mm plate.
- Distance between module holes: 30 mm Min. / 98 mm Max.
Specifications
-
MaterialSteel
-
Compatible TrussAll trusses
-
Dimensions (W x H x D)175mm x 158mm x 200-350mm (adjustable) / 6.89" x 6.22" x 7,87-13,78" in.
-
Weight1.86 kg (4.10 lbs)
