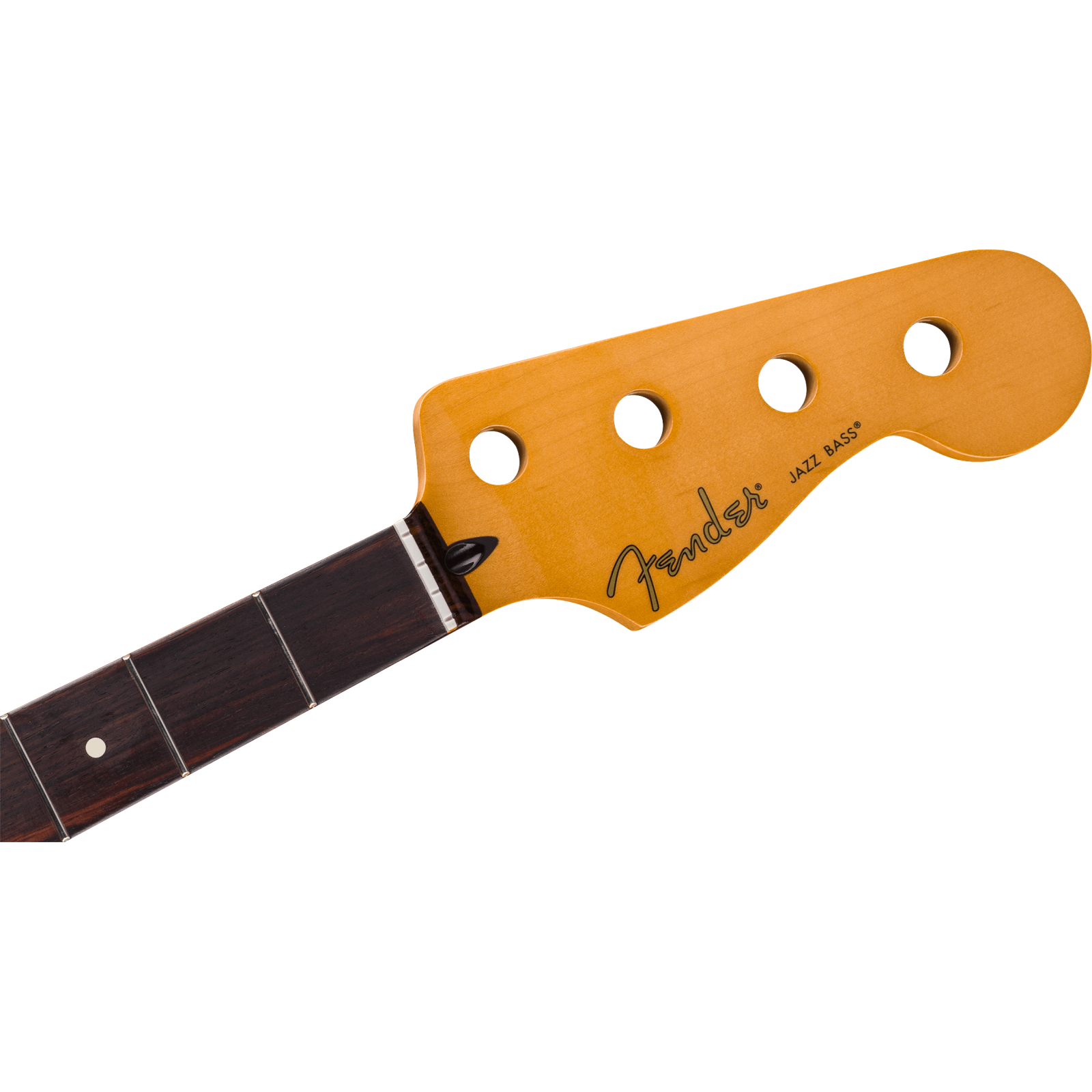

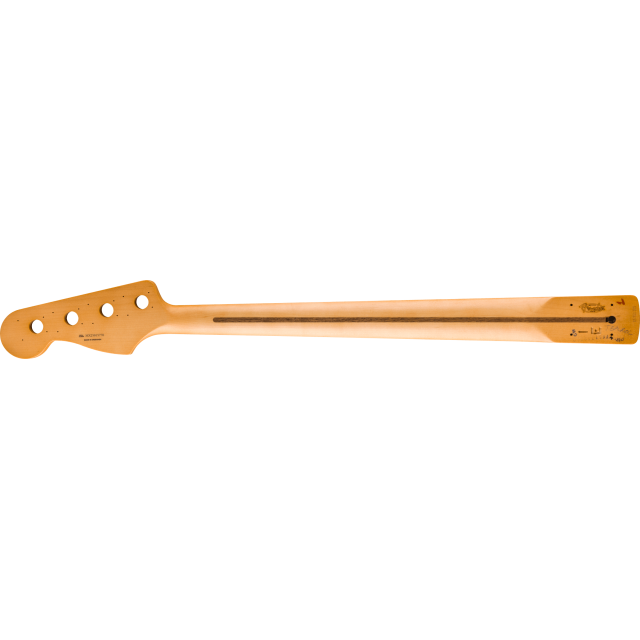

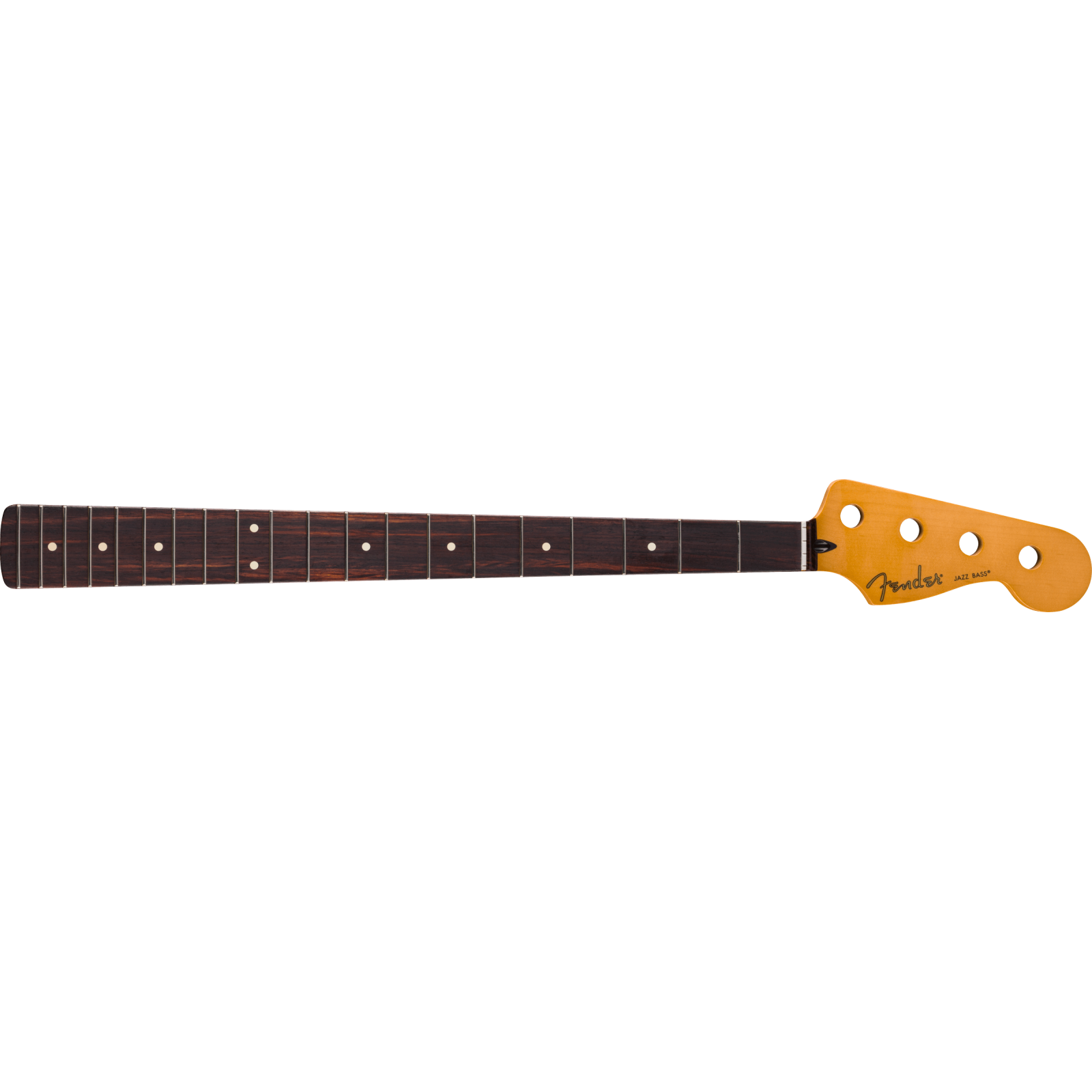

0990480921 Player II Series Jazz Bass® Neck, 22 Medium Jumbo Frets, Rosewood, 9.5", Modern "C"

Download product sheet

The story of Fender's modular design began in 1946, and guitarists have been writing their own chapters ever since. Our pioneering bolt-on neck construction wasn't just about making guitars easier to service—it was about giving players the power to shape their sound. Today, every genuine Fender replacement neck carries that legacy forward, offering endless pos... Read more

The story of Fender's modular design began in 1946, and guitarists have been writing their own chapters ever since. Our pioneering bolt-on neck construction wasn't just about making guitars easier to service—it was about giving players the power to shape their sound. Today, every genuine Fender replacement neck carries that legacy forward, offering endless possibilities for customization, restoration, and reinvention.

Crafted at our Ensenada, Mexico, manufacturing facility, the Fender Player II Series Jazz Bass® guitar neck is designed for supremely comfortable performance, with a silky-smooth satin urethane back finish and our Modern “C” profile that’s ideal for almost any playing style. The 9.5”-radius fingerboard and medium jumbo frets provides fast fretting and easy playability, while the hand-rolled fingerboard edges provide a slightly broken-in feeling that’s incredibly inviting.

The nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing. For true Fender authenticity, it's also serialized and laser engraved with our “Genuine Fender Parts” logo on the heel.

This replacement neck is for a Fender or Squier® by Fender guitar.

Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.

Collapse text

Product details

Key features

  • Maple neck with walnut "skunk" stripe
  • Hand-rolled maple or rosewood fingerboard with 9.5" radius
  • 20 medium jumbo frets
  • Pre-slotted synthetic bone nut
  • Standard single-action truss rod
  • Four pre-drilled tuning machine holes
  • Orientation: Right-Hand
  • Color: Natural

Specifications

  • Neck Material
    Maple with Walnut Stripe
  • Neck Finish
    Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face
  • Neck Shape
    Modern "C"
  • Neck Thickness
    1st Fret - .800" (20.32 mm), 12th Fret - .900" (22.86 mm)
  • Neck Mounting
    4-Bolt
  • Fingerboard Radius
    9.5" (241 mm)
  • Fingerboard Material
    Rosewood
  • Position Inlays
    White Dot
  • Side Dots
    White
  • Number of Frets
    20
  • Truss Rod
    Single Action, Head Adjust
  • Truss Rod Nut
    3/16" Hex Adjustment
  • String Nut
    Synthetic Bone
  • Nut Width
    1.5" (38.1 mm)
  • Nut Material
    Synthetic Bone
  • Tuner Mounting Config
    4-Screw
  • Headstock Thickness
    .540” (13.71 mm)
  • Peg Hole Diameter
    .734” (18.64 mm)
  • Fret Size
    Medium Jumbo
  • Scale Length
    34" (864 mm)
  • Style
    Modern
  • More Less
