VOODOO VIBE NCH-3 Mini Uni-Vibe stompbox (Vibe + Chorus)

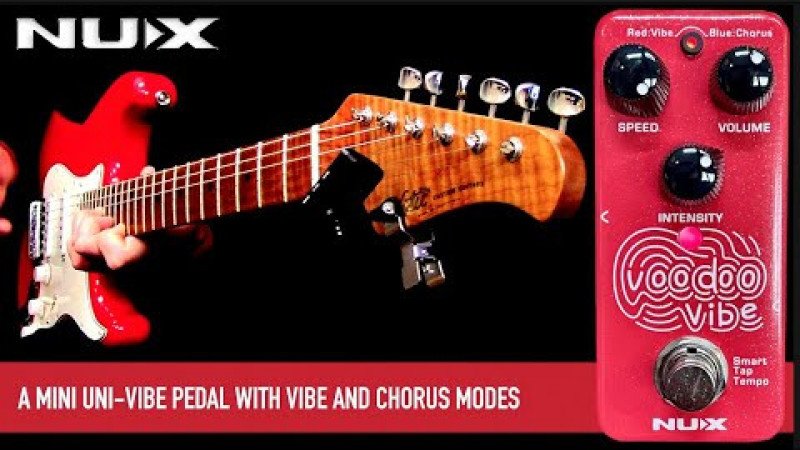

Download product sheetThe Voodoo Vibe (NCH-3) is a mini Uni-vibe pedal with 2 different modes, Vibe and Chorus. You can switch modes by press and holding the footswitch. Voodoo Vibe was inspired by the Dunlop® Uni-Vibe® for its gorgeous sound easily associated with Hendrix’s bending facial expressions in his 70s stage performances.
NUX's modern-tech DSP yields a perfect combina... Read more
The Voodoo Vibe (NCH-3) is a mini Uni-vibe pedal with 2 different modes, Vibe and Chorus. You can switch modes by press and holding the footswitch. Voodoo Vibe was inspired by the Dunlop® Uni-Vibe® for its gorgeous sound easily associated with Hendrix’s bending facial expressions in his 70s stage performances.
NUX's modern-tech DSP yields a perfect combination of both worlds: analog and digital. Unlike the original Uni-vibe, now you can power the Voodoo Vibe with 9V instead of 18V.
Using DSP technology, NUX is able to offer a mini pedal with Smart Tap Tempo function. And it’s easier to enhance the Chorus mode without volume drop issues in the digital world, while still retaining the same good vibes and analog sound.
Collapse text
Media
Highlights
Inspired by the Dunlop® Uni-Vibe®, powered up with NUX DSP technology
Digital technology dramatically improves features, yet keeping alive the analog quality: 9V power supply, Tape Tempo function and no loss of volume in chorus mode.
Small & smart
Vibrato + Chorus in a single mini stompbox: easy to tweak but extremely effective!
Product details
Key features
- 2 models in a super compact mini enclosure
- Chorus mode, Intensity will change the depth of the sweeping effect
- Vibrato mode, Intensity will change the degree of pitch modulation
- Smart Tap Tempo
- True-bypass or Buffer-bypass
- Supports Stereo I/O with TRS Cable
- Low power consumption (Less than 100mA)
- Analog dry signal for low noise and zero latency
- USB-C port for firmware updates
Specifications
-
Input Impedance1MΩ
-
Output Impedance10kΩ
-
Dynamic Range103 dB
-
DSP Processing48KHz / 32-bit A/D D/A
-
Sampling Rate48KHz / 24-bit
-
Power9V DC (Negative tip, Optional ACD-006A adapter)
-
Current Drawless than 100mA
-
Dimensions94(L)X51(W)X53(H)mm
-
Weight175g
