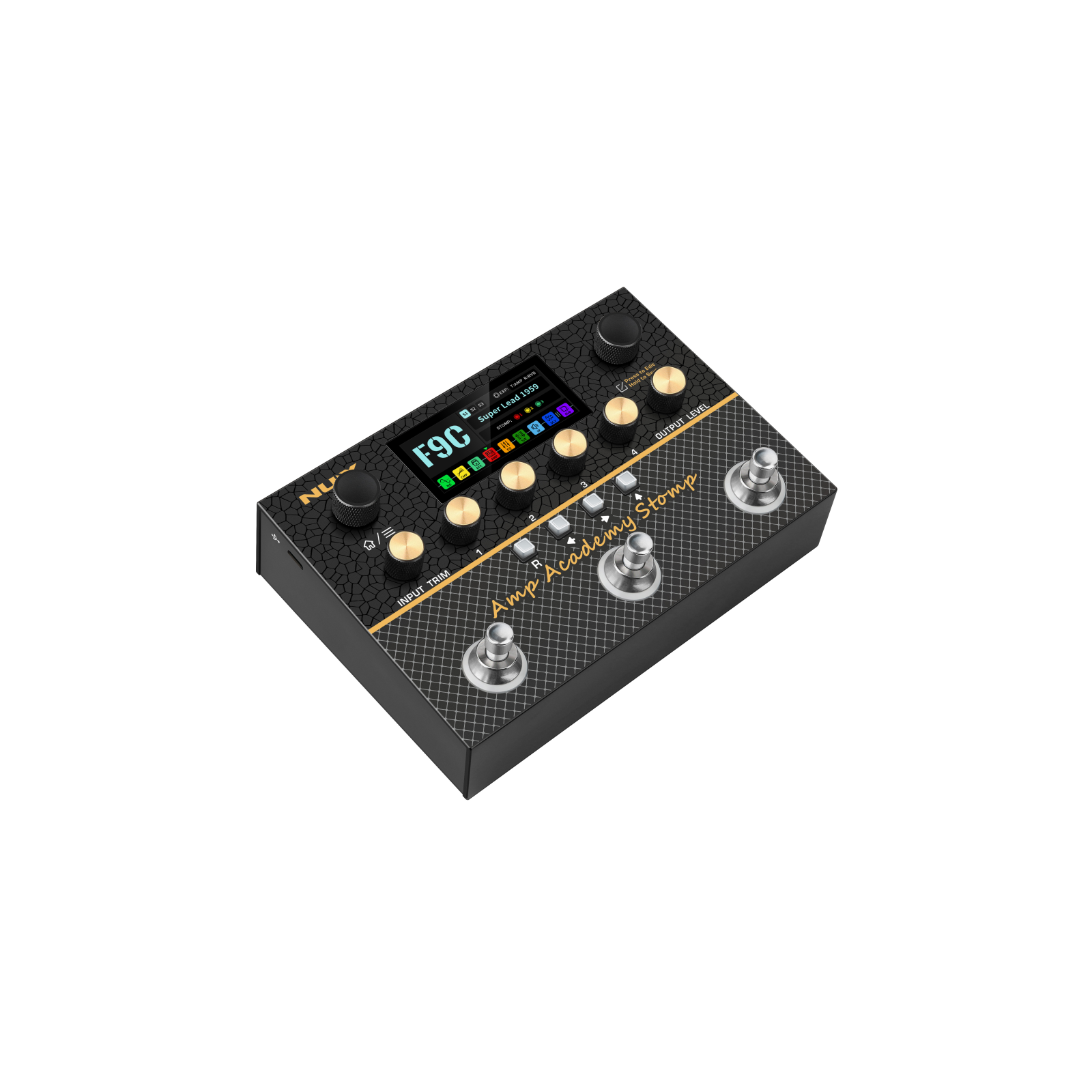

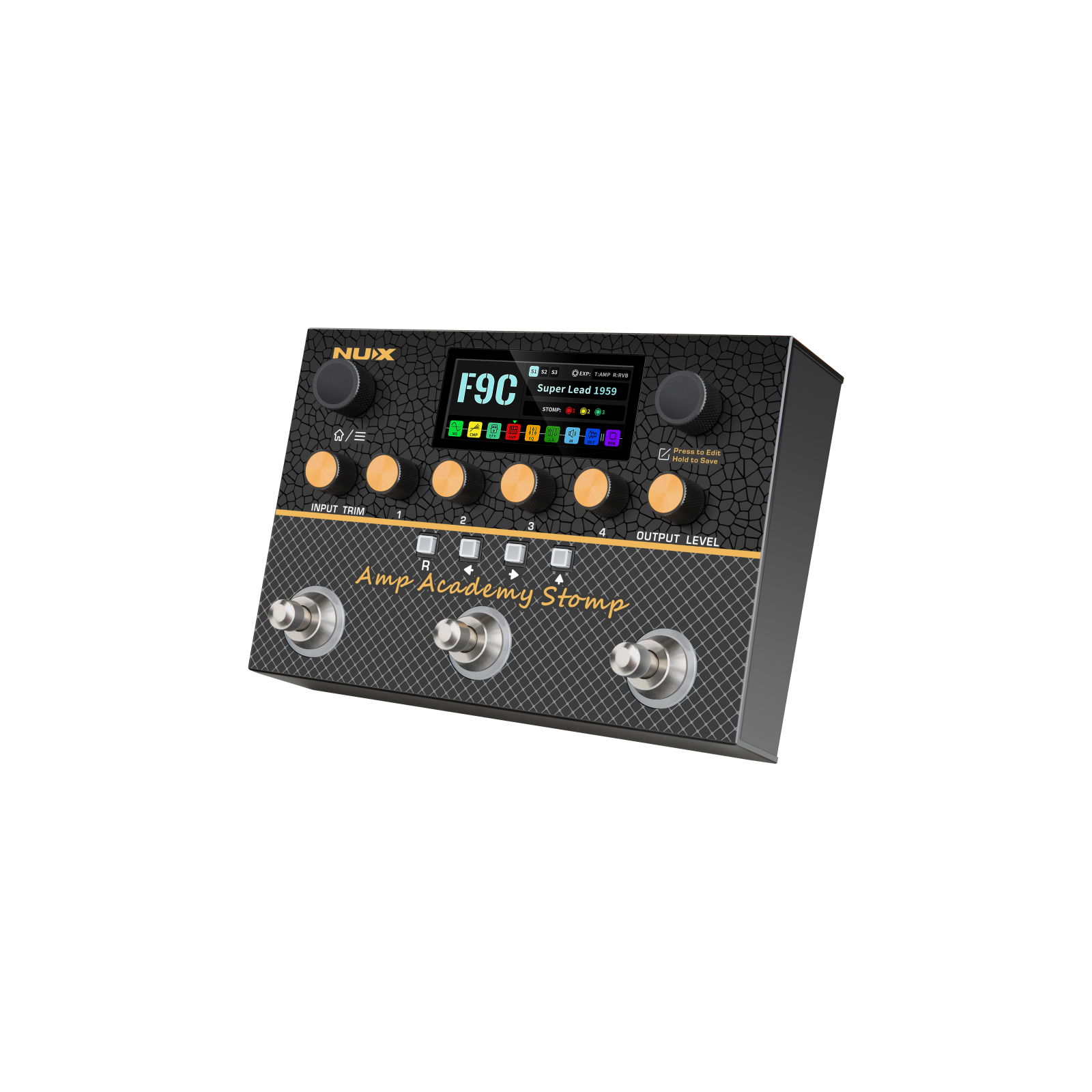

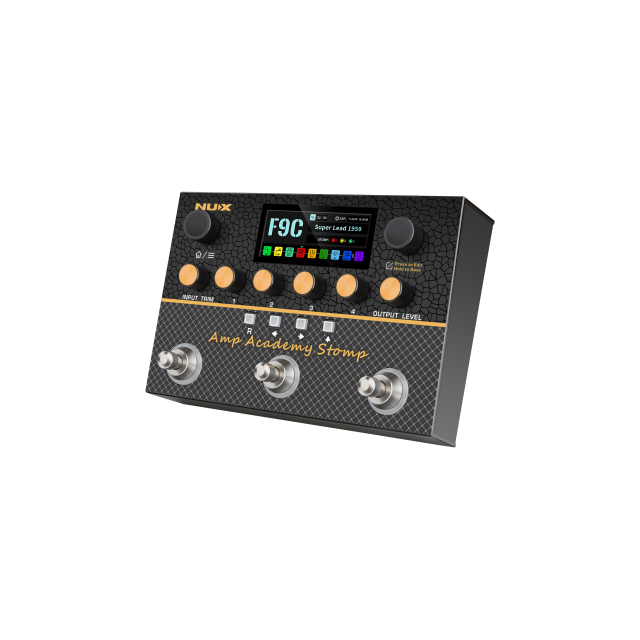

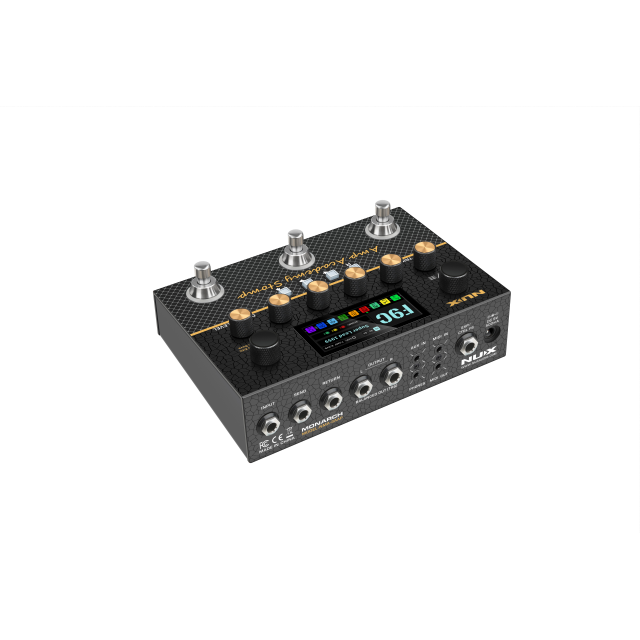

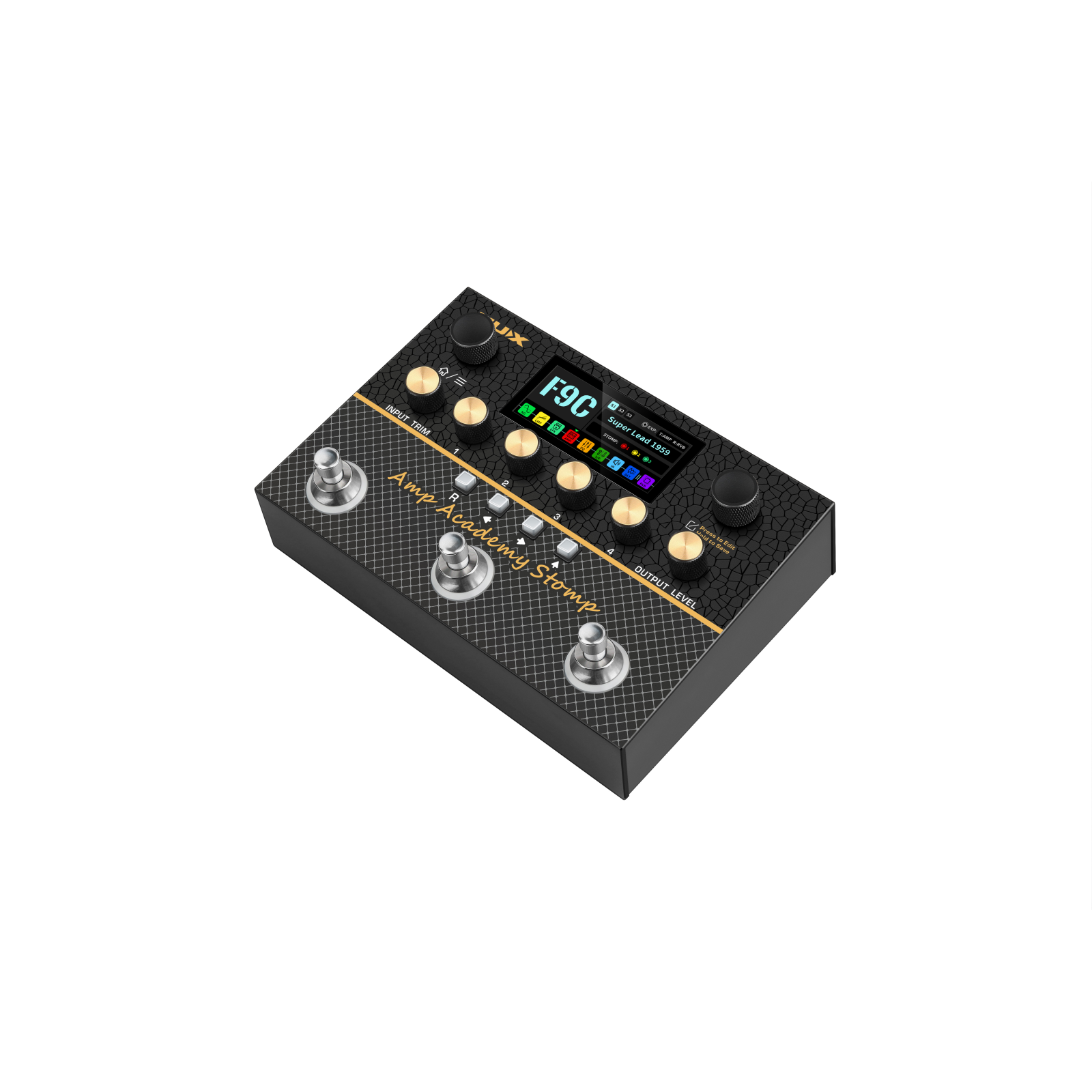

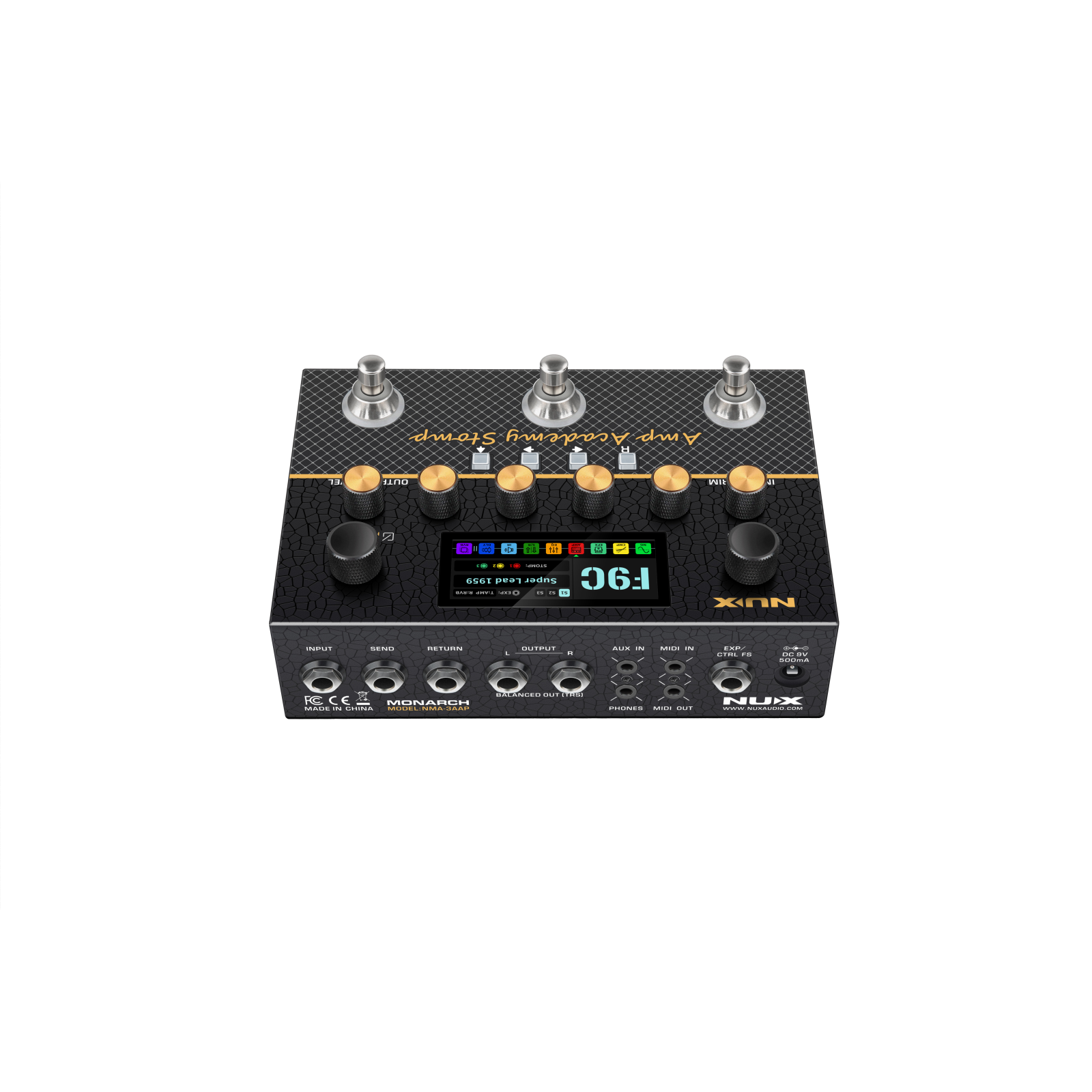

NMA-3AAP Amp Academy Stomp modeler

3-footswitch Modelers are an up-and-coming trend in the market. NUX heard your requests, and that’s the main reason for creating the AA Stomp; an end-to-end tone-shaping Amp Simulator, and independent L/R CYBER IR™ Engine, ushering in a milestone evolution for NUX.

The Amp Academy Stomp features our iconic TSAC-4K Amp Modeling (White-box Physical Modeling alg... Read more

Buy this product online

BananaMusic In stock

Product downloads

Highlights

Choose among 27 preamps and combine them with your favourite tubes!

New hardware platform with 2 DSPs, one for the FXs section, and the other handling the amp modeling algorithm. The Amp Modeling section manages separated preamp and power amp simulation. You can choose among 4 power amp tubes (EL84, EL34, 6V6, 6L6) + solid state.

Cyber IR™ Technology

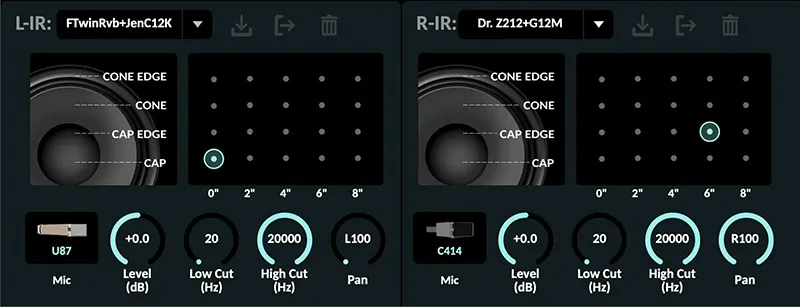

NUX's brand New Cyber IR™ Technology is a real Impulse Response reproduction with a premium algorithm that offers Microphone, Position, and Distance adjustments. Amp Academy Stomp gives you Stereo IR Capabilities with ultra-low latency.

Scene / Stomp modes

Let’s explain the concepts of PRESET and SCENE:

PRESET = A complete effects signal chain.
SCENE = A snapshot of a specific effects signal chain, including the switching of effects modules and the setting changes of parameters.

So, SCENE can be imagined as the effect switches and tone changes you may need in a song. For example, the main song is S1, the chorus is S2, and the interlude is S3. The advantage of doing this is that your naming is in a PRESET, and since the effect signal chain is fixed, there will be lower switching noise and delay when the effector switches SCENE.

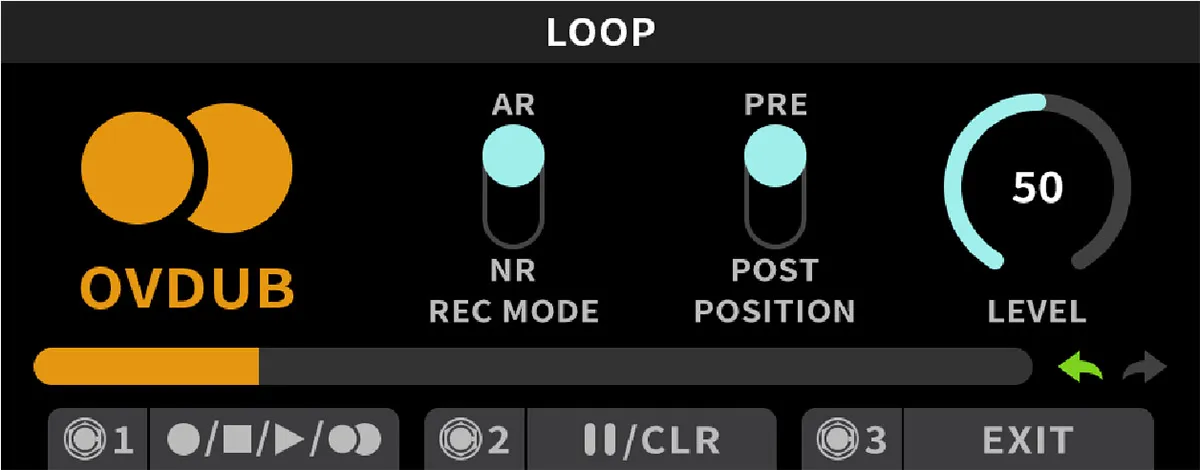

30 seconds stereo phrase loop with PRE/POST position

The AAS also includes a 30 second stereo phrase looper. This powerful little looper can be used in either Auto Record or Normal Record modes. Additionally, it can be set to the pre or post position in the signal path.

This is also incredibly useful live with the included NBT-1 Bluetooth Module and accompanying iOS/Android App. Set up a loop in Pre Mode, let the loop play back and use the App to adjust your tone from anywhere in your live venue for the best possible tone.

USB audio interface

You can the USB-C for firmware update, direct recrding, edit your tone via APP and much more. Just plug it in!

Product details

Key features

Stereo CYBER IR™ Engine with dual 1024 samples resolution
Independent Pre & Power amp simulation with TSAC-4K white-box amp modeling algorithm
World-class amp modeling algorithm with full functions
Aluminum extrusion chassis
NG, EFX, AMP, I.R., EQ, S/R; DLY, RVB effect blocks with free/parallel routing order
2.86” color LCD display (960*376) with intuitive operations
27 preset slots with 3 scenes, independent L/R 60 IR slots
Pre / Post phrase loop for distance tone tweaking (with NBT-1 + APP)
Footswitch setup, Global EQ, PHONES LEVEL, AUX IN LEVEL, OUT LEVEL, Quick Block, Tuner in global setting
USB audio interface, firmware update, PC edit software, NBT-1, …etc

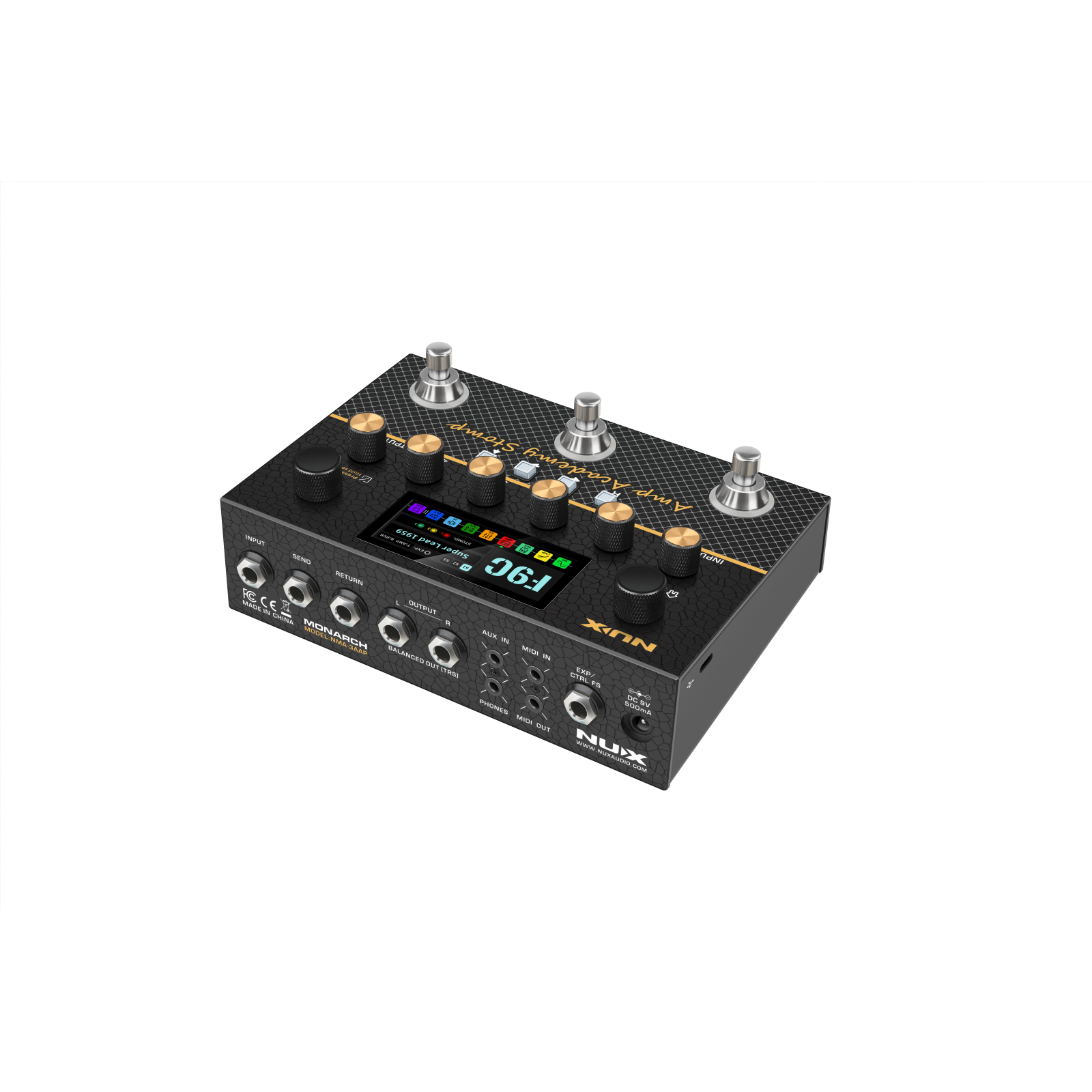

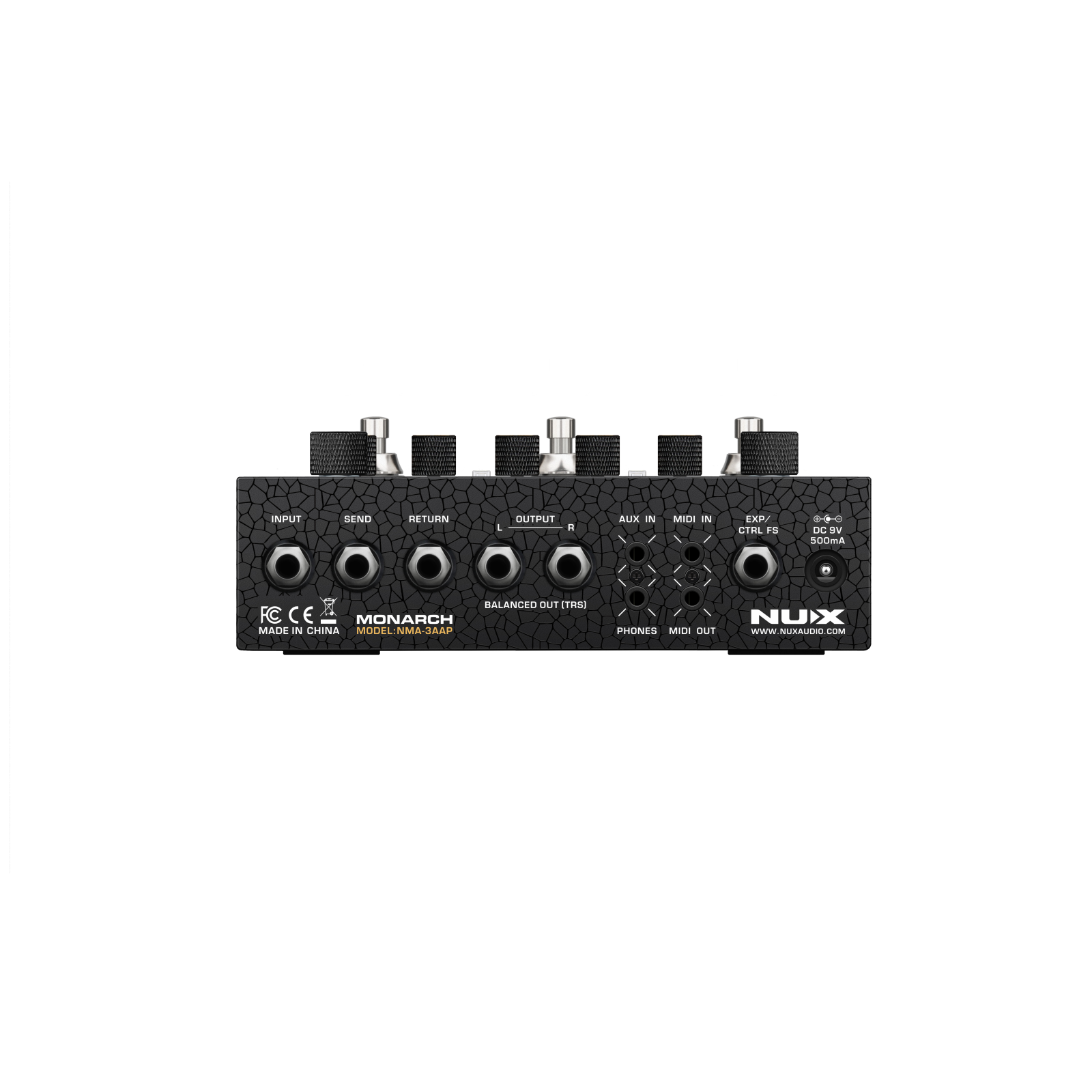

USB-C, stereo balanced 1/4” outs, phones out for silent practice, 1/8” MIDI I/O, EXP out with additional NMP-2Lite
Great Dynamic Range: 111dB
Ultra-low latency: 2ms
QuickTone Software Editor: User-friendly interface for easy sound customization, parameter tweaking, and patch management
