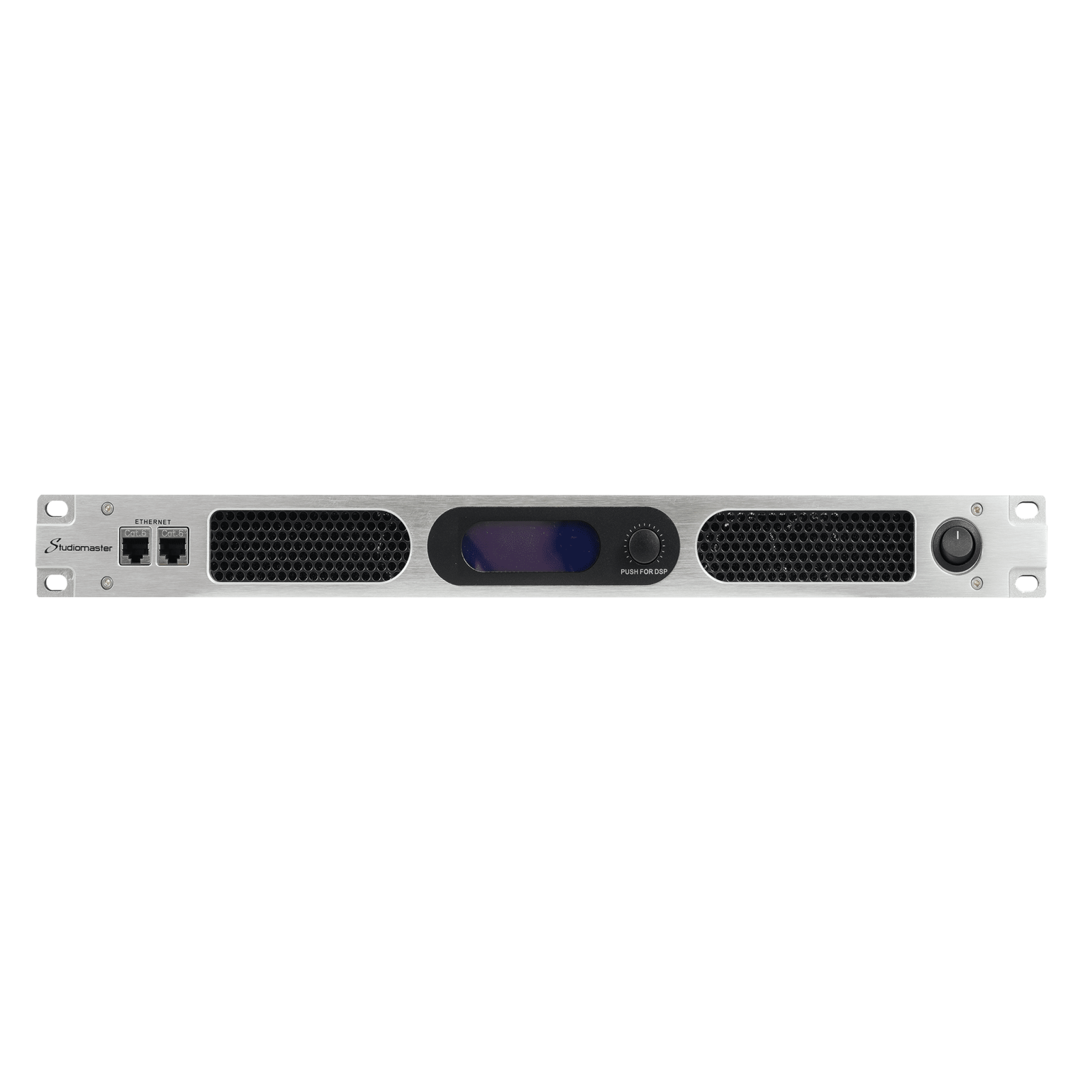

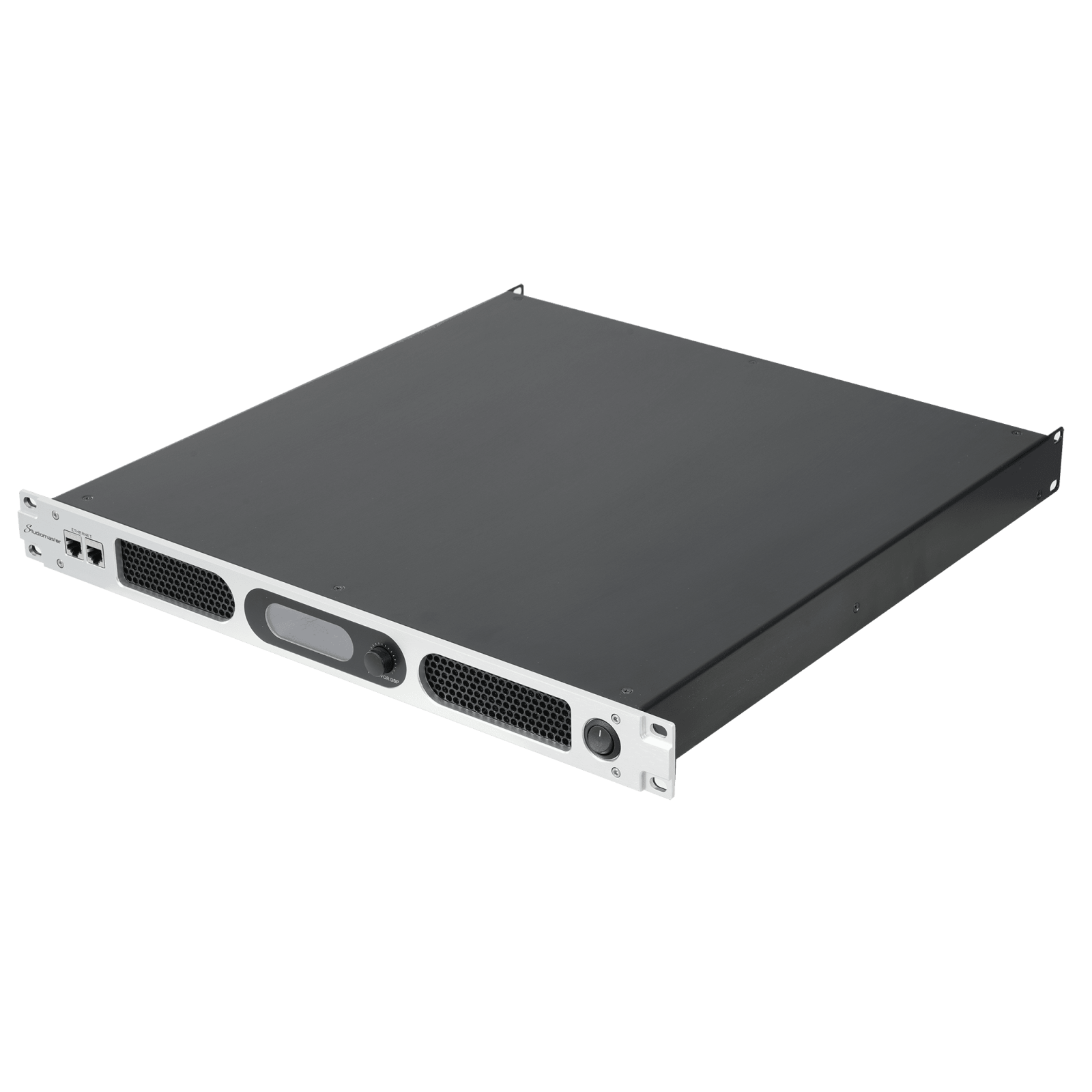

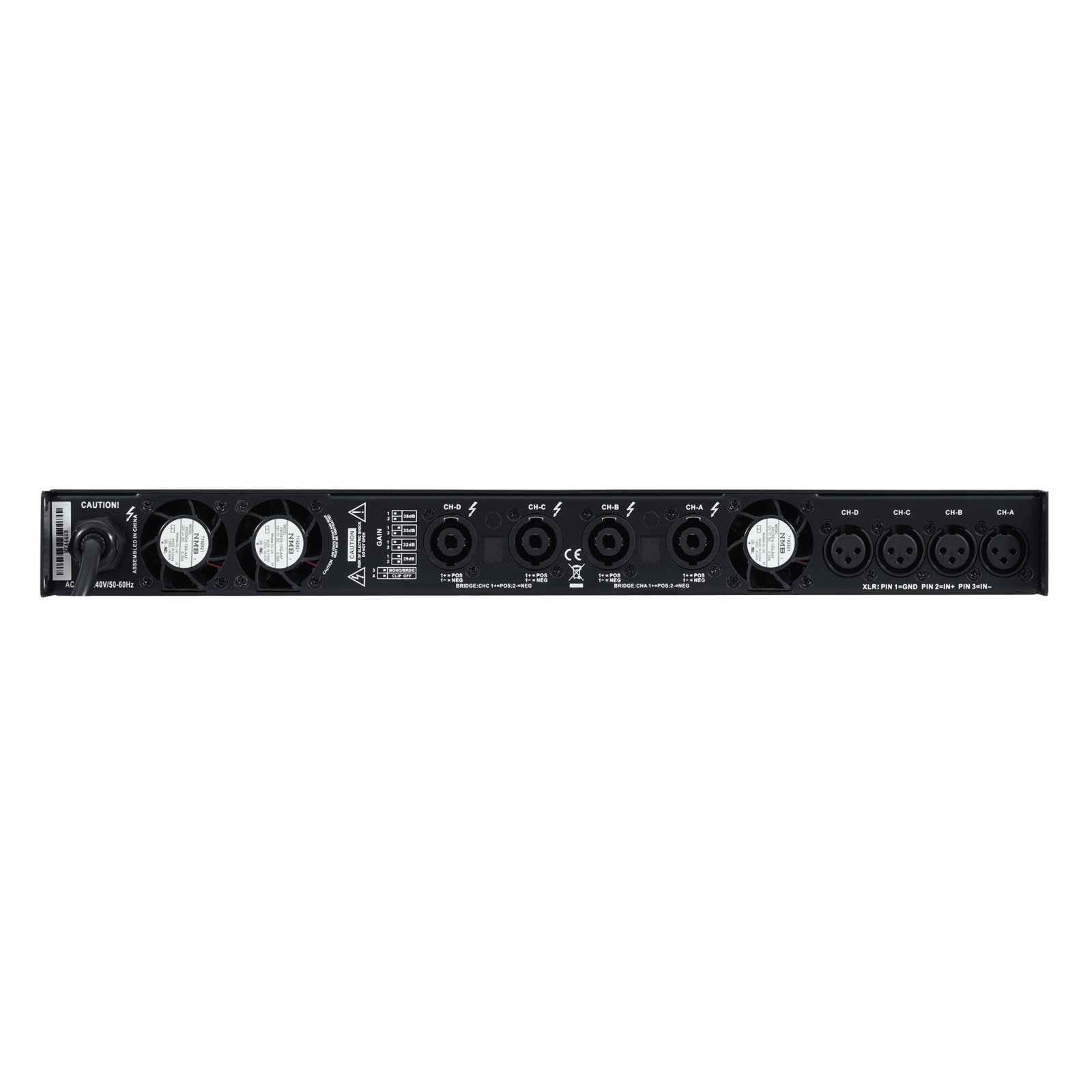

DQX4-6000 4x 1500W @ 8ohm, 1 Rack Unit Digital Power Amplifier with DSP & PFC
Download product sheetThe Studiomaster DQX is a compact, high-efficiency digital power amplifier designed for professional audio applications. It combines advanced DSP technology with robust power output, making it ideal for various installation and rental scenarios. Designed to deliver high performance and reliability, making it a cost-effective solution for demanding audio enviro... Read more
The Studiomaster DQX is a compact, high-efficiency digital power amplifier designed for professional audio applications. It combines advanced DSP technology with robust power output, making it ideal for various installation and rental scenarios. Designed to deliver high performance and reliability, making it a cost-effective solution for demanding audio environments.
At 2-ohm operation, DQX4-4000 will supply up to 4 x 3570 watt, making these amplifiers supply extremely high performance, and provide cost effective solutions for multiple install and rental applications, for example line array systems.
Collapse textProduct downloads
Product details
Key features
- 4 Channels, 1x 19” Rack Unit
- 2-ohm Reliable Operation in Single Channel
- DSP OPERATION use with 3.3″ screen or Ethernet connection
- Multiple Modes Stereo, Parallel and Bridge modes
- Line Array designed for Install/Rental Systems
- Powerful Designed to Power Large Systems
- Multiple Gain Modes to work with any system
- PFC Universal 90-250V Operation with Power Factor Correction
- Variable Speed Fan Cooling for Reliable Long-Term Operation
Specifications
-
Rated power* 8ohm/Stereo4 x 1500W
-
Rated power* 4ohm/Stereo4 x 2550W
-
Rated power* 2ohm/Stereo4 x 3570W
-
Rated power* 16ohm/Bridge2 x 3000W
-
Rated power* 8ohm/Bridge2 x 5100W
-
Rated power* 4ohm/Bridge2 x 7140W
-
* Rated Powers measureTHD=1%, continuous sine 1kHz, each channel working simultaneously
-
RMS output voltage (THD=1%,1kHz)109.5V
-
Slope (1kHz, bypass LPF)50V/us
-
Input sensitivity (rated output power, 1kHz)38dB, 35dB, 32dB, 29dB Options
-
THD+N (10% rated output power)0.01%
-
IMD-SMPTE (10% rated output power)0.01%
-
DIM30 (10% rated output power)0.01%
-
Crosstalk rejection (less than rated power, 20Hz-1 kHz)≥90 dB
-
Frequency response (10% rated output power, 8ohm, 20Hz-20kHz)±0.2dB
-
Input impedance20kohm (Bal.), 10kohm (Unbal.)
-
Damping factor, 8ohm, 20Hz-200Hz)≥300
-
S/N ratio (A weighted, 20Hz-20kHz)≥110 dB
-
Power supply90-260 VAC, 50-60 Hz
-
ProtectionLow voltage/DC output/thermal/over load protection
-
Dimension (W×H×D)483×44×465mm
-
Net weight12 kg
- More Less
