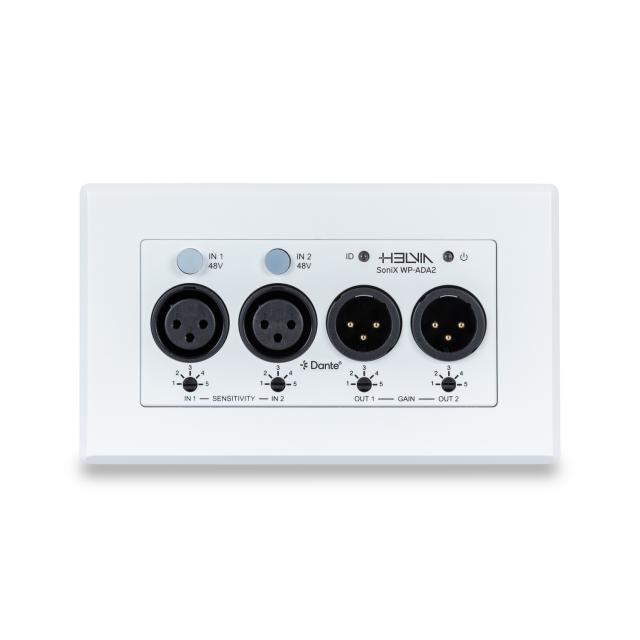

SONIX WP-ADA2 2x Input & 2x Output Analogue XLR to Dante® Converter
Download product sheetThe 2x Input & 2x Output Analogue XLR to Dante® Converter is a high-performance audio endpoint designed to bridge conventional analog audio hardware into Dante® IP digital networks. Housed in a robust metal chassis with an aluminum front panel, this unit is engineered as a standard 2-GANG EU/UK wall plate, making it ideal for both permanent AV architectural in... Read more
The 2x Input & 2x Output Analogue XLR to Dante® Converter is a high-performance audio endpoint designed to bridge conventional analog audio hardware into Dante® IP digital networks. Housed in a robust metal chassis with an aluminum front panel, this unit is engineered as a standard 2-GANG EU/UK wall plate, making it ideal for both permanent AV architectural installations and demanding live/rental environments.
Collapse textProduct downloads
Highlights
Everything at your fingertips
It features two balanced/unbalanced XLR analog inputs with 5-level sensitivity adjustment and selectable +48V phantom power, alongside two balanced/unbalanced XLR analog outputs with 5-level gain control. Built on the Dante® Ultimo 2x2 solution, it delivers crystal-clear 24-bit audio sampling up to 96kHz, configurable latency down to 1ms, and full AES67 interoperability. For maximum installation flexibility, the unit supports both Power over Ethernet (PoE Class 1 802.3af) and local 12VDC terminal block powering. Each unit comes complete with a heavy-duty plastic wall back box for clean, secure surface or flush-mount installation.
Phantom Power
Dante™ Digital Audio
Product details
Key features
- Bidirectional Dante® Audio Bridging: 2x analog inputs and 2x analog outputs (Dante® in and Dante® out) over a single network connection.
- Versatile XLR Connectivity: Balanced and unbalanced Female XLR inputs and Male XLR outputs for direct connection to microphones, mixers, and audio processors.
- Mic Phantom Power (+48V): Dedicated front-panel push buttons with backlit LED indicators for independent +48V phantom power on each input channel.

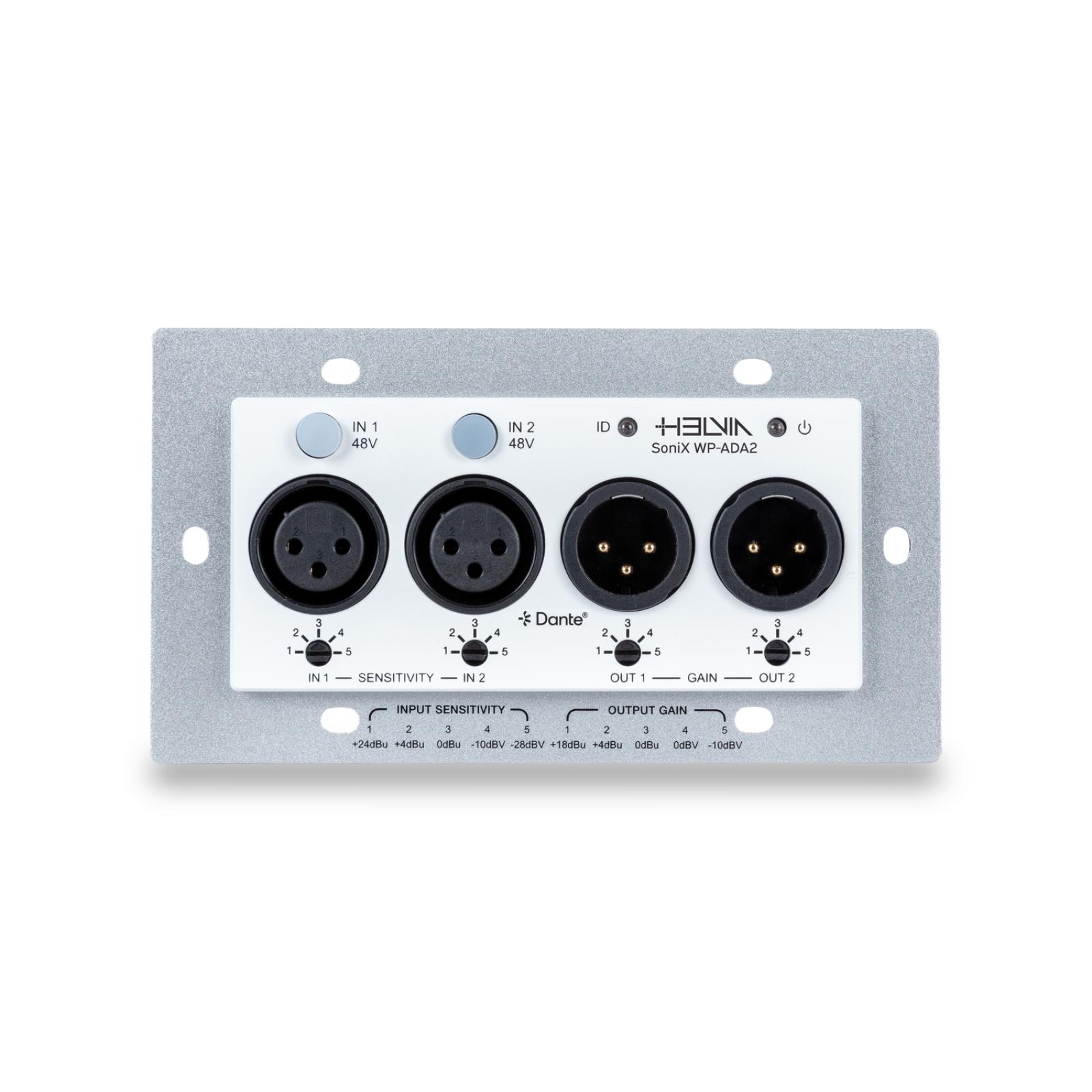

- Precise Gain & Sensitivity Control: 5-level rotary knobs for input sensitivity (+24dBu to -28dBv) and output gain (+18dBu to -10dBv) adjustment.
- Professional Audio Quality: Supports uncompressed 24-bit digital audio sampling at 44.1kHz, 48kHz, 88.2kHz, and 96kHz with ultra-low THD+N (< 0.015%).
- Configurable Network Latency: Adjustable Dante® device latency options (1ms, 2ms, or 5ms) via Dante® Controller.
- AES67 & Network Standard Support: Fully compatible with AES67 RTP audio transport for enhanced network interoperability.
- Flexible Powering Options: Operates via PoE (Class 1 IEEE 802.3af) or local 12VDC/500mA terminal block power supply.

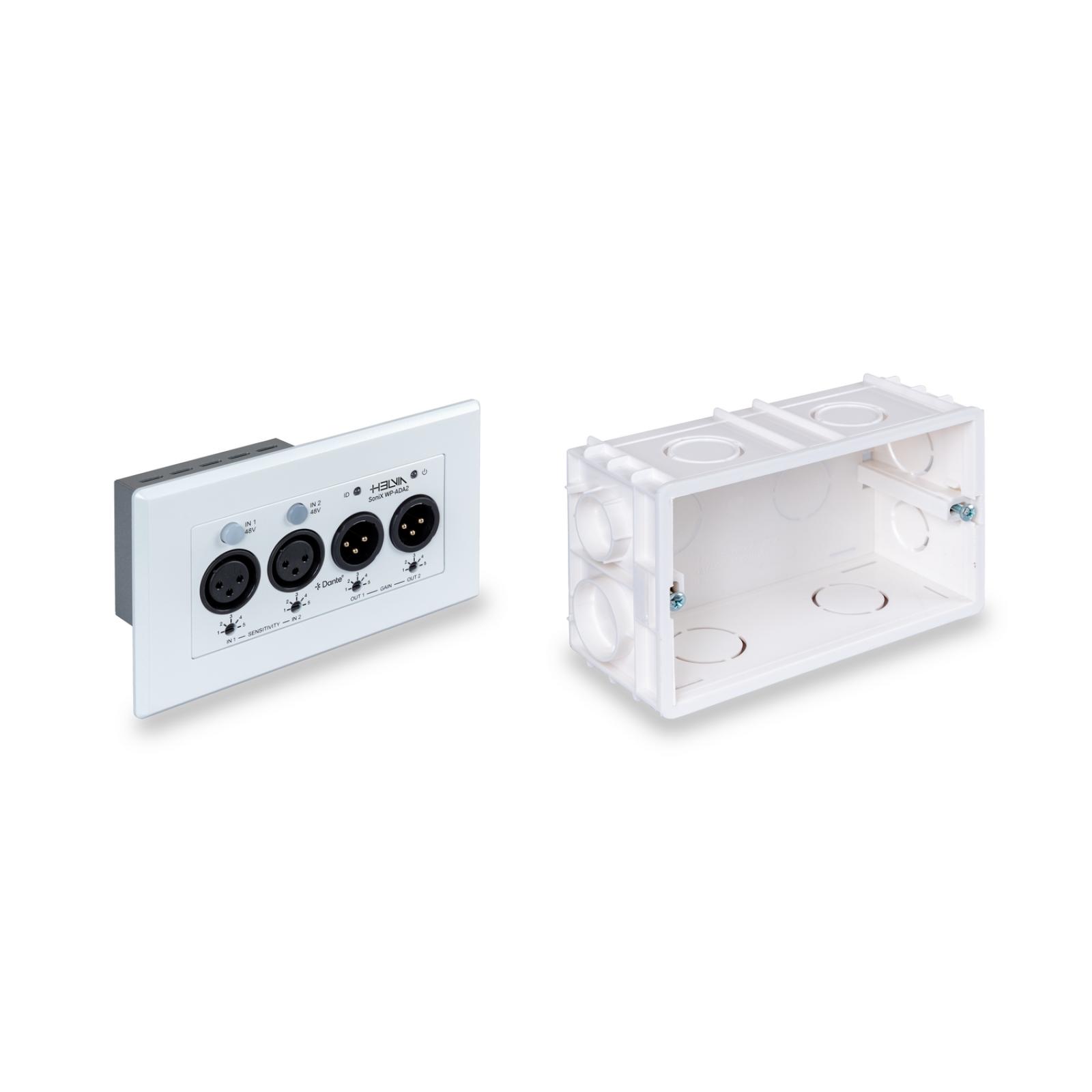

- Included Mounting Hardware: Comes supplied with a custom 2-GANG plastic wall back box for hassle-free surface or in-wall mounting.
- Rugged 2-GANG Form Factor: Built with a durable aluminum front panel and iron chassis designed to fit standard EU/UK wall cutouts.
Specifications
-
Network Bandwidth100M
-
Control MethodDante® Controller
-
Audio LatencyConfigurable Dante® device latency (1, 2 or 5ms configurable using Dante® Controller)
-
Dante® Audio FormatsDANTE [Digital audio in/out, PCM 2CH 44.1K–96KHz 16/24Bit]
-
Analog LINE InputLINE In [analogue audio, Balanced/unbalanced connection, Max input level 24dBu]
-
Analog MIC InputMIC In [analogue audio, Balanced/unbalanced connection, Max input level 50mVRMS, +48V phantom power]
-
Analog OutputLINE Out [analogue audio, Balanced/unbalanced connection, Max output level 18dBu]
-
Output Impedance300 Ohm
-
Maximum Output Level18dBu
-
Frequency Response20Hz to 20kHz (-/+0.5dB)
-
Dynamic Range> 90dB@0dBu, 1kHz A-weighted
-
Audio S/N Ratio> 90dB@0dBu, 1kHz A-weighted
-
Audio THD+N< 0.015% at +4dBu, 1kHz
-
Transmission Distance100m / 328ft (CAT6/6A/7)
-
ESD ProtectionIEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
-

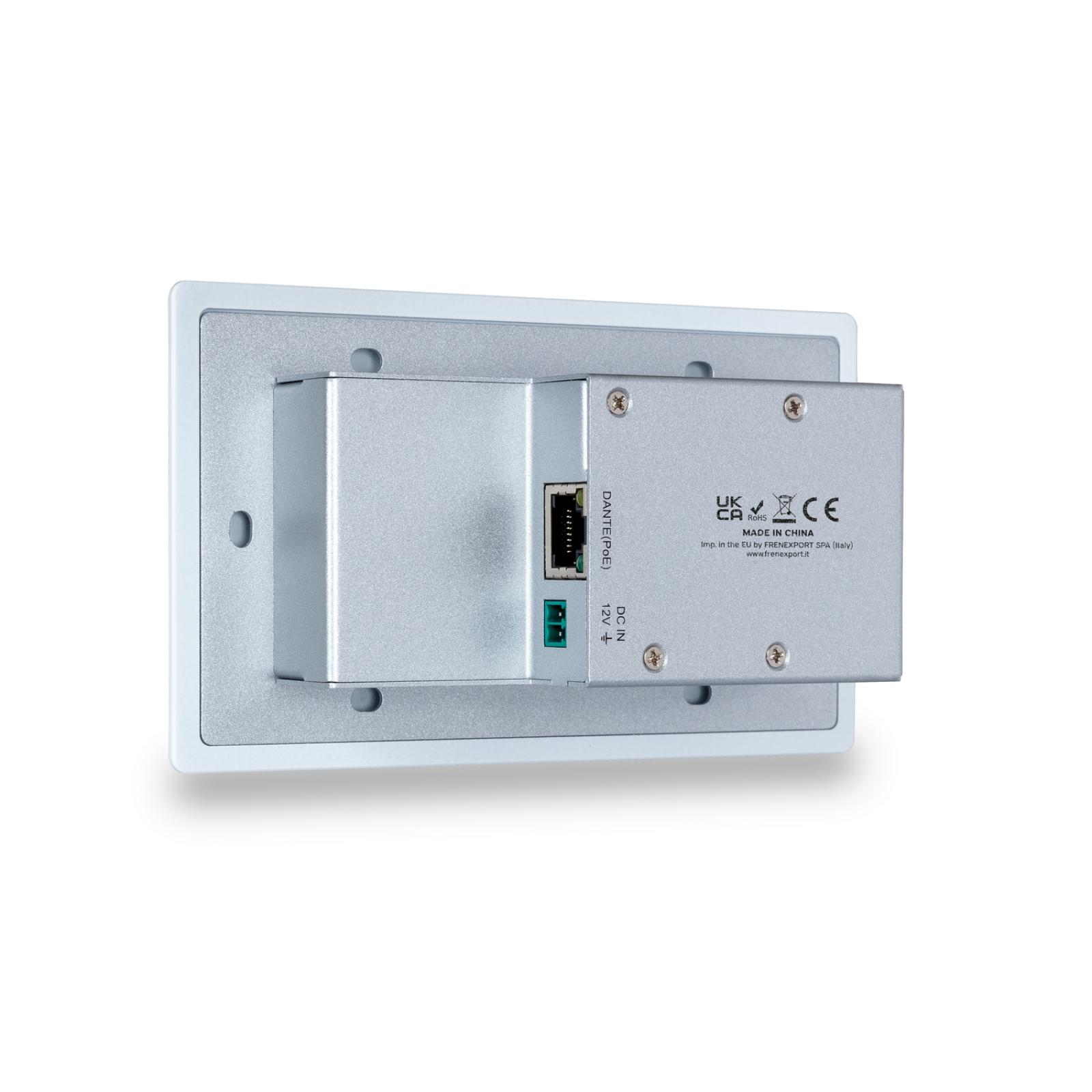

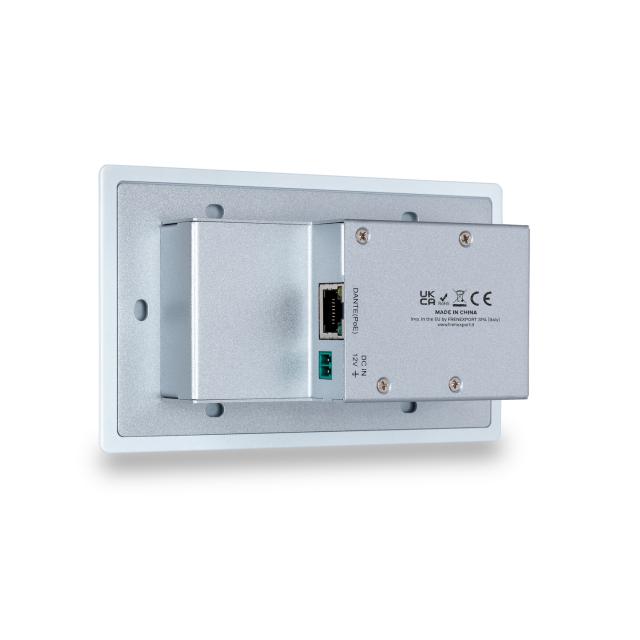

Rear Connectors1x DANTE [RJ45 connector, PoE], 1x DC/12V [2pin-3.5mm phoenix connector]
-

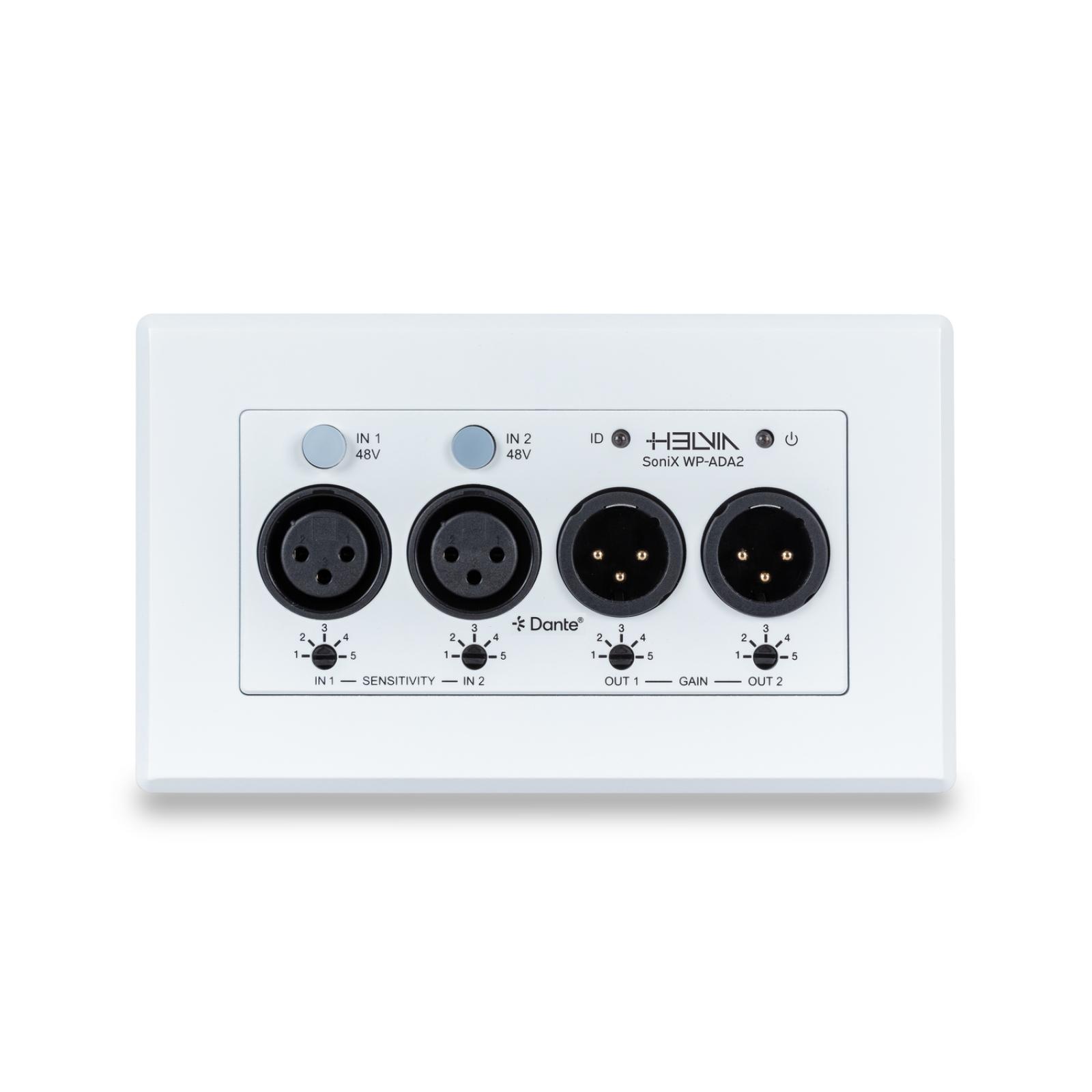

Front Connectors2x Audio In [3-pin XLR Female], 2x Audio Out [3-pin XLR Male]
-
Front Controls2x MIC Phantom Power 48V buttons with backlit LED, 2x Audio IN sensitivity knobs (5-level
-
Front Status LEDs1x Power LED (Green), 1x ID LED (Green)
-
HousingAluminum panel + Iron chassis
-
ColorWhite panel + Silver chassis
-
Wall Plate Dimensions (W x H x D)136 mm x 75 mm x 40.7 mm (5.35 in x 2.95 in x 1.60 in)
-
Faceplate Dimensions (W x H x D)146 mm x 85 mm x 5 mm (5.75 in x 3.35 in x 0.20 in)
-
Included Plastic Wall Box Dimensions (W x H x D)138 mm x 83 mm x 56 mm (5.43 in x 3.27 in x 2.20 in), Mounting Hole Spacing
-
Weight (Without Faceplate)0.28 kg (0.61 lbs)
-
Weight (With Faceplate)0.35 kg (0.77 lbs)
-
Power SupplyPoE IEEE802.3af Class 1 or DC 12V/500mA
-
Power Consumption3.6W (Max)
