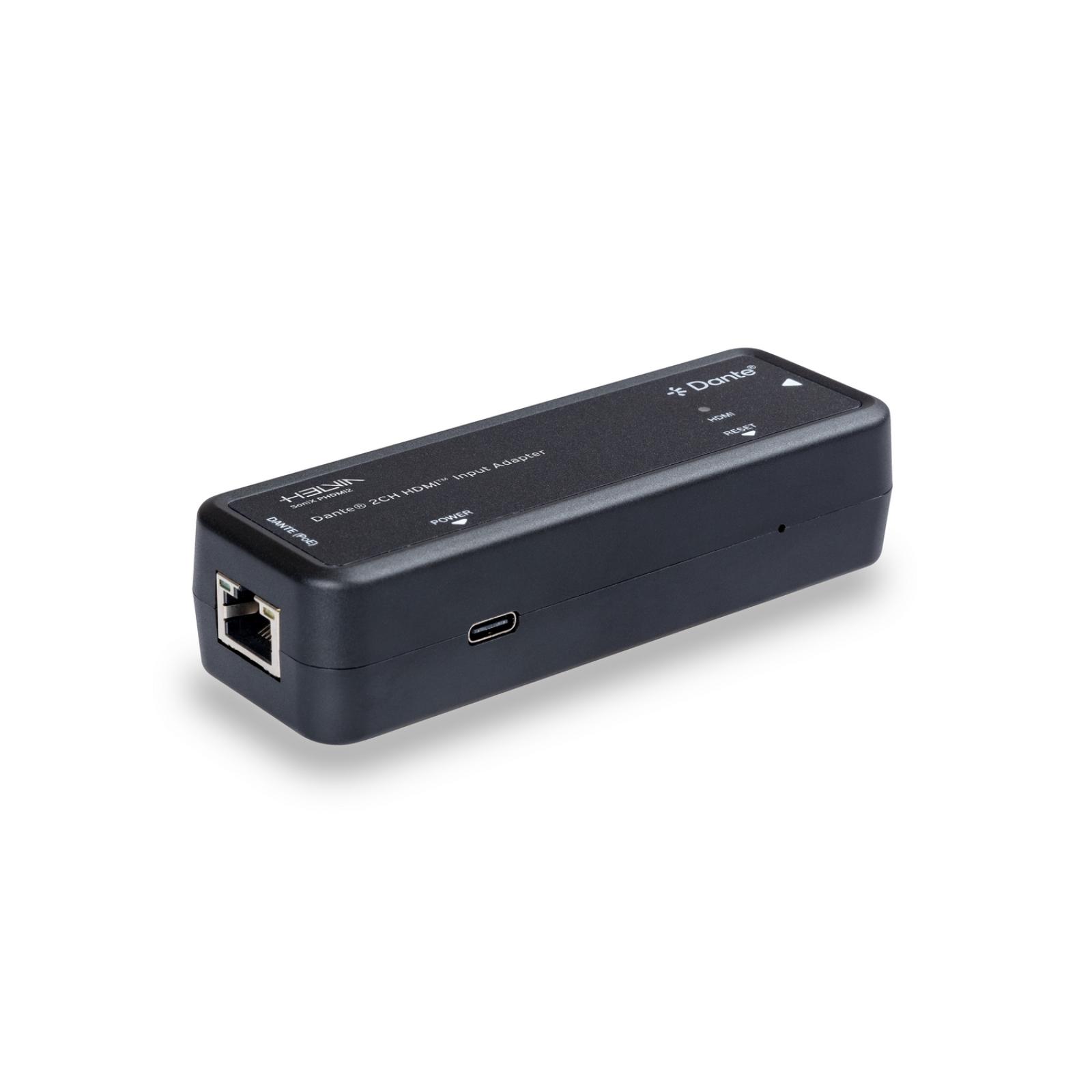

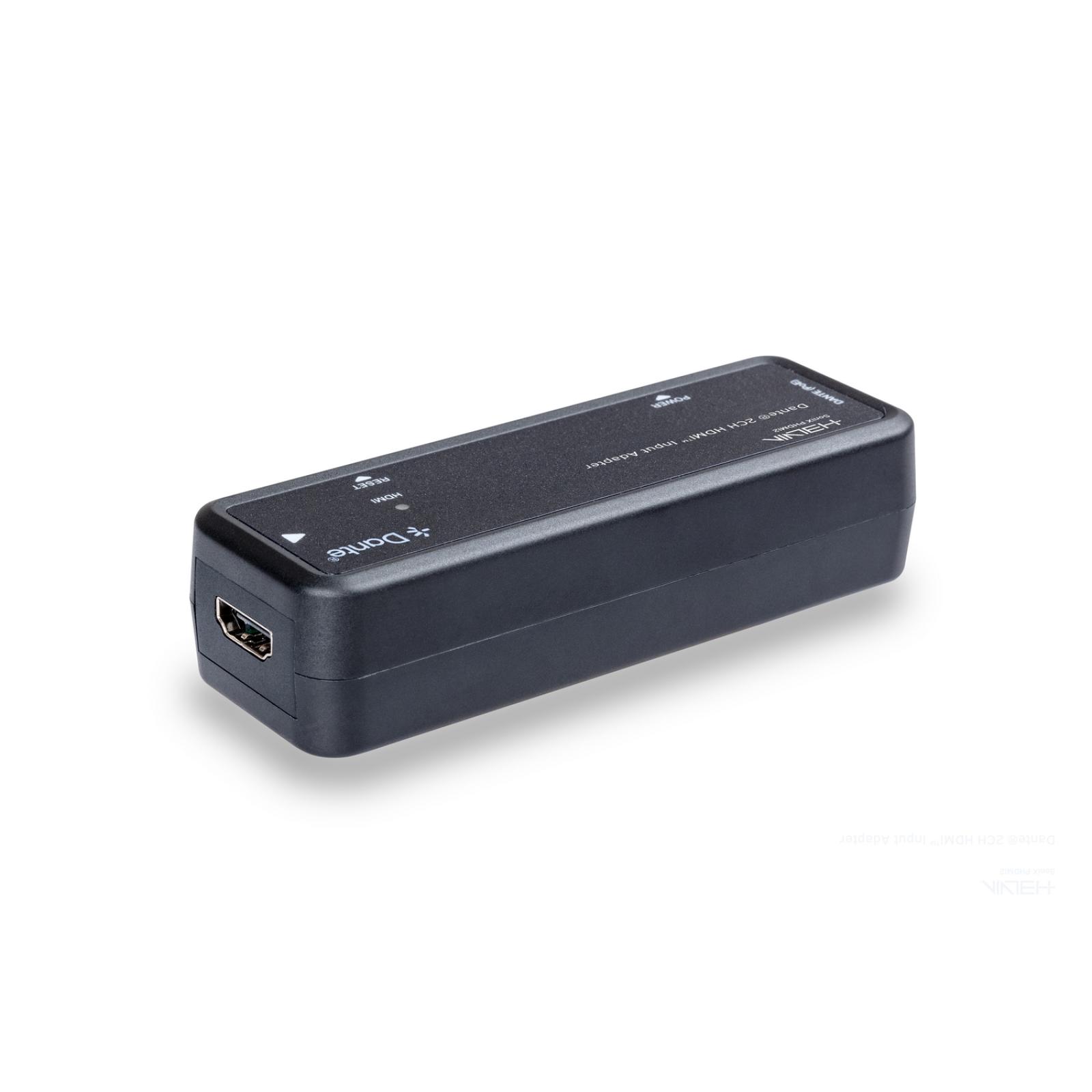

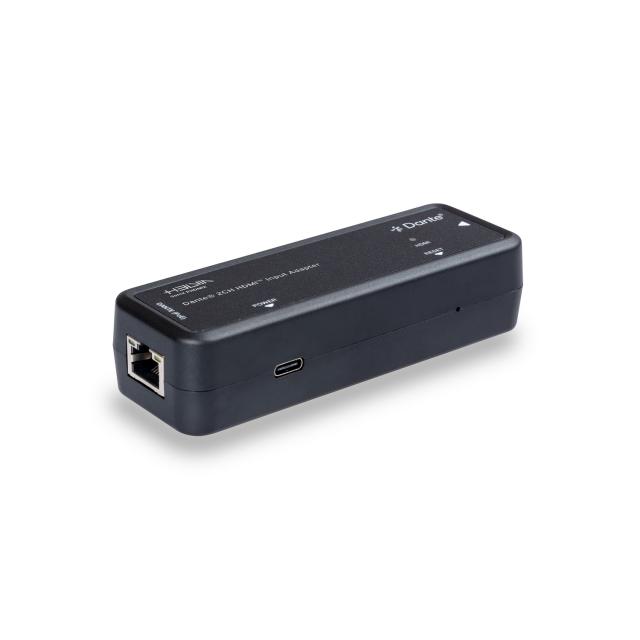

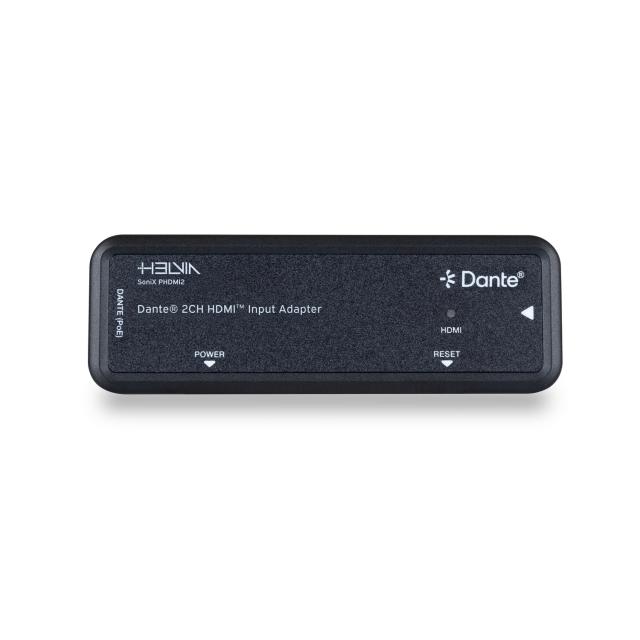

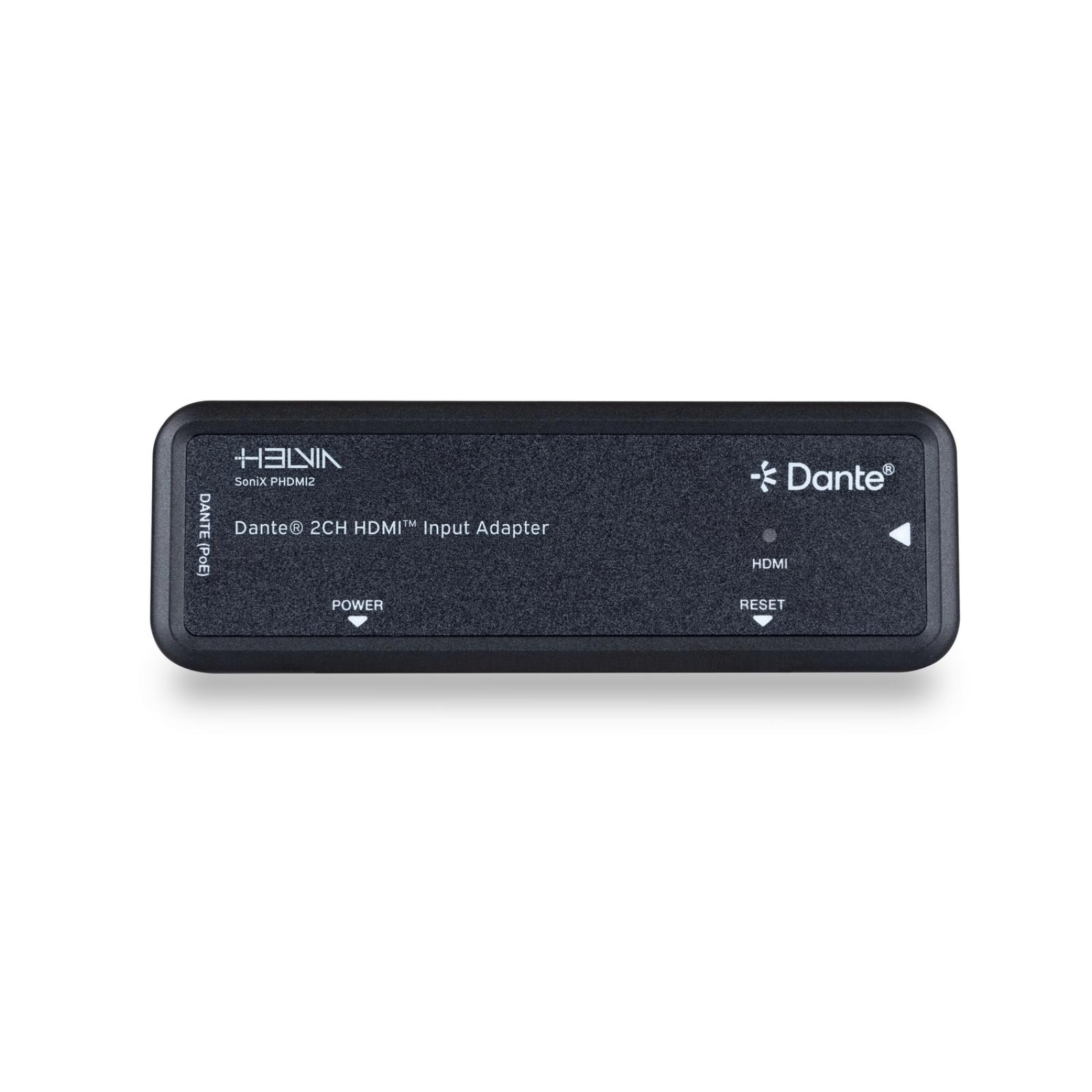

SONIX PHDMI2 Dante® 2CH HDMI™ Input Adapter
Download product sheetThe Dante® 2CH HDMI™ Input Adapter is a compact, ultra-lightweight audio converter built on the robust Dante® Ultimo 2x2 platform. Designed for seamless audio integration, it de-embeds two-channel digital HDMI™ audio and converts it into a high-fidelity Dante® digital audio stream, transmitting it flawlessly over standard IP networks.
Featuring advanced audio... Read more
The Dante® 2CH HDMI™ Input Adapter is a compact, ultra-lightweight audio converter built on the robust Dante® Ultimo 2x2 platform. Designed for seamless audio integration, it de-embeds two-channel digital HDMI™ audio and converts it into a high-fidelity Dante® digital audio stream, transmitting it flawlessly over standard IP networks.
Featuring advanced audio sampling rate conversion and pure, loss-free digital signal processing, this adapter ensures exceptional sonic performance across both fixed AV installations and demanding live/rental applications—including recording studios, concerts, corporate events, and festivals. For maximum operational flexibility, the device supports dual power redundancy via PoE (Class 0 802.3af) or a local USB-C port. Its plug-and-play architecture, combined with custom EDID management and API control capabilities, makes it an indispensable tool for professional AV technicians and system integrators seeking hassle-free HDMI audio routing into Dante® ecosystems.
Collapse textProduct downloads
HDMI 2.0
Dante™ Digital Audio
Product details
Key features
- High-Performance Audio Extraction: Seamlessly converts 2-channel HDMI™ audio into a high-quality Dante® digital audio stream.
- Flexible Sampling Rate Support: Handles HDMI™ PCM 2CH audio input up to 192kHz/24-bit and outputs pristine Dante® digital audio at 44.1 / 48 / 88.2 / 96kHz @ 24-bit.
- Ultra-Low & Configurable Latency: Adjustable Dante® device latency options (1ms, 2ms, or 5ms) via Dante® Controller for perfect system synchronization.
- Dual Powering Options: Supports Power over Ethernet (Class 0 802.3af PoE) for single-cable deployments and local 5V/500mA USB-C power input.
- AES67 Interoperability: Fully compatible with AES67 standards for broader AoIP network integration.
- Compact & Rugged Design: Lightweight yet durable housing engineered for effortless mounting in fixed AV racks or live touring setups.
- Advanced EDID & Serial Control: Integrates a USB-C service port providing API command control, custom EDID loading, and firmware updates.
- Plug-and-Play Simplicity: Instant setup and operation with minimal configuration required.
Specifications
-
Input Port1x HDMI™ IN [Type A, 19-pin female]
-
Output Port1x DANTE [RJ45 connector, PoE]
-
Control / Power Port1x POWER [USB-C port, 12-pin female]
-
Reset Button1x System Reset Button
-
LED Indicator1x HDMI™ LED [Green signal indicator]
-
Control MethodDante® Controller, API Commands via USB-C
-
Video Network Bandwidth100M
-
HDMI ComplianceHDMI™ 2.0b
-
HDCP ComplianceHDCP 2.3
-
Video Bandwidth18Gbps
-
Color Depth8-bit, 10-bit, 12-bit
-
Color SpaceRGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
-
HDR SupportHDR, HDR10, HDR10+, Dolby Vision, HLG
-
Input Video ResolutionsAll resolutions as specified in HDMI™ 2.0b
-
HDMI Audio FormatsHDMI™ IN [Digital audio input, PCM 2CH 32K–192KHz 16/24bit]
-
Dante® Audio FormatsDante® OUT [Digital audio output, PCM 2CH 44.1K–96KHz 16/24bit]
-
Frequency Response20Hz to 20kHz (± 0dB)
-
Dynamic Range> 130dB@0dBu, 1kHz A-weighted
-
Audio S/N Ratio> 130dB@0dBu, 1kHz A-weighted
-
Audio THD+N< 0.01% at +4dBu, 1kHz
-
Audio LatencyConfigurable Dante® device latency (1, 2 or 5ms) / Audio Output Delay < 1ms
-
Transmission Distance100m / 328ft (CAT6/6A/7)
-
ESD ProtectionIEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
-
HousingPlastic Enclosure
-
ColorBlack
-
Dimensions (W x D x H)115 mm x 40 mm x 28 mm (4.53 in x 1.57 in x 1.10 in)
-
Weight0.09 kg (0.20 lbs)
-
Power SupplyUSB input
-
Power Consumption1.8W (Max)
