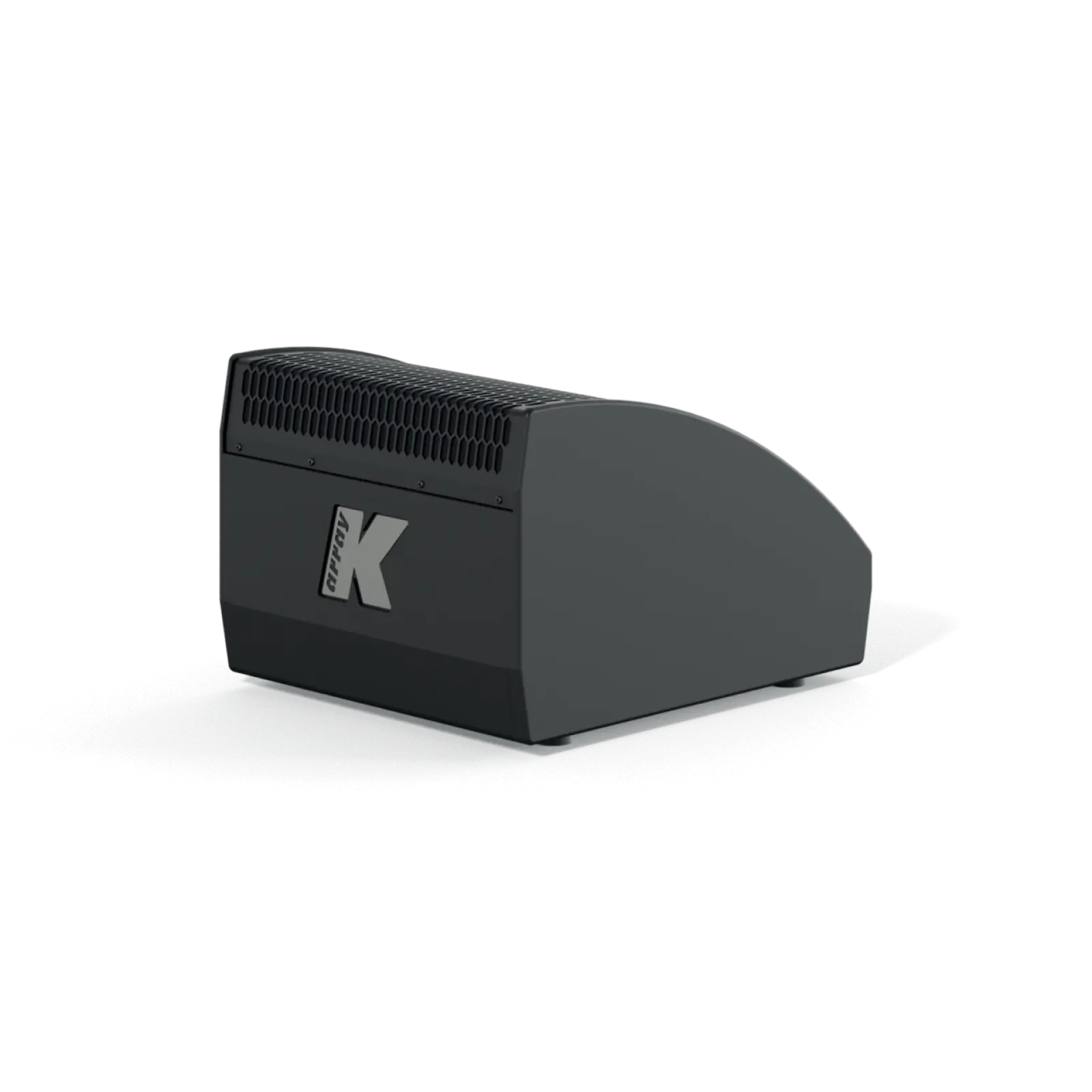

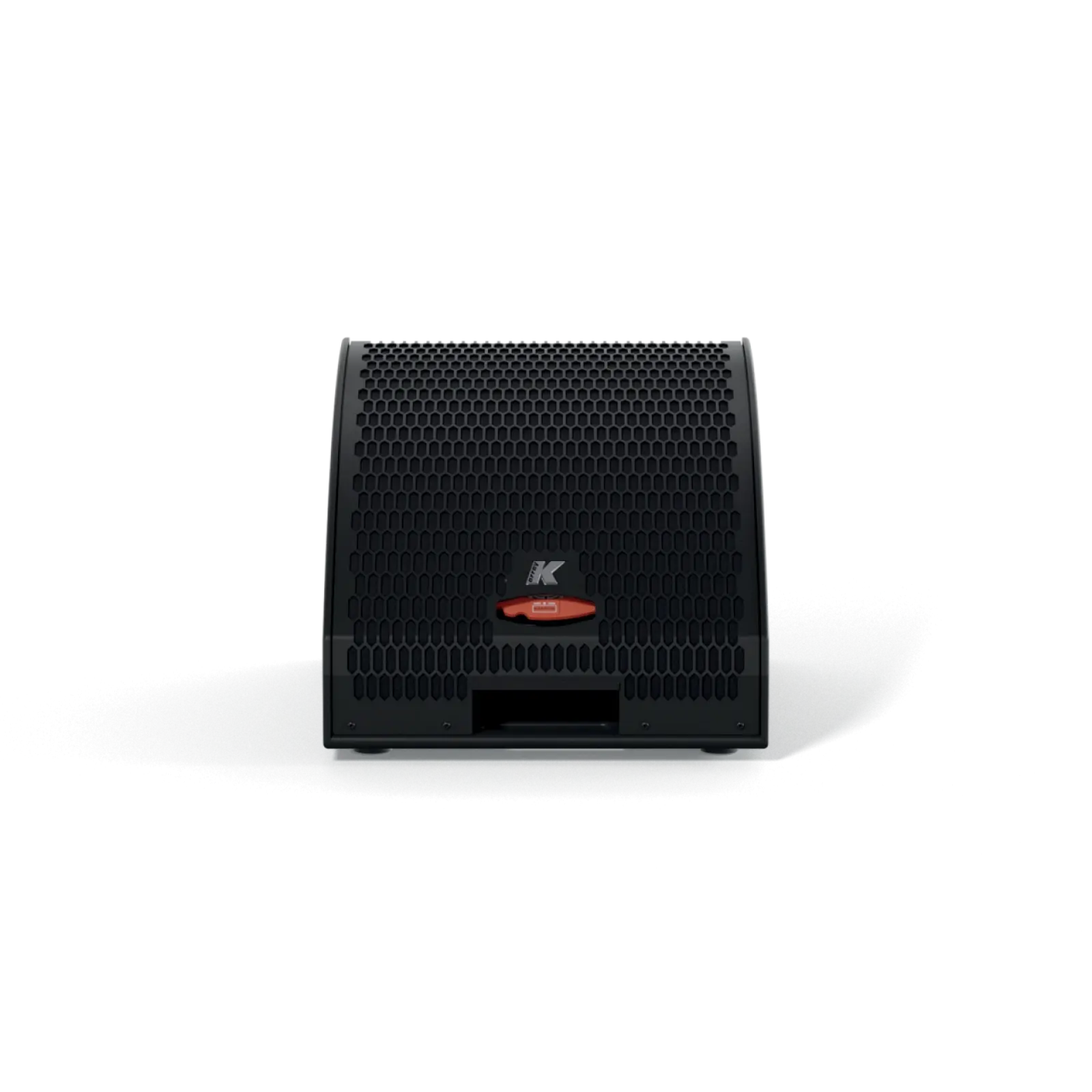

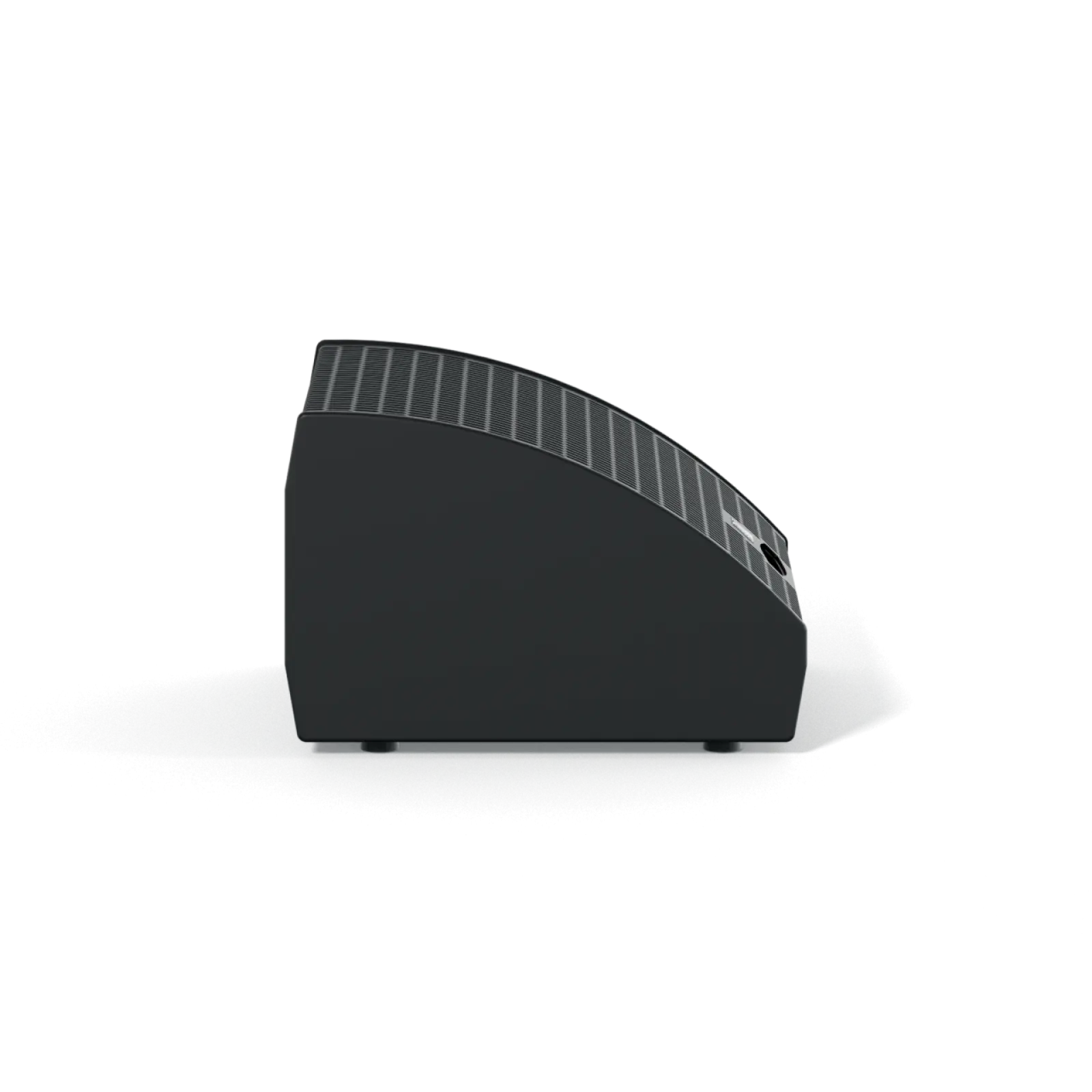

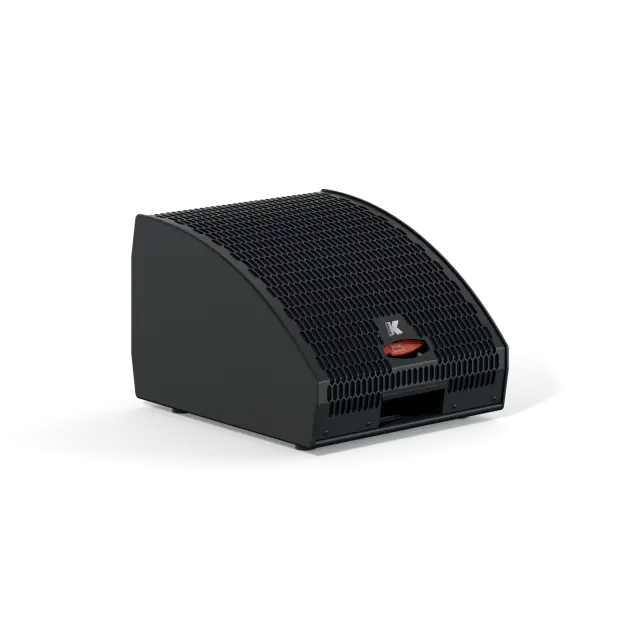

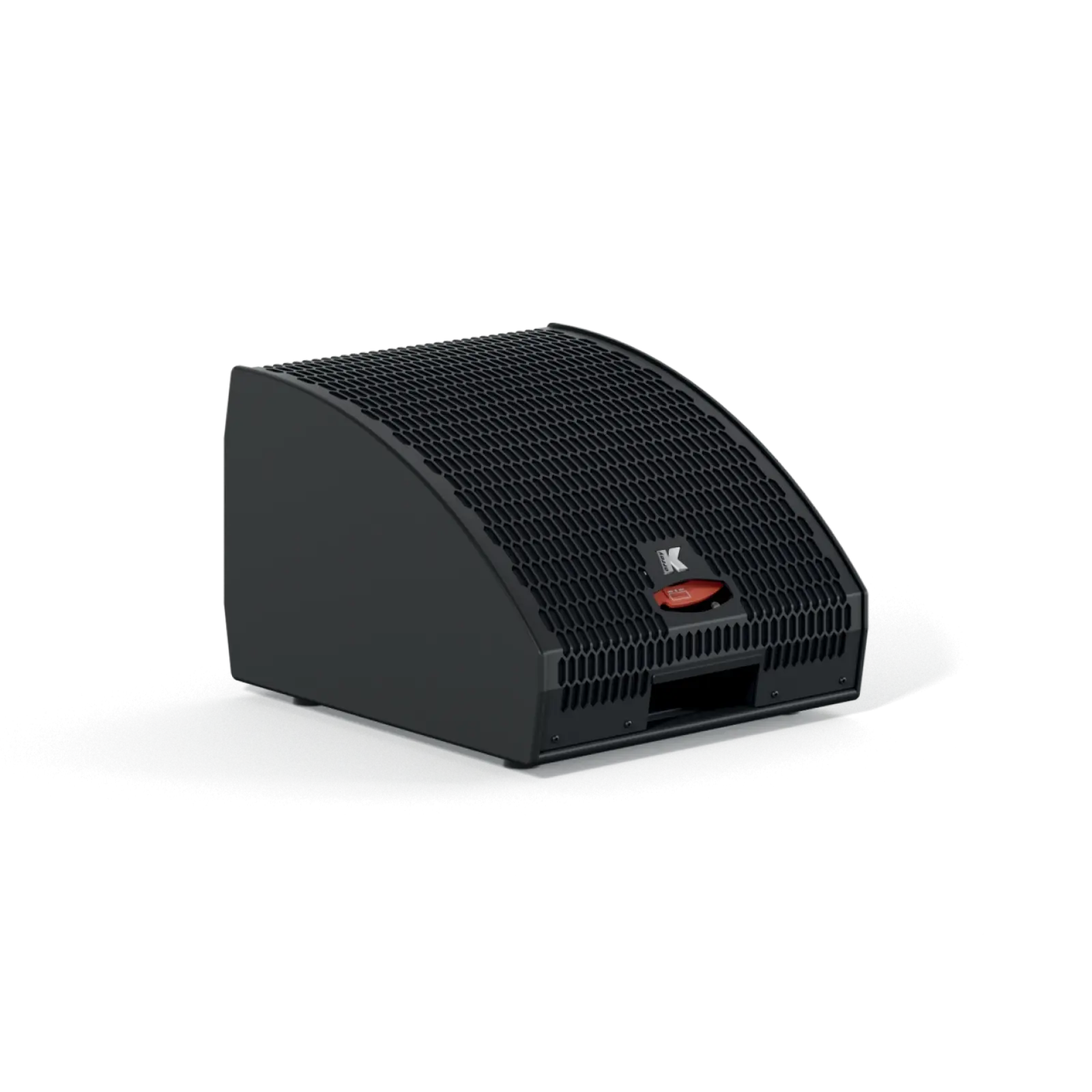

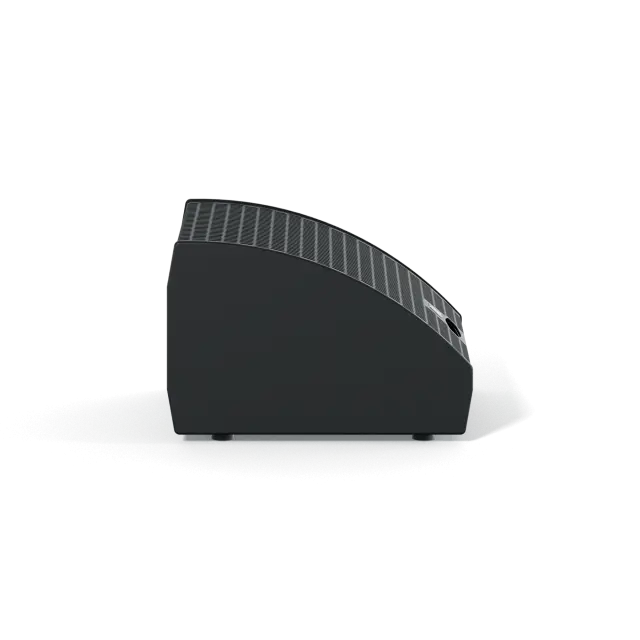

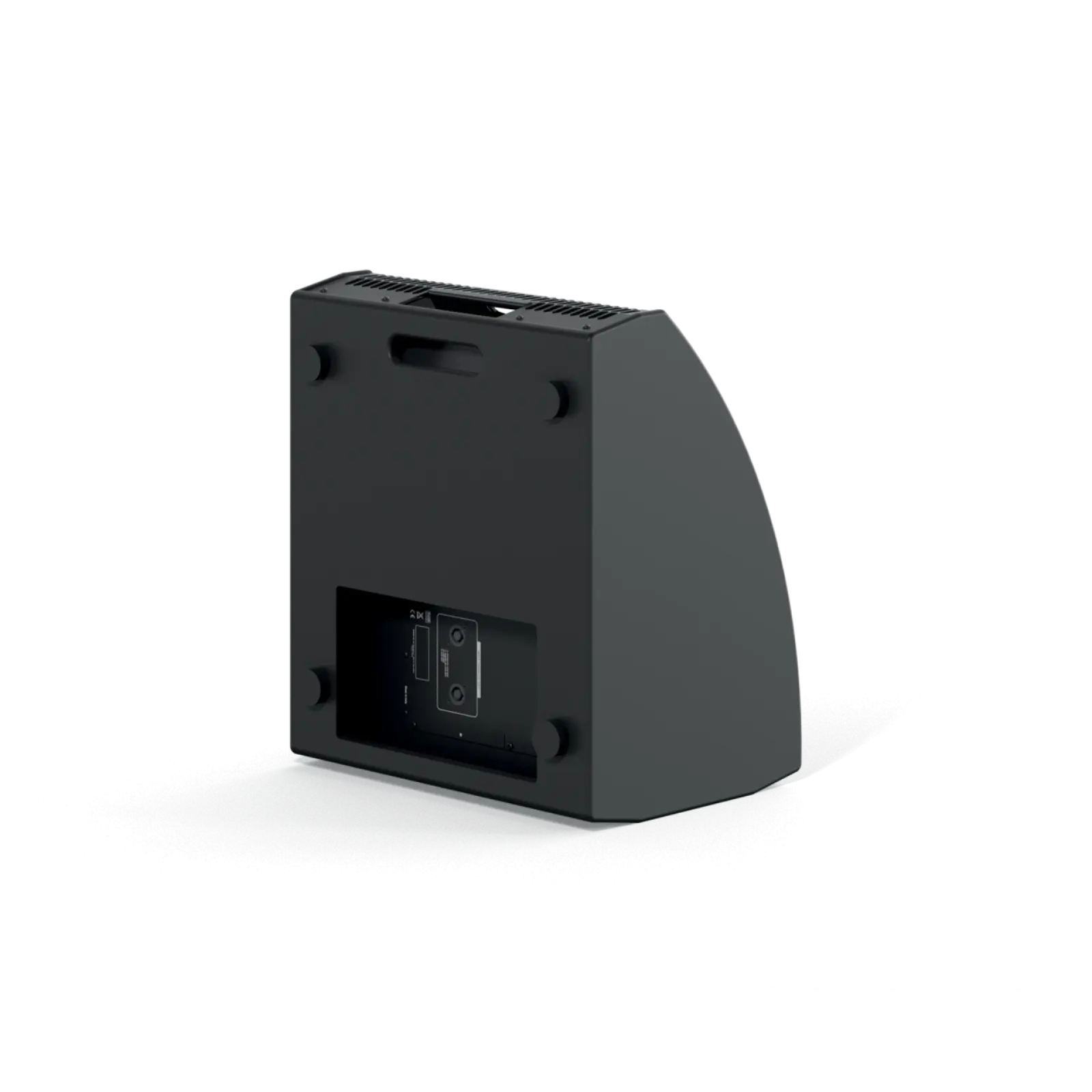

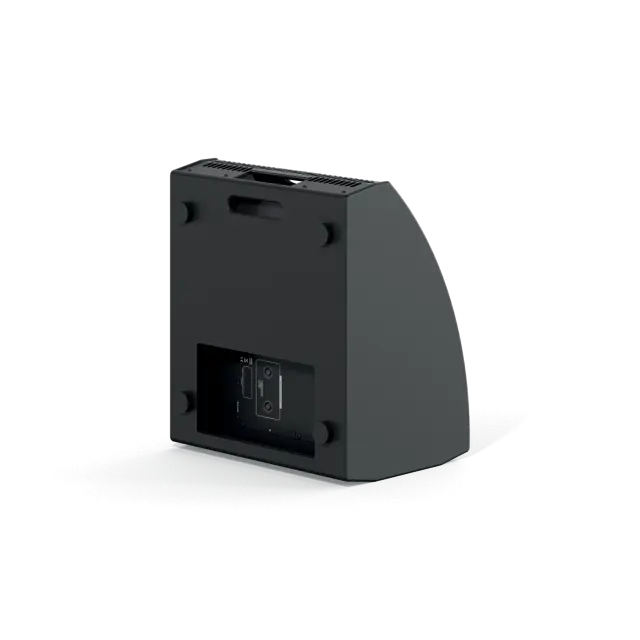

KM112P 12" Coaxial Passive Stage Speaker with Selectable Coverage, 8 Ohm (black color)
Download product sheetEquipped with... Read more
Equipped with an adjustable 100° by 30° horn, KM112P allows performers to select between a wide or narrow sound emission. Protected by an incredibly strong stainless steel grille and a sturdy birch wood chassis, the Mastiff series is ruggedly built to withstand any heavy onstage abuse.
*All Mastiff loudspeakers can be customized with any RAL color Collapse text
Product downloads
Highlights
Like a loyal guard dog
K-array’s Mastiff line of low profile, super powerful monitors keep a close watch of onstage musicians to ensure a flawless performance: producing ultra-low distortion, they give vocals and instruments incredible clarity and precise sound.
Adjustable 100° by 30° horn
Custom colors available upon request
Coaxial Speaker
2-Way Speaker
Product details
Key features
- Unique performance-to-size ratio
- Low profile
- Adjustable asymmetrical 30° x 100° horn
Specifications
-
TypePassive Loudspeaker
-
TransducersCoaxial 12" woofer + 2.4" compression driver
-
Frequency Response70 Hz – 19 kHz (-6 dB, with dedicated preset)
-
Max SPL133 dB (peak, calculated using a signal with crest factor 4 [12dB] measured at 1 m.)
-
CoverageSelectable V. 30°/100° | H. 100°/30°
-
Nominal Impedance8 Ω
-
Power Handling1200 W
-
ConnectorsSpeakOn NL4 1+ 1- (signal); 2+ 2- (through)
-
IP RatingIP20
-
Dimensions (WxHxD)450 x 351 x 530 mm (17.7 x 13.8 x 20.9 in.) - 17 mm (0.7 in.) of removable rubber feet are included
-
Weight21.2 kg (46.74 lbs.)
-
MaterialBirch Plywood (cabinet) / Stainless Steel (grill)
-
Standard ColorsBlack
-
Custom colorsAvailable in any RAL color
-
Premium Metal FinishesNot Available
- More Less
