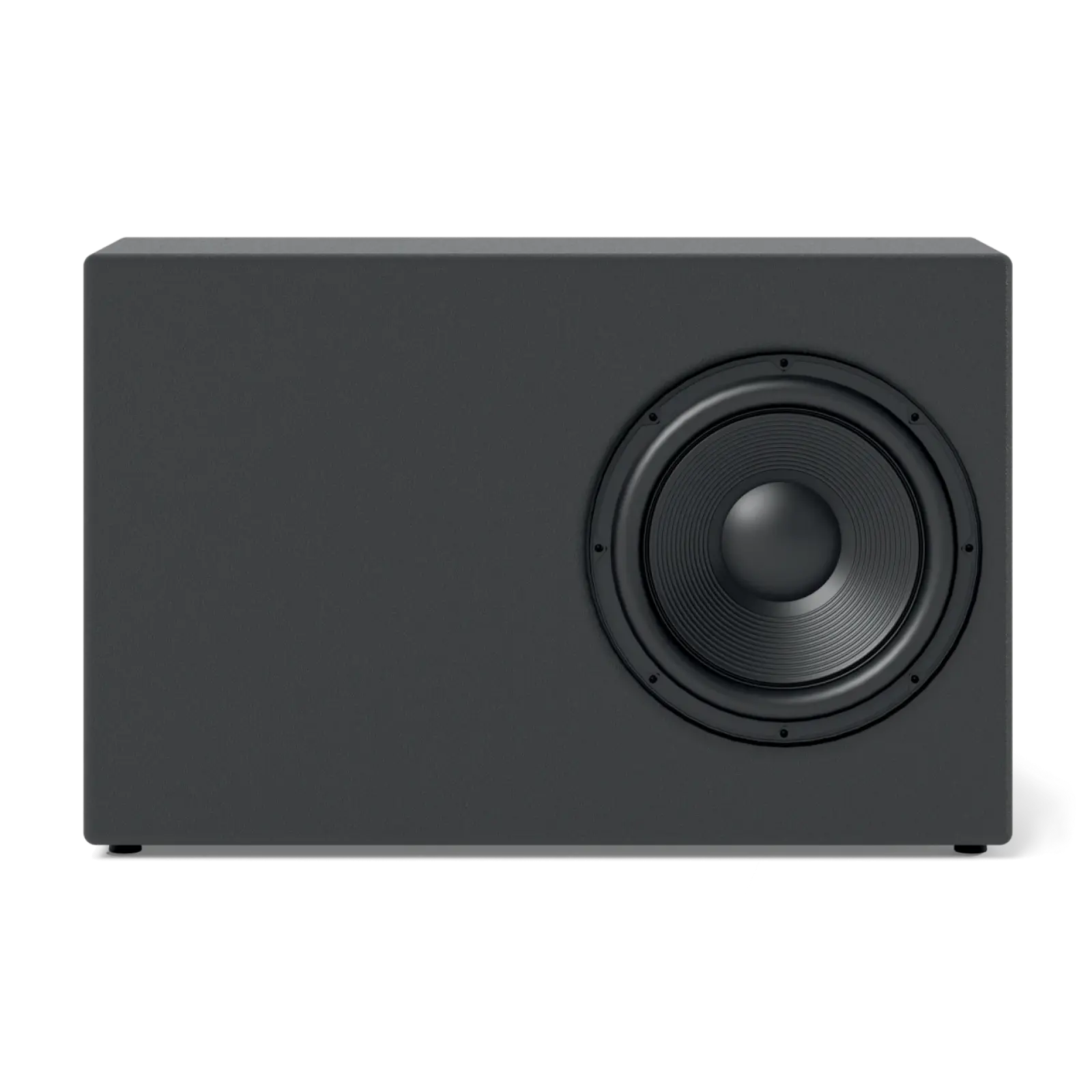

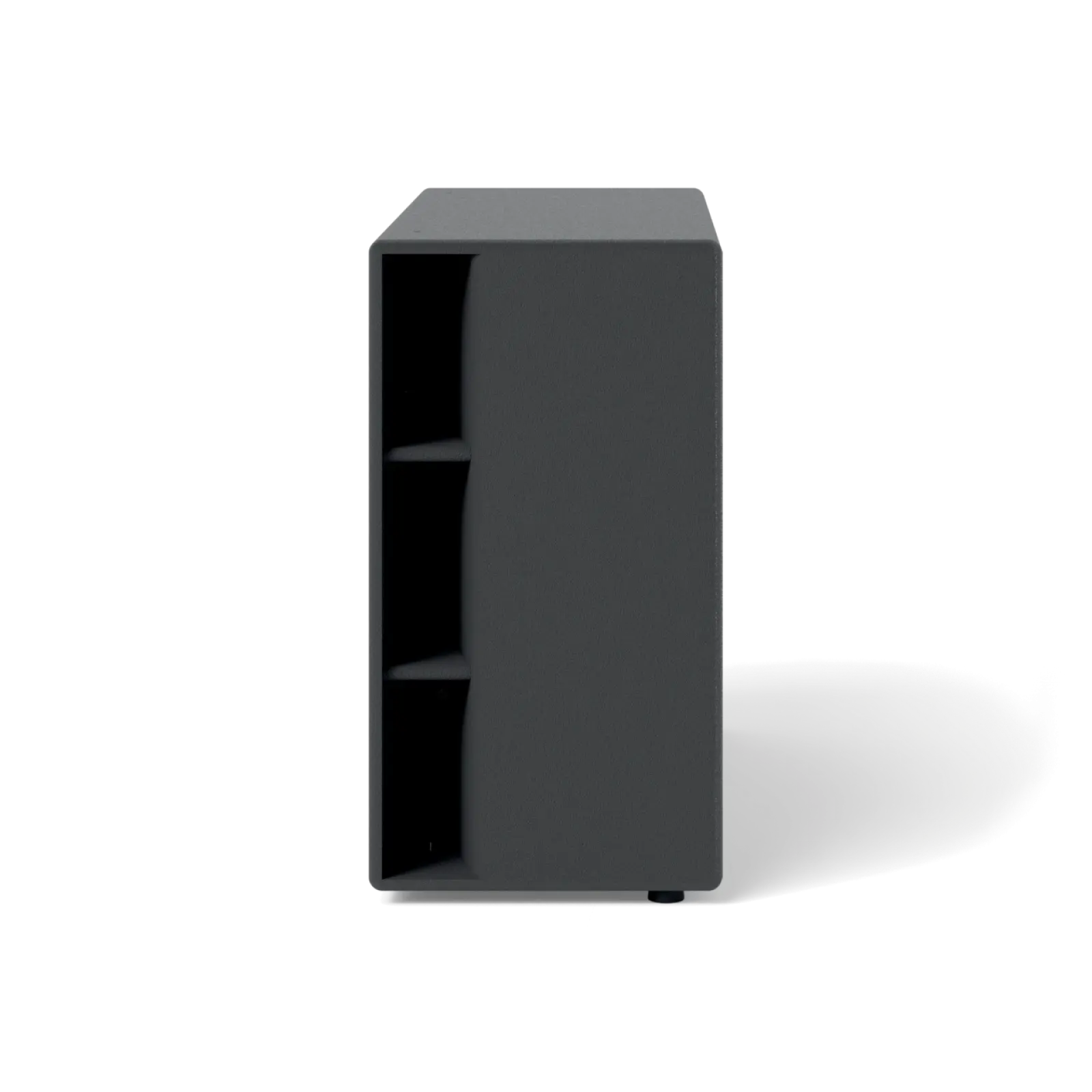

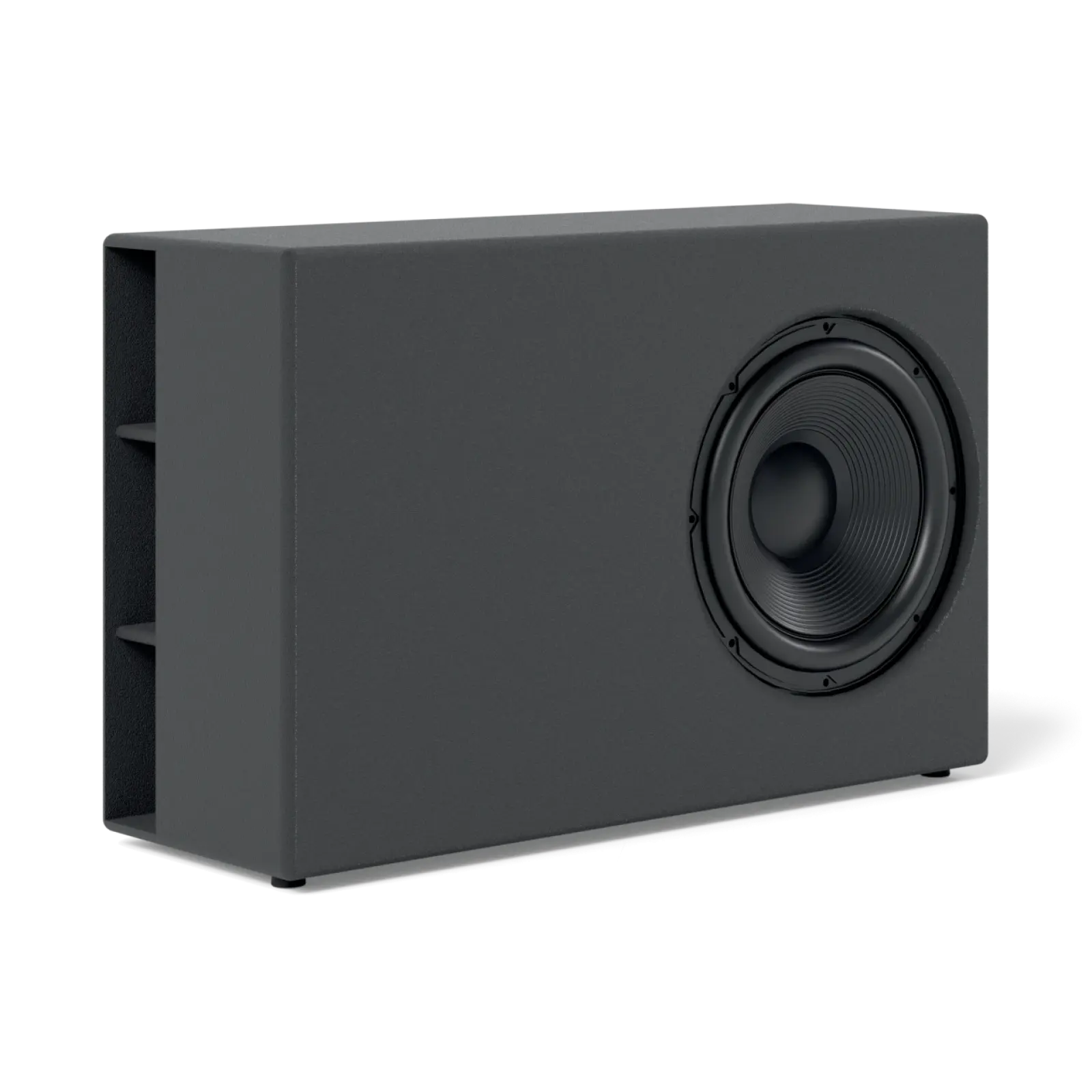

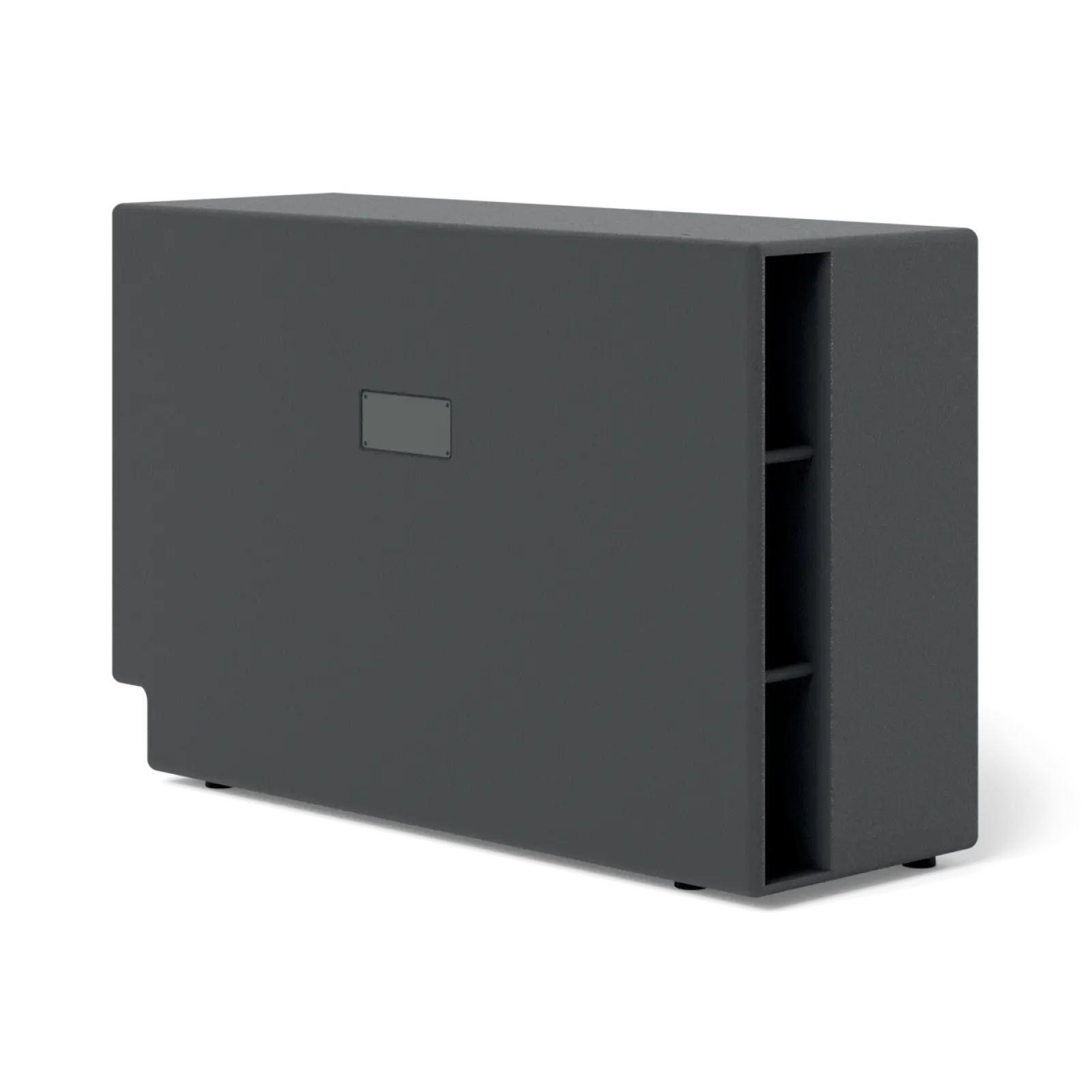

KSC18P 18" Multimedia Entertainment Compact Passive Subwoofer, 4 Ohm (black color)

Download product sheet

The Thunder-KSC18P is a compact passive subwoofer featuring a high excursion 18" neodymium magnet woofer with a 4.5" voice coil housed in a wooden bass-reflex enclosure, acoustically optimized for high SPL performance in demanding conditions.

The small footprint and the extended low-end response makes this subwoofer the perfect companion in Cinemas, Theaters ... Read more

The Thunder-KSC18P is a compact passive subwoofer featuring a high excursion 18" neodymium magnet woofer with a 4.5" voice coil housed in a wooden bass-reflex enclosure, acoustically optimized for high SPL performance in demanding conditions.

The small footprint and the extended low-end response makes this subwoofer the perfect companion in Cinemas, Theaters and Home Entertainment environments, delivering ultra-deep and powerful low frequencies down to 15 Hz with a 134 dB peak SPL.

When paired with K-array mid-high loudspeakers and Kommander series amplifiers, the KSC18P infra-subwoofer offers a new way to experience sound from movies and animations with perfect sound reproduction across the entire frequency range.

Collapse text

Product downloads

Highlights

Thunder: Strike the perfect audio balance

Combined with the unique audio solutions of K-array, add exceptional lows to your frequency range for live sound events with a choice of five subwoofer models from the Thunder series present in both active and passive electronic versions.

Dante Enabled

K-array amplifiers come with Dante already enabled, with the license built directly into the unit for immediate use without any extra activation steps.
According to the IEB or IEB+ version, different digital channel counts are available, offering flexible network integration and expanded audio distribution options.

POWERED BY INTELIGENCE

Enhanced performance and easy tuning are now managed by the Integrated Electronic Brain (IEB) implemented into K-array amplifiers. More than a traditional DSP, the built-in micro electronics driven by the integrated operating system osKar features expansive sound processing, offering complete user control over the system performance.

MORE THAN JUST SUBWOOFERS

In their active version, the Thunders are more than just subwoofers. They include powerful 4-ch class D amplifiers fully managed by sophisticated integrated DSP processors.

This combination allows the electronics of a Thunder to deliver not only the power signal to the subwoofer itself, but offers up to three additional channels of amplification and processing, thus becoming a complete control unit that allows you to drive an entire stereo system using only one active unit. Questo si trasforma anche in un grande vantaggio economico.

INFRA MODELS FOR CINEMA

Sound performance is essential for an unforgettable cinema experience. Equal to the powerful and engaging imagery as seen on the big screen, the Thunder-KS model reveals an untapped potential of cinema sound performance by extending the low-end response even further, making it an easier task to excite the public in vast squares and even arenas.

EXTENDED LINE ARRAY

Among the Thunder-KS accessories, one of particular importance are the mechanics for hanging in arrays which allow it to be suspended in combination with the line array speakers of the Mugello family, and in clusters composed exclusively of subwoofers. This hardware also allows you to create arrays with corners, in order to follow the set-up of the main array.

Adaptable even off the stage

Thanks to K-array’s signature compact style, without trying to be defined as a design product the Thunder series can easily adapt to architectural installations or even wedding events in the open air where blending in is of great importance, also thanks to the possibility of a custom painting on demand.

OBSESSION FOR DETAILS

The details can really make the difference, the side handles are elegantly integrated into the speaker body beautifully crafted for comfort. The M20 threaded flange on the top which is essential for combining with the speaker stands and pins of the Pinnacle and Axle systems, is made for steadiness with internal strong tubular brackets to give more stability.

CRAFTED FOR HEAVY TOURING

The Thunder Series subs are built with a choice of Finnish birch plywood so it lightweight and incredibly resistant, making it the perfect speaker for audio rentals.The new polyurea paint and the cataphoresis treatment for the front grill, further treated with powder coating, also give greater resistance to the harsh weather environments often experienced on the road.

ULTIMATE SOUND CONTROL

Low frequencies have always been one of the most challenging aspects of system design. Their natural omnidirectional behavior makes control difficult, often resulting in unwanted energy on stage and a less defined sound.

The combination of integrated cardioid technology and advanced simulation environments allows low-frequency behavior to be predicted and shaped with precision.

This approach enables controlled directivity, reduced rear radiation, and a cleaner, more consistent acoustic experience across any application.

Integrated Cardioid Technology

The THUNDER-KSCARDIO412P joins the Thunder family as a state-of-the-art cardioid subwoofer, engineered to deliver extremely powerful low-frequency output while drastically minimizing rear sound radiation. Designed for professional live sound and fixed installations, it ensures clean, focused bass that keeps back emissions to a minimum.

Custom colors available upon request

The Thunder series is offered in black or elegant white finish and can be customized to match any RAL code to better integrate them in a wide variety of venues.
Thunder subwoofers are manufactured to achieve exacting standards and are subject to rigorous quality control system in Italy.

Product details

Key features

  • Powerful, high SPL
  • Compact
  • High quality bass frequencies reproduction
  • Elegant design
  • Cinema, theaters and home movie applications
  • IP41 rating

Specifications

  • Type
    Passive subwoofer
  • Transducers
    18" neodymium magnet woofer with 4.5” voice coil
  • Frequency Response
    15 Hz - 150 Hz (-6 dB)
  • Max SPL
    134 dB
  • Rated Power
    3600 W
  • Coverage
    Omni
  • Connectors
    SpeakOn NL4 1+ 1- (signal); 2+ 2- (through)
  • Nominal Impedance
    4 Ω
  • Dimensions
    1100 x 700 x 380 mm (43.3 x 27.6 x 15 in)
  • Weight
    53 kg (116.85 lb)
  • Material
    Wood
  • Finishes
    Black
  • IP Rating
    IP41
  • More Less
