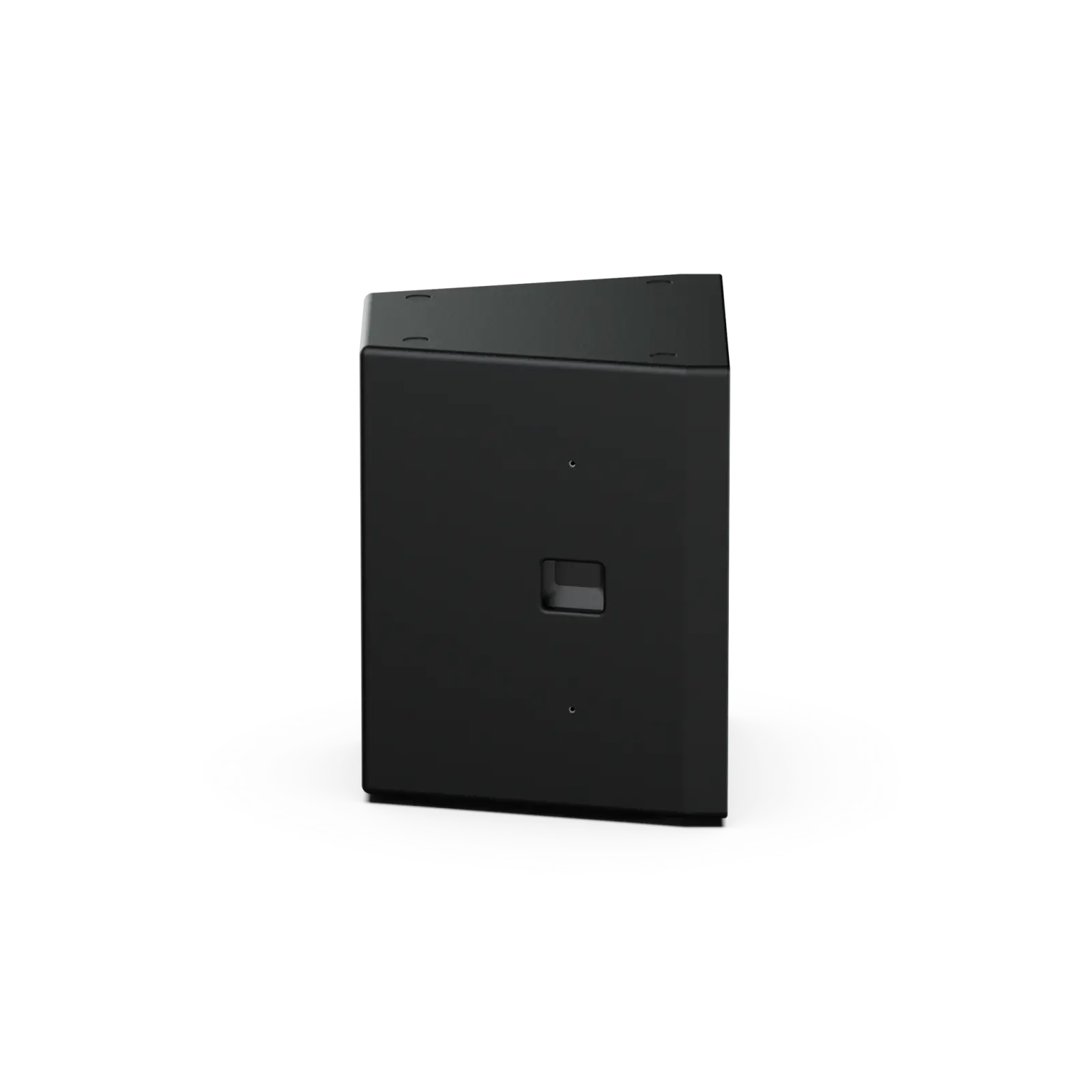

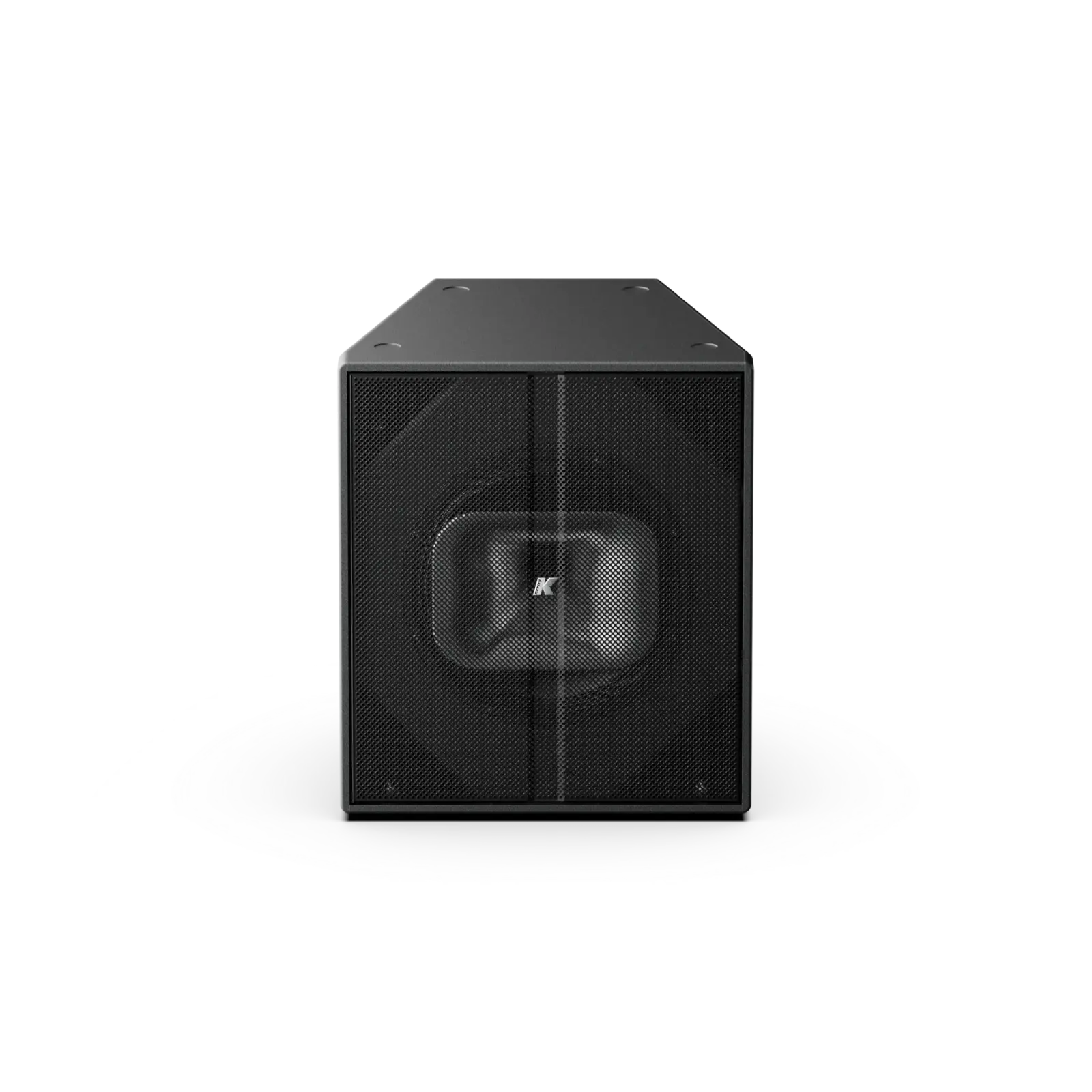

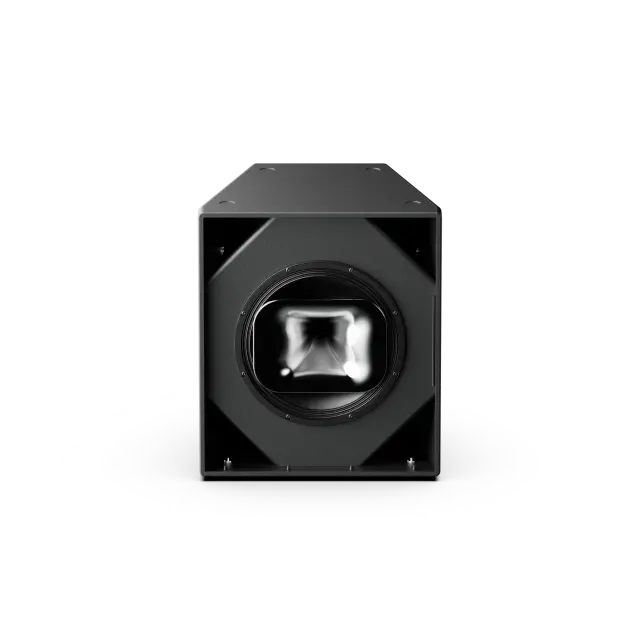

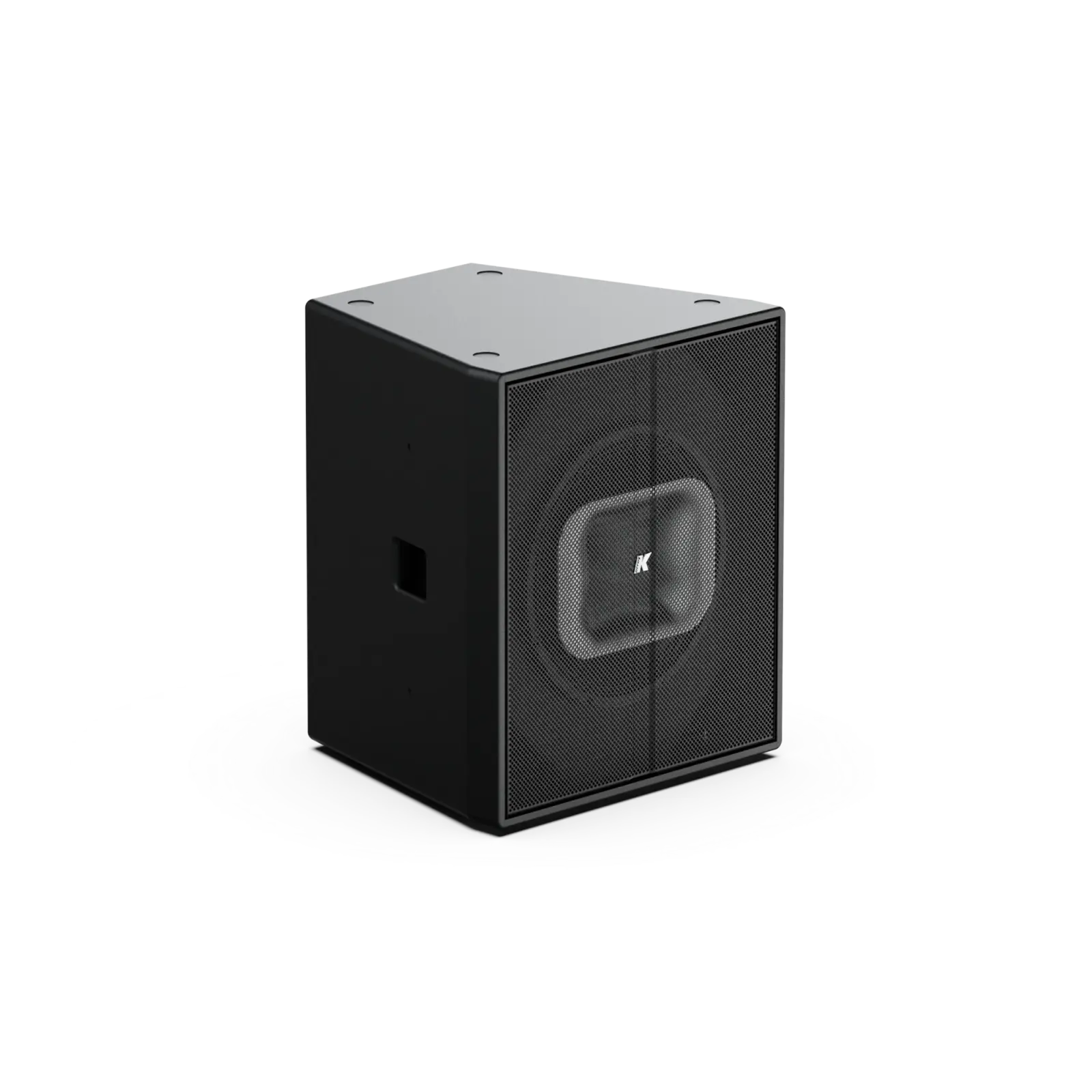

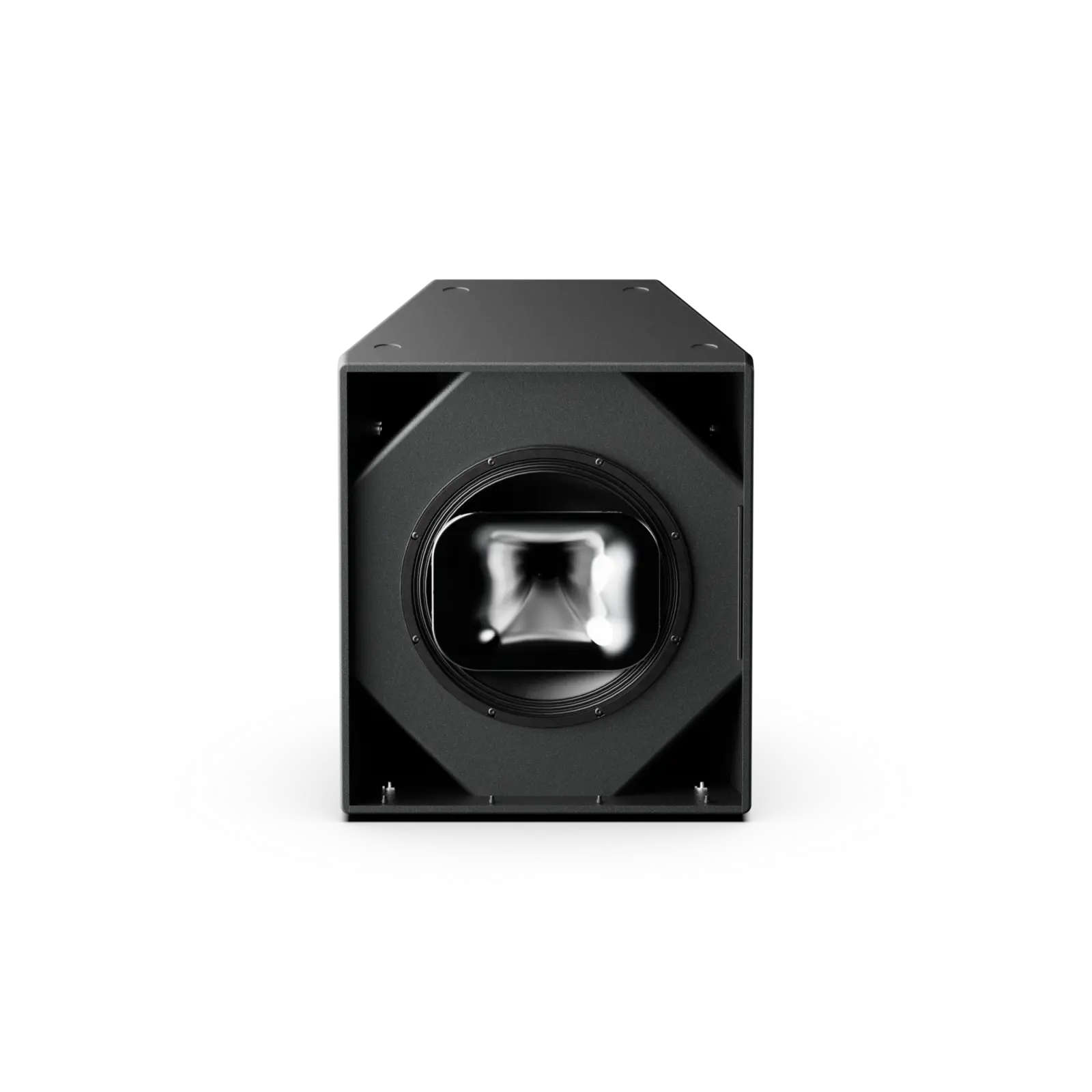

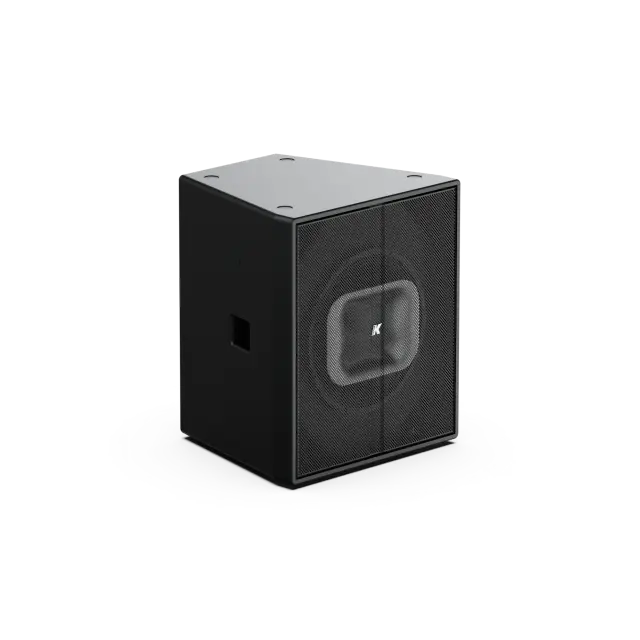

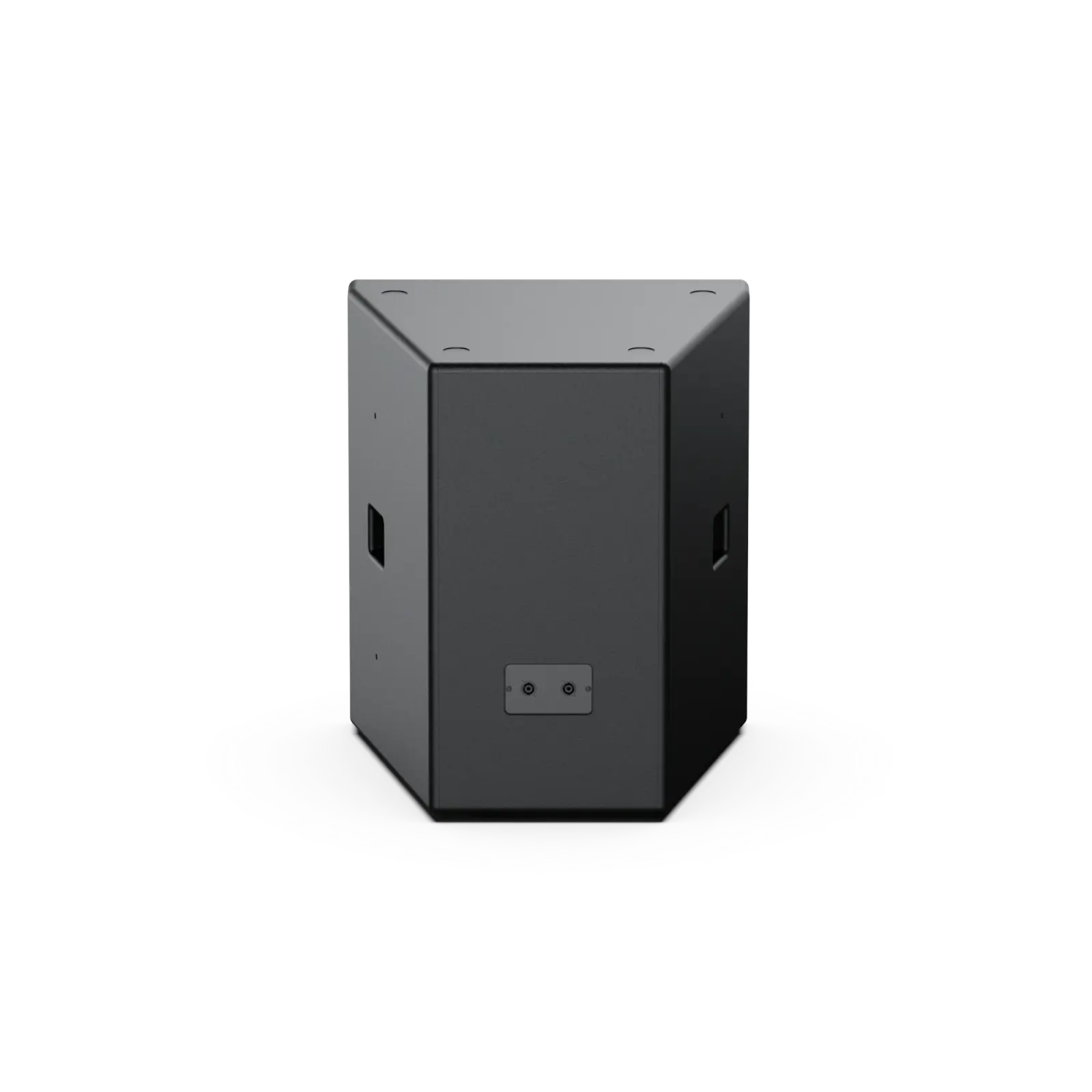

KXT18P Bi-Amp 18"+4"+2.5" Triaxial Full Range Point Source Passive Speaker with Rotatable Horn (black color)

Download product sheet

The Dragon-KXT18P loudspeakers are among the largest-format tri-axial point source systems in the K-array Dragon portfolio, designed for high-demand live sound and club applications where premium output, precise control, and powerful low-frequency performance must complement the installation environment without compromise.

Built with tri-axial architecture, t... Read more

The Dragon-KXT18P loudspeakers are among the largest-format tri-axial point source systems in the K-array Dragon portfolio, designed for high-demand live sound and club applications where premium output, precise control, and powerful low-frequency performance must complement the installation environment without compromise.

Built with tri-axial architecture, the Dragon-KXT18P combines strength, precision, and controlled directivity in a robust birch plywood enclosure. It features an 18" neodymium woofer, a 4" mid-frequency compression driver, and a 2.5" high-frequency compression driver, delivering a 48 Hz – 18 kHz frequency response with up to 144 dB peak SPL, providing impactful, detailed sound in a compact footprint for its size.

For full-range performance, the Dragon-KXT18P can be used as a standalone speaker, stacked, or configured in vertical or horizontal clusters with dedicated accessories for extended coverage in medium to large venues.

Collapse text

Buy this product online

Search Google Shopping

Product downloads

Media

Media

Dragon-KXT: New generation of powerful point source elements
Dragon-KXT18P at Miami Music Week 2025
K-array Group | ISE 2025 ~ New Product Launches

Highlights

New generation of powerful point source elements

The Dragon family represents a powerful and compact range of point source systems featuring coaxial, triaxial and Spixel technology, combining exceptional performance with an iconic design. Engineered for sophisticated installations, these systems deliver high pressure in the near field with rapid sound attenuation over distance, making them versatile tools for installers in premium venues and refined club environments.

KXT: Triaxial Design

Featuring an advanced triaxial configuration with an additional midrange driver aligned on a single acoustic axis, the Dragon-KXT12P and KXT18P deliver true point-source performance with a minimal footprint. This innovative design eliminates phase interference to guarantee a focused, uniform sound field and exceptional vocal clarity even at high SPLs. The result is a clean, controlled sonic signature, making it the perfect solution for environments demanding high-definition audio and seamless architectural integration without compromising on power.

Precise and Flexible Coverage

They feature a rotatable horn with fixed coverage of 60°× 40°. The enclosure design is specifically engineered to enable tight horizontal and vertical clustering. The shape and waveguide contribute to smooth acoustic coupling between units, ensuring uniform sound dispersion and consistent coverage, especially in the near field.

KX12 I & KX2: Compact form & EBS Control

KX12 I and KX2 are a compact point source systems with optimized directivity, designed for standalone use or array configurations. When used in arrays, they supports EBS (Electronic Beam Steering) technology, enabling precise electronic control of dispersion. Each unit contributes to a focused, coherent coverage, minimizing reflections and ensuring consistent SPL across the listening area. This makes the KX2 ideal for applications requiring high intelligibility, accurate coverage, and clean integration. KX12 I is perfect for high SPL applications.

Dragon-KX2: Spixel Technology

Based on an innovative full-range trasducer of 2” and engineered to deliver exceptional efficiency, remarkable low-frequency extension and impressive SPL performance. KX2 is designed for scalable array configurations and ensures precise directivity in an extremely compact format.

Flexible Sound for Every Setup

Flexible Sound for Every Setup The Dragon family of point source speakers excels in high-intensity applications, from DJ monitoring in exclusive venues to versatile near field configurations for clubs, theaters, live events and diverse applications where power and precision meets elegance.

Unique style of the Dragon

The horn features a distinctive silver finish that sets the installation apart. With the option to cover it by a mesh grille or to leave it exposed, the design remains elegantly transparent, adding a touch of sophistication to any settings. The horn is also available in black or custom finishes, and the entire enclosure can be customized in any RAL color to suit your style.
Triaxial Woofer
3-Way Speaker

Product details

Key features

  • Tri-axial 18" neodymium magnet woofer + 4" compression driver (MF) + 2.5" compression driver (HF)
  • Full-range and Natural preset
  • Rotatable horn with screws for variable coverage
  • Dedicated hardwares for rigging and mounting
  • Horizontal and vertical array configurations
  • Birch Plywood cabinet
  • Removable mesh grille
  • IP43 rating

Specifications

  • Type
    Passive Point Source
  • Transducers
    Tri-axial 18" neodymium magnet woofer + 4" compression driver (MF) + 2.5" compression driver (HF)
  • Frequency Response
    48 Hz - 18 kHz (-6dB, with dedicated preset)
  • Max SPL
    144 dB Half Space (peak, calculated using a signal with crest factor 4 [12dB] measured at 8 m then scaled at 1 m.)
  • Coverage
    V. 40° - H. 60° (Rotatable with screws)
  • Nominal Impedance
    4 Ω (LF) + 8 Ω (MHF)
  • Power Handling
    1600 W (LF) + 380 W (MHF) bi-amplified
  • Connectors
    2x SpeakOn NL4 1+ 1- (MHF, signal); 2+ 2- (LF)
  • IP Rating
    IP43
  • Dimensions (WxHxD)
    650 x 735 x 580 mm (25.6 x 28.9 x 22.8 in.)
  • Weight
    40,8 kg (89.84 lbs.)
  • Material
    Birch Plywood
  • Standard Colors
    Black
  • Custom colors
    Available in any RAL color
  • Premium Metal Finishes
    Chrome Metal Finish (Horn) available
  • Marine-grade Treatment
    Not Available
  • More Less
