KV25 II 4x1" Ultra-slim Passive Selectable Impedance Line Array Speaker (black color)

Download product sheet

The Vyper-KV25 II is the slimmest line array in the K-array portfolio. It is designed for refined audio systems where premium sound quality and sophisticated design complement the architecture without compromise.

Featuring 4x 1" neodymium drivers, 25° vertical and 140° horizontal coverage, a 150 Hz – 18 kHz frequency response, and a peak SPL of 108 dB, the Vy... Read more

The Vyper-KV25 II is the slimmest line array in the K-array portfolio. It is designed for refined audio systems where premium sound quality and sophisticated design complement the architecture without compromise.

Featuring 4x 1" neodymium drivers, 25° vertical and 140° horizontal coverage, a 150 Hz – 18 kHz frequency response, and a peak SPL of 108 dB, the Vyper-KV25 II is housed in an elegant yet robust aluminum chassis. This new frameless chassis is ideal for clean, bracket-free installation on any flat surface or where in-wall mounting is required.

The four closely spaced cone drivers provide true line array characteristics, including phase coherence, low distortion, and focused sound coverage in both the near field and at greater listening distances.

Ideal for yachts, cruise ships, beach clubs, and outdoor installations, it leaves both your eyes fulfilled and your ears satisfied with its unique slim design.

All Vyper loudspeakers can be customized with any RAL color or finished in a variety of premium metallic finishes to further enhance their distinctive aesthetics. Furthermore, to meet specific design and installation requirements, dedicated solutions with IP65 marine-grade protection and versions suitable for recessed installation are also available.

*For a complete audio system, the Vyper pairs perfectly with K-array Truffle or Rumble subwoofers, powered by Kommander KA02 I or KA04 I amplifiers.

Collapse text

Buy this product online

Search Google Shopping

Product downloads

Media

Media

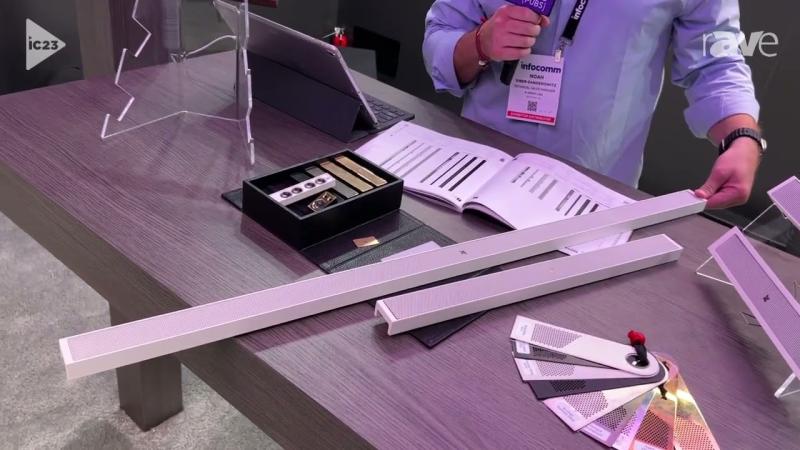

K-array Shows Off Vyper-KV52II and KV102 II
K-array - Luxury Living Communications Lounge, Monaco

Highlights

Ultra-flat Aluminum Line Array Element

Housed in an elegant and resistant 2”-deep aluminum frame, the Vyper line consists of the flattest speakers in the K-array portfolio that features closely-spaced transducers which boast K-array's Pure Array Technology.

Selectable Impedance

For easier use and integration with other speakers or amplifiers, the Vypers feature selectable impedance. When paired with one of the subwoofers in the Rumble line and powered by a Kommander amplifier with specific presets, the loudspeaker assures excellent coverage of the entire musical frequency range.

Easy-to-combine Modular Units

Thanks to the high impedance and the top-to-bottom pass-through connector system you can combine more than one Vyper into a line of sound to your liking.

Pure Array Technology (PAT®)

This technology enables direct, intelligible and controlled sound, even in reverberant or complex environments, without the need for large spaces or bulky loudspeakers.

Recess your sound into plasterboard walls and suspended ceilings

For applications where the loudspeakers have to completely disappear, the new KV25R II, K52R II and KV102R II models allow you to completely recess the body of the speaker into surfaces like plasterboard walls and suspended ceilings.

Easier Installation with the Magnet Grill

The magnetic grille ensures quick and effortless surface installation.

Custom Colors and Premium Finishes available upon request

The Vyper series is offered in a semi-matte black or an elegant white finish and can be customized to match any RAL code.

Premium brushed or polished stainless steel finishes give the products a chameleon-like ability to reflect surrounding surfaces and blend in with the background.

Also available in 24K gold-plated aluminum (showed in the image) and Rose Gold for the most luxurious finish - ideal for prestigious design projects and upscale applications.

Vyper loudspeakers are manufactured to achieve exacting standards and are subject to rigorous quality control system in Italy.

IP64

Product details

Key features

  • 150 Hz - 18 kHz high bright frequency response
  • 140° H. / 25° V. coverage
  • 108 dB SPL (peak)
  • 8Ω – 32Ω selectable impedance
  • Visually elegant and discreete
  • IP64 suitable for indoors and outdoors installations (IP65 grade with included IP accessory)

Specifications

  • Type
    Passive Line Array
  • Transducers
    4x1" Neodymium Magnet Woofer
  • Frequency Response
    500 Hz - 18 kHz (-6 dB, with dedicated preset)
  • Max SPL
    108 dB (peak, calculated using a signal with crest factor 4 [12dB] measured at 8 m then scaled at 1 m.)
  • Coverage
    V. 25° | H. 140°
  • Nominal Impedance
    selectable 8 Ω / 32 Ω
  • Power Handling
    75 W
  • Connectors
    Euroblock 2,5/ 2-ST-5,08
  • IP Rating
    IP64 (IP65 grade with included IP accessory)
  • Dimensions (WxHxD)
    40 x 260 x 22 mm (1.56 x 10.24 x 0.85 in.)
  • Weight
    0.4 kg (0.88 lbs.)
  • Material
    Aluminum
  • Standard Colors
    Black / White
  • Custom colors
    Available in any RAL color
  • Premium Metal Finishes
    Available in 24K Gold / Rose Gold / Polished or Brushed Steel
  • Marine-grade Treatment
    Available cataphoresis treatment applied by electroplating for total coating against chemical and einvironmental corrosion
  • More Less
