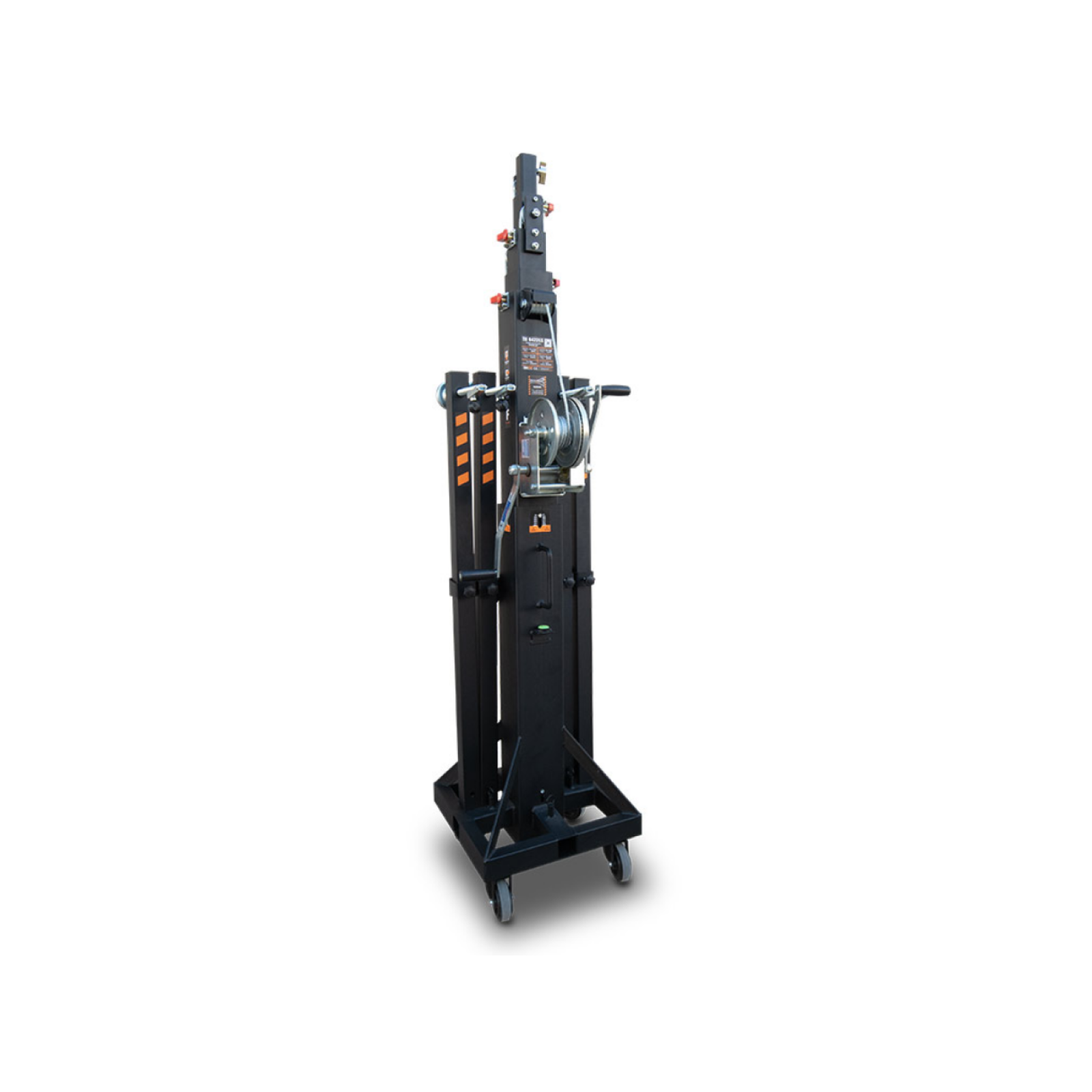

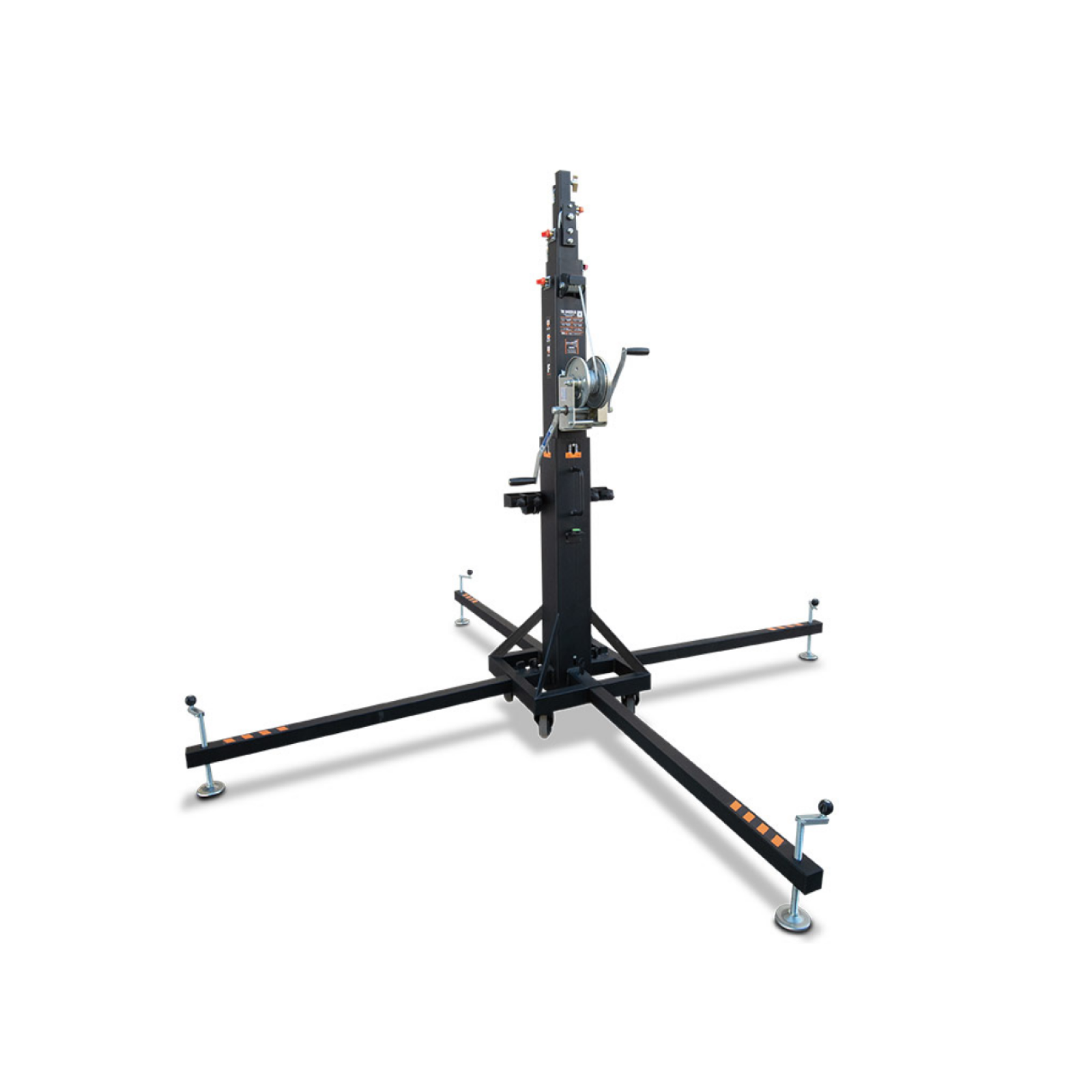

TK 6422 LS FANTEK TK 6422 LS TOP LOAD TOWER 225KG WITH LOAD SENSE

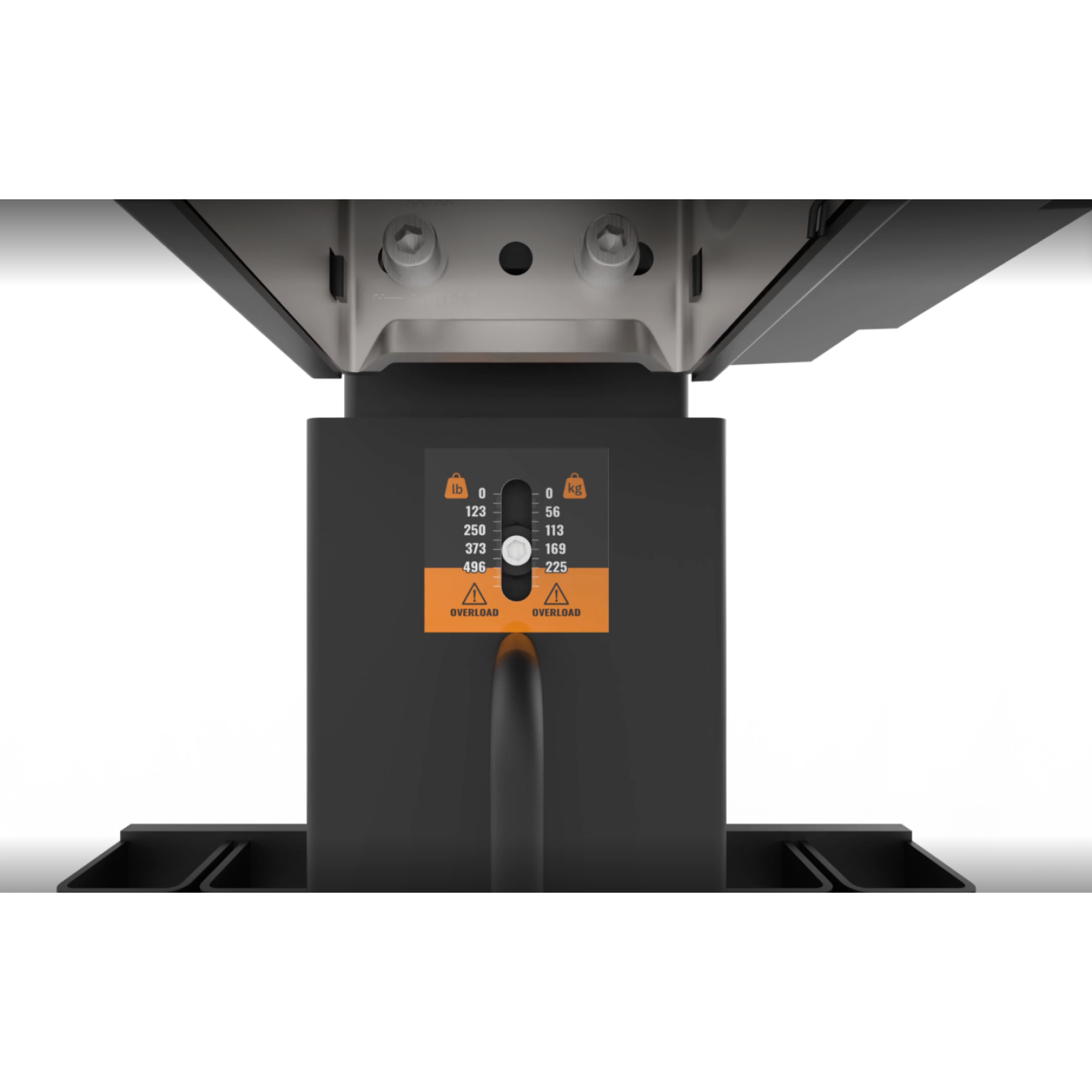

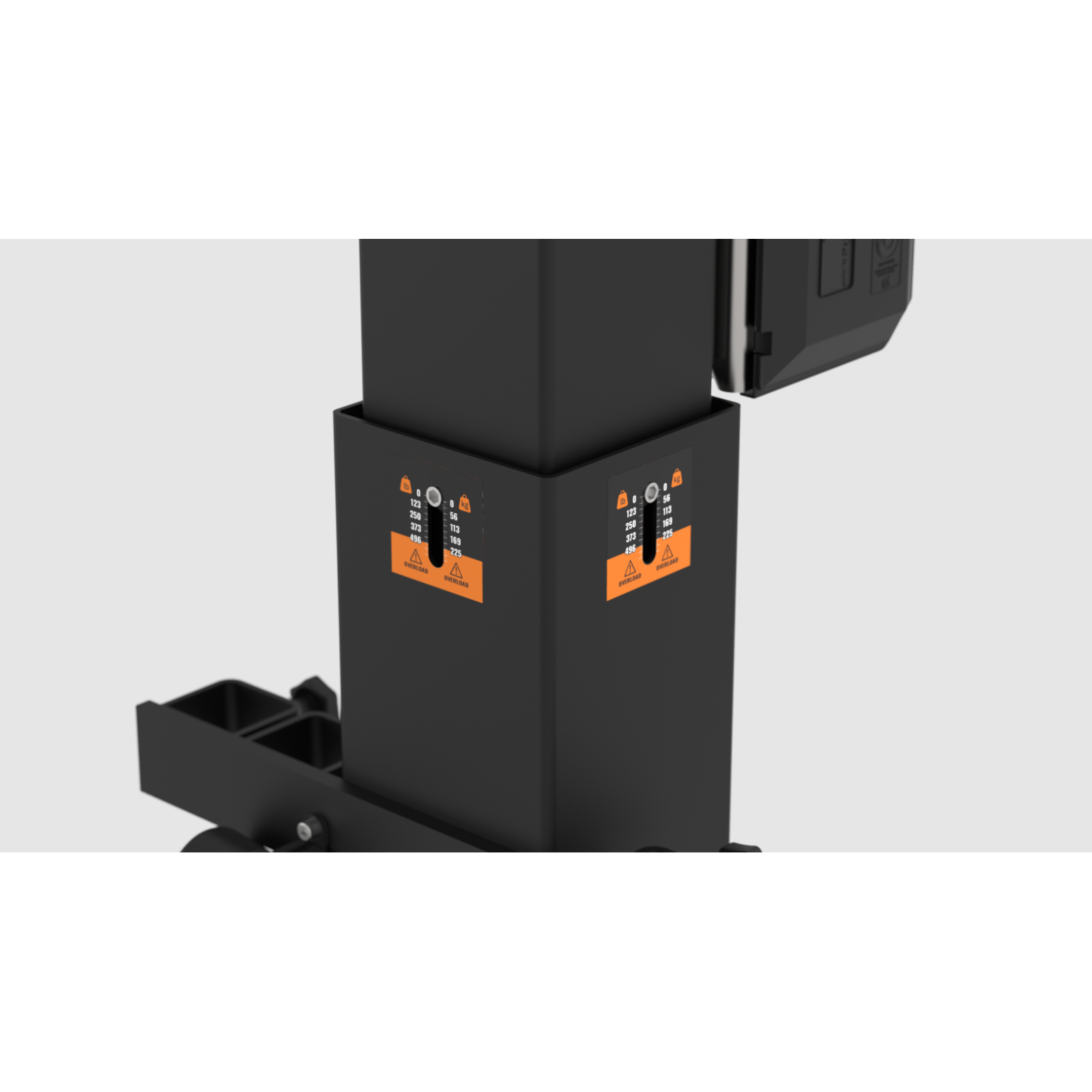

Download product sheetThe telescopic lifter model TK 6422 LS is a lifter designed to lift vertical loads up to 225 Kg and 6.4 meters in height. It features the LoadSense system, which allows monitoring the lifter load in accordance with EN-17206 requirements. Composed of 5 extendable steel profiles raised by a high-strength steel cable. Fixation of the tower section at the working ... Read more

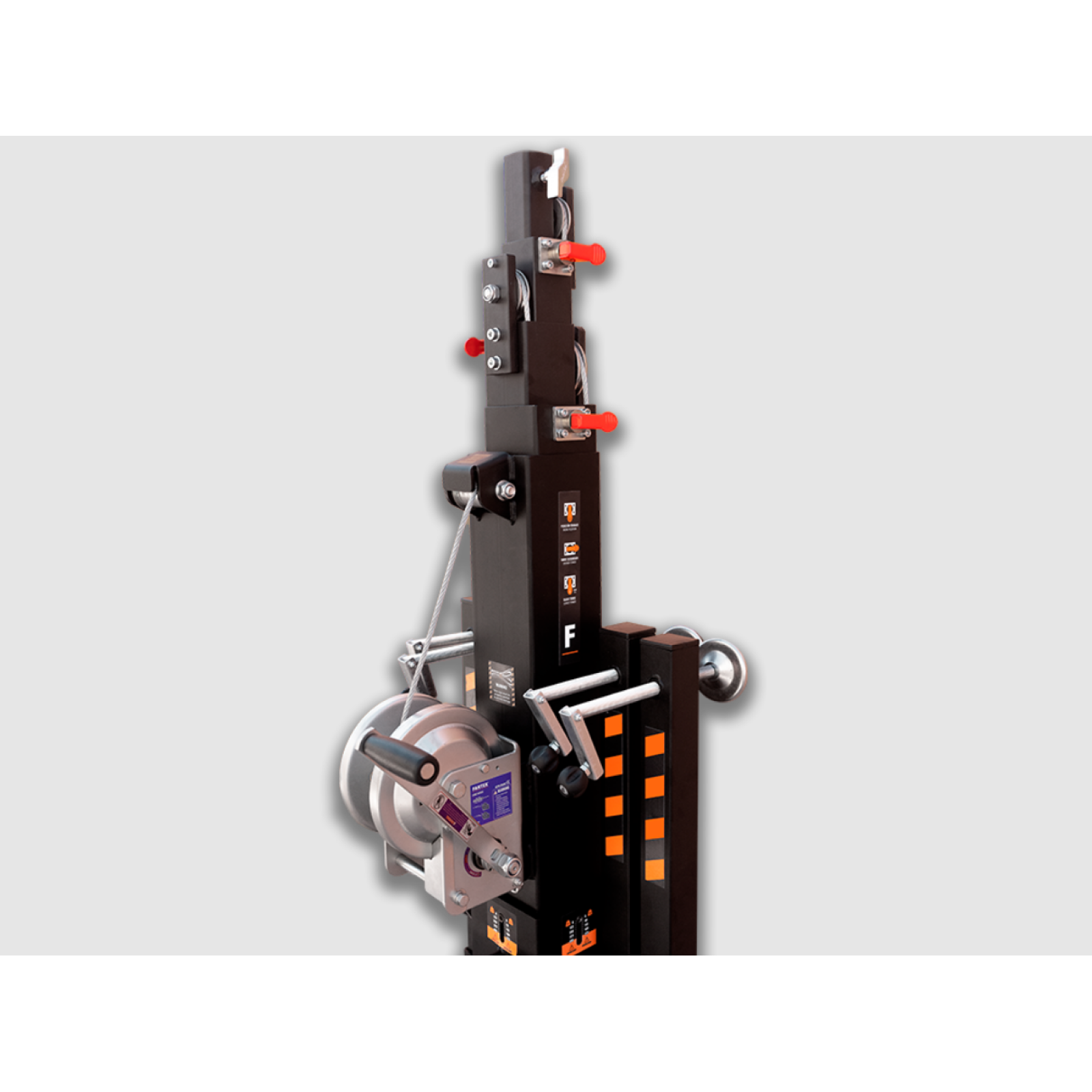

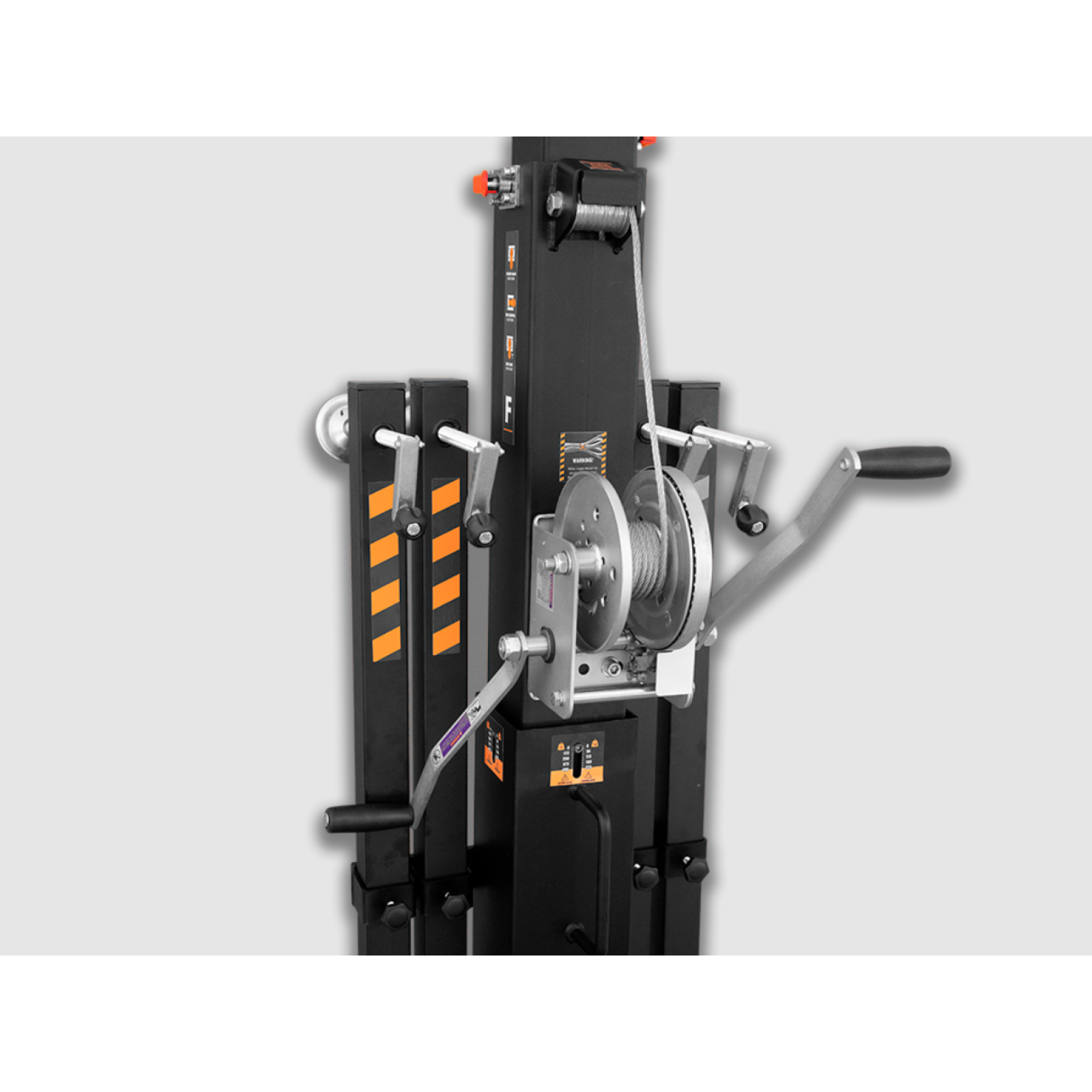

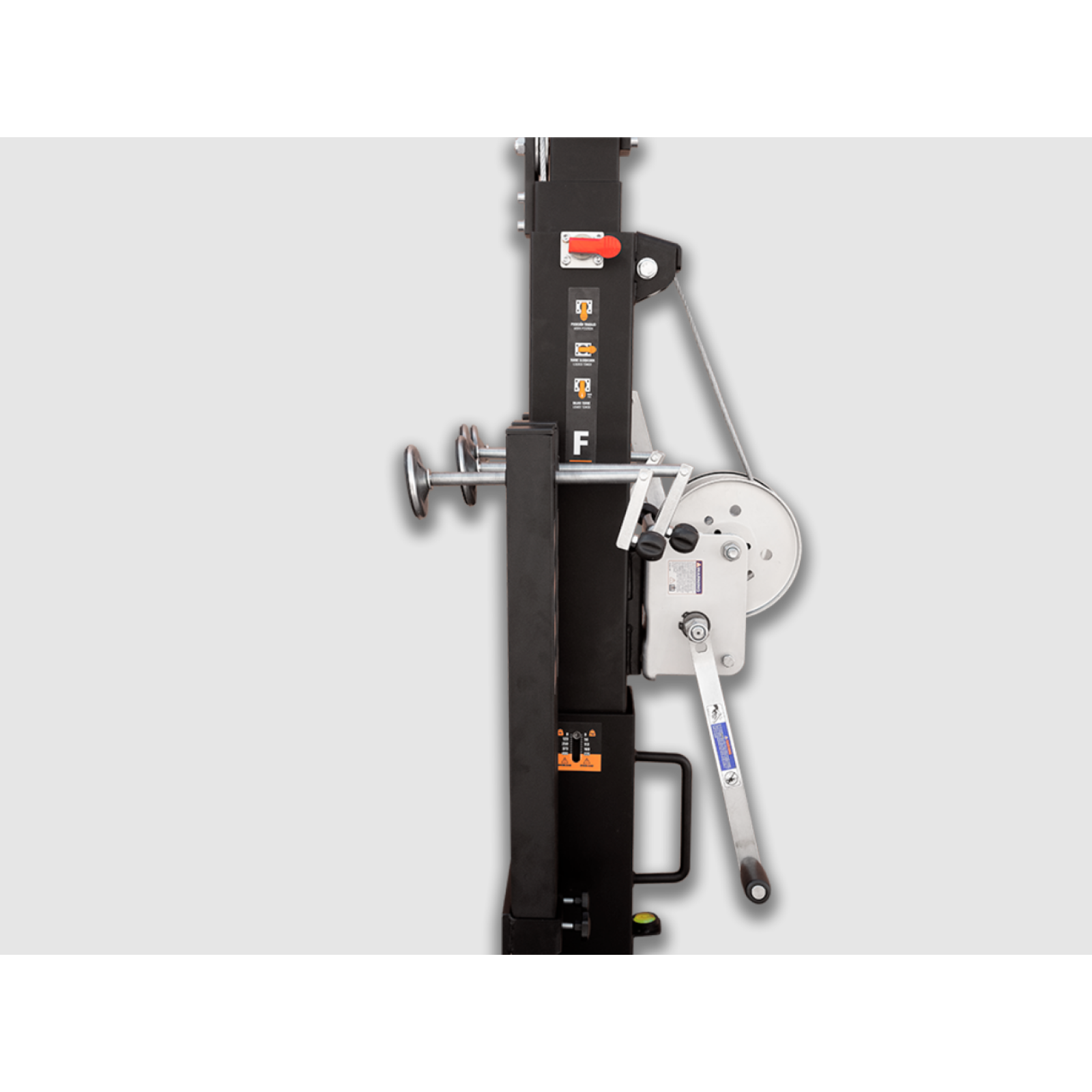

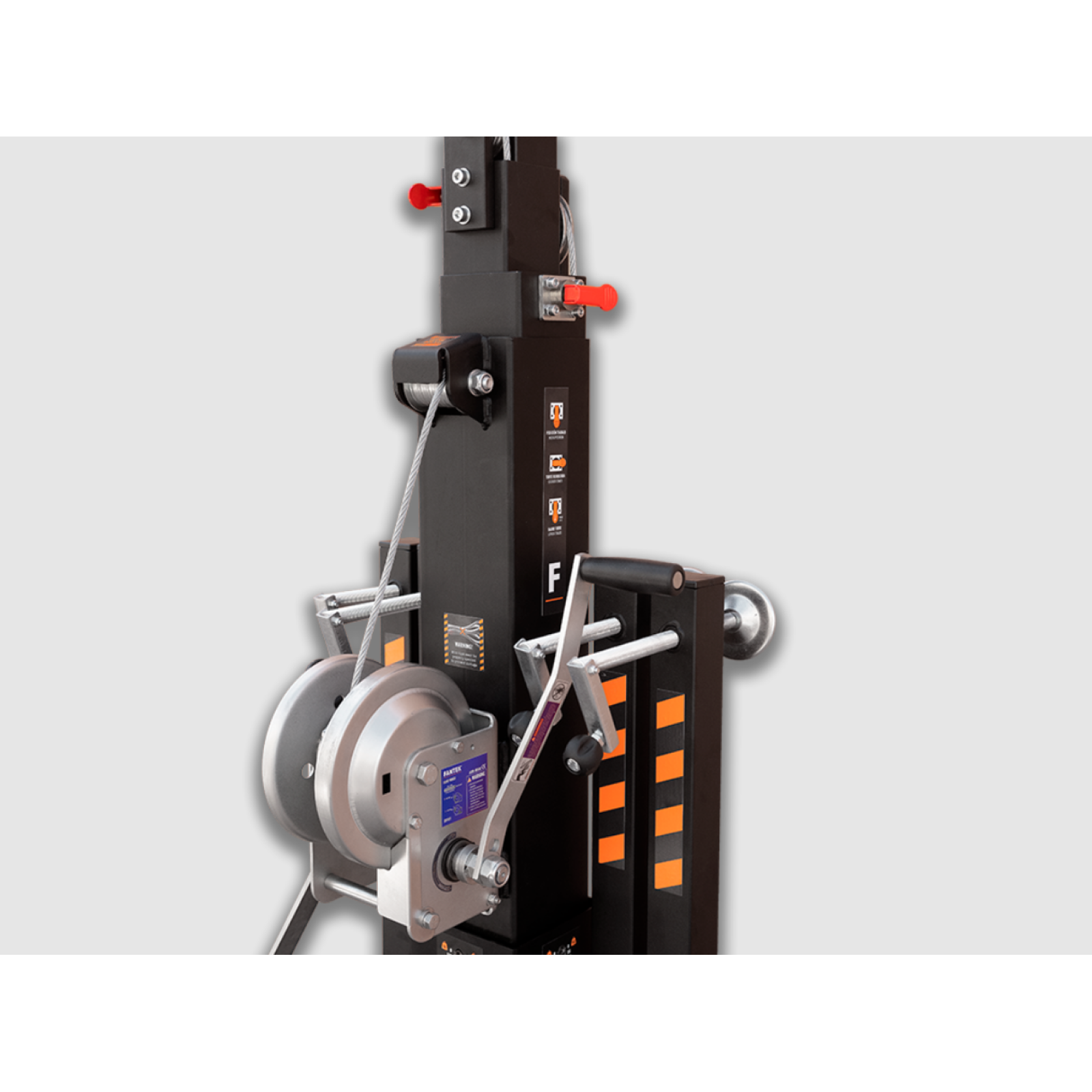

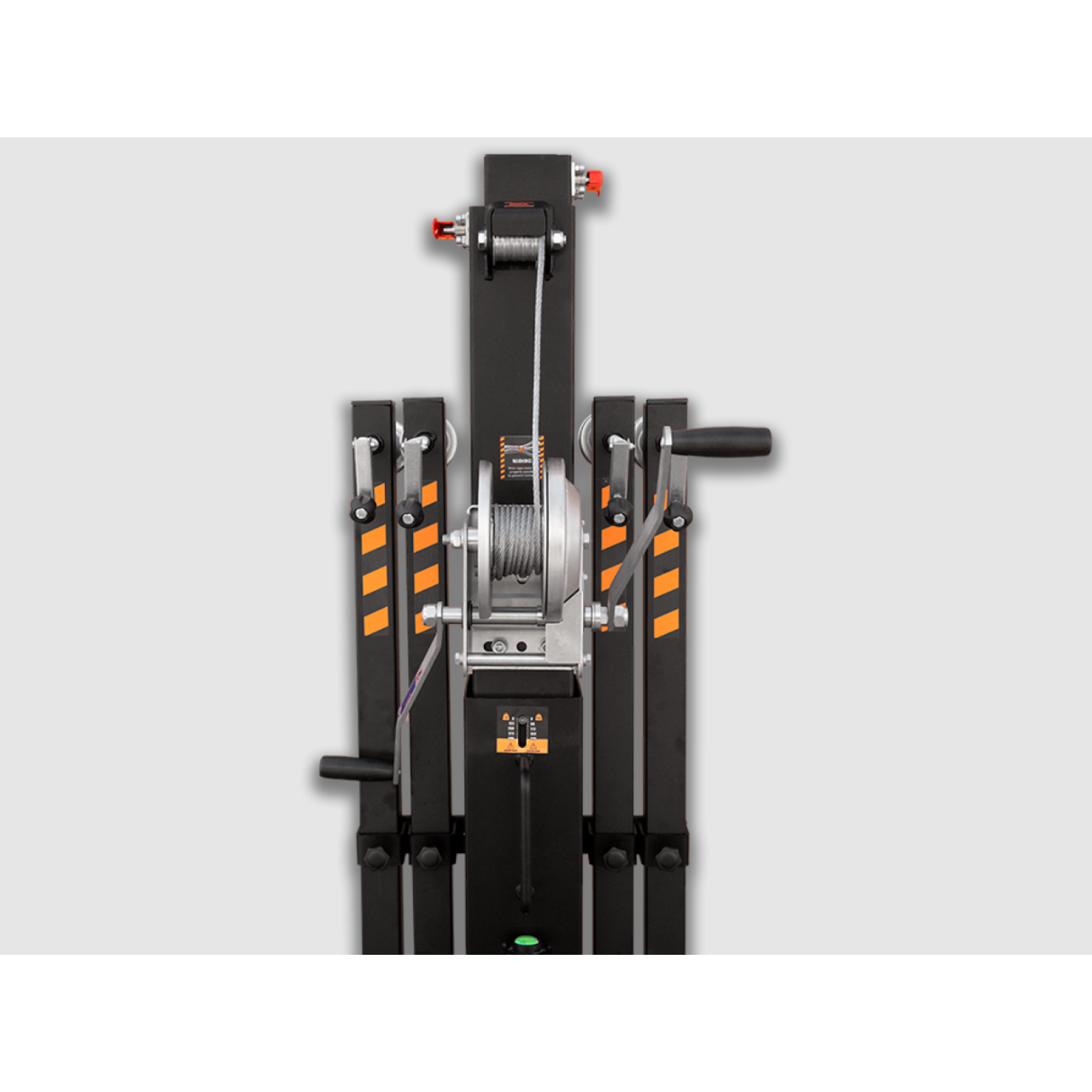

The telescopic lifter model TK 6422 LS is a lifter designed to lift vertical loads up to 225 Kg and 6.4 meters in height. It features the LoadSense system, which allows monitoring the lifter load in accordance with EN-17206 requirements. Composed of 5 extendable steel profiles raised by a high-strength steel cable. Fixation of the tower section at the working height with an automatic steel safety pin. Legs with non-slip rubber supports. The entire system is operated by a manual winch with a double crank handle. Collapse text
Product downloads
Product details
Key features
- Over 5 Meters Maximum Height

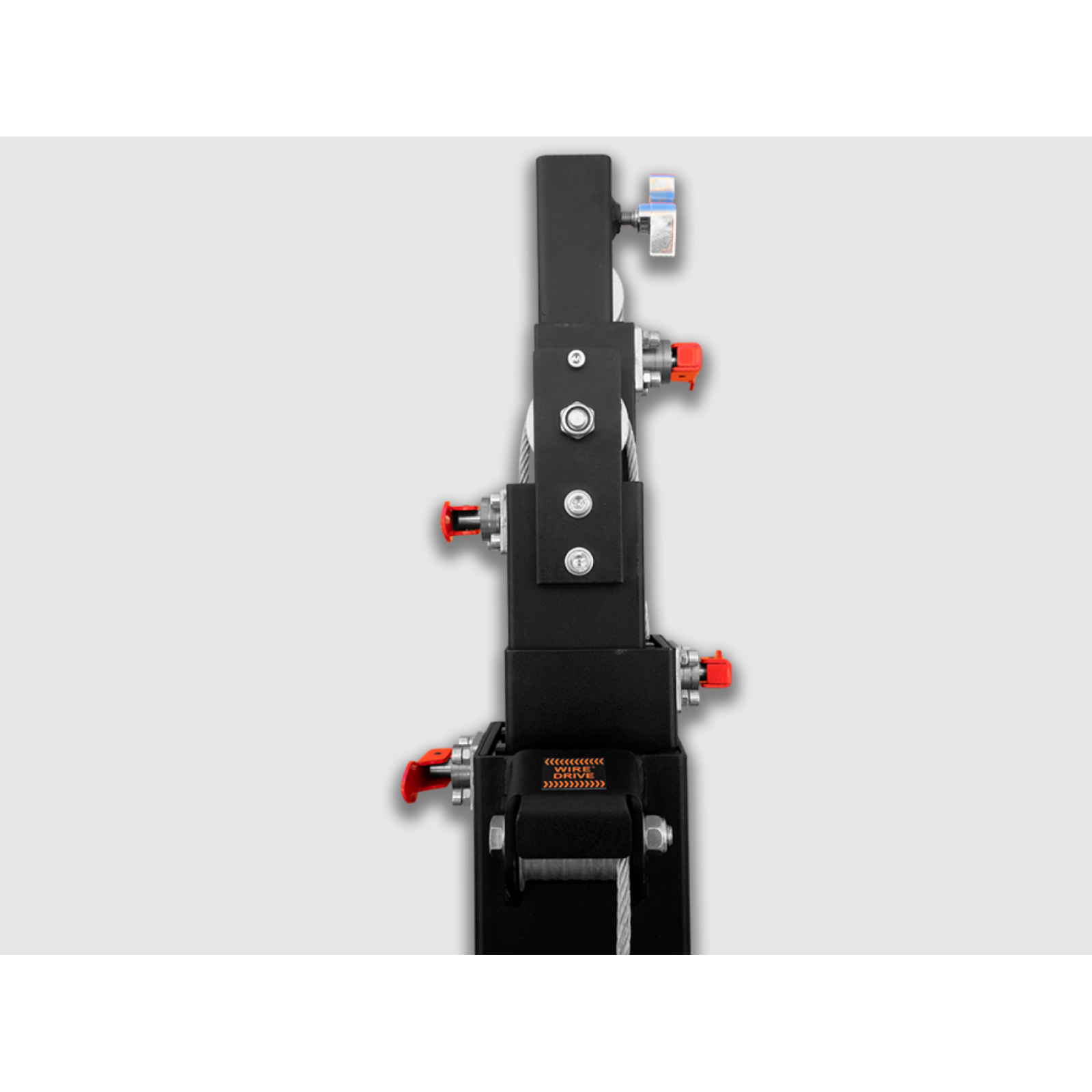

- Load meter. Wire drive system
- Leveling leg system
- High load capacity
- Upper insertion diameter: 35 mm
Specifications
-
MaterialIron
-
Folded Height1.95 m / 6.40 ft
-
Extended base dimensions2.65 x 2.65 m / 8.69 x 8.69 ft
-
Folded base dimensions0.46 x 0.46 m / 1.51 x 1.51 ft
-
Maximum height6.55 m / 21 ft
-
Minimum height1.95 m / 6.40 ft
-
Number of sections5
-
Minimum Load25 Kg / 55.12 lb
-
Max load (mechanism mode)225 Kg / 496.04 lb
-
Winch900 Kg / 1984.16 lb
-
Cable diameter6 mm / 0.24 in
-
Noise emission75 dB
-
Compatible accessoriesATCMOS / ATCMOB / ATCLTS / ATC6FS / ATC29S / ATCBAS
-
Security systemsLoadSense/Automatic locking system with safety pins
-
Standards and CertificationsEN-17206, CE, DGUV, BGV C1, BGG 912
-
Weight103 Kg / 227.08 lb
-
Base diameter unfolded2.65 m / 8.69 ft
- More Less
Related products
-
FANTEK
FT 7045

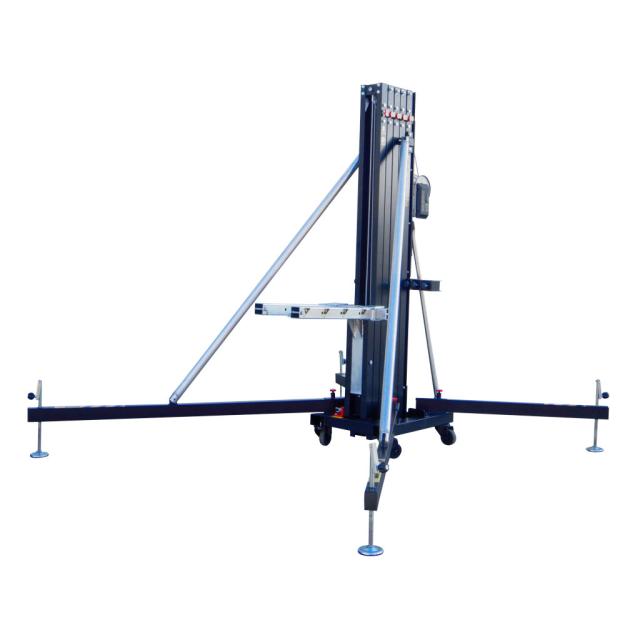

FRONTAL LOAD TOWER 6.72 M. 450 KG. BLACK
View product
-
FANTEK
TKA 351B

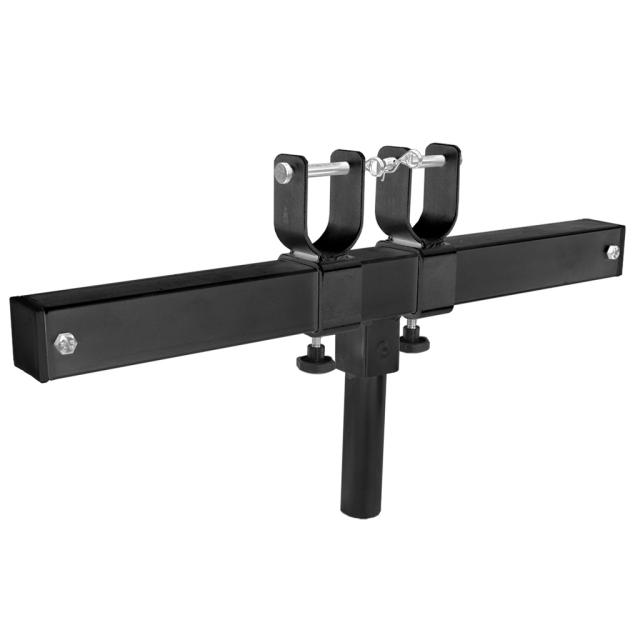

MOBILE SUPPORT FOR ALL MASTS AND TOWERS
View product
-
FANTEK
GS 130 700

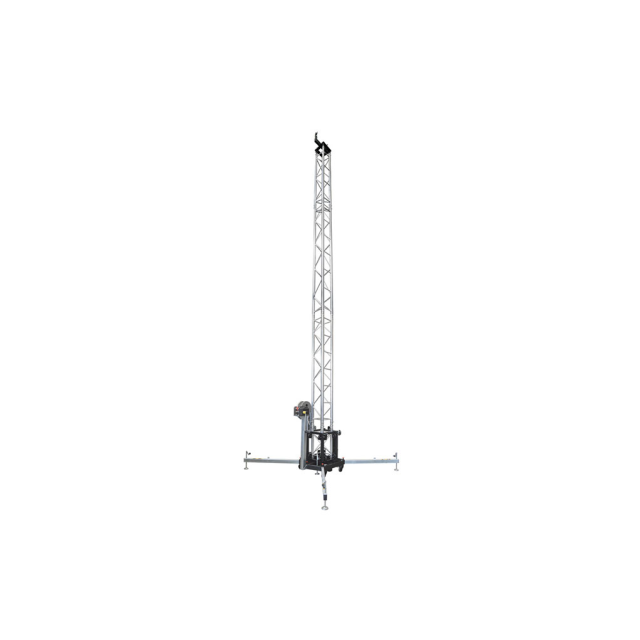

Structural Tower 30*30 of 7M Height, Max Load 750KG (T110)
View product
-
FANTEK
FTA 170

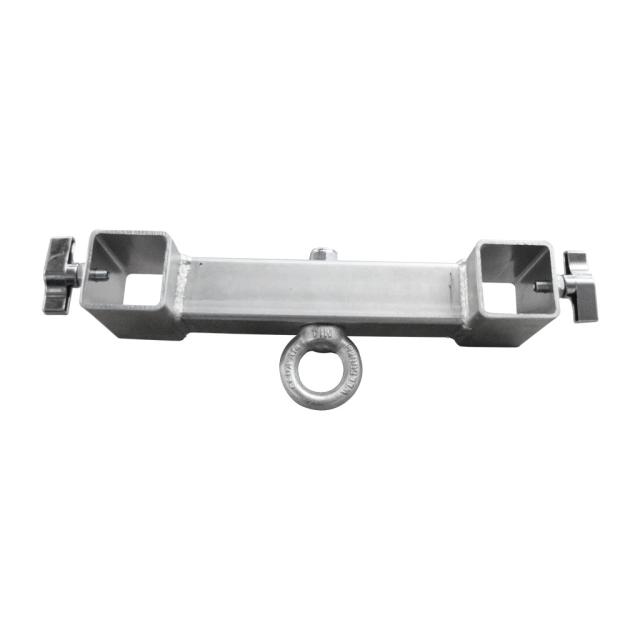

LINE ARRAY ADAPTOR WITH HANGING RING. FRONTAL LOAD
View product
-
FANTEK
TK 5322

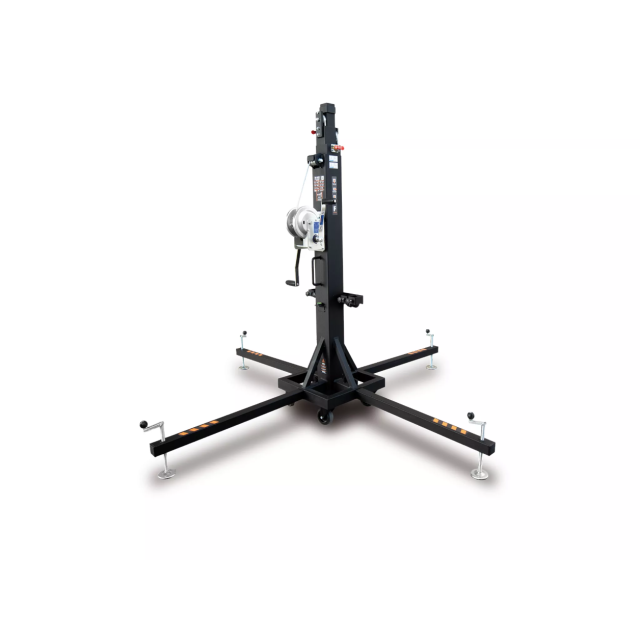

Top-Load Lifter 5,3M 225kg Black (T105D)
View product
-
FANTEK
FTA 150

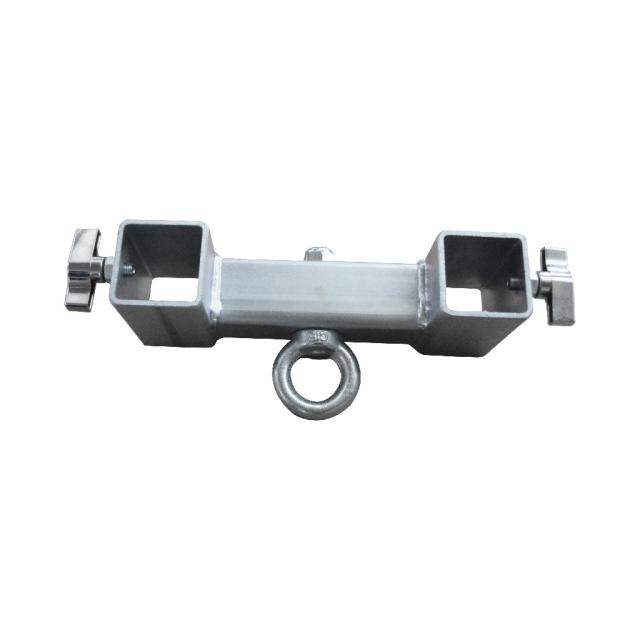

LINE ARRAY ADAPTER WITH SUSPENSION RING FOR MODEL FAN0013
View product
-
FANTEK
FTA 130

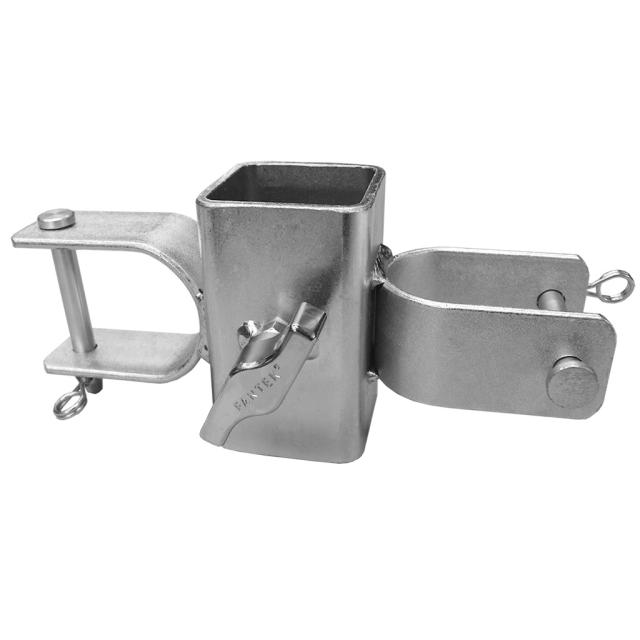

Front loading tower to truss adapter
View product
-
FANTEK
FTA 180

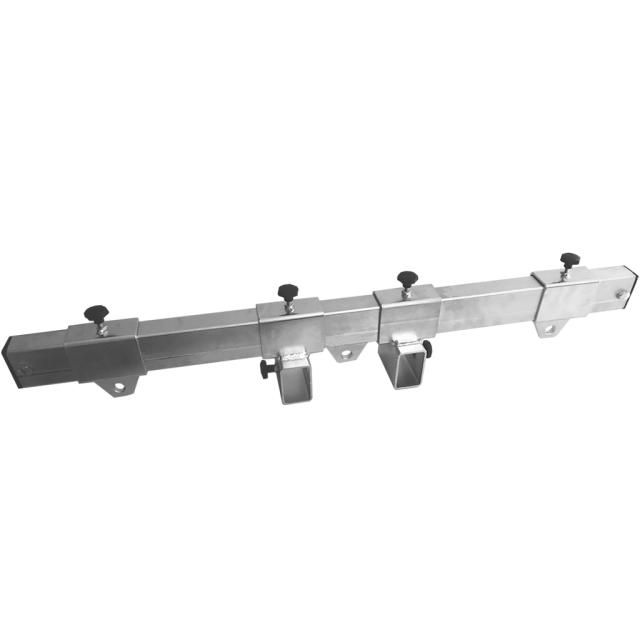

ADJUSTABLE LINE ARRAY ADAPTER FOR LINE ARRAY FOR MODEL FAN0011 - 12 - 13
