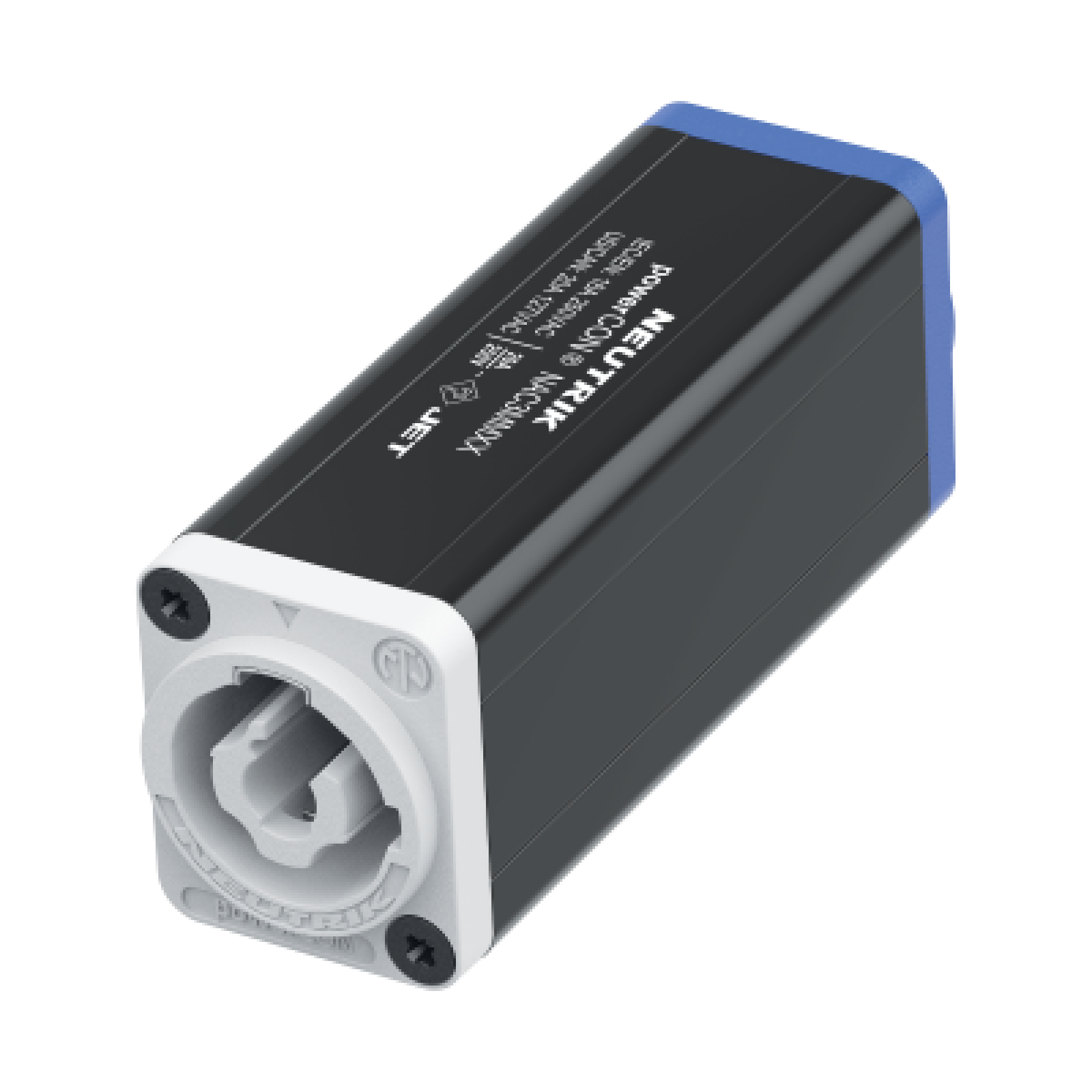

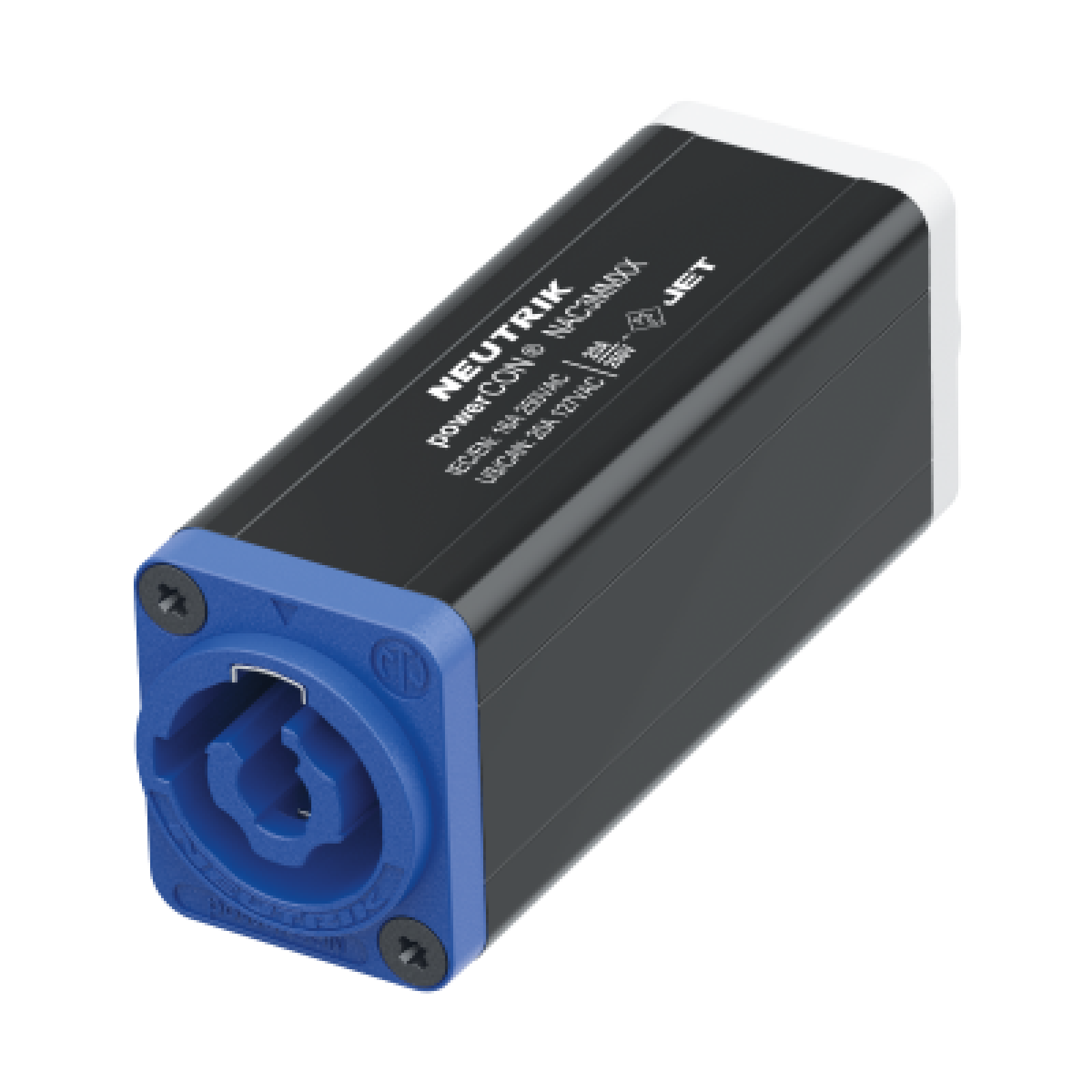

NAC3MMXX CBC coupler for linking powercables using IEC 60320-1 compliant powerCON XX series receptacles (NAC3MPXXA/B)
Download product sheetCBC powerCON coupler for linking powercables using IEC 60320-1 compliant NEUTRIK powerCON XX series receptacles for power in (NAC3MPXXA) and power out (NAC3MPXXB).
The powerCON XX series receptacles (NAC3MPXXA, NAC3MPXXB) are connectors with breaking capacity (CBC) certified according to IEC 60320-1.
They are fully compliant to the device standard IEC 62368-1,... Read more
CBC powerCON coupler for linking powercables using IEC 60320-1 compliant NEUTRIK powerCON XX series receptacles for power in (NAC3MPXXA) and power out (NAC3MPXXB).
The powerCON XX series receptacles (NAC3MPXXA, NAC3MPXXB) are connectors with breaking capacity (CBC) certified according to IEC 60320-1.
They are fully compliant to the device standard IEC 62368-1, due to its component.
For more information about the connectors, see: NAC3MPXXA & NAC3MPXXB
Collapse textProduct details
Key features
- Breaking capacity (CBC)
- Twist lock system
- Rugged design
Specifications
-
Connection TypeAdapter
-
GenderMale
-
Contact resistance≤ 3 mΩ
-
Dielectric strength4 kVdc
-
Insulation resistance> 0.1 GΩ (after damp heat test IEC 68-2-30)
-
Rating EuropeEN 60320-1: 16 A 250 V AC
-
Rating USAUL 60320-1
-
Lifetime> 1000 mating cycles
-
Locking deviceTwist Lock
-
Contact platingAg
-
Locking elementStainless steel
-
ShellAluminium
-
ContactsCopper Alloy
-
FlammabilityUL 94 V-0
-
Protection classIP 20 (mated)
-
Temperature range-30 °C to +80 °C
