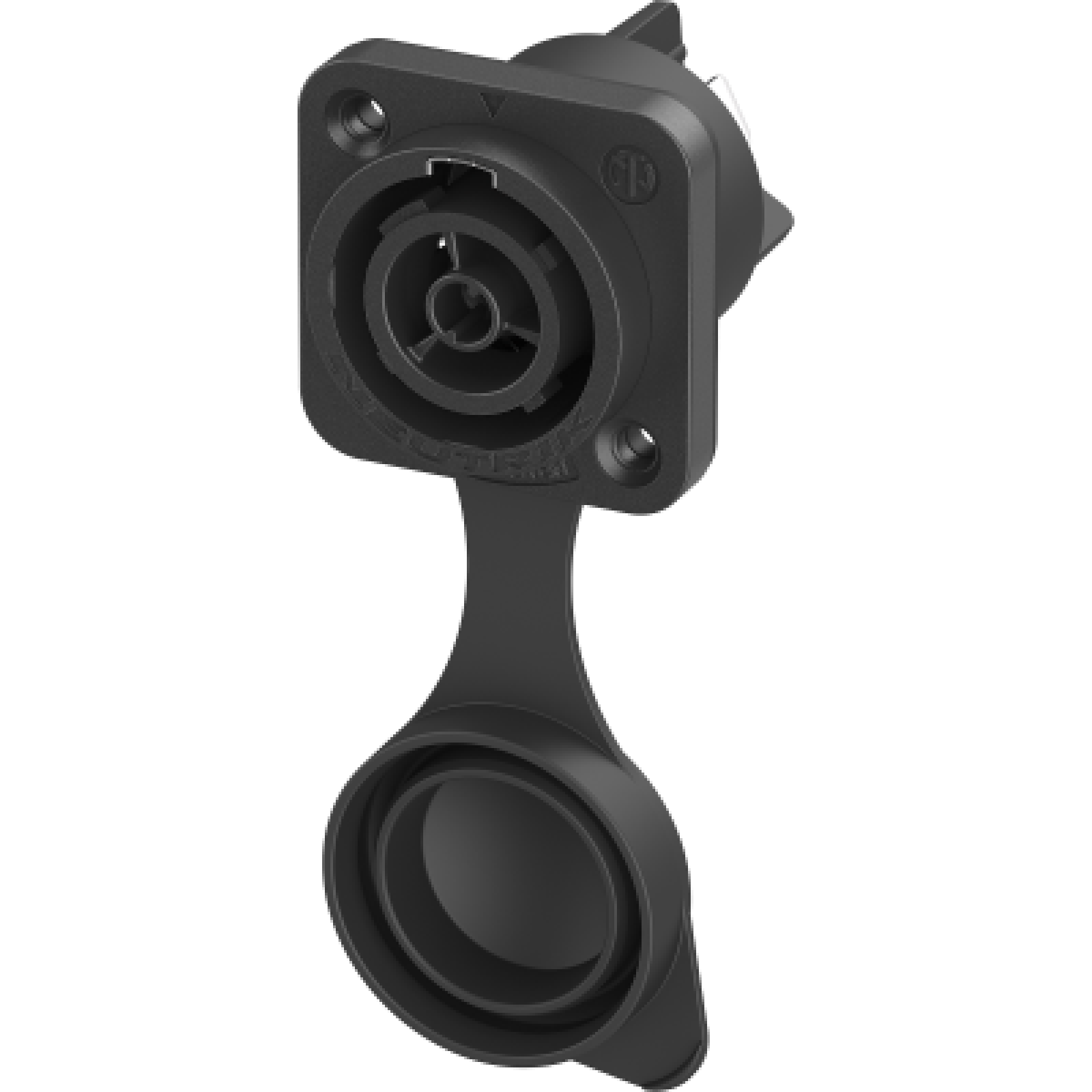

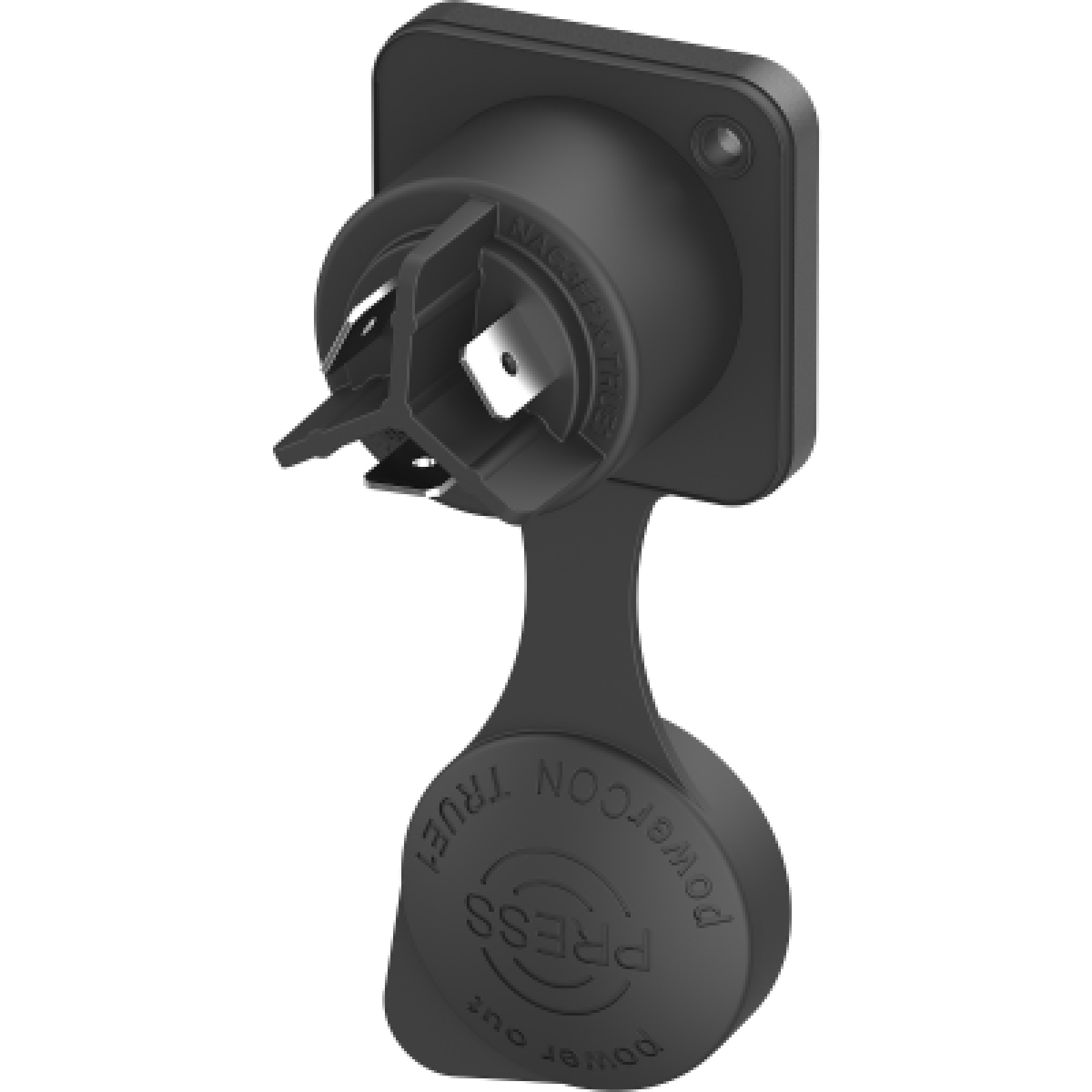

NAC3FPX-TRUE1 powerCON TRUE1 TOP male Output connector - Airtight
Download product sheetThe "powerCON TRUE1 airtight" is a locking true mains connector for harsh and demanding applications. This innovative product is part of the powerCON-TRUE1 product group and belongs to our premium powerCON-TRUE1 line. With an impressive array of features and a particular focus on protection and performance, the powerCON airtight" is the choice for profession... Read more
The "powerCON TRUE1 airtight" is a locking true mains connector for harsh and demanding applications. This innovative product is part of the powerCON-TRUE1 product group and belongs to our premium powerCON-TRUE1 line. With an impressive array of features and a particular focus on protection and performance, the powerCON airtight" is the choice for professionals who require absolute reliability. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
With the powerCON TRUE1 airtight, you can count on a secure connection, even in the most extreme conditions.
The powerCON TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Collapse textProduct downloads
Product details
Key features
- Airtightness for production line tests to ensure TRUE OUTDOOR PROTECTION on devices
- Heavy duty sealed power connector for harsh and demanding environment
- Uses high impact UV-resistant materials
- Extremely robust and reliable
- ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1
- UL and CSA Certified According to UL 60320-1 and CSA 22.2 No. 60320-1
- UL Certified According to UL 498
- IP65, IP66 and IP67 (mated or with closed cap)
- True mains connector with breaking capacity (CBC)
- Easy and reliable twist lock system
Specifications
-
Product familypowerCON® TRUE1
-
Contact resistance≤ 2 mΩ
-
Dielectric strength4 kVdc / 2.8 kVac
-
Insulation resistance> 1 GΩ (after damp and heat test IEC 68-2-30)
-
Number of electrical contacts2 + PE
-
Rating Europe16 A / 250 V AC according to EN IEC 60320-1
-
Rating America20 A / 250 V AC according to UL 60320-1; 20 A / 250 V AC according to CSA C22.2 No. 60320-1; 20A/ 250 V AC according to UL 498
-
Lifetime> 5000 mating cycles
-
Wiresize (mm²)2.5 mm²
-
Wiresize (AWG)12 AWG
-
Contact plating2 μm Ag
-
Locking elementStainless steel
-
ContactsCopper Alloy
-
ShellPolyamide (PA 66)
-
FlammabilityUL 94 V-0
-
Protection classIP 65 / 66 / 67
-
UV resistanceF1 rated material withstands UV exposure
-
Temperature range-30°C to +80°C according to IEC 61984; -5°C to +40°C according to IEC 60320-1
