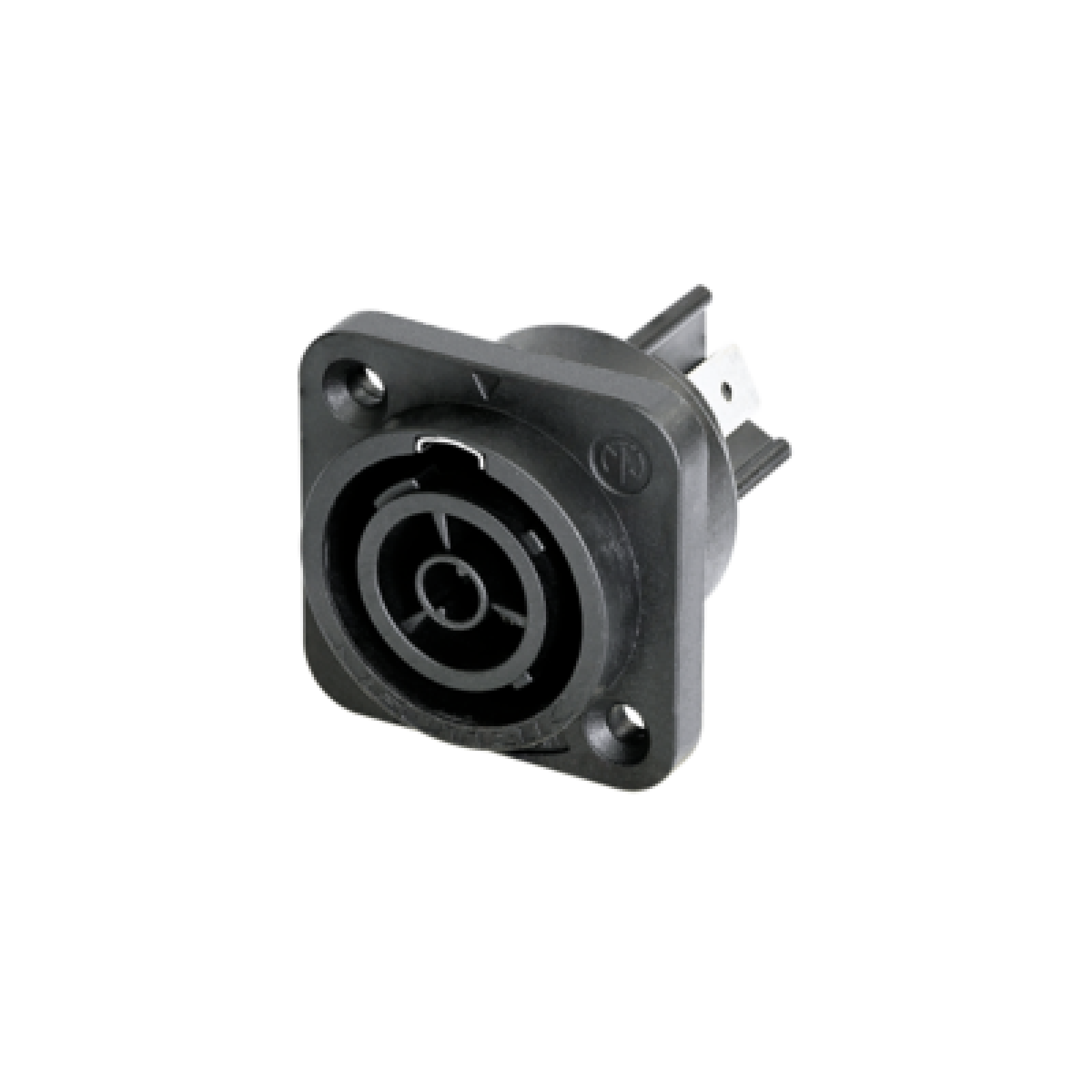

NAC3FPX-TOP powerCON TRUE1 TOP Output connector - 1/4" flat tab terminals
Download product sheetThe powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Collapse textProduct downloads
Product details
Key features
- Heavy duty sealed power connector for harsh and demanding environment
- IP65, UL50E enclosure type4 rating in combination with SCNAC-FPX (mated or with closed cap)
- Uses high impact UV-resistant materials
- True mains connector with breaking capacity (CBC)
- Lockable 16 A single phase connector (USA: 20 A)
- Easy and reliable twist lock system
- Extremely robust and reliable
- Unique Neutrik cable retention
- ENEC certified according to IEC 60320
- UL498 certified
Specifications
-
Contact resistance≤ 2 mΩ
-
Dielectric strength4 kVdc / 2.8 kVac
-
Insulation resistance> 1 GΩ (after damp heat test)
-
Number of electrical contacts2 + PE
-
Rating EuropeEN 60320-1: 16 A 250 V AC
-
Rating USAUL 498: 20 A 250 V AC
-
Lifetime> 5000 mating cycles
-
Wiresize2.5 mm²
-
Wiresize12 AWG
-
Contact plating2 µm Ag
-
Locking elementStainless steel
-
ShellPolyamide (PA 6.6)
-
ContactsSpring Copper (CuSn0.2)
-
FlammabilityUL 94 V-0
-
Protection classIP65, UL50E enclosure type4 rating in combination with SCNAC-FPX (mated or with closed cap)
-
Temperature range-30°C to +80°C according to IEC 61984; -5°C to +40°C according to IEC 60320-1
- More Less
