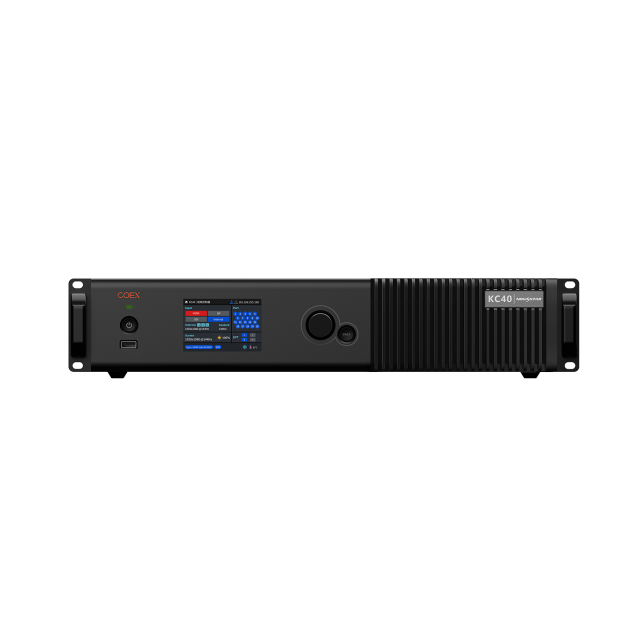

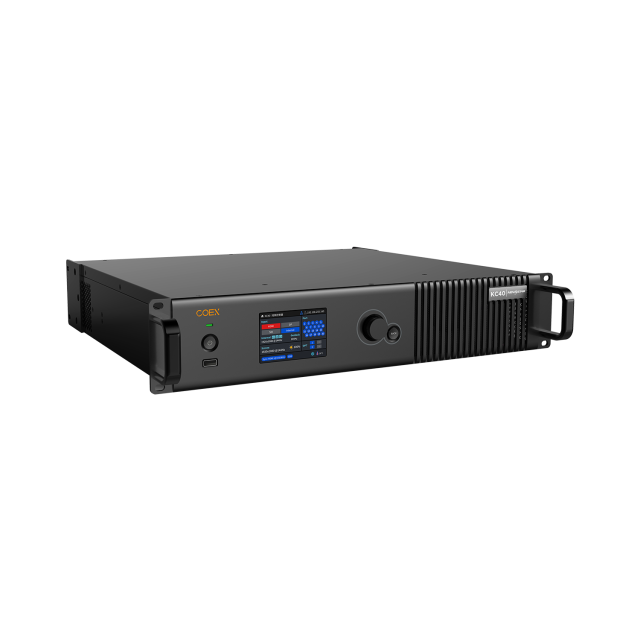

KC40 All-in-One 4K LED Video Processor
Download product sheetThe KC40 is a LED display controller that integrates video processing and video control into one box and offers rich video input connectors (HDMI 2.0, DP 1.2 and 12G-SDI), 20x Ethernet output ports and 4x 10G optical ports. It can also work with the brand new software VMP (Vision Management Platform) to provide a better operation and control experience.
The KC40 is a LED display controller that integrates video processing and video control into one box and offers rich video input connectors (HDMI 2.0, DP 1.2 and 12G-SDI), 20x Ethernet output ports and 4x 10G optical ports. It can also work with the brand new software VMP (Vision Management Platform) to provide a better operation and control experience.
Product downloads
Product details
Key features
- A variety of video input and output connectors
- Supports 8-bit and 10-bit video inputs
- Support up to 3 layers and layer priority adjustment in Z order, each supporting 4 scaling modes
- 14Ch Color Correction
- Support HDR10 and comply with the SMPTE ST 2084 and SMPTE ST 2086 standards
- Full-Grayscale Calibration
- Low latency (adjustable from 0 to 2 frames)
- Up to 128 customizable presets
- Adaptive frame rate
- Two working modes: Send-Only Controller mode and All-In-One Controller mode
- Multiple control modes: cascading, software control and SNMP, Art-Net, and central control protocols
- Automated system monitoring and alarm
- More Less
Specifications
-
1x HDMI 2.0: Resolution up to 4096×2160@60Hz; loop-through supported
-
1x DP 1.2: Resolution up to 4096×2160@60Hz or 8192×1080@60Hz
-
1x 12G-SDIResolution up to 4096×2160@60Hz
-
20x Gigabit Ethernet ports with loading capacity up to 9 million pixels and maximum output Width/Height of 16.384 pixels
-
4x Optical Ports with a transmission rate of 10.3125 Gbps
-
Audio1x SPDIF digital audio port (Reserved)
-
2x Gigabit Ethernet Control ports (supports cascading up to 20 units)
-
1x Genlock Signal input (with loop through, supports Bi-Level, Tri-Level, and Blackburst)
-
1x RS232 Auxiliary port for connection to central control devices
-
1x USB 2.0 for exporting diagnostic results
-
Control SoftwareVision Management Platform (VMP)
-
Power Input100-240V~, 50/60Hz, 1.5A
-
Power Consumption82W
-
Dimensions482.6 mm × 94.2 mm × 467.0 mm (foot pad included)
-
Net Weight7.4 kg
-
Front Display3.5-inch TFT screen
-
IP RatingIP20
-
Operating Temperature-20°C - 45°C (-4°F -113°F)
-
Operating Environment Humidity0% to 80% RH, non-condensing
-
Storage Environment Temperature-30°C to 80°C (-22°F -176°F)
-
Storage Environment Humidity0% to 95% RH, non-condensing
- More Less
