REPO-MIC Paging Microphone for Repo-240A / Repo-350A mixer amplifiers

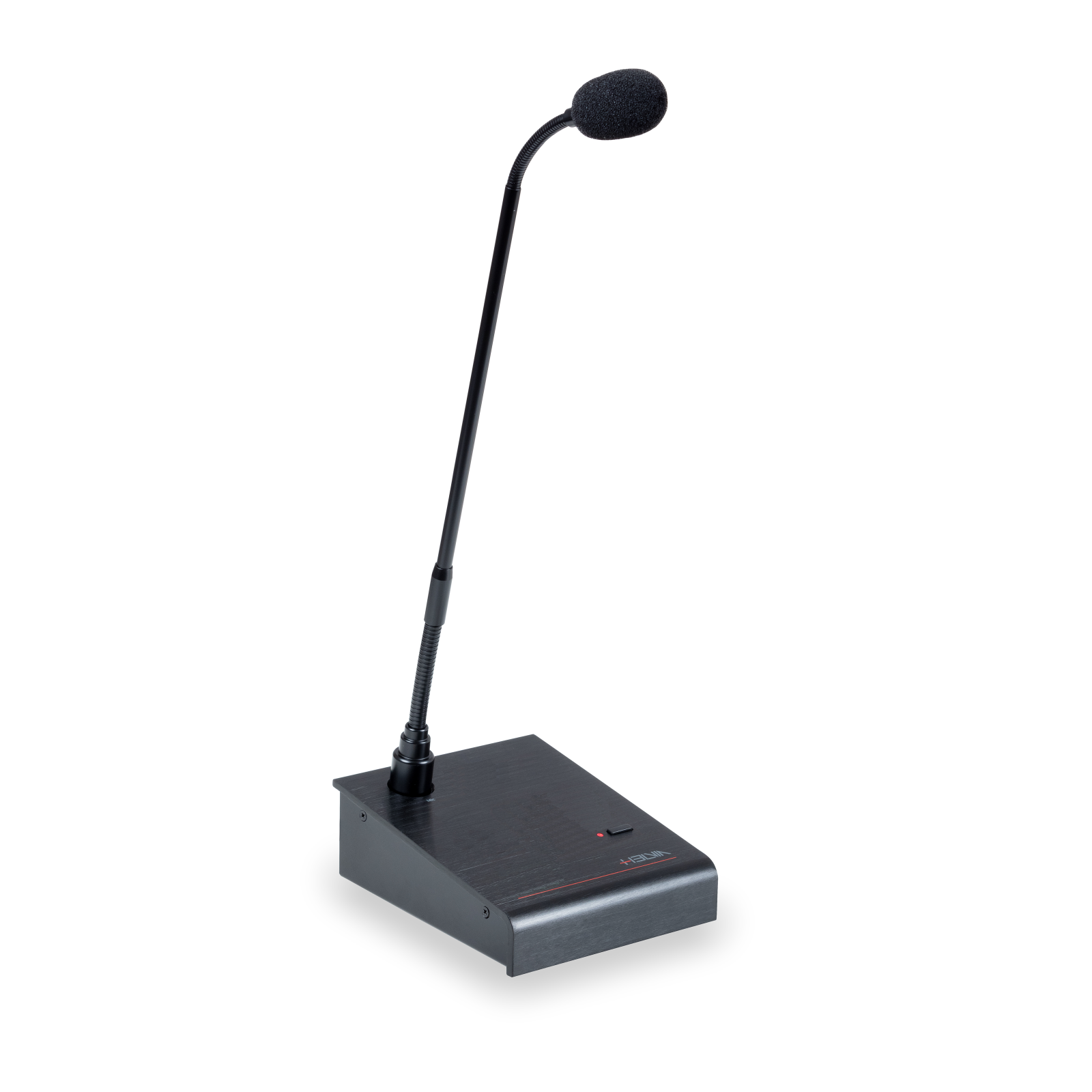

Download product sheetThe Repo-Mic is the ideal companion for all paging needs related to the use of the HELVIA Repo series mixers amplifers. It is a gooseneck microphone with a microphone base powered by the Repo 240A / 350A central unit.
The Repo-Mic is the ideal companion for all paging needs related to the use of the HELVIA Repo series mixers amplifers. It is a gooseneck microphone with a microphone base powered by the Repo 240A / 350A central unit.
Product downloads
Product details
Specifications
-
CapsuleBack electret condenser
-
Polar PatternCardioid
-
ControlMic level, Page switch
-

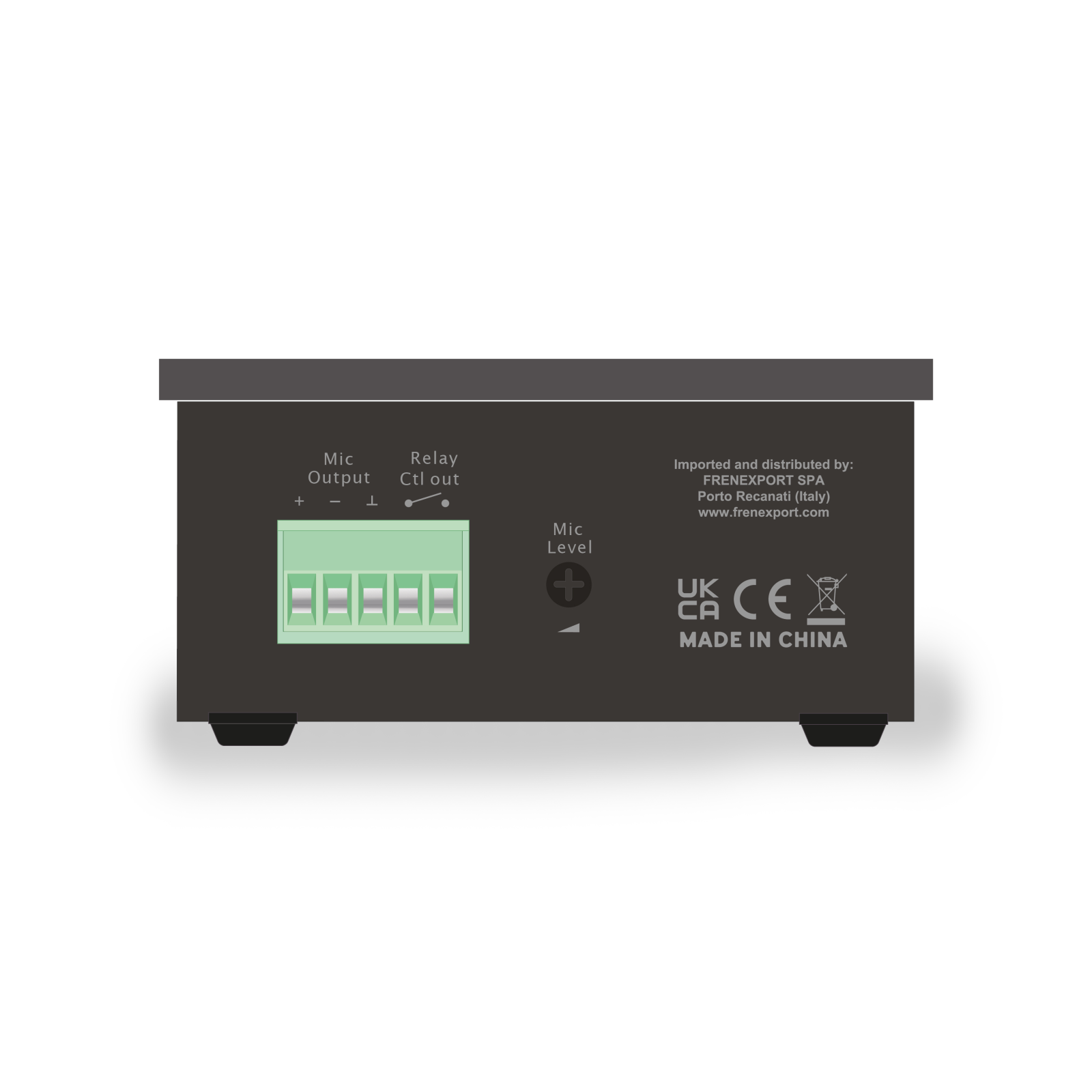

Connectors5-pin Phoenix (Euroblock)
-
Frequency Response (-3dB)150Hz - 22kHz
-
Input Level Mic-46dBV
-
Input Impedance Mic600 Ohms
-
Output Level 10dBV
-
Output Impedance balanced600 Ohms
-
S/N Ratio-60dB
-
Product Size (WxDxH)100 x 141 x 445/52 mm (with Mic/without Mic) (3.94 x 5.55 x 17.52/2.05 in)
-
Product Weight566 g. (1.25 lbs.)
-
Packing Size (WxDxH)430 x 235 x 65 mm (16.93 x 9.25 x 2.56 in)
-
Packing Weight1.01 kg (2.23 lbs.)
