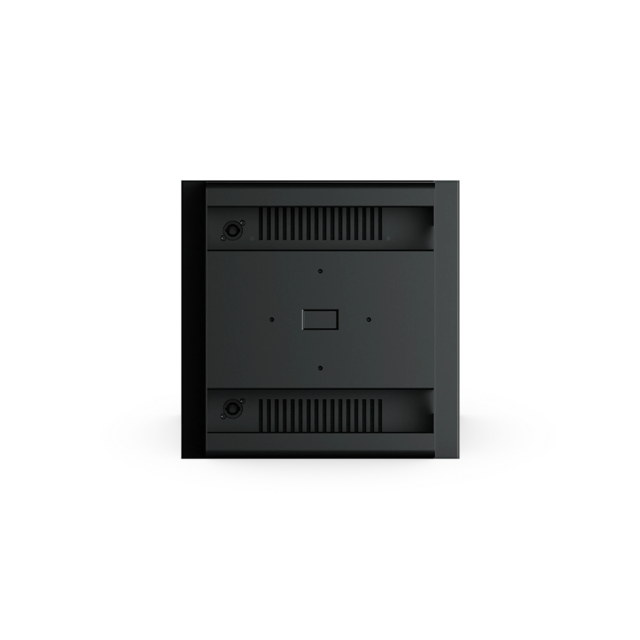

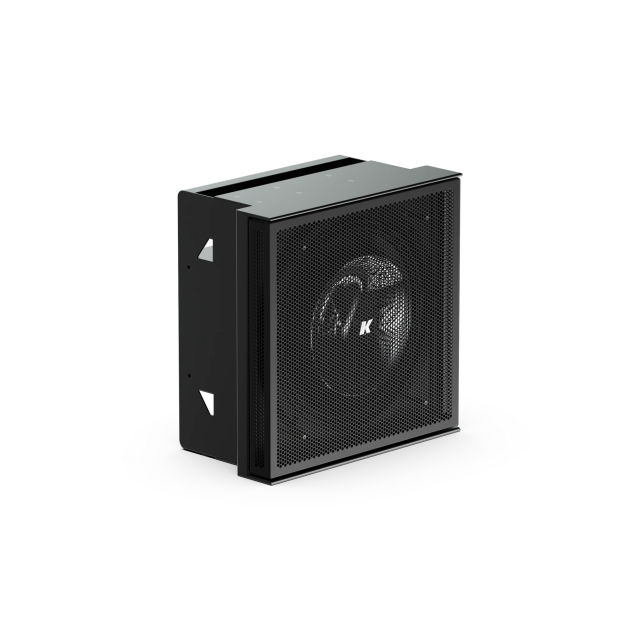

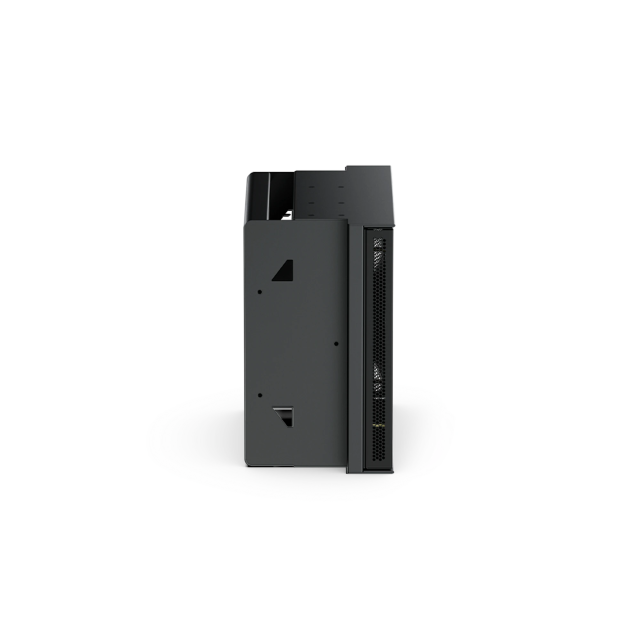

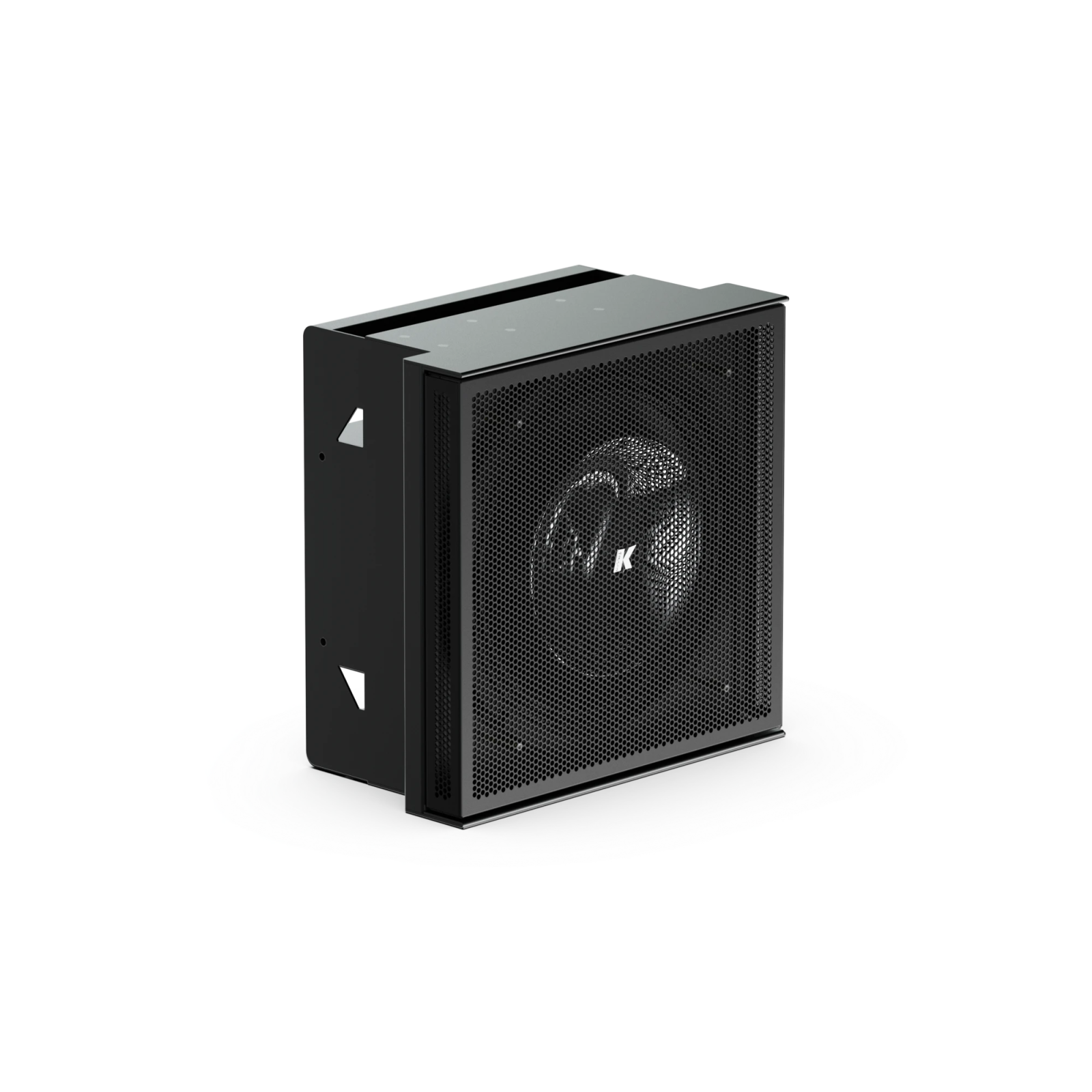

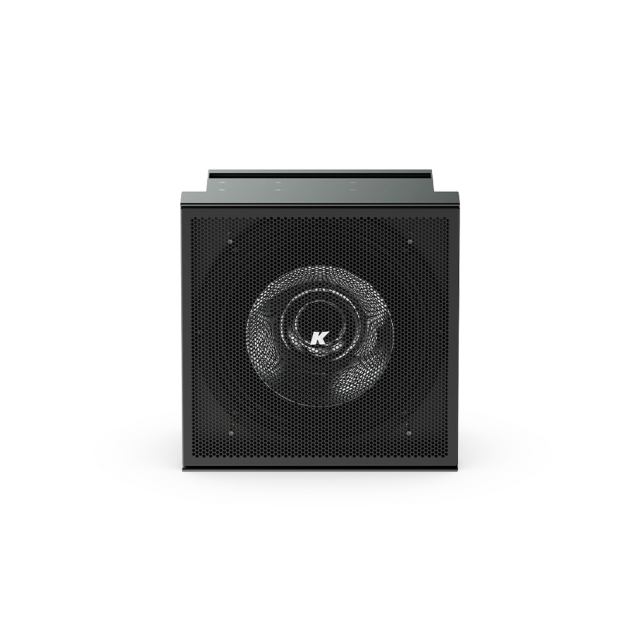

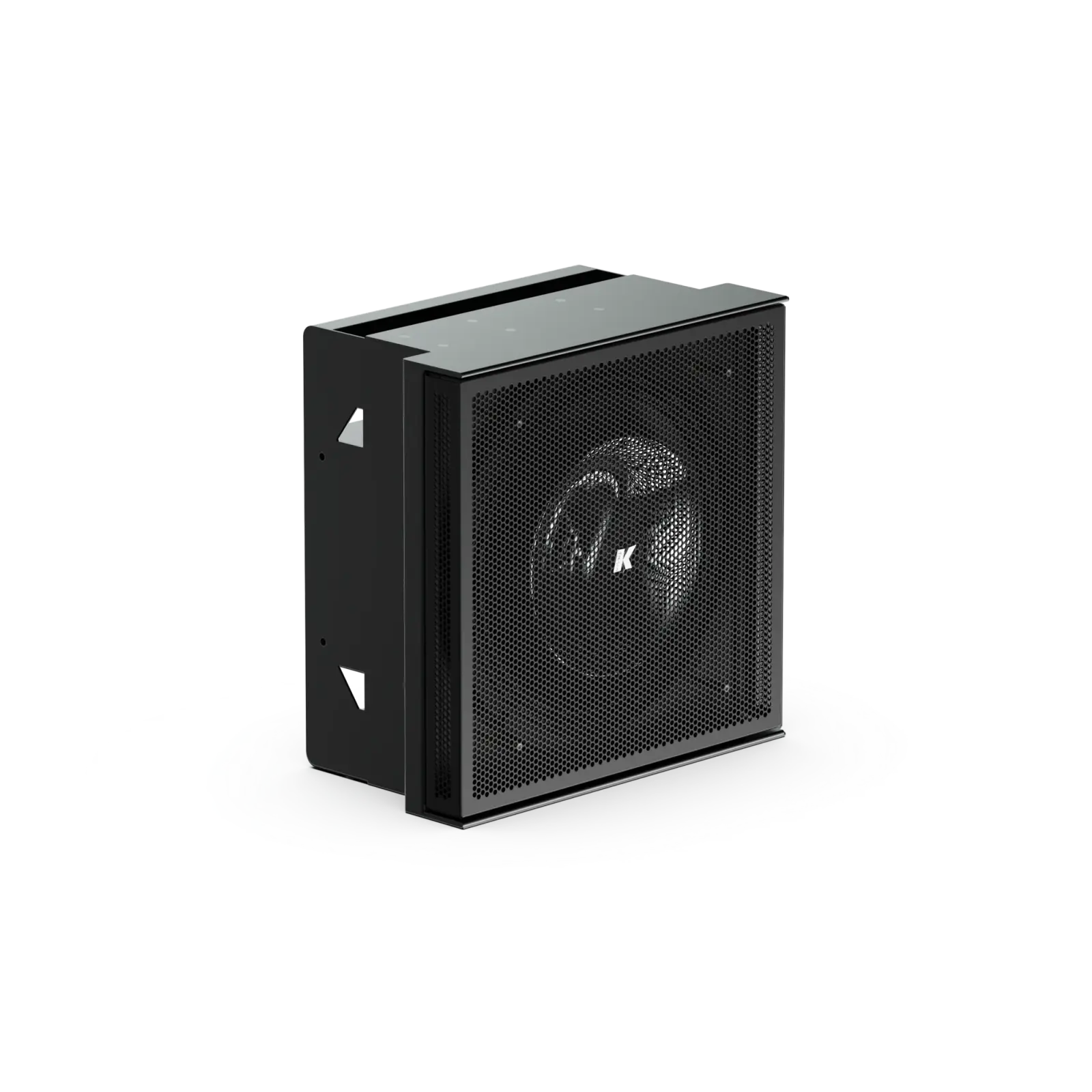

KX12 I Passive 12" Point Source Coax Speaker with EBS Technology, black

Download product sheet

The Dragon-KX12 MKI is a radical reinterpretation of a coaxial point source speaker, featuring a 12” woofer and a 1.7” compression driver. Designed to deliver highquality audio, it performs with remarkable versatility, whether used as a powerful point source or as part of a line array. The MKI version introduces a sleek stainless steel chassis with a compact a... Read more

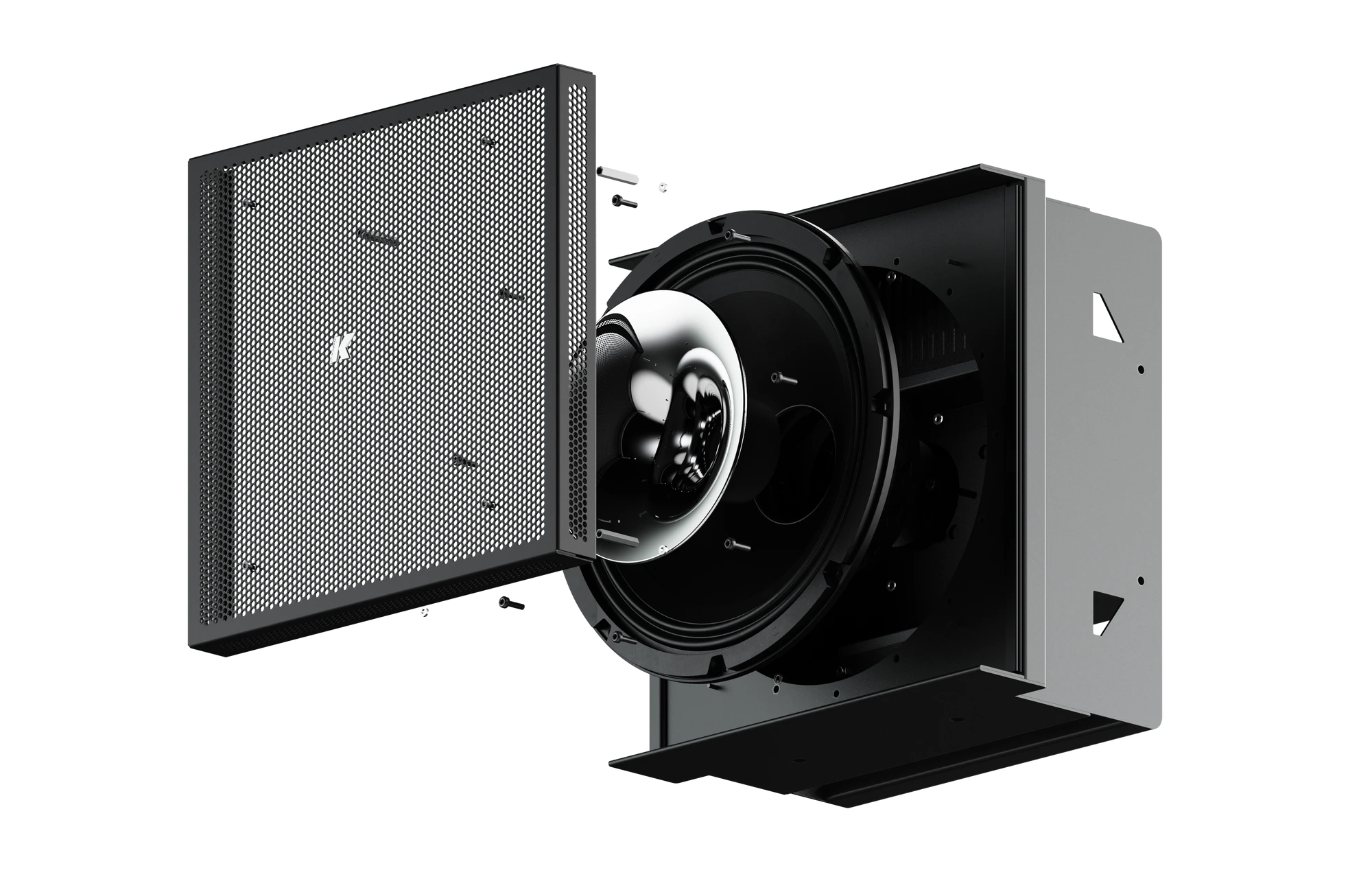

The Dragon-KX12 MKI is a radical reinterpretation of a coaxial point source speaker, featuring a 12” woofer and a 1.7” compression driver. Designed to deliver highquality audio, it performs with remarkable versatility, whether used as a powerful point source or as part of a line array. The MKI version introduces a sleek stainless steel chassis with a compact and lightweight design, perfect for both durability and ease of installation. The KX12 MKI rises to the challenges of high intensity applications, such as DJ monitoring in exclusive venues. Its fixed waveguide can be easily rotated by unscrewing, optimizing sound dispersion and ensuring superior performance. When used in an array, the speaker fully leverages EBS (Electronic Beam Steering) technology for precise, electronically adjustable coverage, offering consistent and controlled sound distribution. All KX12 MKI components are designed and custommade by K-array’s R&D department, adhering to the company’s stringent quality control standards.

Collapse text

Product downloads

Media

Media

Highlights

New generation of powerful point source elements

The Dragon family represents a powerful and compact range of point source systems featuring coaxial, triaxial and Spixel technology, combining exceptional performance with an iconic design. Engineered for sophisticated installations, these systems deliver high pressure in the near field with rapid sound attenuation over distance, making them versatile tools for installers in premium venues and refined club environments.

KXT: Triaxial Design

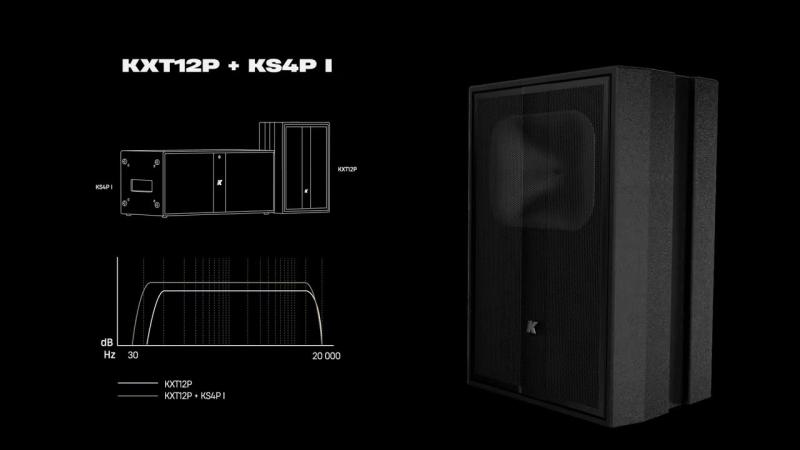

Featuring an advanced triaxial configuration with an additional midrange driver aligned on a single acoustic axis, the Dragon-KXT12P and KXT18P deliver true point-source performance with a minimal footprint. This innovative design eliminates phase interference to guarantee a focused, uniform sound field and exceptional vocal clarity even at high SPLs. The result is a clean, controlled sonic signature, making it the perfect solution for environments demanding high-definition audio and seamless architectural integration without compromising on power.

Precise and Flexible Coverage

They feature a rotatable horn with fixed coverage of 60°× 40°. The enclosure design is specifically engineered to enable tight horizontal and vertical clustering. The shape and waveguide contribute to smooth acoustic coupling between units, ensuring uniform sound dispersion and consistent coverage, especially in the near field.

KX12 I & KX2: Compact form & EBS Control

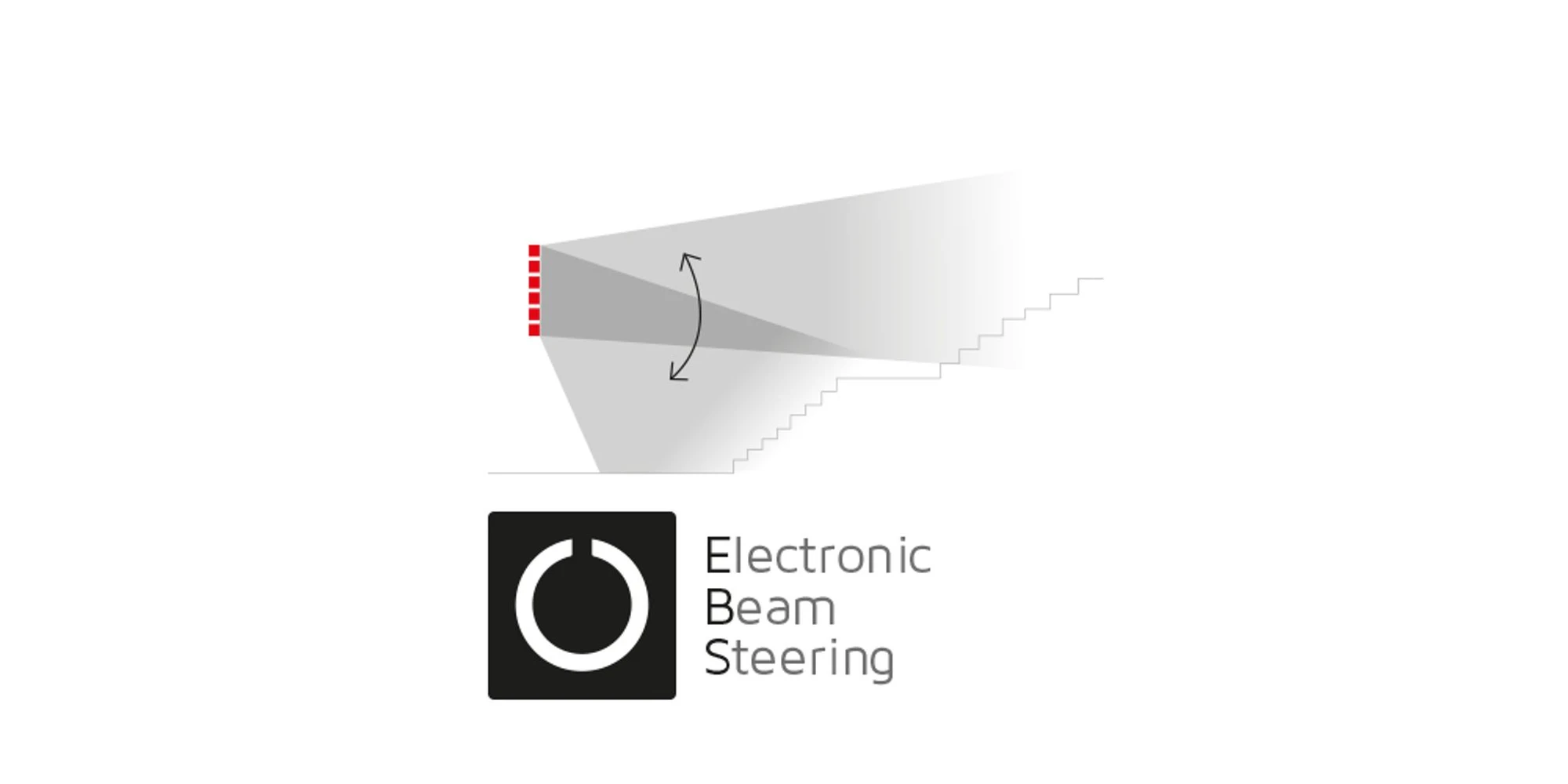

KX12 I and KX2 are a compact point source systems with optimized directivity, designed for standalone use or array configurations. When used in arrays, they supports EBS (Electronic Beam Steering) technology, enabling precise electronic control of dispersion. Each unit contributes to a focused, coherent coverage, minimizing reflections and ensuring consistent SPL across the listening area. This makes the KX2 ideal for applications requiring high intelligibility, accurate coverage, and clean integration. KX12 I is perfect for high SPL applications.

Dragon-KX2: Spixel Technology

Based on an innovative full-range trasducer of 2” and engineered to deliver exceptional efficiency, remarkable low-frequency extension and impressive SPL performance. KX2 is designed for scalable array configurations and ensures precise directivity in an extremely compact format.

Flexible Sound for Every Setup

Flexible Sound for Every Setup The Dragon family of point source speakers excels in high-intensity applications, from DJ monitoring in exclusive venues to versatile near field configurations for clubs, theaters, live events and diverse applications where power and precision meets elegance.

Unique style of the Dragon

The horn features a distinctive silver finish that sets the installation apart. With the option to cover it by a mesh grille or to leave it exposed, the design remains elegantly transparent, adding a touch of sophistication to any settings. The horn is also available in black or custom finishes, and the entire enclosure can be customized in any RAL color to suit your style.
2-Way Speaker
Coaxial Speaker
IP54

Product details

Key features

  • Simplified rigging with dedicated hardwares
  • Various array configurations and EBS-controlled emission
  • IP54 rating
  • Chrome/Black horn color available
  • Cabinet available in custom RAL colors

Specifications

  • Type
    Passive point source
  • Transducers
    12” woofer + 1.7” coaxial compression driver
  • Frequency Response
    120 Hz - 18 kHz (-6 dB, with dedicated preset)
  • Max SPL
    133 dB peak
  • Coverage
    V. 40° | H. 60° rotatable with screws
  • Power Handling
    800 W
  • Nominal Impedance
    8 Ω

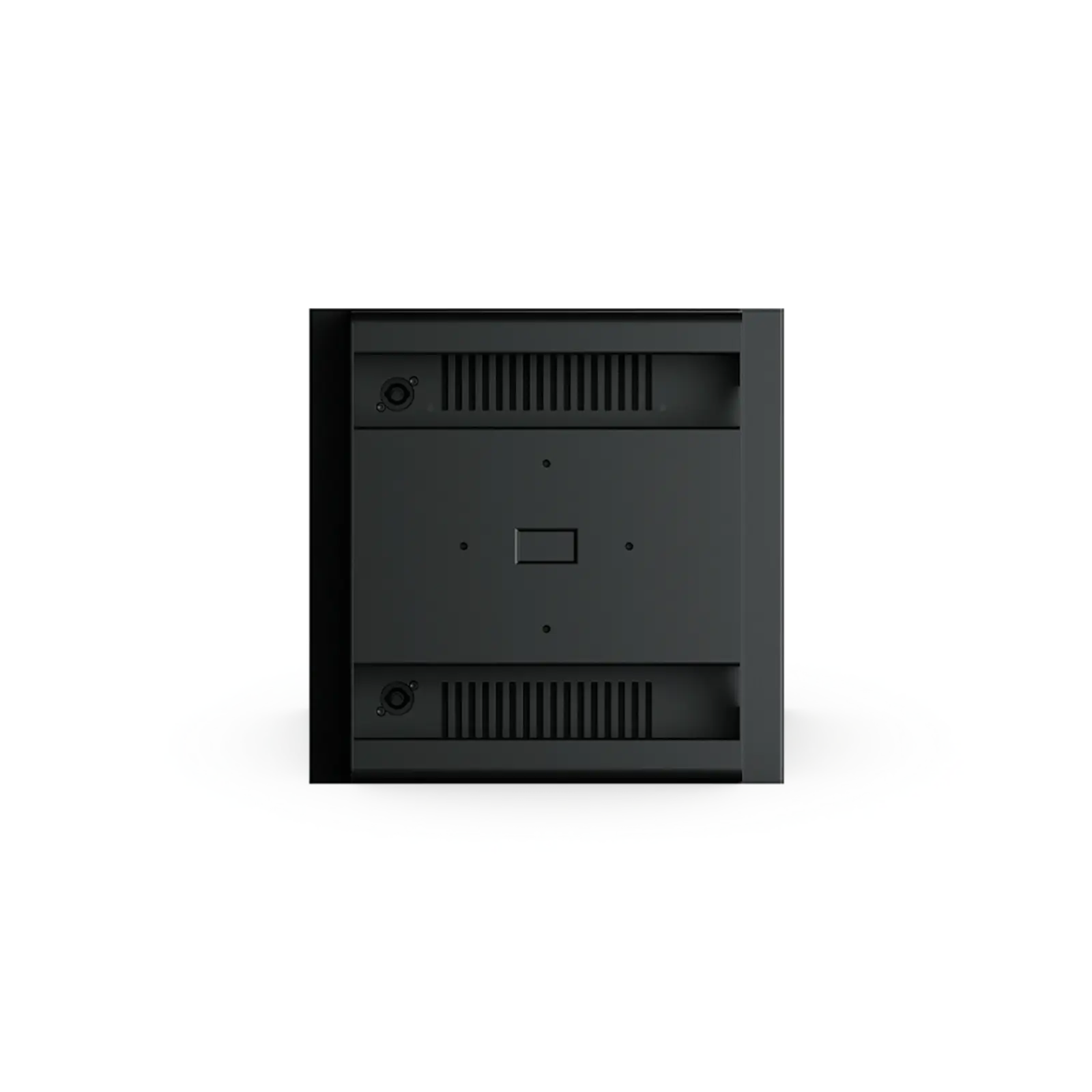

  • Connectors
    2x SpeakOn NL4 1+ 1- (signal); 2+ 2- (through)
  • Material
    Steinless steel
  • Colors
    Black, Custom RAL
  • IP rating
    IP54
  • Dimensions (WxHxD)
    350x350x203 mm (13.8 x 13.8 x 8 in)
  • Weight
    15kg (33.1 lb)
