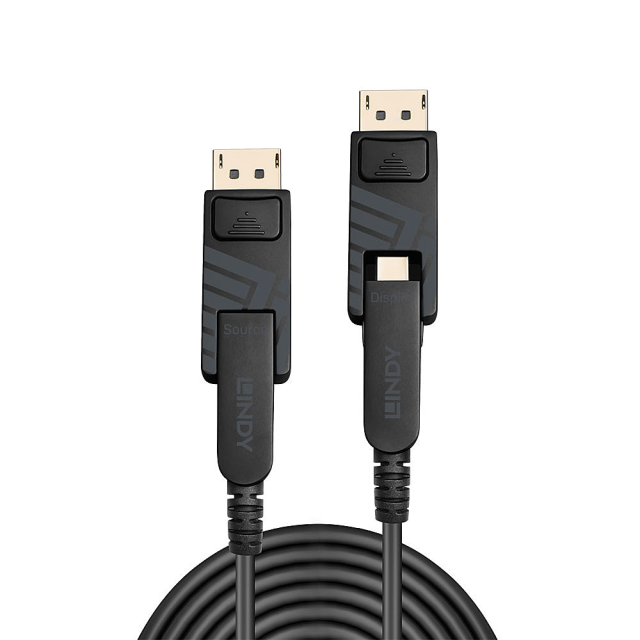

38481 20m Fibre Optic Hybrid Mini DisplayPort 1.4 Cable with Detachable DP Connectors

Download product sheet

Lindy_s range of Fibre Optic Hybrid Mini DP 1.4 Cable with detachable connectors are the professional solution for extending both Mini DisplayPort and DisplayPort signals over longer distances, with no requirement for additional adapters. Combining the flexibility and high EMI & RFI resistance of fibre optic cable with standard copper cabling, these hybrid cab... Read more

Lindy_s range of Fibre Optic Hybrid Mini DP 1.4 Cable with detachable connectors are the professional solution for extending both Mini DisplayPort and DisplayPort signals over longer distances, with no requirement for additional adapters. Combining the flexibility and high EMI & RFI resistance of fibre optic cable with standard copper cabling, these hybrid cables are ideal for use in critical AV setups or commercial installations.

Supplied as a thin cable with a premium metal, narrow Mini DisplayPort connector, this can be installed easily through conduit and other narrow spaces with no damage caused to the internal cable structure, while the detachable DisplayPort connector can be added at the ends of the installation for connection to an even wider variety of displays and devices such as PCs or digital signage. This innovative design allows for a much wider range of connectivity solutions that can be customized freely by the user, including Mini DP to Mini DP, DP to DP or Mini DP to a DP display.

Supporting all the premium features that come with the DP 1.4 specification, these cables can deliver resolutions up to 8K at 60Hz, or 4K at high frame rates of 120Hz, perfect for ensuring the best possible image quality in attention grabbing retail displays, immersive AV installations at events or a responsive, crystal-clear solution in transportation settings. Static and dynamic HDR support ensures a much wider colour gamut, greater contrasts and an enhanced brightness to provide eye-catching content even in outdoor or brightly lit scenarios.

Collapse text

Product downloads

Product details

Key features

  • Combines copper and fibre optic cable for a hybrid, long distance Mini DP & DP connectivity solution
  • Supplied as a Mini DisplayPort Male to male cable, with detachable DisplayPort connectors
  • Supports DP 1.4 resolutions up to 8K@60Hz, 4K@120Hz with additional support for static and dynamic HDR
  • No external power required
  • 2 year warranty

Specifications

  • Connector A
    Mini DisplayPort Male (with Detachable DP Male Connector)
  • Connector B
    Mini DisplayPort Male (with Detachable DP Male Connector)
  • Housing Material
    Zinc Alloy
  • Connector Plating
    Gold Plated
  • Pin Construction
    Gold-plated Brass
  • Pin Plating
    Gold Plated
  • Dimensions (approx.) WxDxH
    Mini DisplayPort Connector
  • Length
    20m (65.62ft)
  • Standard
    DisplayPort 1.4
  • Colour
    Black
  • Type
    Round
  • Jack Diameter
    4.8mm (0.19in)
  • Jack Material
    PVC
  • Conductor Material
    Gold Plated Copper
  • Supported Bandwidth
    32.4Gbit/s
  • Maximum Resolution
    7680x4320@60Hz 4:2:0 10bit; 4096x2160@120Hz 4:4:4 10bit
  • Nominal Attenuation
    -1dB~-2dB
  • Minimum Bend Radius
    48mm (1.89in)
  • Operating Temperature
    0°C - 50°C (32°F - 122°F)
  • Storage Temperature
    -25°C - 85°C (-13°F - 185°F)
  • More Less
