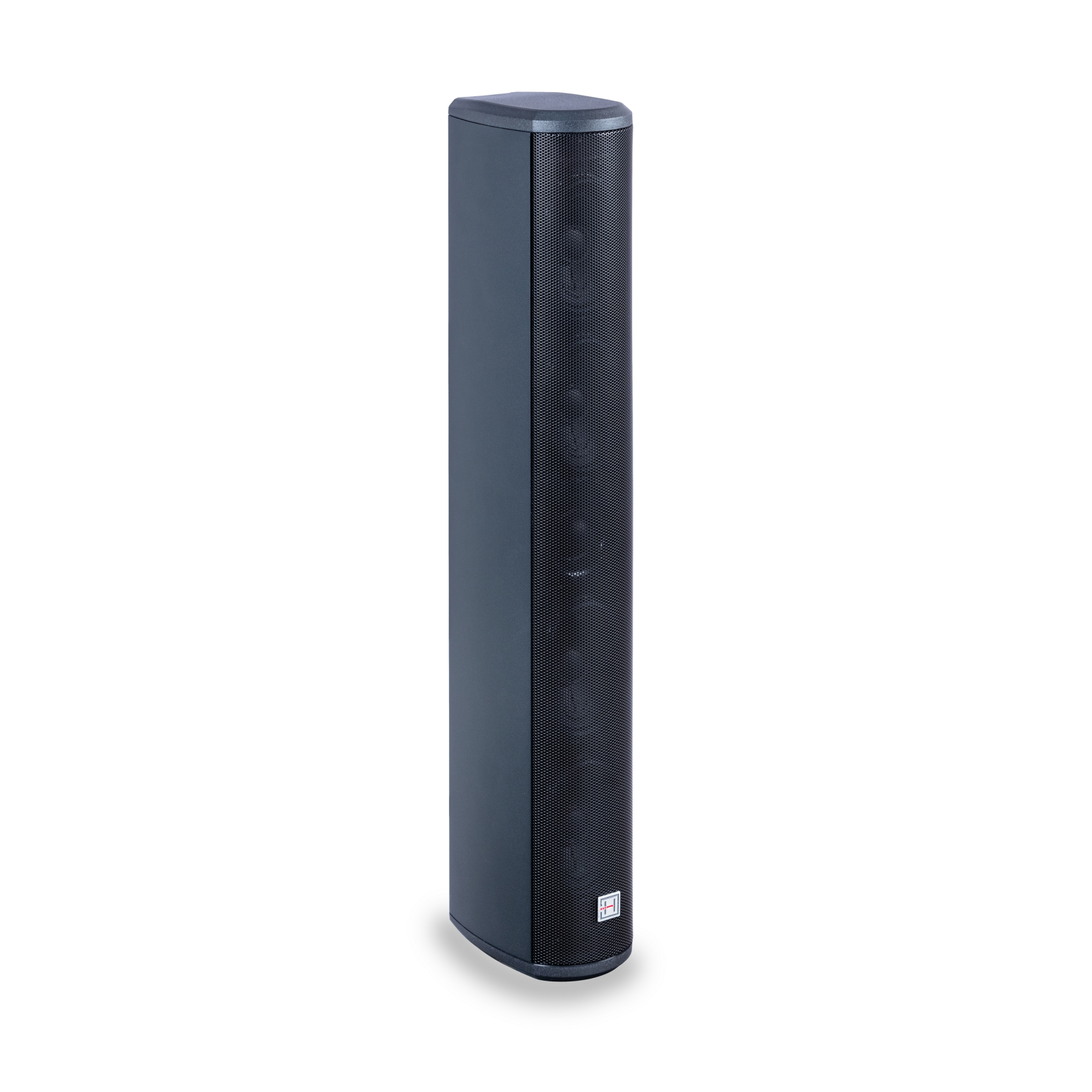

DICO-C100 BK 100W IP66 2-Way Slim Column Speaker Black

Download product sheet

The HELVIA DICO series column speakers were designed to bring together two key elements: acoustic performance and modern aesthetics.

Each model uses 50×90mm full-range drivers with a slim, runway-shaped profile -equivalent to a standard 2.5" transducer - paired with 1" point-source tweeters. This setup works like a mini line array, minimizing unwanted reflec... Read more

The HELVIA DICO series column speakers were designed to bring together two key elements: acoustic performance and modern aesthetics.

Each model uses 50×90mm full-range drivers with a slim, runway-shaped profile -equivalent to a standard 2.5" transducer - paired with 1" point-source tweeters. This setup works like a mini line array, minimizing unwanted reflections from floors and ceilings. The result is crystal-clear voice reproduction and enhanced overall definition across the full frequency range, from 120Hz up to 20kHz.

The longer the array, the more extended the cylindrical sound wave it generates - keeping sound levels consistent even at greater listening distances compared to conventional point-source systems. When paired with a subwoofer system, the DICO speakers deliver deep, well-balanced lows for a smooth and immersive sound experience.

Equipped with a line transformer and a 3-position selector, the DICO columns can easily connect to both constant-voltage amplifiers (70V/100V) and low-impedance systems. The protections on the connections and connection cables also make them waterproof and suitable for indoor and outdoor use, with an IP66 protection rating.

Aesthetically, the slim and stylish profile blends seamlessly into architectural installations or modern minimalist environments. With lighter weight, compact size, and included wall-mount accessories, DICO column speakers are the perfect choice for conference rooms, worship venues, classrooms, auditoriums, and design-focused installations.

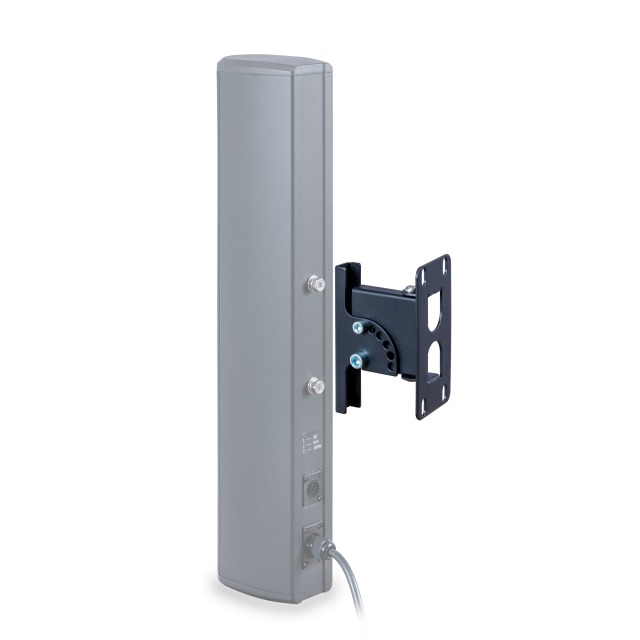

Each column comes with a wall mounting bracket with both horizontal and vertical adjustment.

Collapse text

Product downloads

IP66
Low Impedance
2-Way Speaker
70V-100V Line

Product details

Key features

  • Advanced acoustic design to reduce floor and ceiling reflections.
  • Full-range, runway-shaped 50 x 90 mm transducers and 1" tweeter
  • Frequency response for excellent speech clarity
  • 70V/100V low-impedance line transformer with 3-position selector
  • Waterproof enclosure with IP66 protection rating
  • Slim, elegant design, ideal for architectural integration
  • Suitable for conference rooms, houses of worship, classrooms, auditoriums, and design environments
  • Professional bracket with horizontal and vertical adjustment
  • Black Color

Specifications

  • Speaker Type
    2-Way Passive
  • IP Rating
    IP66
  • RMS Power (@ 8ohm)
    50W
  • Program Power (@ 8ohm)
    100W
  • Maximum SPL
    110 dB
  • Freq. Response
    120Hz-20KHz
  • Sensitivity
    90 dB
  • Impedance
    8 Ω
  • Woofer
    4x 50x90mm Runaway-Shaped Full-frequency
  • Tweeter
    1”
  • Input Voltage
    70V - 100V

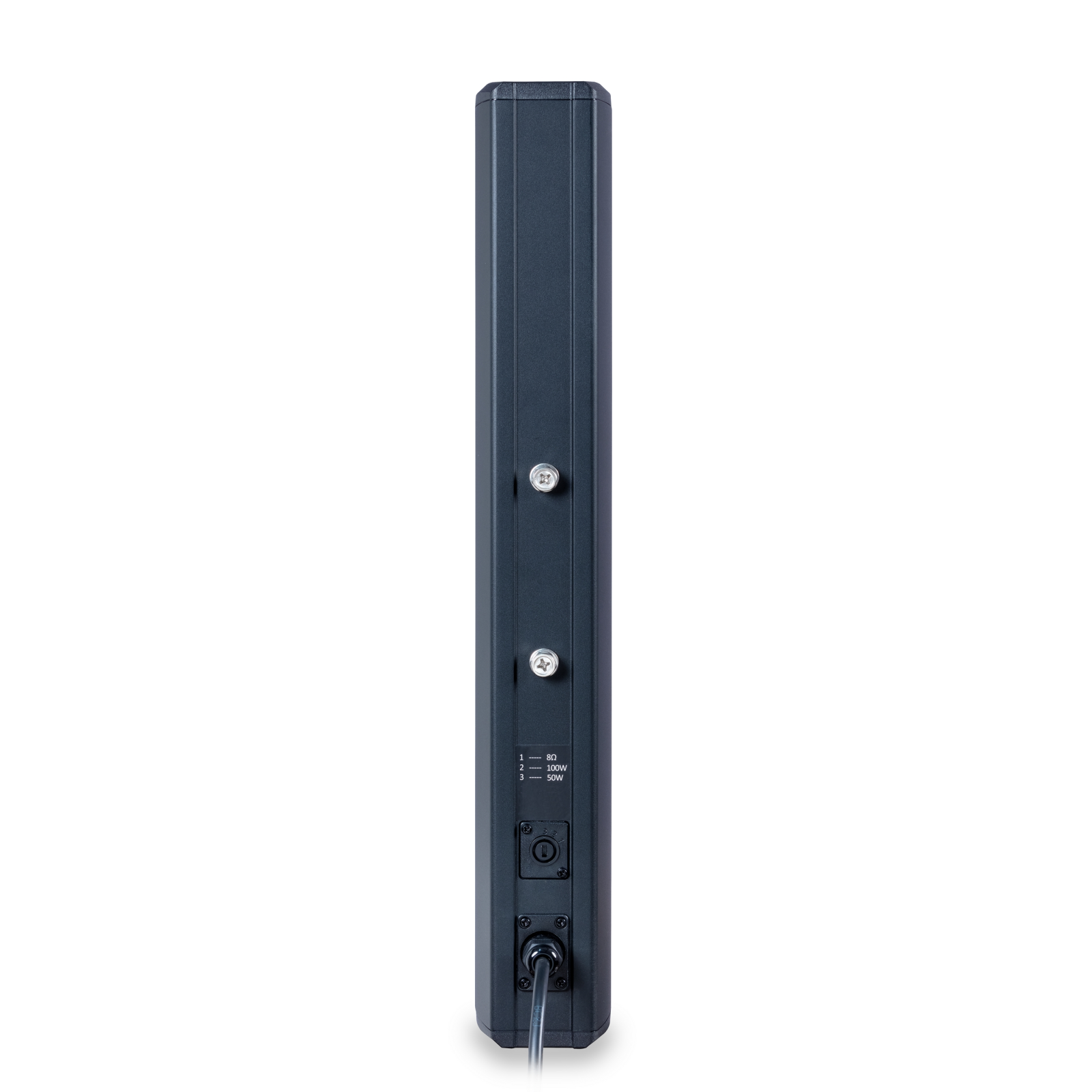

  • Power Tap Selector
    25W/50W/100W (100V) - 12.5W/25W/50W (70V) - 100W @ 8 ohm
  • Bracket
    Pan/Tilt adjustable bracket (0°/5°/10°/15°) with screws
  • Dispersion Angle
    140°(H)×20°(V)
  • Finish
    Balck
  • Product Size - No Bracket (WxDxH):75 x 110 x 530 mm (2,95 x 4,33 x 20,87 inch)
  • Speaker Weight (single unit, no bracket)
    3.2 kg – 7.05 lbs.
  • Packing Size (WxDxH)
    660 x 310 x 370 mm (25.98 x 12.20 x 14.56 inch)
  • Shipping Weight (4 pcs.)
    22,6 kg - 49,82 lbs.
