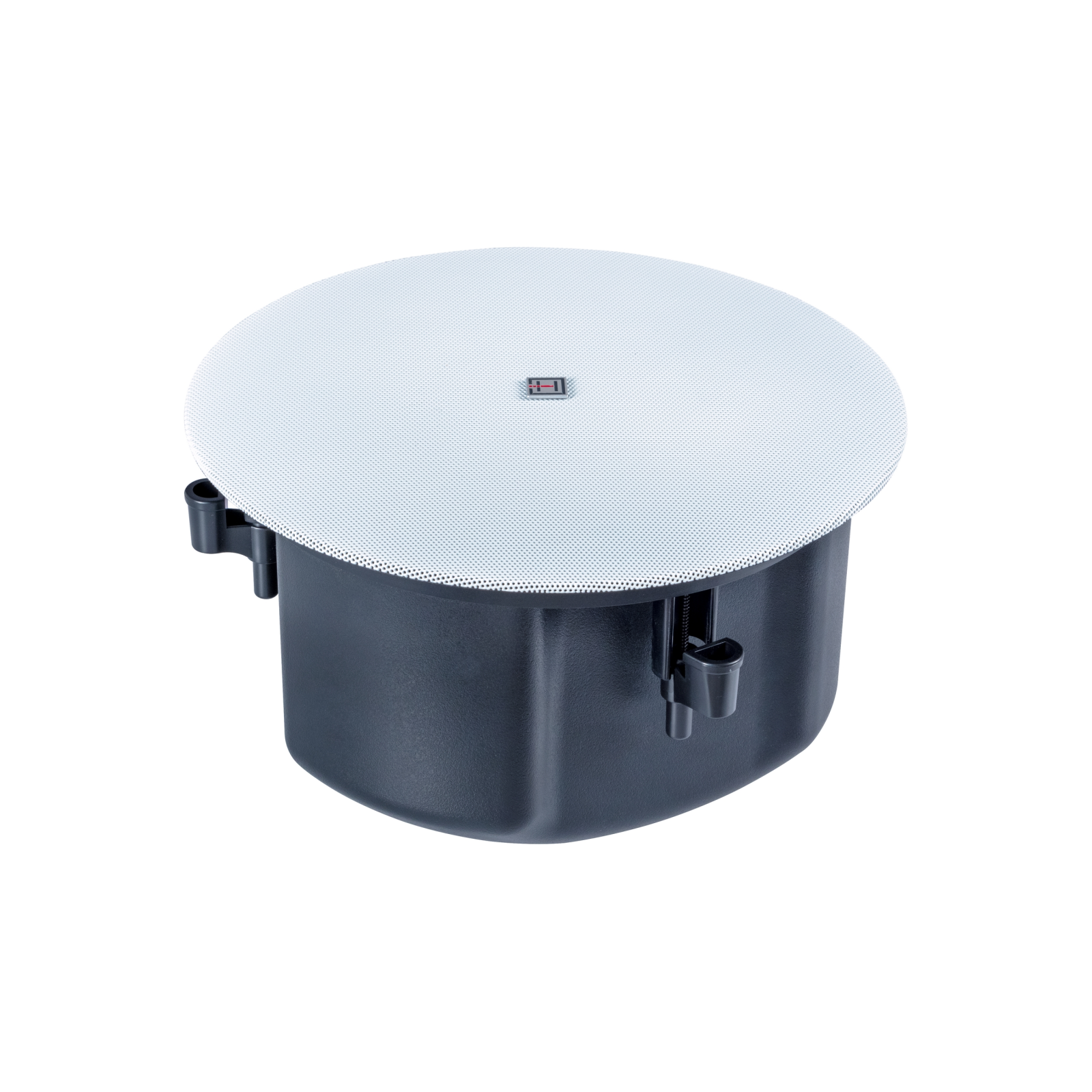

ONDA-B660FCW 60W 2-Way Hi-Fi Ceiling Speaker with Plastic Housing

Download product sheet

ONDA B660FCW is a powerful and accurate 2-Way loudspeaker with 6” high excursion woofer, 1.5” tweeter delivering 60W RMS power. It can be used with standard 70/100V as well as low impedance (8 ohm) professional amplifiers and provide transparent and brilliant sound.

The presence of the back can with two front reflex ports allows for an emphasis on the frequen... Read more

ONDA B660FCW is a powerful and accurate 2-Way loudspeaker with 6” high excursion woofer, 1.5” tweeter delivering 60W RMS power. It can be used with standard 70/100V as well as low impedance (8 ohm) professional amplifiers and provide transparent and brilliant sound.

The presence of the back can with two front reflex ports allows for an emphasis on the frequency response on the medium-low frequency range, giving a much warmer and more enveloping sound even in the absence of the acoustic box effect due to the ceiling, which is necessary in the case of traditional ceiling speakers.

Installation is very easy, thanks to the quick mounting system, which is hidden behind the grill and offer an elegant and minimalist design. The built-in line transformers allow use with 70/100V lines and offer 5 power taps plus 8ohm to better adapt to different speaker arrangement and amplifier powers.

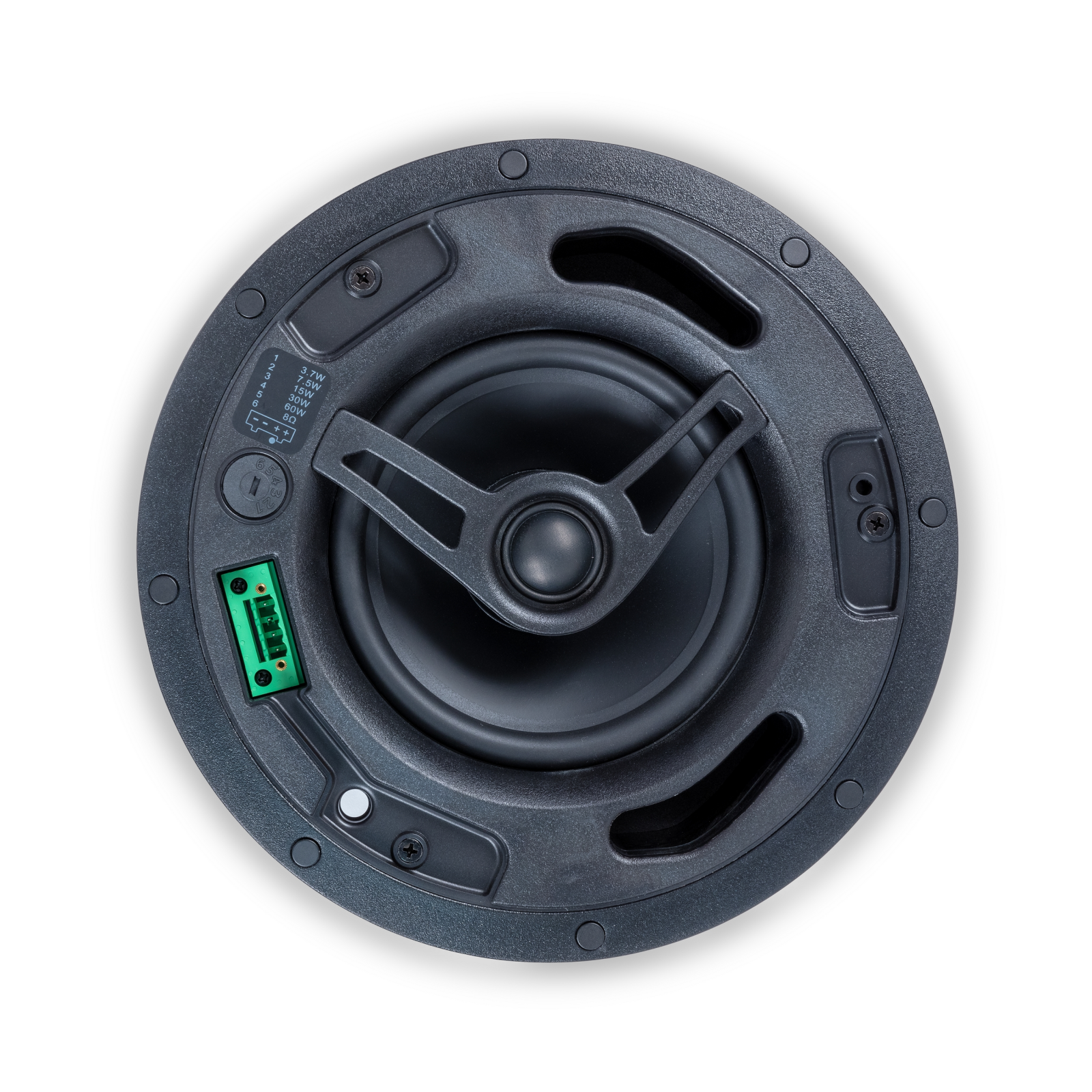

The connector is a 4-pin Euroblock type (2 plus - 2 minus, for easy linking to other speakers) and is located on the front panel along with the power selector. This greatly facilitates assembly and setup of the speaker even if it is already fixed to the ceiling.

Collapse text

Product downloads

Quick-Fit System
2-Way Speaker
Coaxial Speaker
70V-100V Line
Low Impedance
Crossover
Frameless

Product details

Key features

  • 2-Way Hi-Fi Loudspeaker
  • 6” PP Cone Woofer
  • 1.5” Silk-Dome Tweeter
  • 60W RMS Power
  • 8Ω Impedance
  • Built-in Line Transformer with 6-Position Selector
  • PP Back cover for Bass enhancement
  • Frameless Metal Grille with Magnets
  • Quick-Fit Mounting System
  • Finish: Black housing with White Grille

Specifications

  • Rated power
    60W
  • Input Voltage
    70V/100V
  • Impedance
  • Tap Selector
    (100V) 60-30-15-7.5-3.75W; (70V) 30-15-7.5-3.75-1.875W; 8Ω
  • Sensitivity
    90dB
  • Frequency response
    120Hz - 20kHz
  • Speaker unit
    6-inch full-range + 1.5-inch tweeter
  • Cutout Size
    Ø 240mm (9.44”)
  • Speaker Size
    Ø 265 x 145mm (Ø 10.43” x 5.70”)
  • Speaker Weight
    2,6kg (5.73 lbs.)
  • Packing Size (WxDxH)
    320 x 320 x 185mm (12.60” x 12.60” x 7.28”)
  • Packing Weight
    3,4kg (7.49 lbs.)
  • More Less
