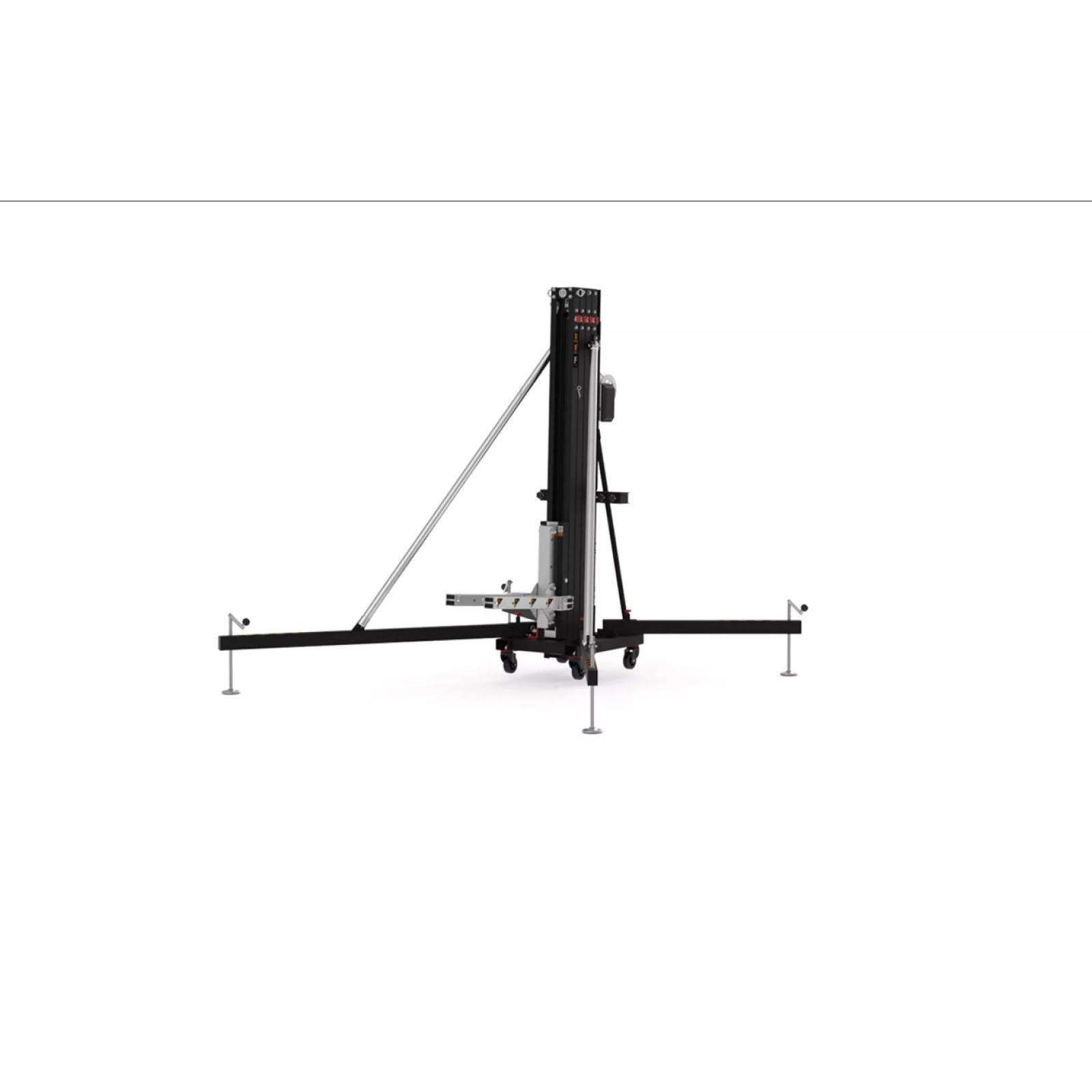

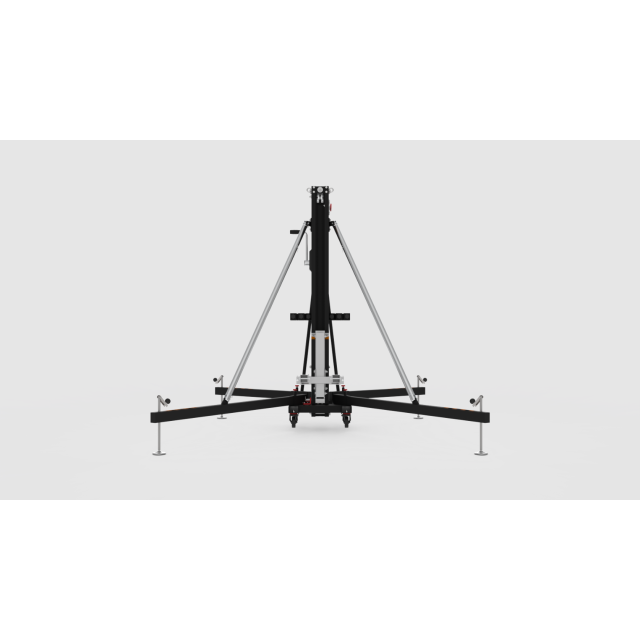

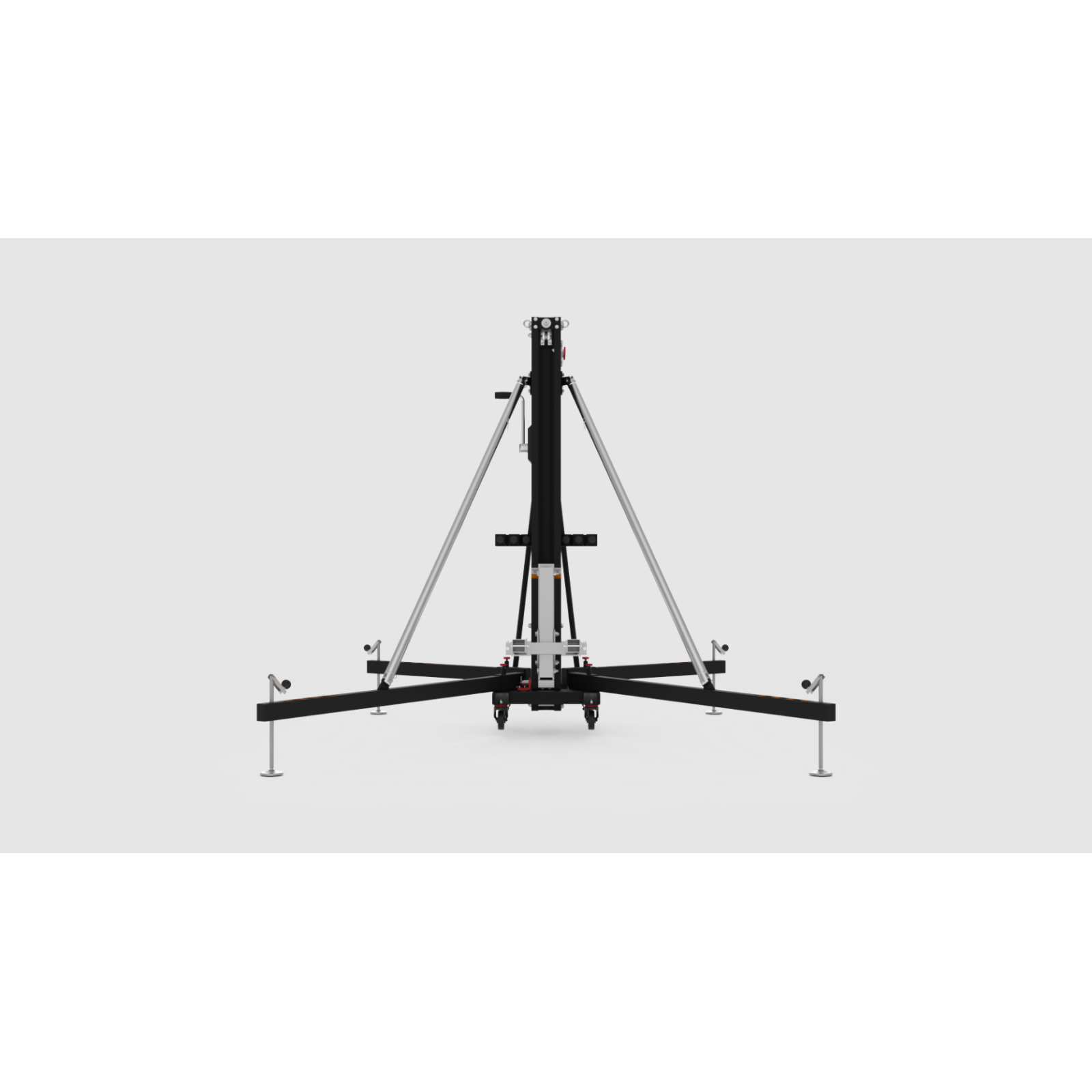

FT 5023LS Frontal Load Lifter 4.98M 235Kg LoadSense (F70FT5323)
Download product sheetFront load lifting tower with a maximum height of 4,98 meters. Able to lift up to 235 Kg in its mechanism mode and 455 Kg in its structural model. It features the LoadSense system, which allows monitoring the lifter load in accordance with EN-17206 requirements. Its Dynamic Overlap system evens the stresses across all the aluminum profiles, improving their res... Read more
Front load lifting tower with a maximum height of 4,98 meters. Able to lift up to 235 Kg in its mechanism mode and 455 Kg in its structural model. It features the LoadSense system, which allows monitoring the lifter load in accordance with EN-17206 requirements. Its Dynamic Overlap system evens the stresses across all the aluminum profiles, improving their resistance and reducing deflexion. Collapse text
Product details
Key features
- Dynamic Overlap
- LoadSense System
- Mechanism and structural modes
Specifications
-
MaterialAluminum and steel
-
Max load (mechanism mode)235 Kg / 518,01 lbs
-
Max load (structure mode)455 Kg / 1003,1 lbs
-
Net Weight106,8 Kg / 235,45 lbs
-
Folded Base0,55 x 0,48 m / 1,8 x 1,57 ft
-
No. of sections4
-
Maximum height4,98 m / 16,34 ft
-
Folded Height1,713 m / 5,62 ft
-
Cable diameter5 mm / 0,2 in
-
Standards and CertificationsDGUV CE
