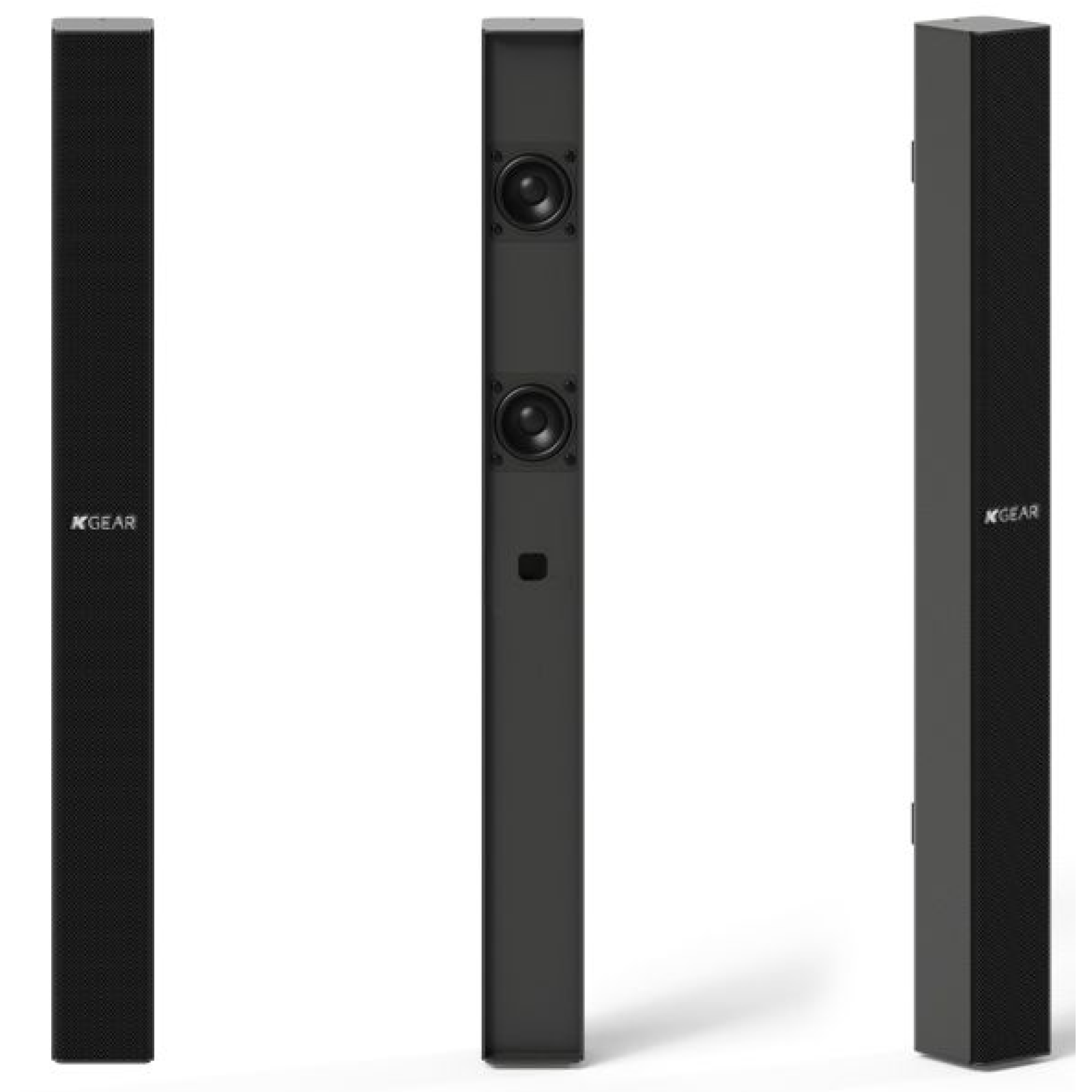

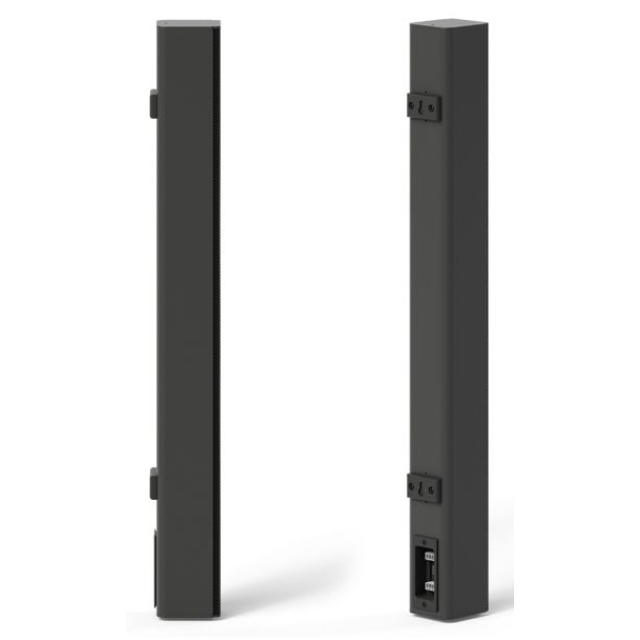

GF22A Ultra-compact 2x2" full-range active speaker (black)

Download product sheet

GF22A is an ultra-compact active loudspeaker with 2 2” drivers and built-in amplifier, designed to deliver high-level sound performance by ensuring full-bodied bass frequencies compared to other speakers of the same size thanks to the bass reflex design and optimized transducer filtering that ensure superior sound quality in an extremely discreet format.

The ... Read more

GF22A is an ultra-compact active loudspeaker with 2 2” drivers and built-in amplifier, designed to deliver high-level sound performance by ensuring full-bodied bass frequencies compared to other speakers of the same size thanks to the bass reflex design and optimized transducer filtering that ensure superior sound quality in an extremely discreet format.

The minimalist design integrates easily with any architectural style, while the IP54-rated ABS cabinet ensures reliability and durability even in challenging environmental conditions.

The GF22A's real strength lies in its built-in Class D amplifier, which delivers 100W of power at 2Ω while keeping power consumption to a minimum (30W at 1/8 rated load). Thermal and overload protections ensure maximum operational stability, making it perfect for professional installations where compactness and safety are critical.

With wide coverage (90° V | 90° H) and a frequency response up to 20 kHz, GF22A is ideal for crystal-clear voice and music reproduction. For deeper musical performance, pairing with the GS6 subwoofer is recommended.

Collapse text

Highlights

Superior audio performance in a compact format

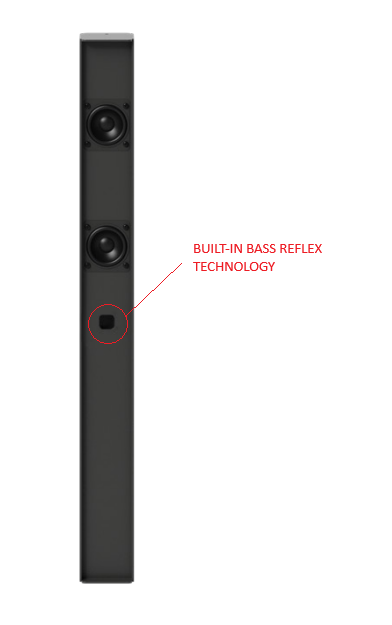

The GF22A manages to combine extreme compactness and sound quality, particularly in the low frequency response, thanks to the bass reflex design and optimised filtering which allow it to exceed the typical expectations of a 2" speaker, making it a unique proposition for applications where small size and sound quality are both essential.

Ultra-compact format and IP54 rating for discreet indoor/outdoor installations

Just 60 mm wide, with dust and splash protection—perfect for elegant applications in both public and private venues.

Class-D

Product details

Key features

  • Ultra-compact (2x2") line array design: The small format allows for discreet installations in environments where space is limited or where minimal aesthetics are required, without sacrificing sound quality.
  • Wide 90° both vertical and horizontal coverage: allows you to reach large listening areas with a reduced number of speakers, maintaining clarity and intelligibility.
  • Durable ABS cabinet with IP54 rating: guarantees protection from dust and splashes, making the speaker suitable for both indoor and outdoor installations in permanent contexts.
  • Integrated digital amplifier (Class D): delivers 100W of power into 2Ω with low consumption and maximum efficiency, ideal for low voltage powered systems (12–24 V DC).

Specifications

  • Type
    Active loudspeaker
  • Transducers
    2x2” ferrite magnet woofer
  • Frequency Response
    90 Hz - 20 kHz (-6dB)
  • Max SPL
    103 dB
  • Coverage
    V. 90° | H. 90°
  • Operating Range
    12-24 V DC
  • Mains Connector
    2x Phoenix connector (4-pin euroblock) Balanced Line in Mute contact Power out
  • Impedance
    16 Ω
  • Amp Module
    1-channel Class-D audio amplifier
  • Output Power
    100W @ 2Ω (24V power)
  • Power Consumption
    30W Rated Load 1/8 Max Power
  • Protections
    Thermal Protections (Power limiting - Thermal Shutdown), Short- circuit/overload output protections
  • Dimensions (W x H x D)
    60 x 590 x 72 mm (2,36 x 23,23 x 2,83 in)
  • Weight
    1,3 kg (2,87 lbs)
  • Material
    ABS
  • Colors
    Black
  • IP Rating
    IP54
  • More Less
