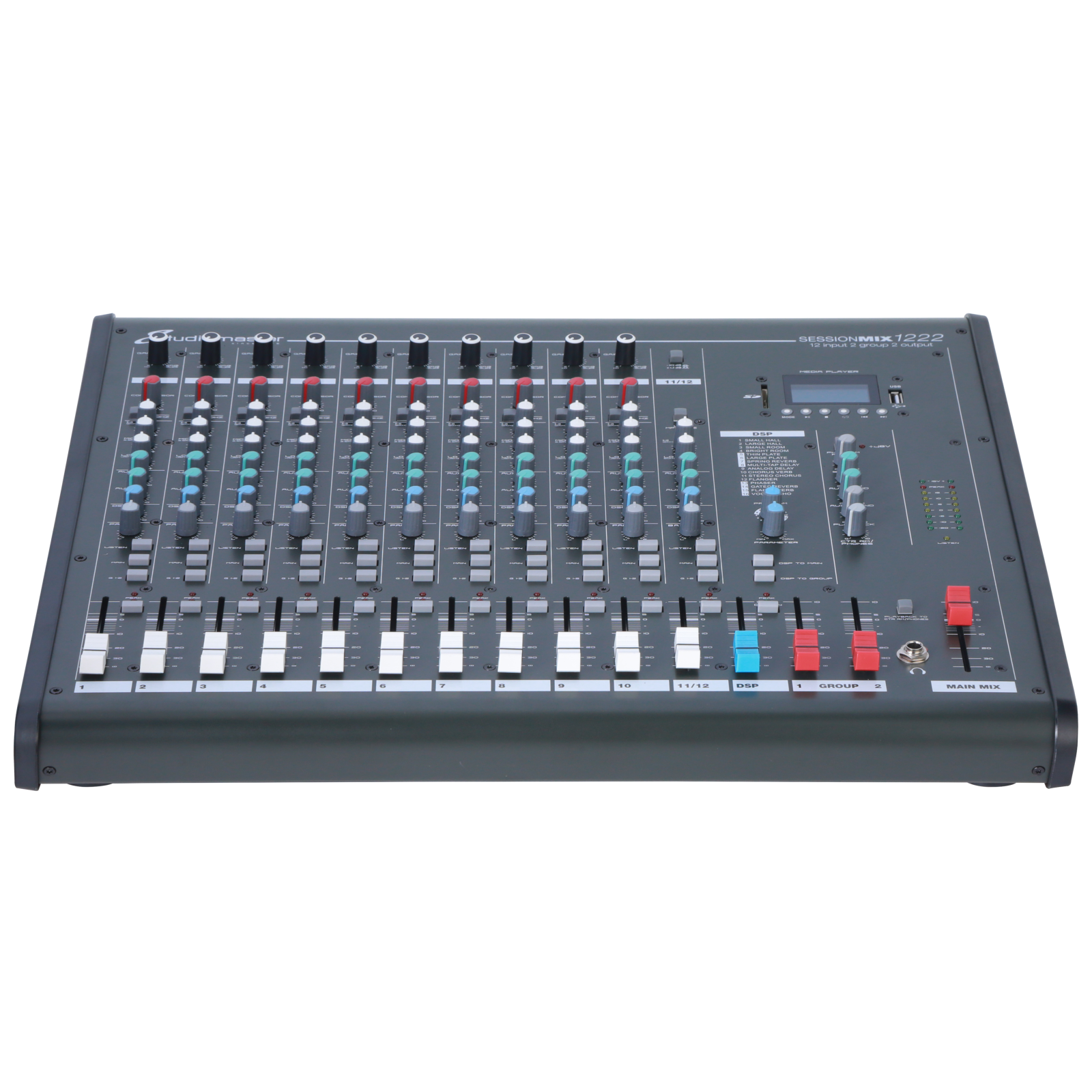

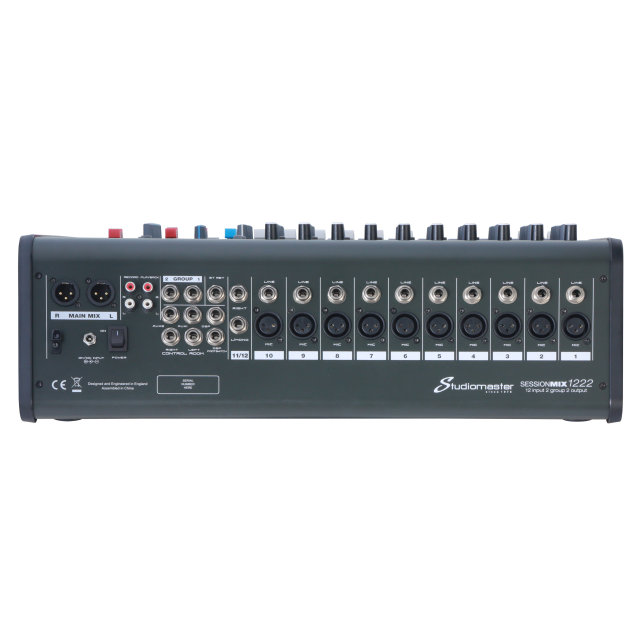

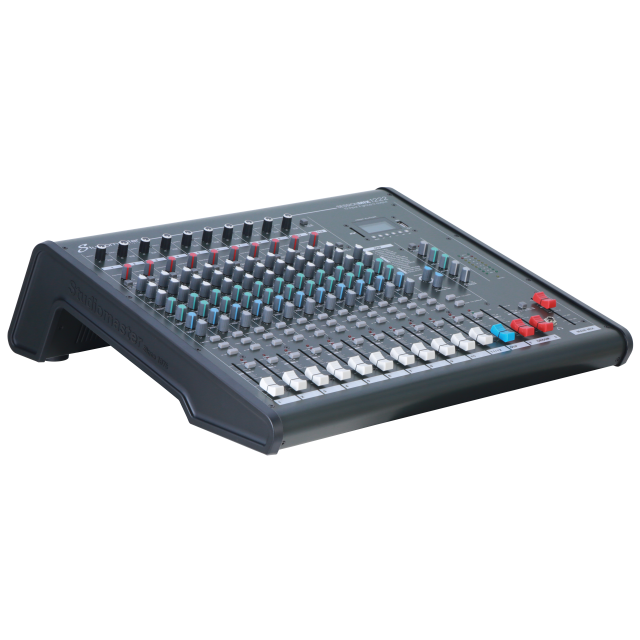

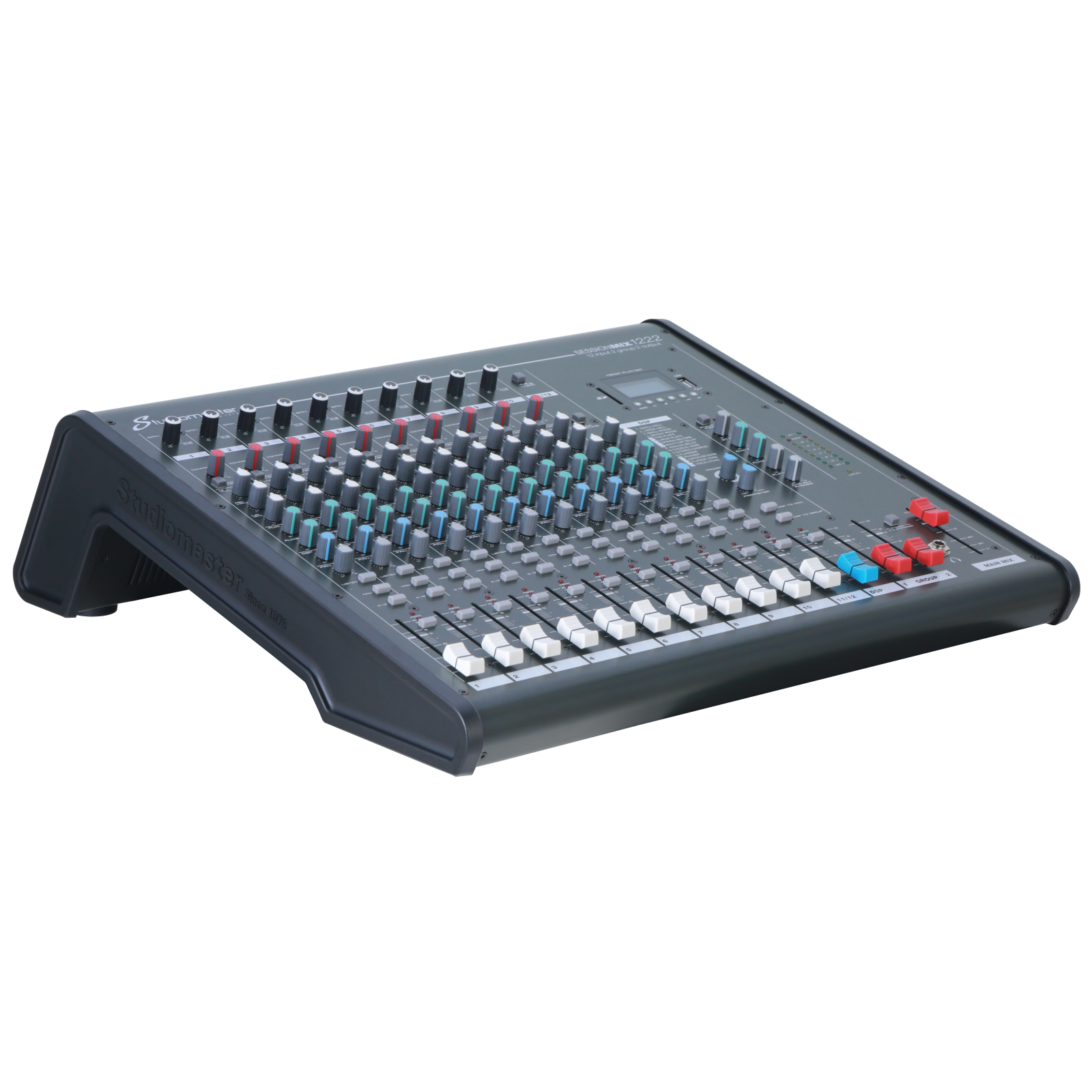

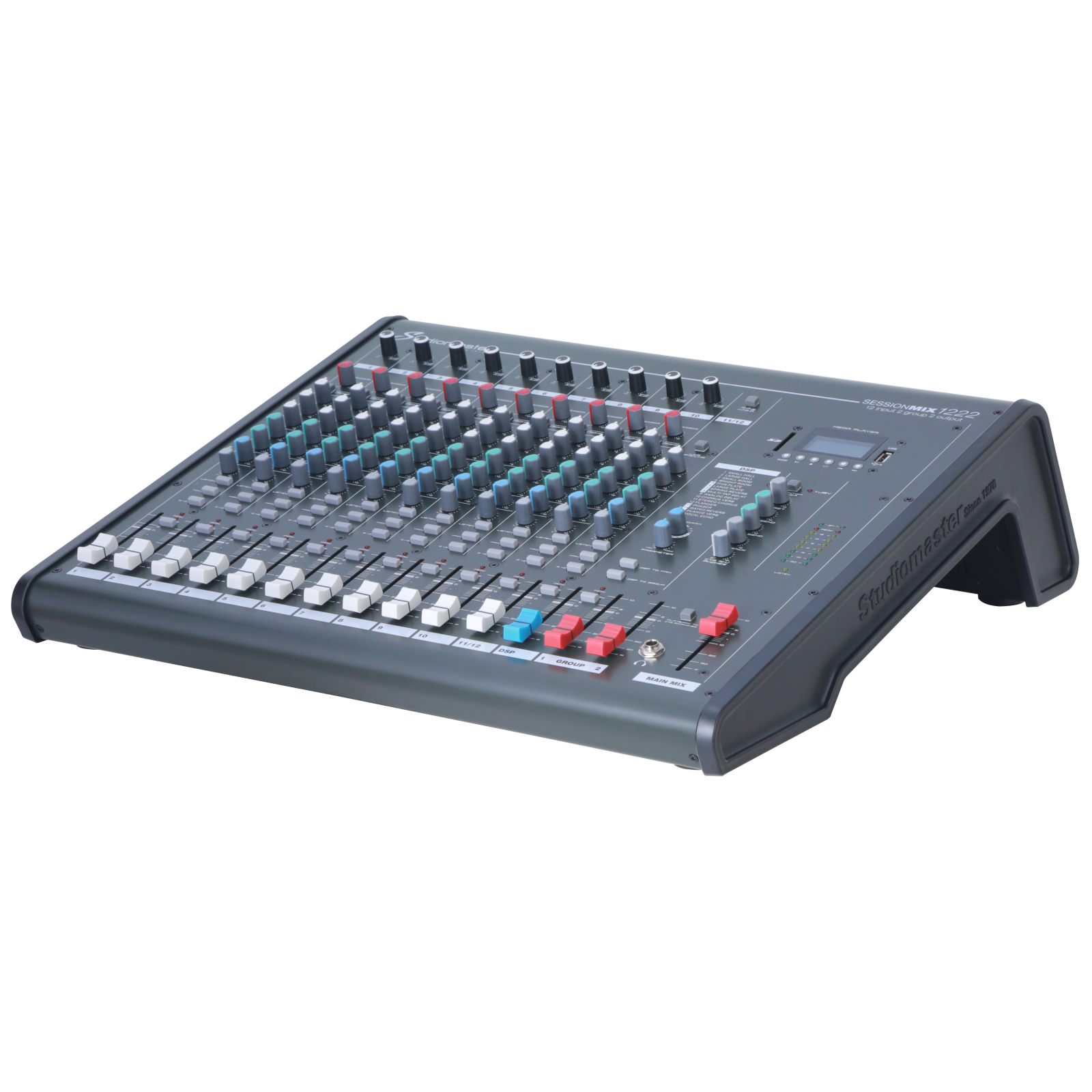

SESSIONMIX 1222 12 Channel Professional Mixing Console with Media & Bluetooth
Download product sheetUsing the foundation of our popular CLUBXS12+, enhancing the design style and adding a stereo sub-group. The SessionMix 1222 gives you 10 Mic Channels and 1 Stereo Channel in a compact space saving design.
With the features available, such as USB recording, or the Bluetooth playback ability, there are many applications whether a small to medium size band or a... Read more
Using the foundation of our popular CLUBXS12+, enhancing the design style and adding a stereo sub-group. The SessionMix 1222 gives you 10 Mic Channels and 1 Stereo Channel in a compact space saving design.
With the features available, such as USB recording, or the Bluetooth playback ability, there are many applications whether a small to medium size band or an installation where the channel count is important.
60mm faders on all channels, balanced XLR outputs, PFL/Listen on every channel and professional mic/line inputs make the new SessionMix series worth having a closer look at.
Collapse textProduct downloads
Product details
Key features
- 12 channels with 10 Mic Inputs and 1 Stereo Channel
- USB/SD Card/Bluetooth media module for Playback / Recording
- Stereo Sub Group with 60mm Faders and Jack Outputs
- 16 Selected and High-quality DSP effects with Reverb, Delay and Stereo Effects
- DSP On/Off Footswitch Socket to easily turn On or Off your effects
- Compressor and 80Hz High-Pass Filter on all Mic Channels
- PFL and Mute on all Channels
- 3-band EQ on Mic channels for superior tone adjustments
- 2-band EQ on Stereo channel to add warmth to your instruments
- 2 x Aux & 1 x DSP Outputs for External Monitors and FXs
- Stereo Return Extra Inputs with Level Control
- RCA/Phono Playback and Record ability
- Headphones and Control Room Output for full Monitoring
- +48v Phantom Power on Mic Channel for condenser microphones
- External PSU for reliable noise free operation
- More Less
Specifications
-
Inputs12
-
Mic Input channels10
-
Stereo Input channels1
-
Sub Group / output2
-
Mic Gainfrom +6dB to -50dB
-
Line Gainfrom +10dB to -34dB
-
EIN-100dB
-
Frequency response10Hz – 20kHz
-
THD Mic Channel≤0.03%
-
Signal to Noise Ratio80dB
-
Output LevelsMax +26dB (Balanced) / Max +20dB (Unbalanced)
-
Channel EQHi 12kHz, Mid 2.5kHz, Low 45Hz
-
Low-Cut Filter80Hz
-
CompressionYs, on all Mic Inputs
-
Media PlayerMP3/USB/SD/BT Audio Playback
-
RecordingUSB/SD Audio Recording
-
DSP Effects16 Effects with Selection knob and 1 Adjustable Parameter
-
Power requirementsExternal 12V DC Adapter
-
Dimensions (WxHxD)491 x 152 x 467,5 mm
- More Less
More information? Get in touch
