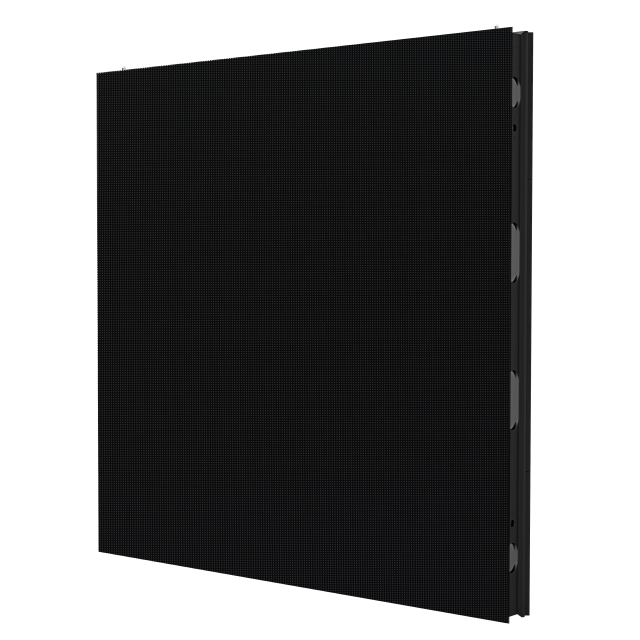

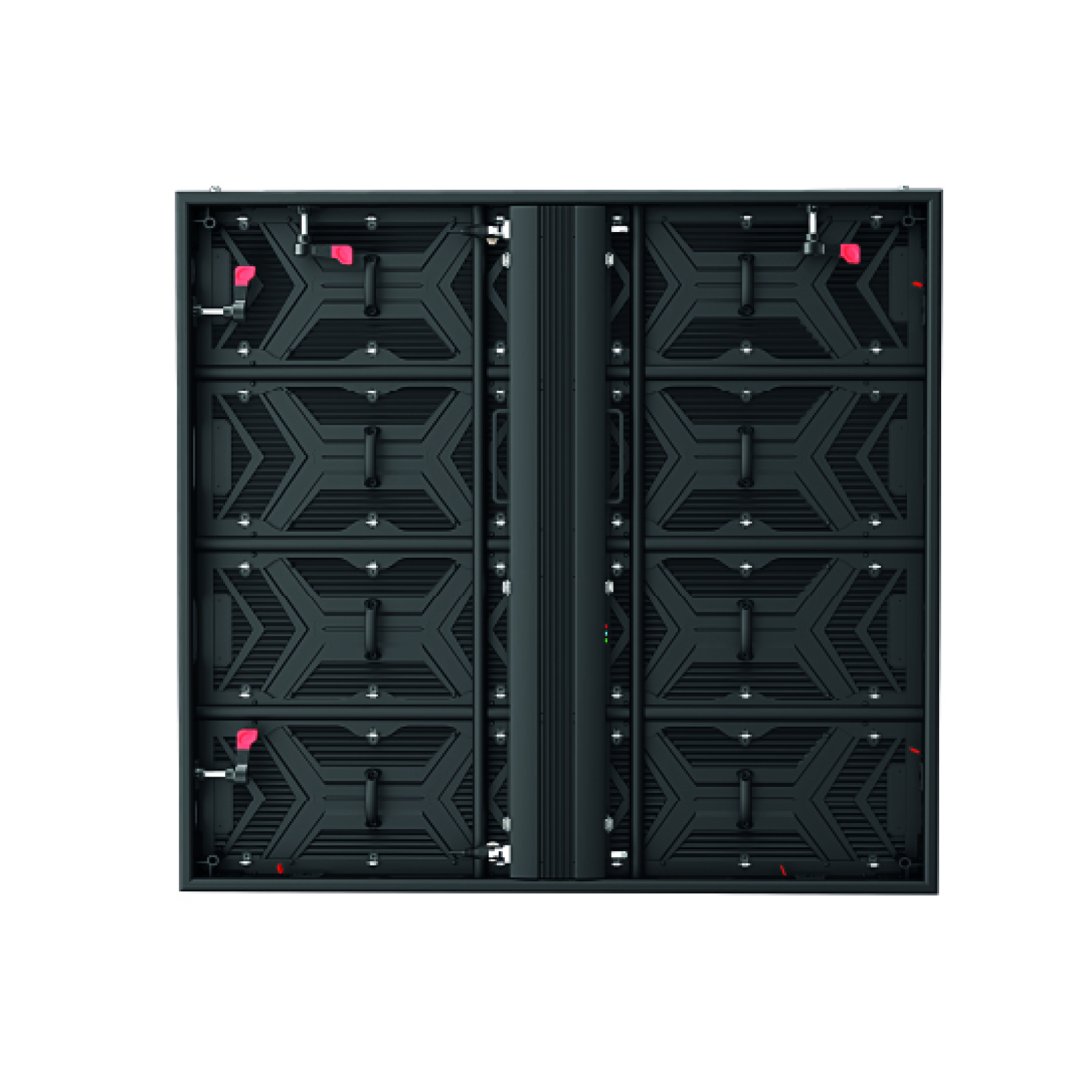

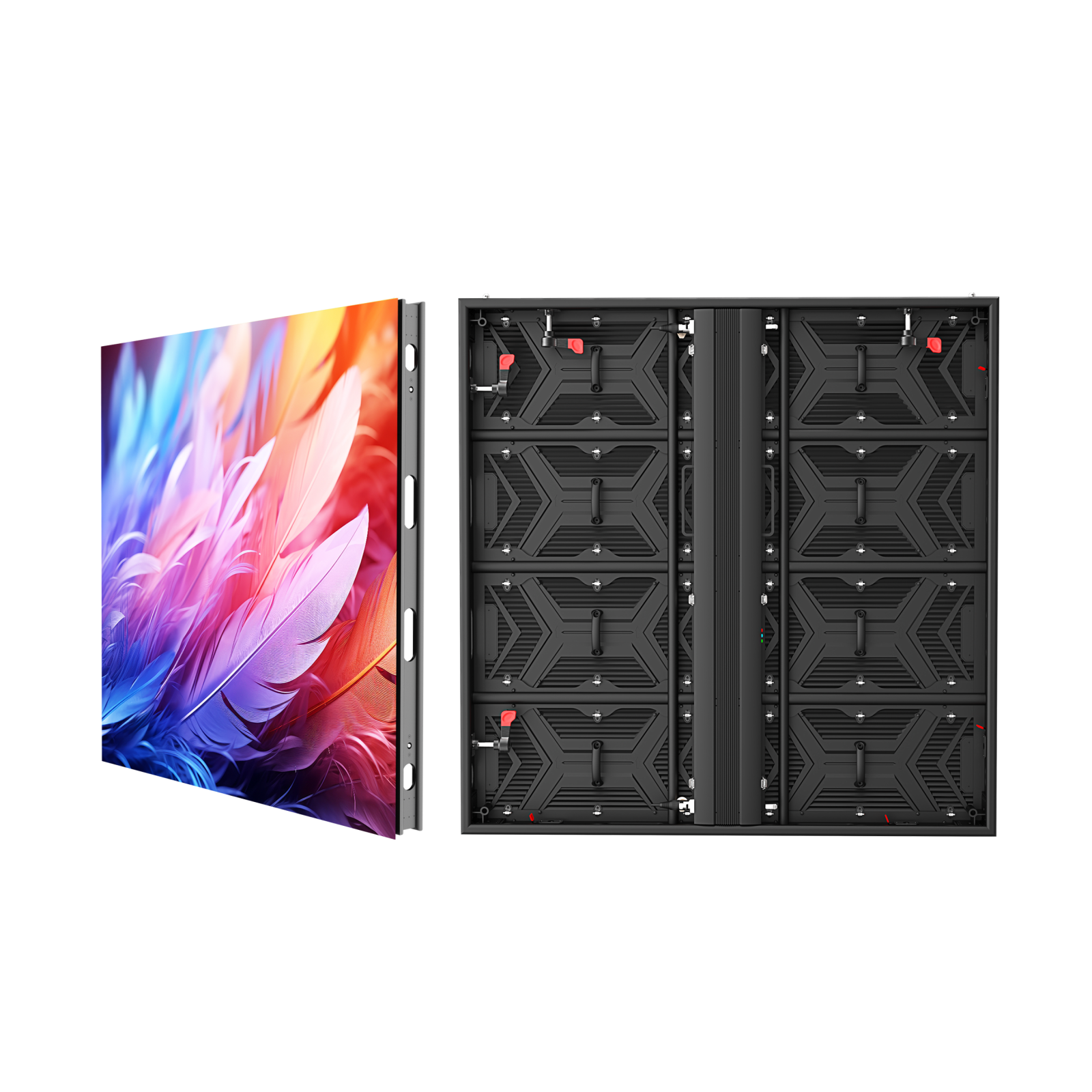

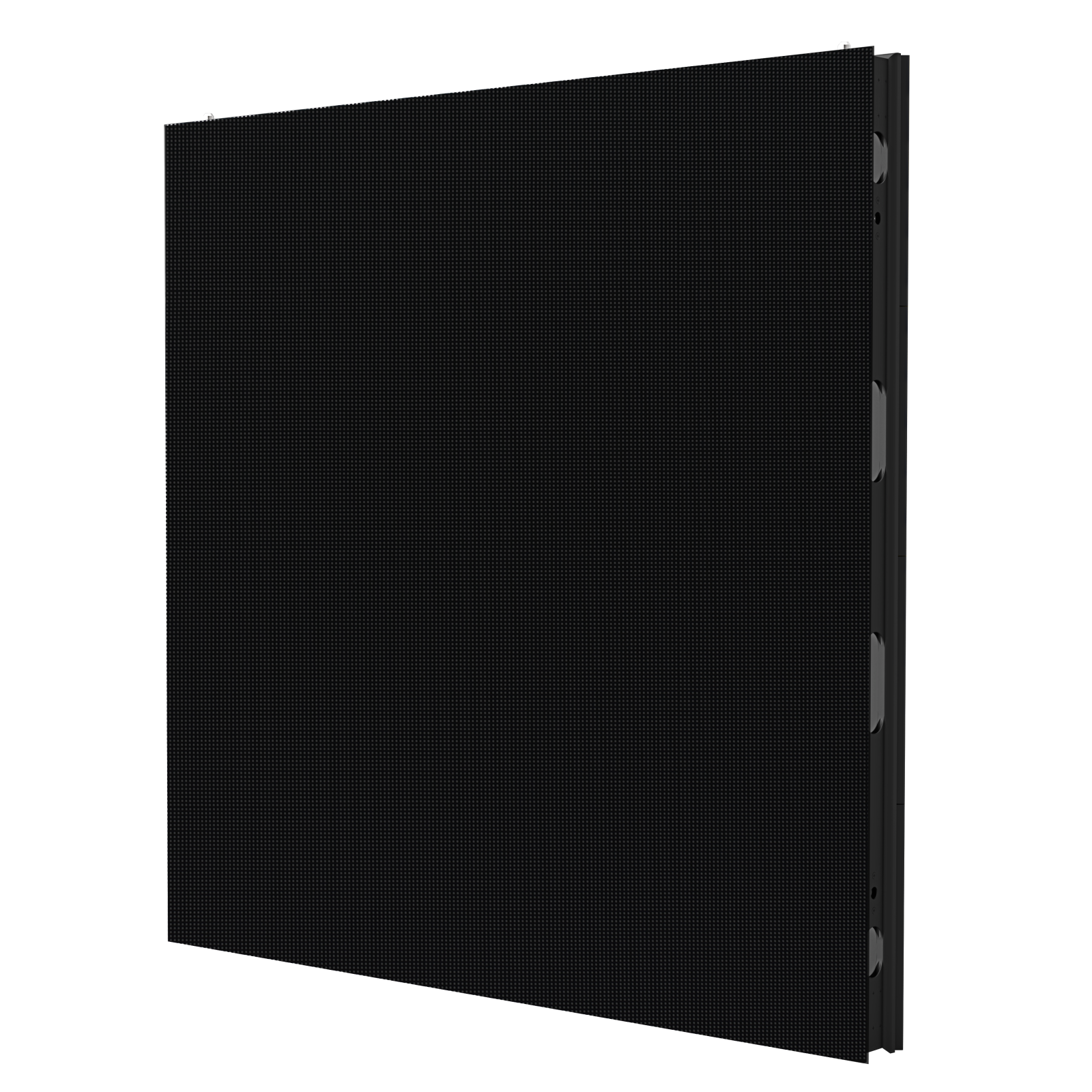

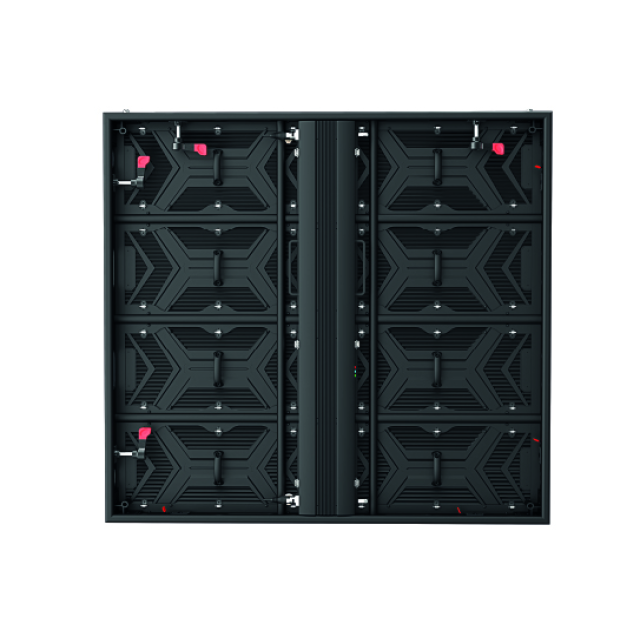

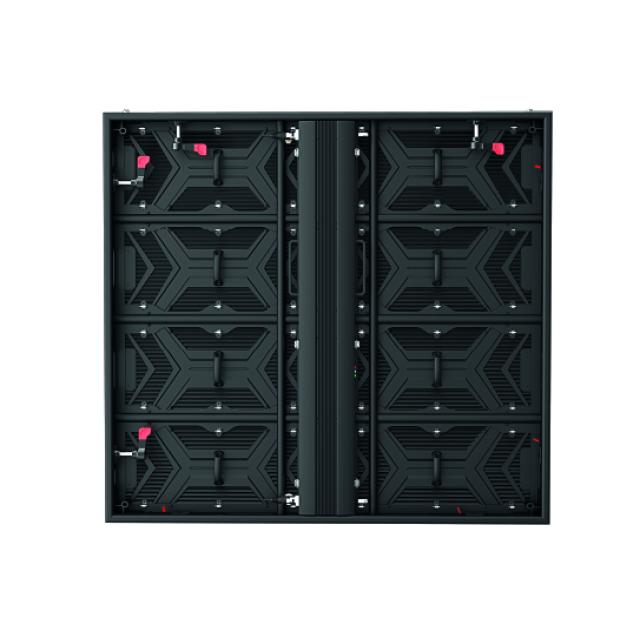

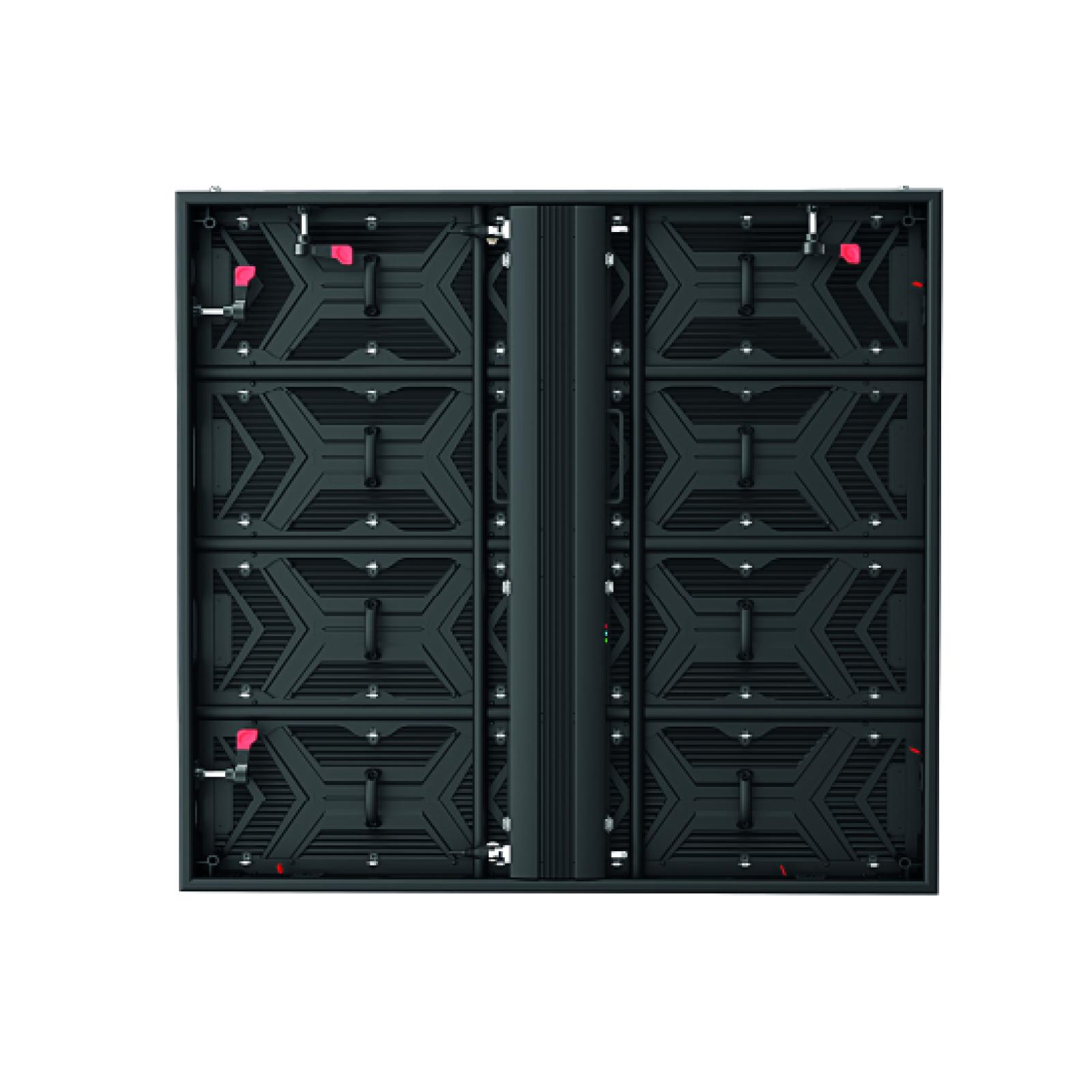

HLV-1010v2-3.91v2 LED panel for modular outdoor fixed installations, pitch 3.91, IP67, 1000x1000mm

Download product sheet

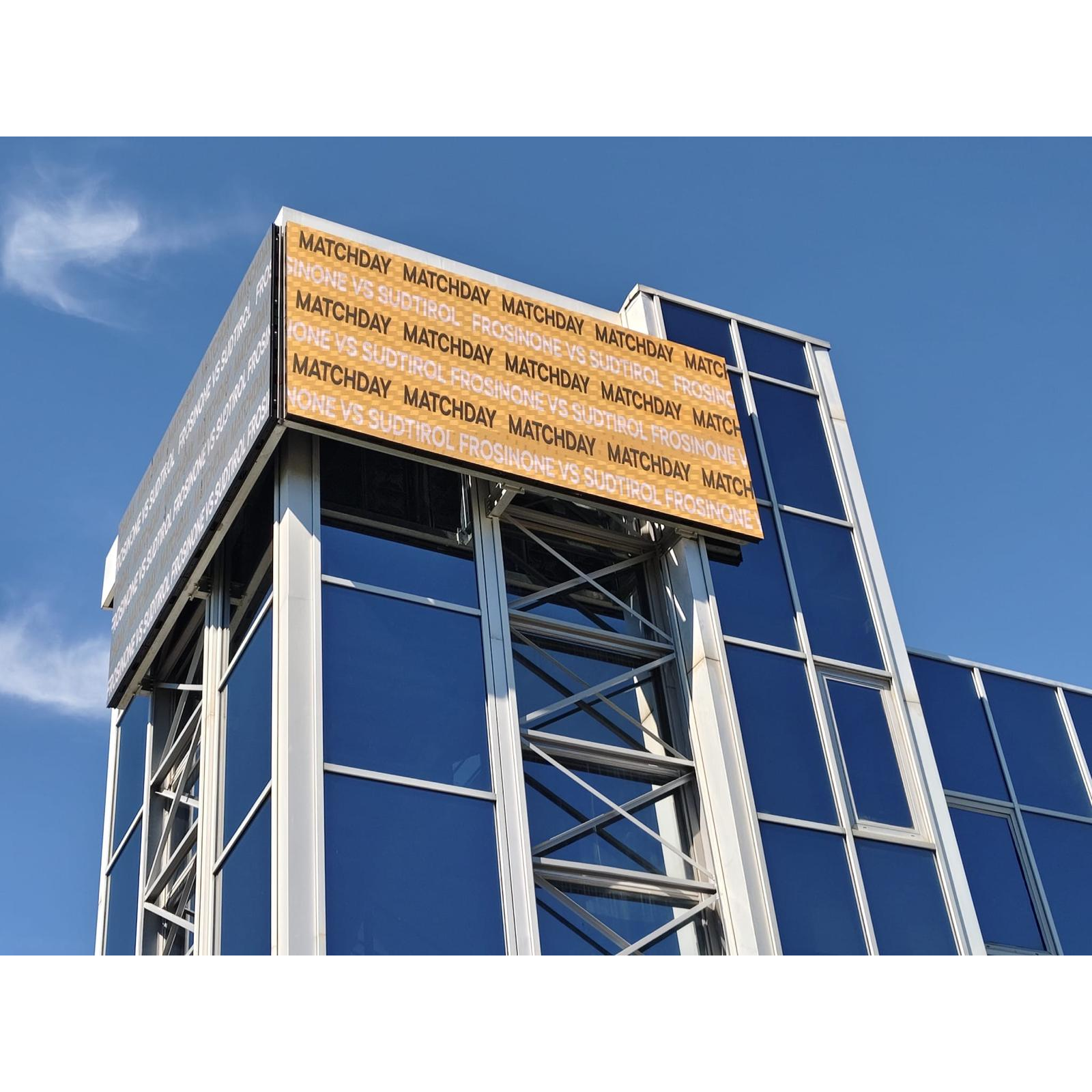

The King Kong Pro is Helvia’s premium outdoor LED module, engineered to deliver stunning visuals in any weather condition. Its compact and modular design makes it ideal for fixed installations, such as building façades, outdoor signage, and public information displays, while still being versatile enough for large-scale event setups.

With a brightness of 6000 ... Read more

The King Kong Pro is Helvia’s premium outdoor LED module, engineered to deliver stunning visuals in any weather condition. Its compact and modular design makes it ideal for fixed installations, such as building façades, outdoor signage, and public information displays, while still being versatile enough for large-scale event setups.

With a brightness of 6000 nits, content remains vivid and clear even under direct sunlight. The IP67-rated protection ensures complete resistance to dust and water, making it a reliable solution for long-term outdoor use.

Each cabinet measures 1000 × 1000 mm, offering a seamless structure for creating large composite screens. The wide viewing angle of 160° ensures excellent visibility from all directions, while the front access design simplifies maintenance operations.

Performance-wise, the King Kong Pro delivers smooth playback with a high refresh rate and rich color depth, ensuring every image and video looks sharp and fluid. Whether you're deploying it for municipal signage, commercial advertising, or architectural integration, the King Kong Pro combines durability, brightness, and visual excellence to meet the demands of professional-grade fixed installations.

Collapse text

Product downloads

Highlights

Exceptional Outdoor Performance

With a powerful 6000 nit brightness and IP67-rated protection, the King Kong Pro delivers vivid, high-contrast images that remain perfectly visible even under direct sunlight, while ensuring complete resistance to dust, water, and harsh weather conditions for long-term outdoor reliability.

Compact and Modular Design

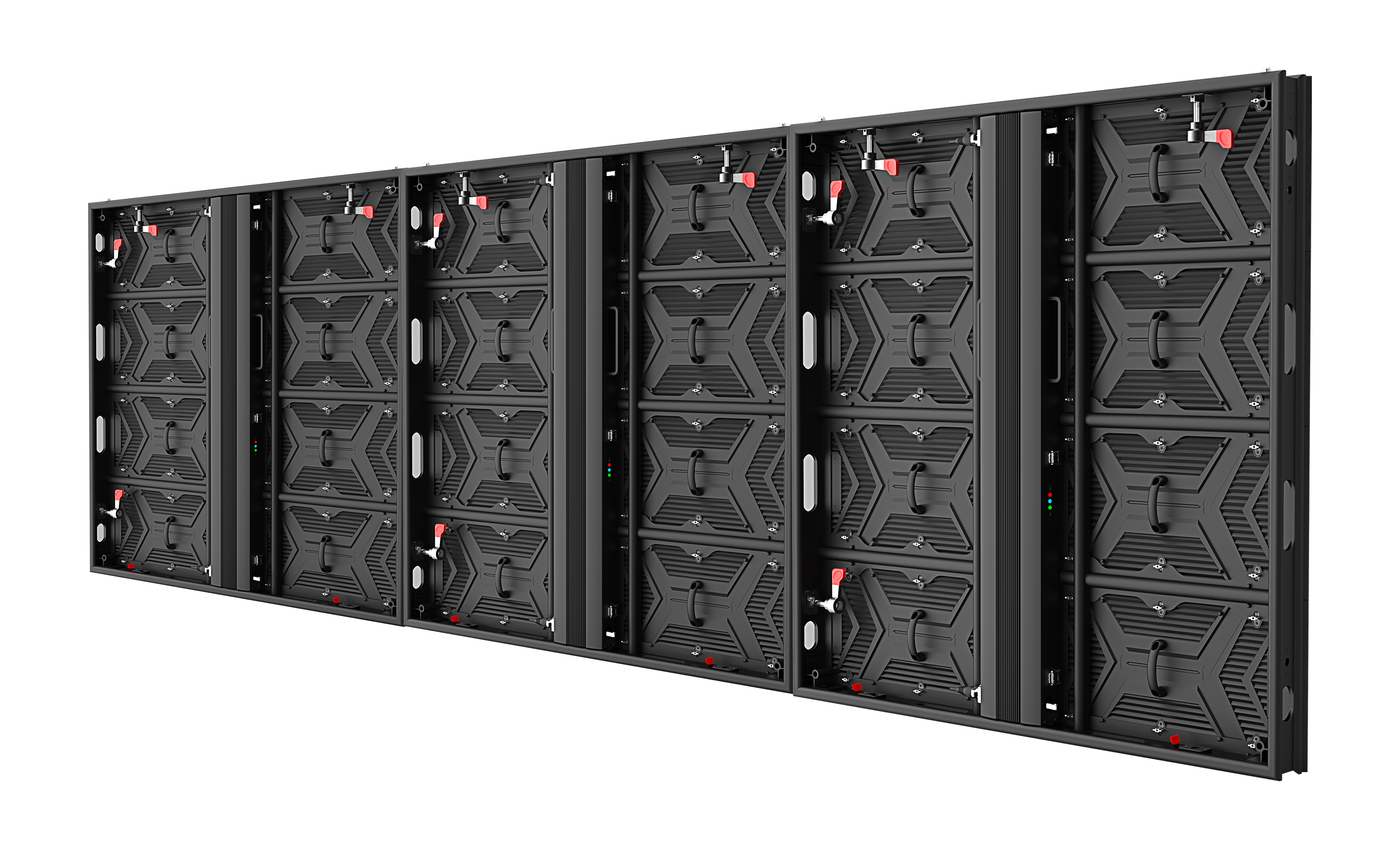

Each 1000 × 1000 mm cabinet allows for easy assembly of large composite screens, ideal for architectural facades, public signage, and large-scale events.

Full Front-Service Maintenance

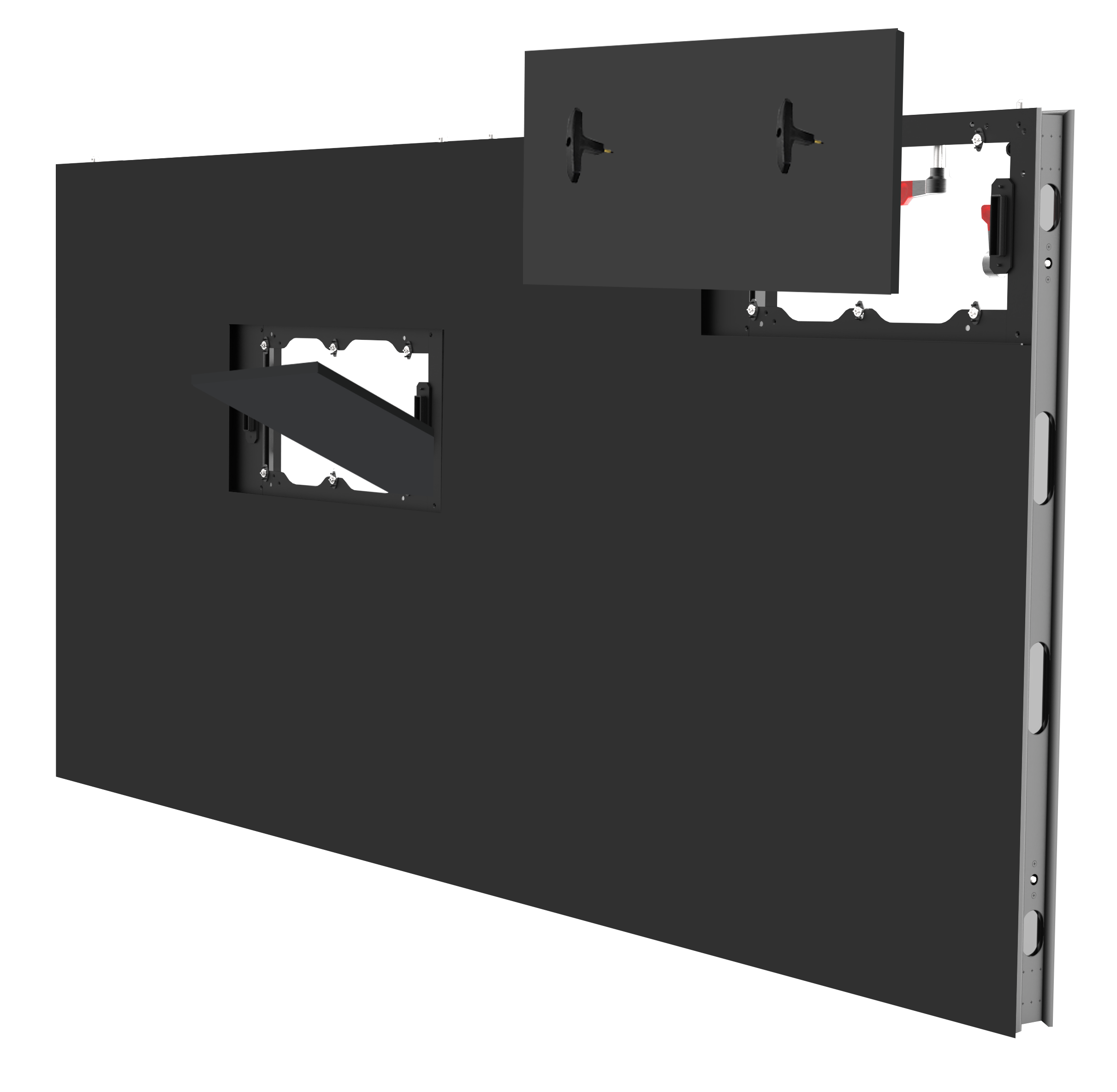

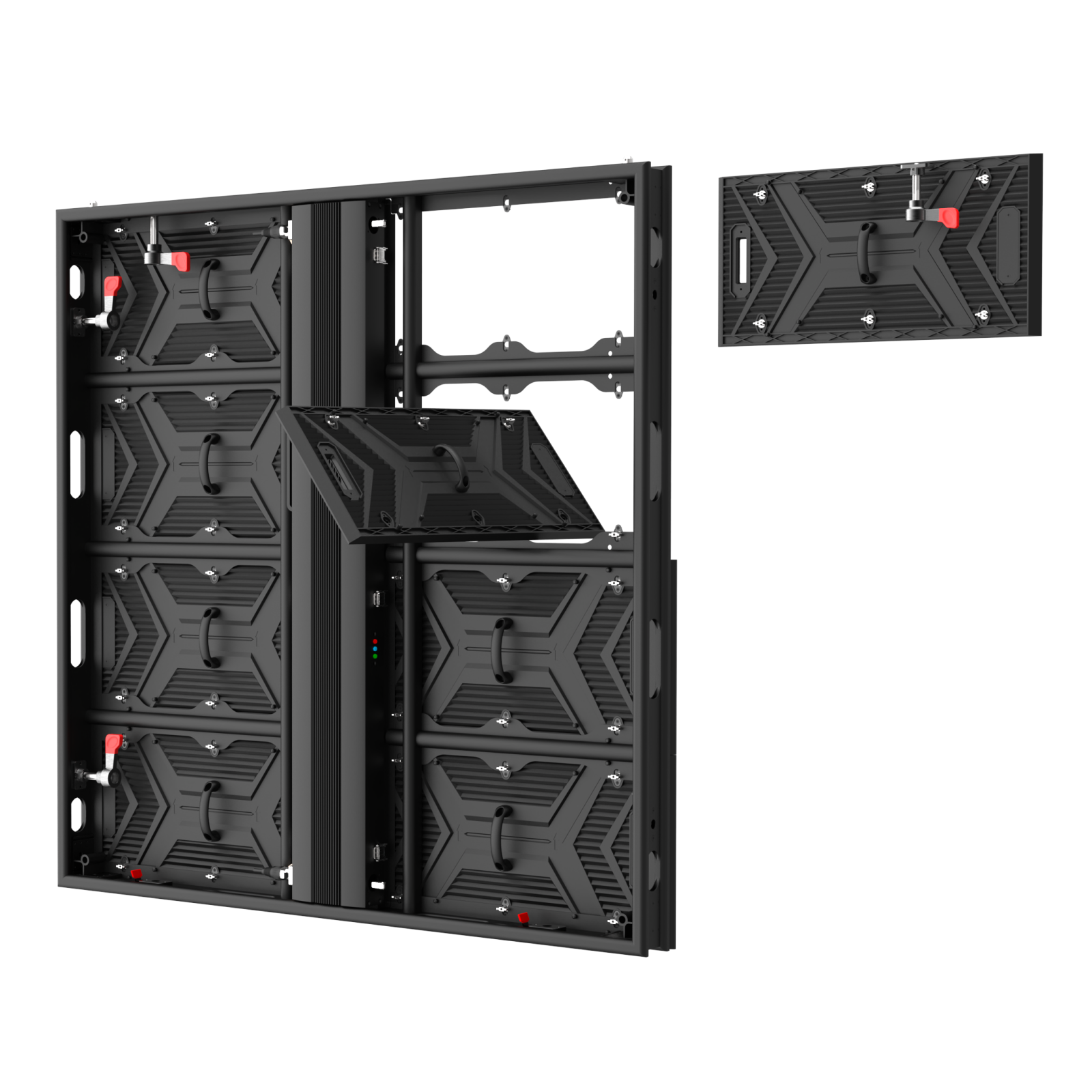

The full front-access design simplifies maintenance and component replacement, ensuring quick and efficient servicing without disassembling the entire structure.

High Performance and Visual Precision

Featuring a high refresh rate of 3840+Hz and rich color depth, the King Kong Pro guarantees smooth motion reproduction and dynamic, lifelike visuals for any professional application.

Product details

Key features

  • LED Panel with 3.91 pixel pitch 1000x1000mm
  • IP67 Rated – Fully resistant to dust and water, guaranteeing reliable operation in any weather condition
  • Front Maintenance Design for fast and convenient module replacement or servicing
  • Seamless Modular System for easy assembly of large LED walls
  • Smooth playback with high refresh rate and rich color depth for lifelike, high-definition content
  • High Brightness for vivid, crystal-clear visuals even under direct sunlight, ideal for outdoor environments

Specifications

  • Pixel Pitch
    3.91mm
  • LED Type
    Nationstar SMD 1921
  • Pixel Density
    65536 dots/sqm
  • Module Size (WxH)
    500x250mm
  • Module Resolution (WxH)
    128x64
  • Cabinet Size (WxH)
    1000x1000mm
  • Cabinet Resolution (WxH)
    256x256
  • Cabinet Weight
    38kg
  • Protection Grade
    IP67
  • Power Consumption
    800w/m2 max - 240w/m2 average
  • Brightness (white balance 6500k)
    6000 nits
  • Viewing Angle (H/V)
    160°/160°
  • Power Supply
    100~240VAC
  • Maintenance
    Front Service
  • Greyscale
    16 bit, 16384 levels for each RGB
  • Refresh Rate
    3840+Hz
  • Color Temperature
    6500K, adjustable between 6500-8000K
  • Operating Temperature
    -20C ~ +60C
  • Display Dimming
    auto/manual 100 levels
  • Scanning Method
    1/16 Scanning
  • Expected Lifetime (max)
    100.000 hours
