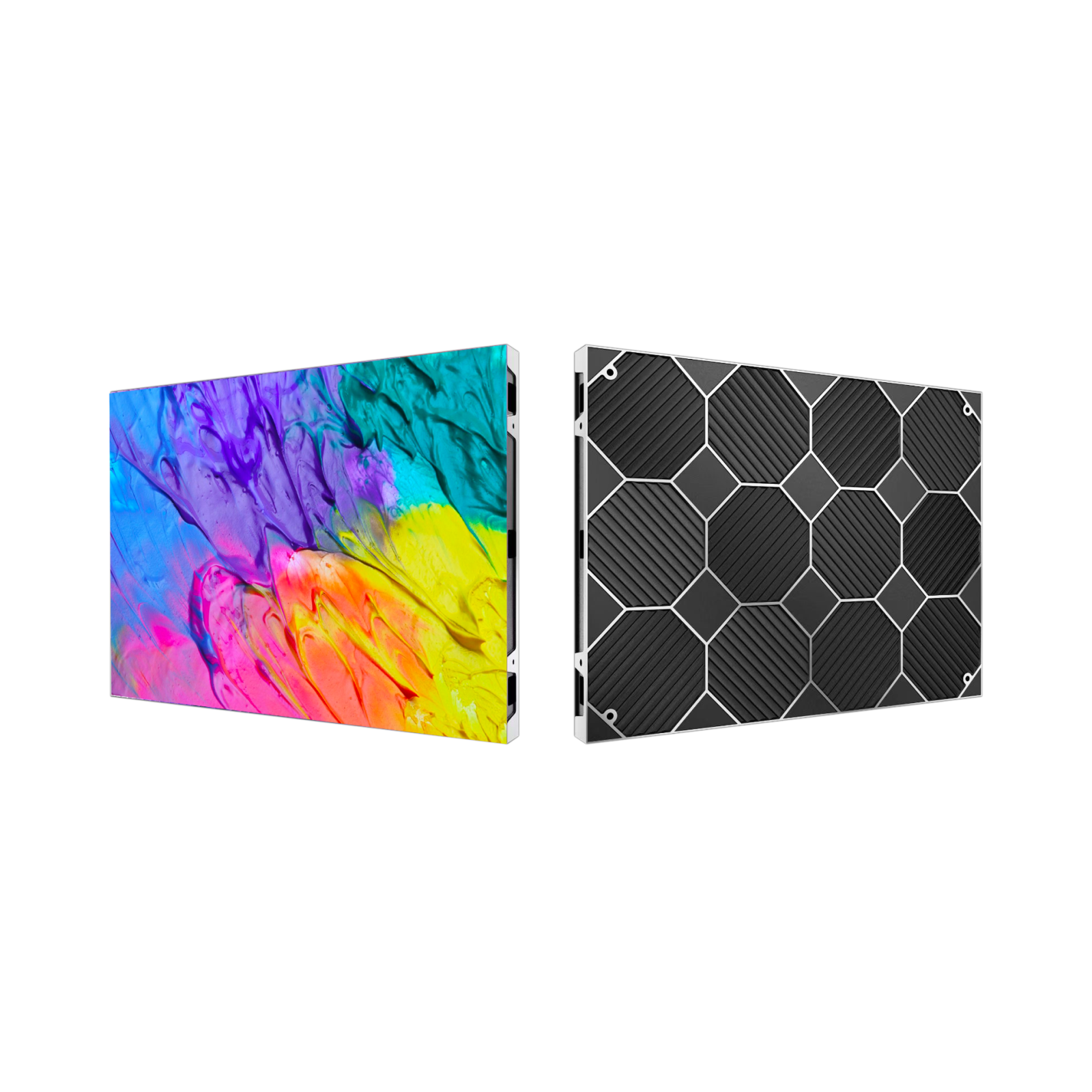

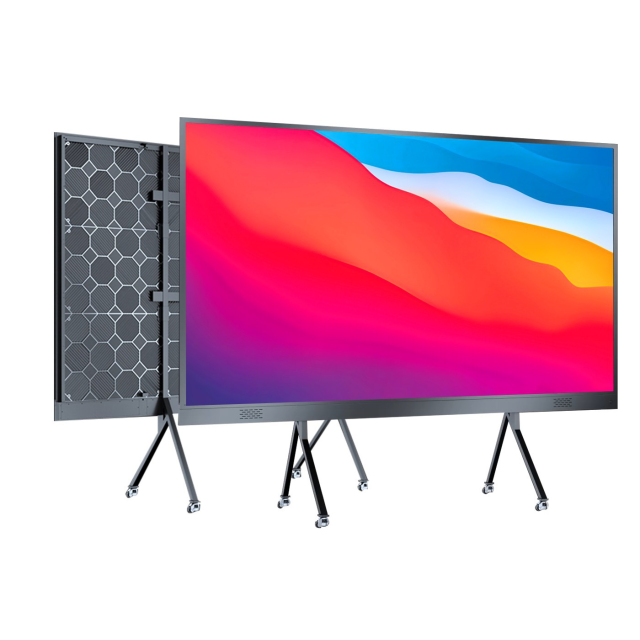

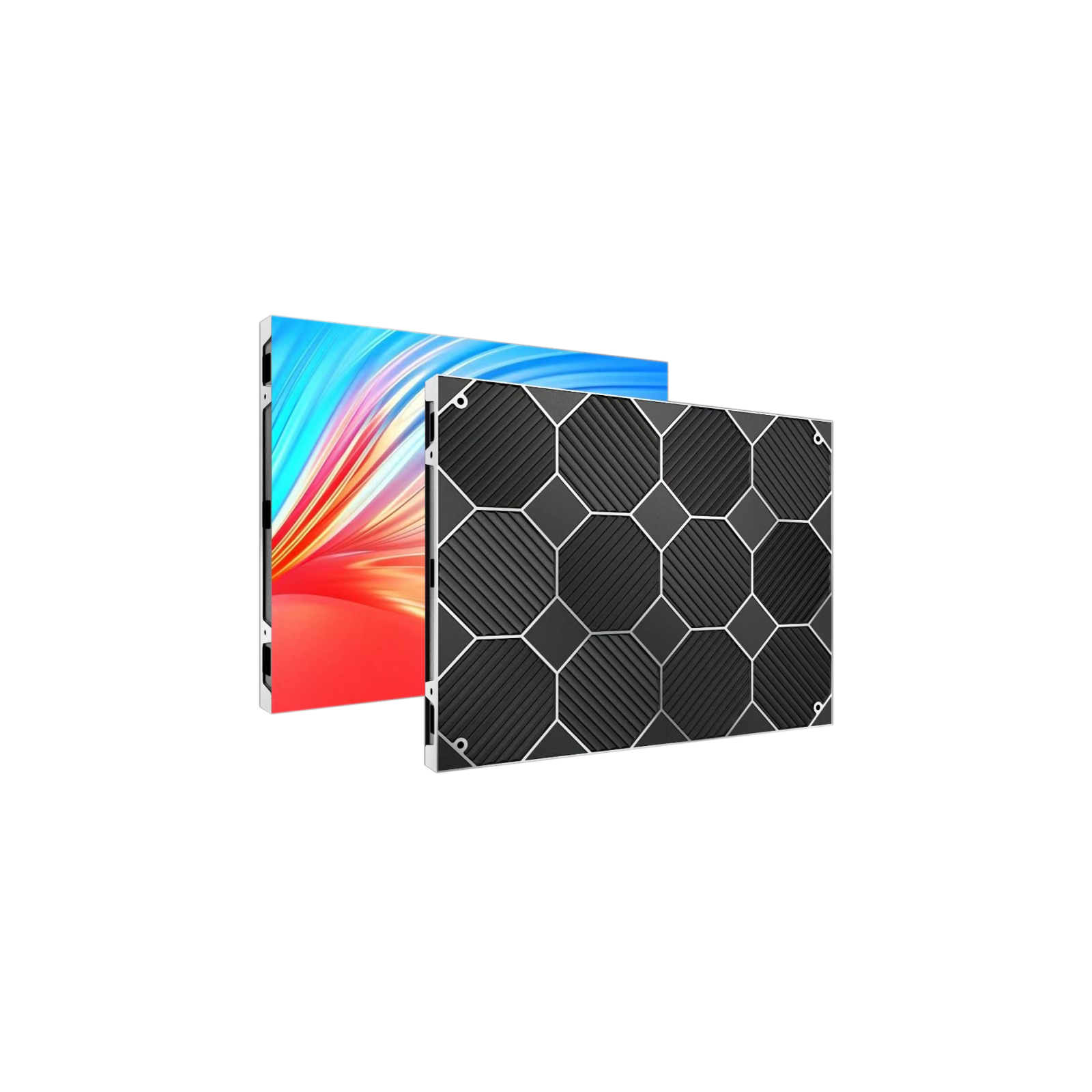

CRY-250v4-1.86- GOB GOB LED module for composite screens for fixed installations, 1.86mm pitch

Download product sheet

The Crystal GOB Series expands the range of solutions that Helvia offers to AVL professionals, introducing an advanced level of protection and visual performance. The need for clean, reflection-free, modular, and compact video remains central, but the addition of GOB (Glue-On-Board) LED tiles brings new advantages in durability and reliability.

Thanks to its... Read more

The Crystal GOB Series expands the range of solutions that Helvia offers to AVL professionals, introducing an advanced level of protection and visual performance. The need for clean, reflection-free, modular, and compact video remains central, but the addition of GOB (Glue-On-Board) LED tiles brings new advantages in durability and reliability.

Thanks to its protective resin coating, each LED is sealed against dust, moisture, and mechanical impact, making the Crystal GOB Series ideal for demanding environments or high-traffic installations. This surface protection not only extends the lifespan of the LEDs but also improves contrast and color uniformity, ensuring a clear and vibrant image even under challenging lighting conditions.

Like the standard Crystal Series, the Crystal GOB Series features Nationstar LEDs, recognized as an industry benchmark for quality and safety. The reduced pixel pitch and high energy efficiency guarantee sharp, stable images and lower power consumption. The diecast aluminum chassis minimizes weight, while the front magnetic access system allows quick and convenient maintenance without dismantling the structure, ensuring maximum operational efficiency.

In summary, the Crystal GOB Series retains all the strengths of the Crystal line while offering enhanced protection, superior visual performance, and greater reliability where durability truly matters.

Collapse text

Highlights

Enhanced Surface Protection

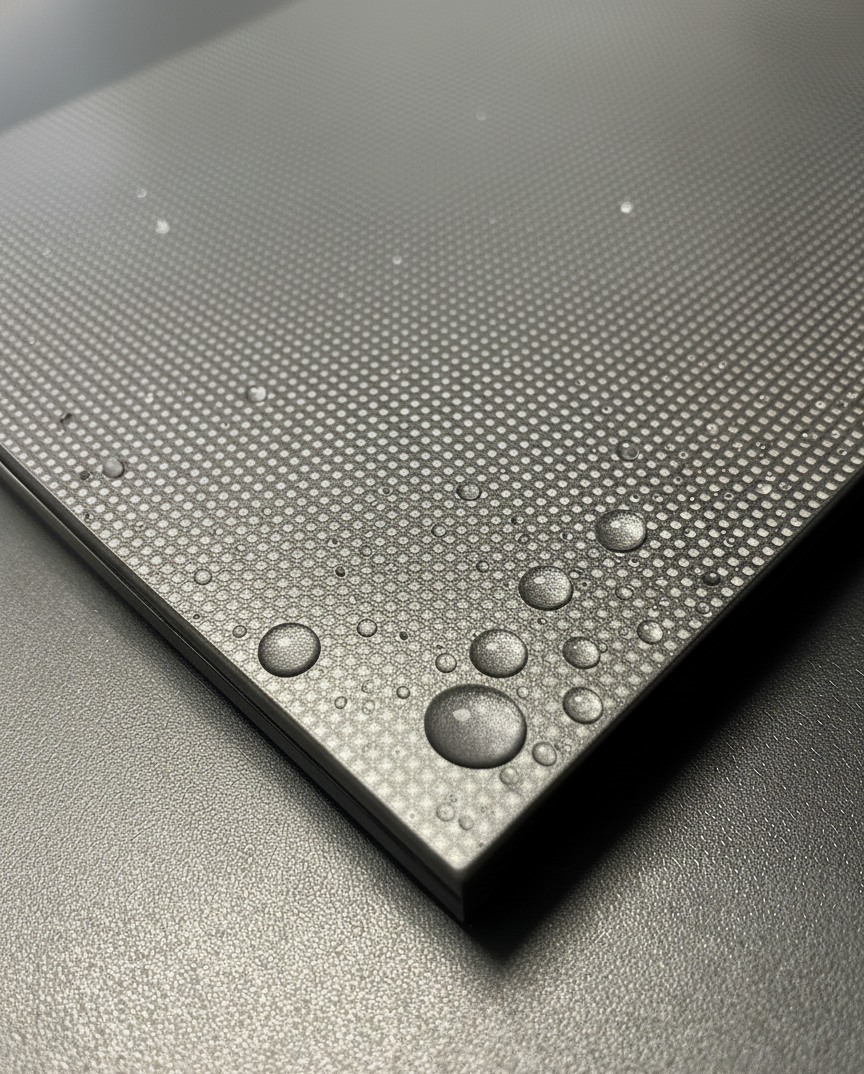

The GOB coating seals each LED with a durable transparent resin, creating a smooth, impact-resistant surface that protects against water, dust, moisture, and accidental contact.

Reliable in Tough Environments

Designed to perform in high-humidity or dusty conditions, GOB panels maintain consistent brightness and color accuracy where traditional LED modules may fail.

Superior Image Quality

GOB LED tiles deliver exceptional visual clarity thanks to their smooth, resin-coated surface. The protective layer enhances contrast and color uniformity due to reduced light leakage between pixels.

Front-Service Efficiency and Seamless Design

The combination of front-service design and GOB technology ensures a seamless installation in any environment, providing a perfectly uniform display surface with no visible gaps between modules or cabinets.

Product details

Key features

  • 1.86mm LED module pitch for indoor use
  • GOB (Glue-On-Board) LED modules for improved durability and image quality
  • Equipped with long lasting high quality Nationstar LEDs
  • Sturdy and easy to install

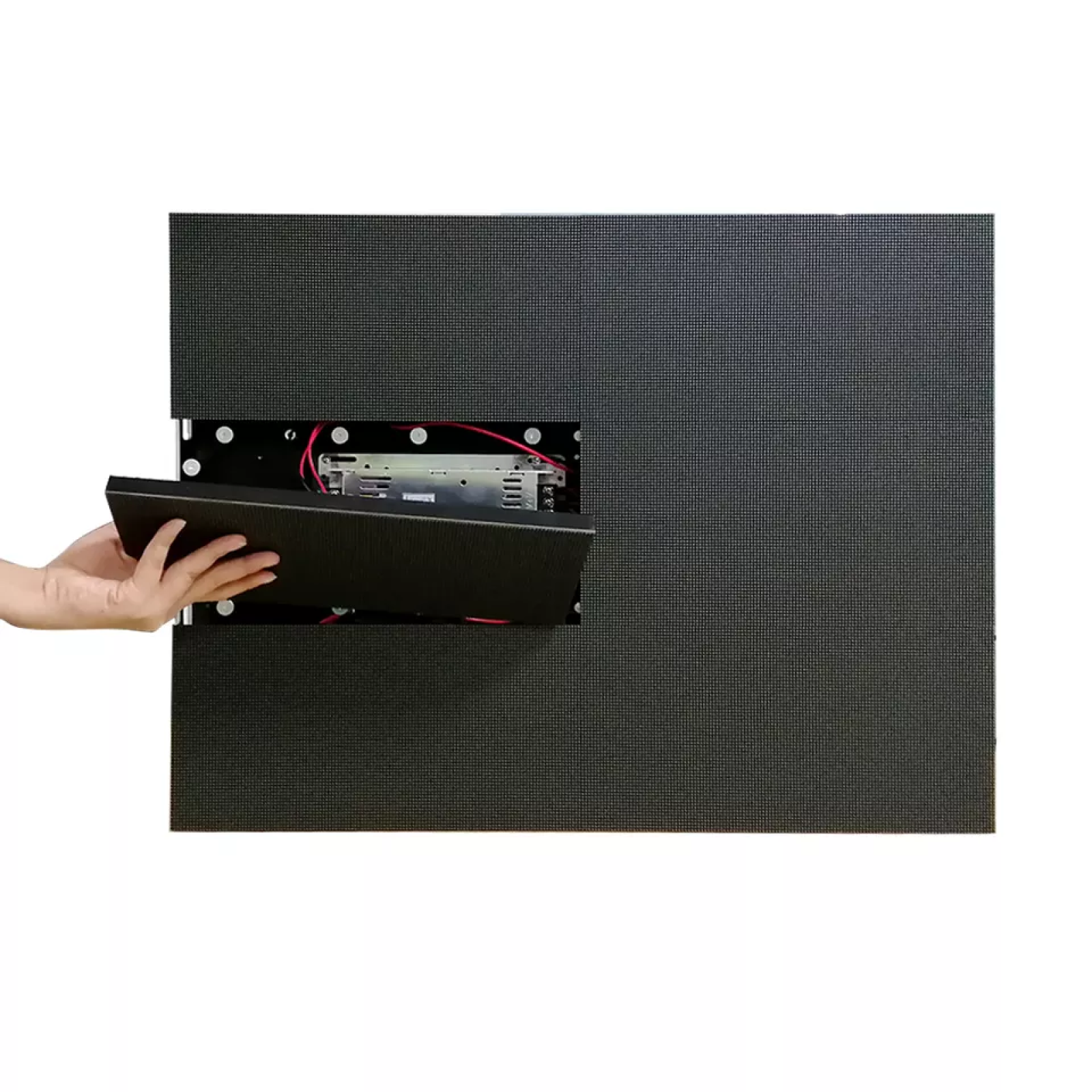

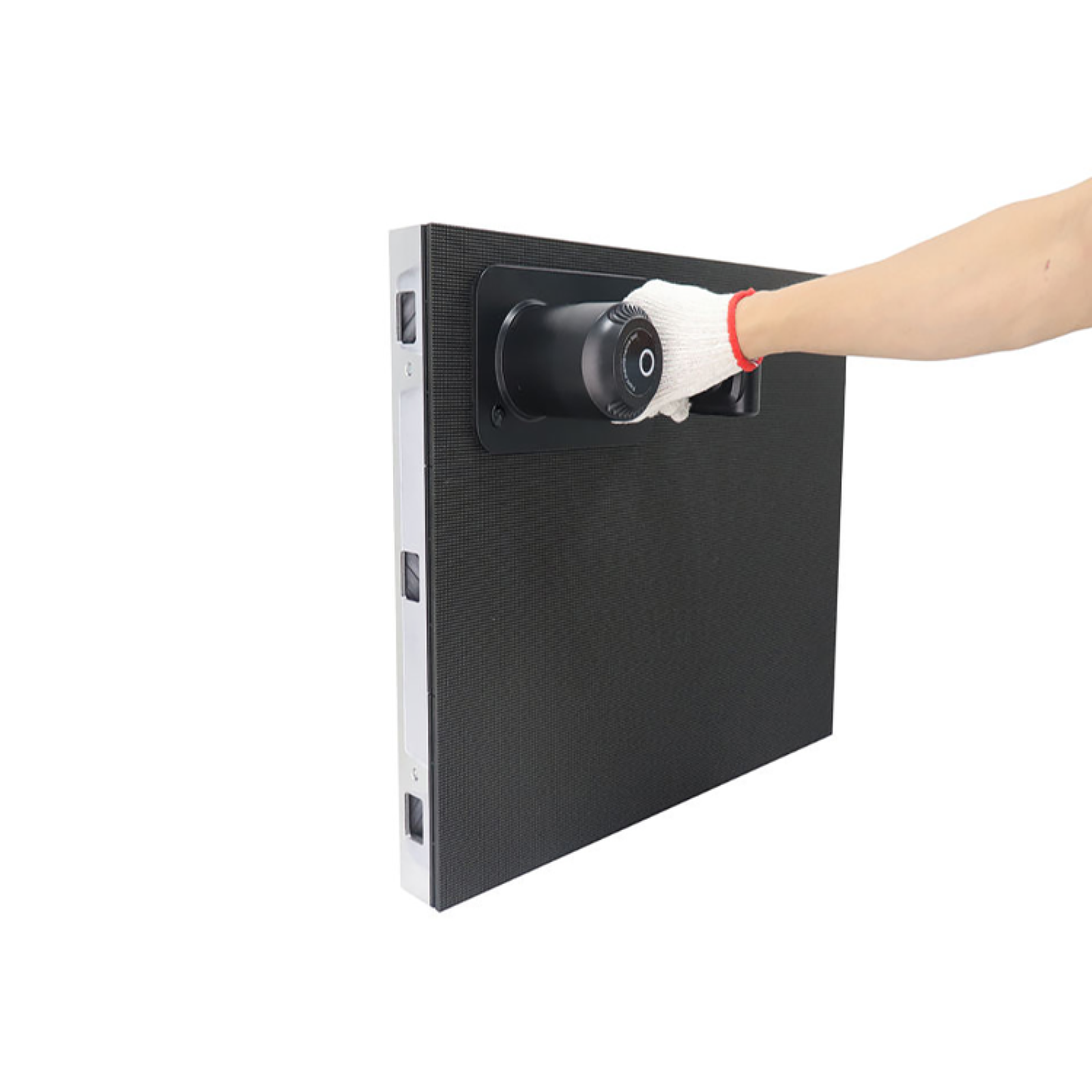

  • Magnetic Front Access
  • Aluminum frame

Specifications

  • Pixel Pitch
    1.86mm
  • LED Type
    Nationstar 1515 3 in 1 RGB
  • Brightness
    600-800 nits/sqm
  • Module Size
    W640mm x H480mm x D58mm
  • Number of Tiles per Module
    6
  • Cabinet Area
    0.3sqm
  • Cabinet Weight
    8.3Kg
  • Recommended viewing distance
    >1,8 m
  • Cabinet Material
    Aluminum
  • Manteinance
    Front
  • Viewing Angle
    160°
  • Color Temperature
    6500-8000K
  • Refresh rate
    > 3840 Hz
  • LED Lifetime
    >100000 Hrs
  • Defect Rate
    1/10000 pixels
  • Contrast Ratio
    5000:1
  • Input Power (max)
    800W/sqm
  • Input Power (typical)
    240W/sqm
