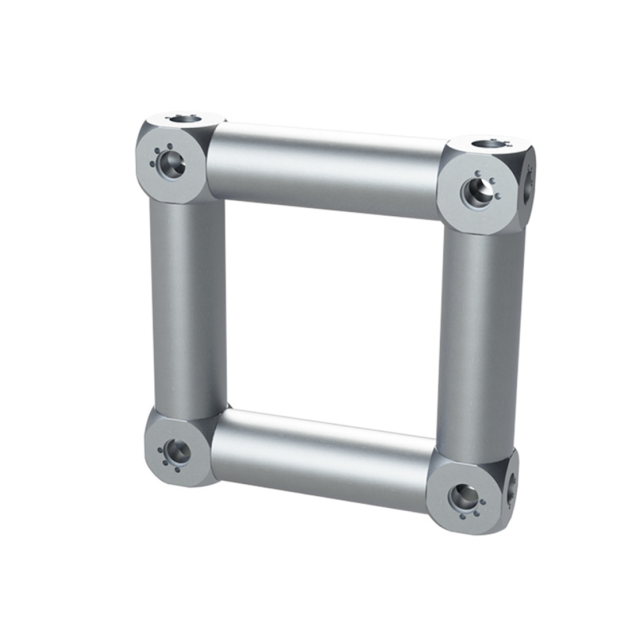

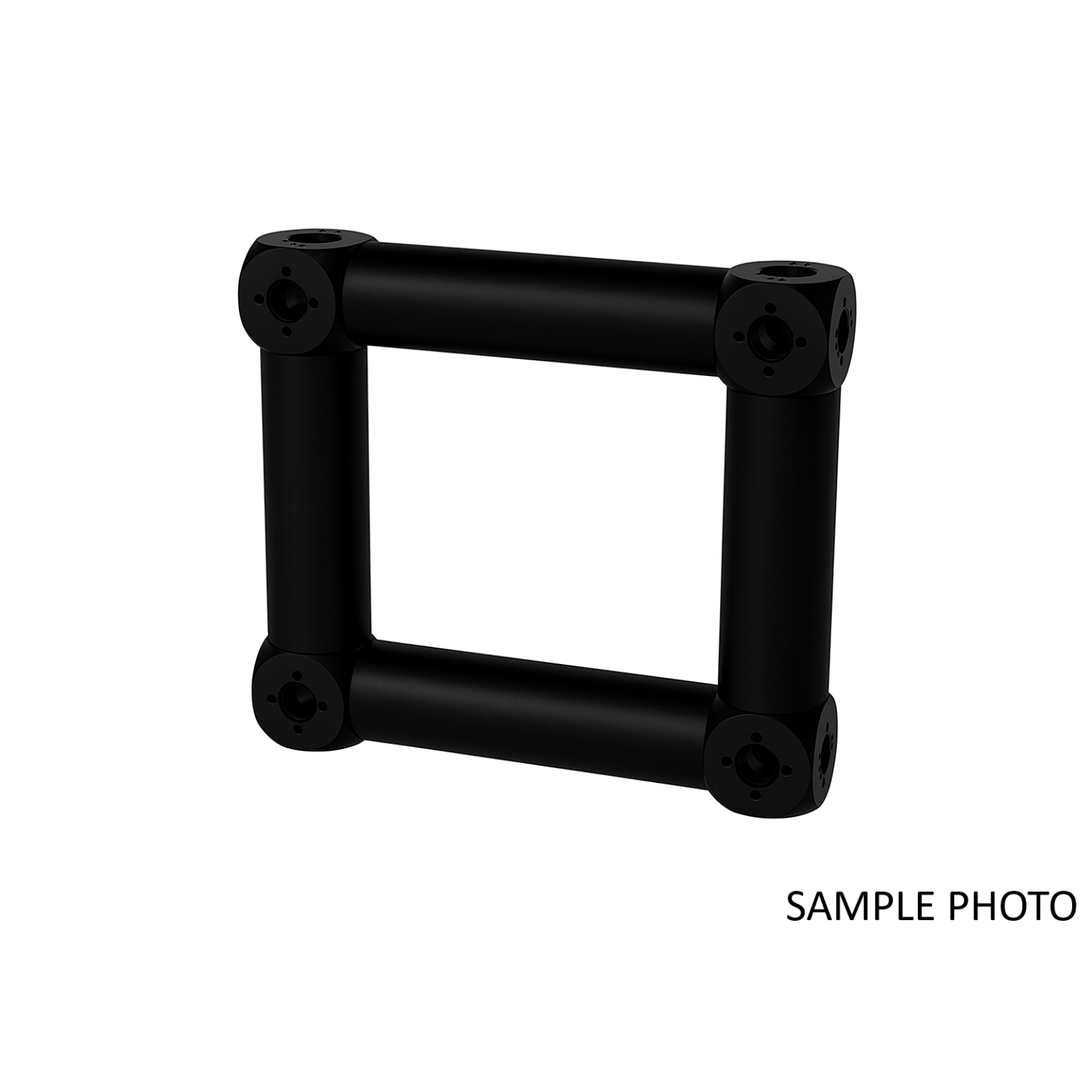

FP29Q C04B Truss Corner with 4 Dice Connectors for FP Series Black (29D4PB)
Download product sheetConnecting corner with four dice for aluminium truss of 29 cm on side. Manufactured of 50 mm diameter and 2 mm thick tube. With connections in the four corners. Silver or black colour. FP SERIES compatible.
Connecting corner with four dice for aluminium truss of 29 cm on side. Manufactured of 50 mm diameter and 2 mm thick tube. With connections in the four corners. Silver or black colour. FP SERIES compatible.
Product downloads
Product details
Key features
- Available in silver and black color.
- Other colors available upon request.
- Compatible with EC 29 P truss.
- Connections included.
Specifications
-
Main Tube Section50 x 2 mm
-
Main Tube AlloyEN AW 6082T6
-
Surface Area Complete Truss6,03 cm² / 0,935 in²
-
Coupling SystemCBC50P
-
Dimensions (H x W x D)50 x 290 x 290 mm / 1,97 x 11,42 x 11,42 in
-
MaterialAluminum
-
ColorBlack
