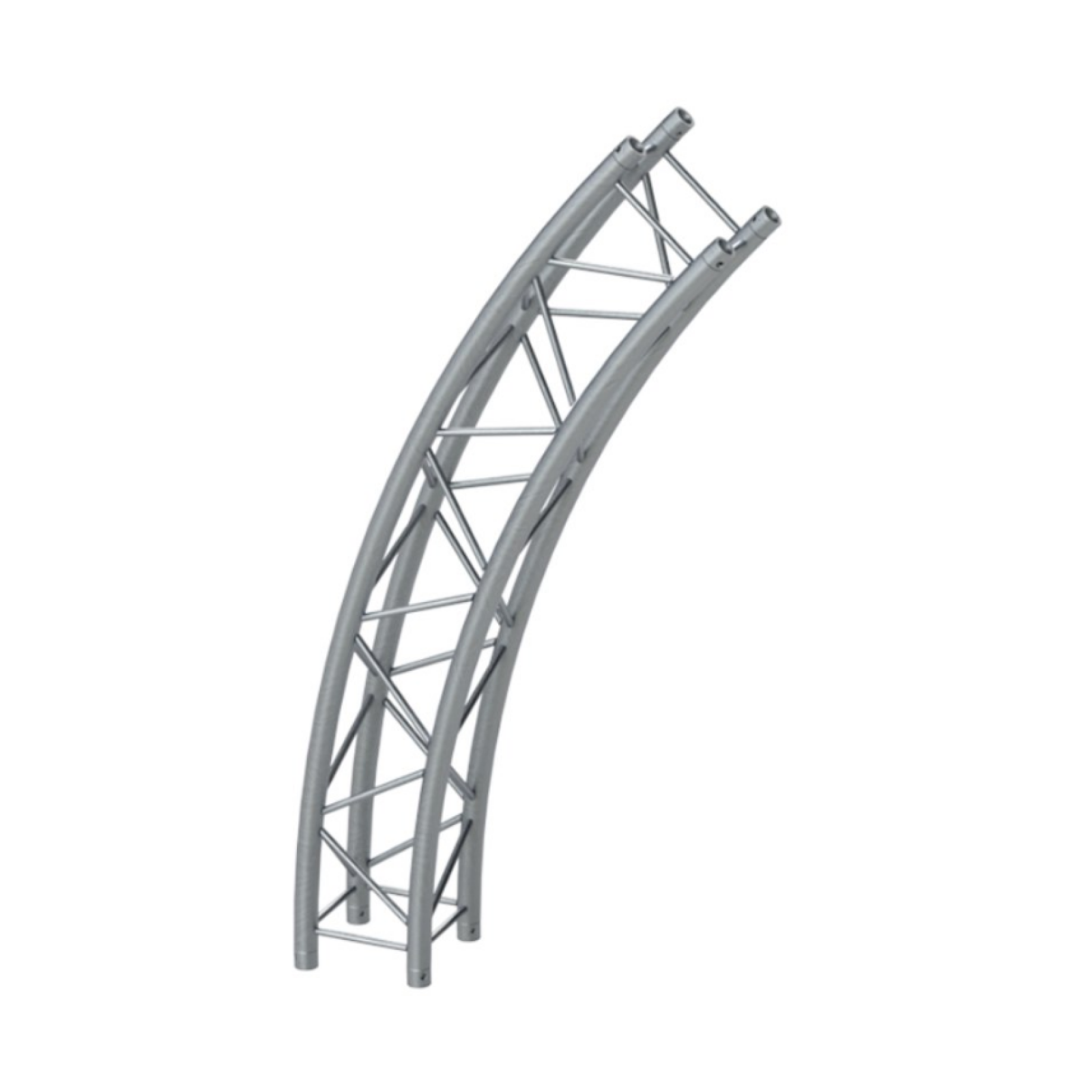

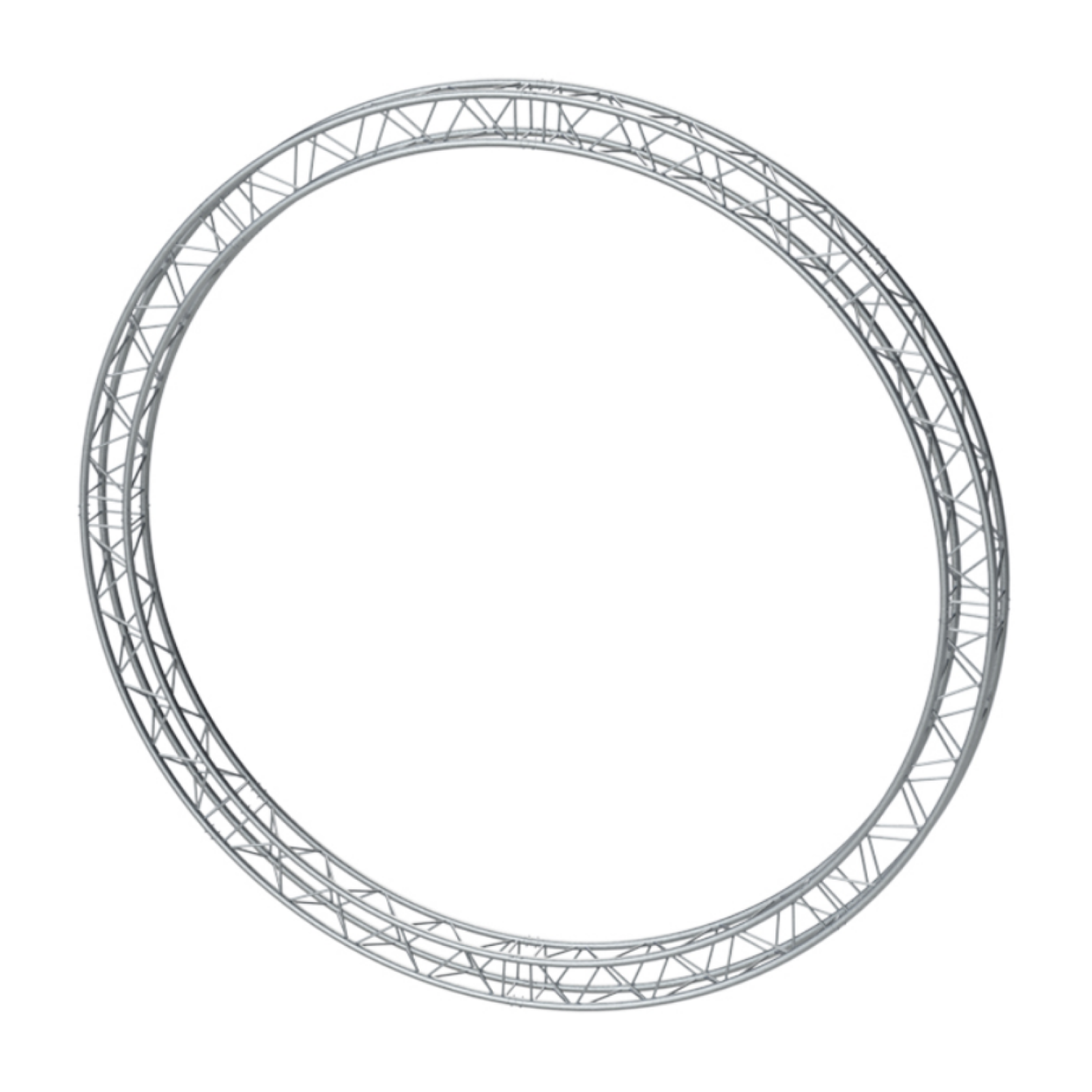

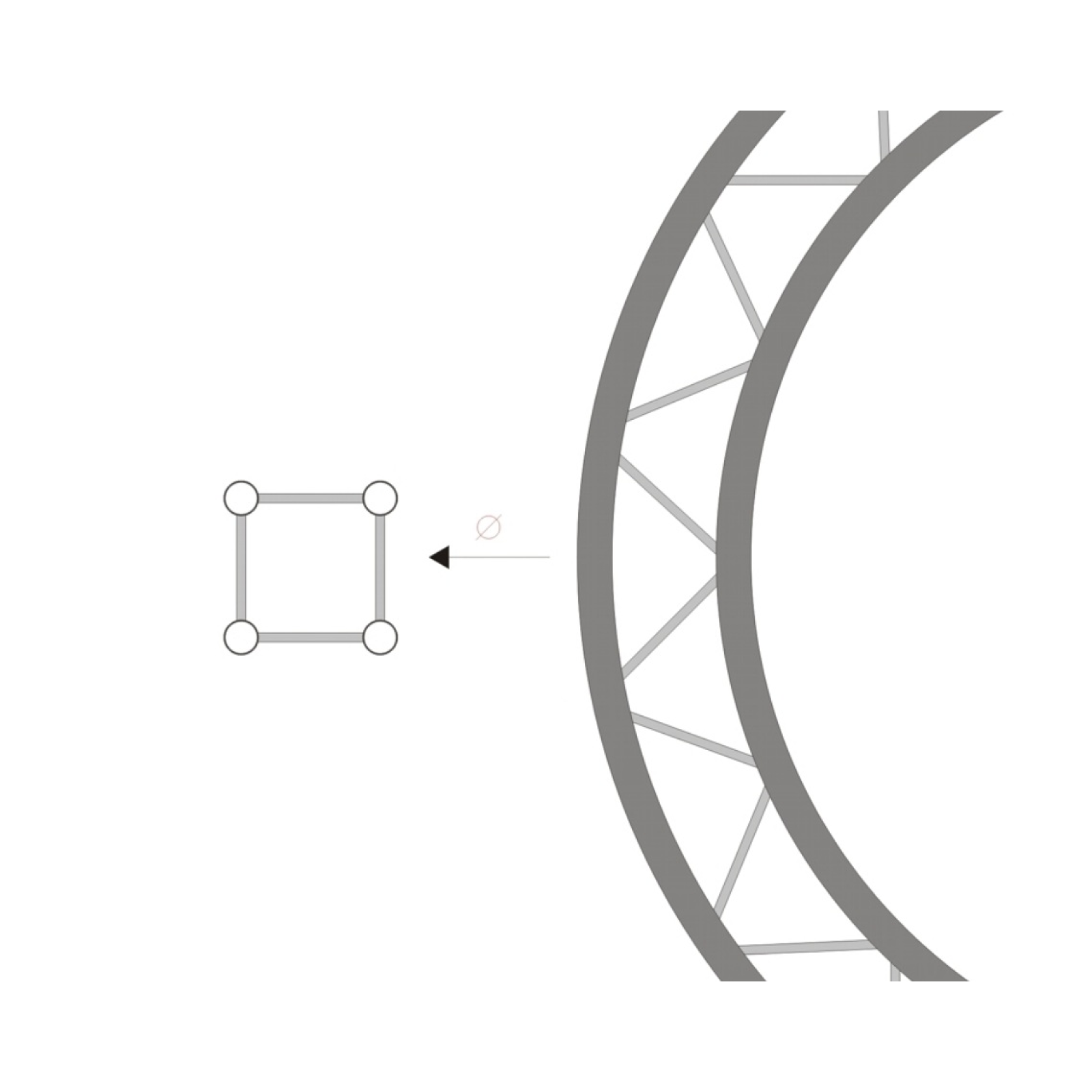

FP29Q CR03 Circular Truss Section of 3 Meters of Diameter (total) in a Square Format Measuring 29 cm per Side (ECC29P3)
Download product sheetCircular truss section with a total diameter of 3 meters in square format. Manufactured with a main tube measuring 50 mm in diameter and 2 mm in thickness, and an auxiliary tube measuring 16 mm in diameter and 2 mm in thickness. Available in different external diameters. Compatible with the FP Series.
Circular truss section with a total diameter of 3 meters in square format. Manufactured with a main tube measuring 50 mm in diameter and 2 mm in thickness, and an auxiliary tube measuring 16 mm in diameter and 2 mm in thickness. Available in different external diameters. Compatible with the FP Series.
Product downloads
Product details
Key features
- Standard measurements from 2 to 10 meters in outer diameter.
- Other measures available upon request.
- Available in silver and black color.
- Other colors available upon request.
Specifications
-
Main Tube Section50 x 2 mm / 1.97 x 0.079 in
-
Main Tube AlloyEN AW 6082T6
-
Diagonal Tube Section16 x 2 mm / 0.62 x 0.079 in
-
Diagonal Tube AlloyEN AW 6082T6
-
Area Section12.06 cm²/ 1.8693 in²
-
Connection SystemCBC50P
-
N° Sections (Ø 3M)4
-
MaterialAluminum
-
ColorSilver
Related products
-
FANTEK
FK76R H200B
2 Meters Rectangular Truss Section for Heavy Loads with Wheels black (EC762MB)
View product
-
FANTEK
R1 TRUSS 101
1m Rectangular Truss (F70ER1101)
View product
-
FANTEK
FP29Q C490B

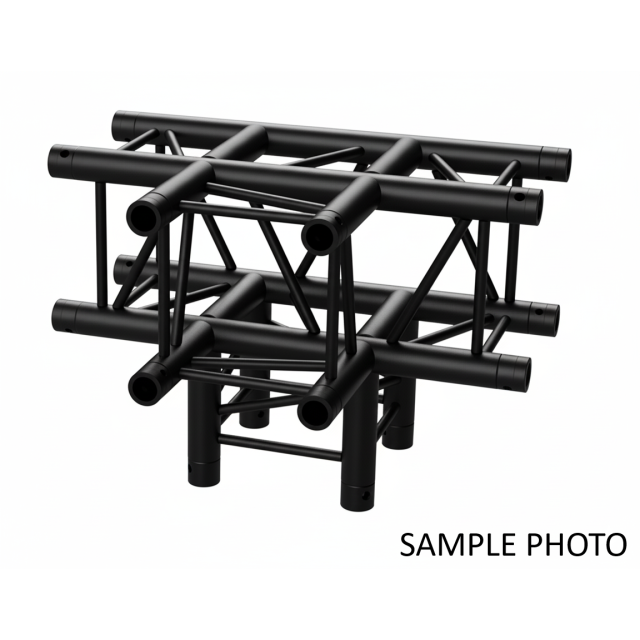

4-Ways 90° "T" Junction Corner with 29 cm Side for Square Truss Black (29CTBPB)
