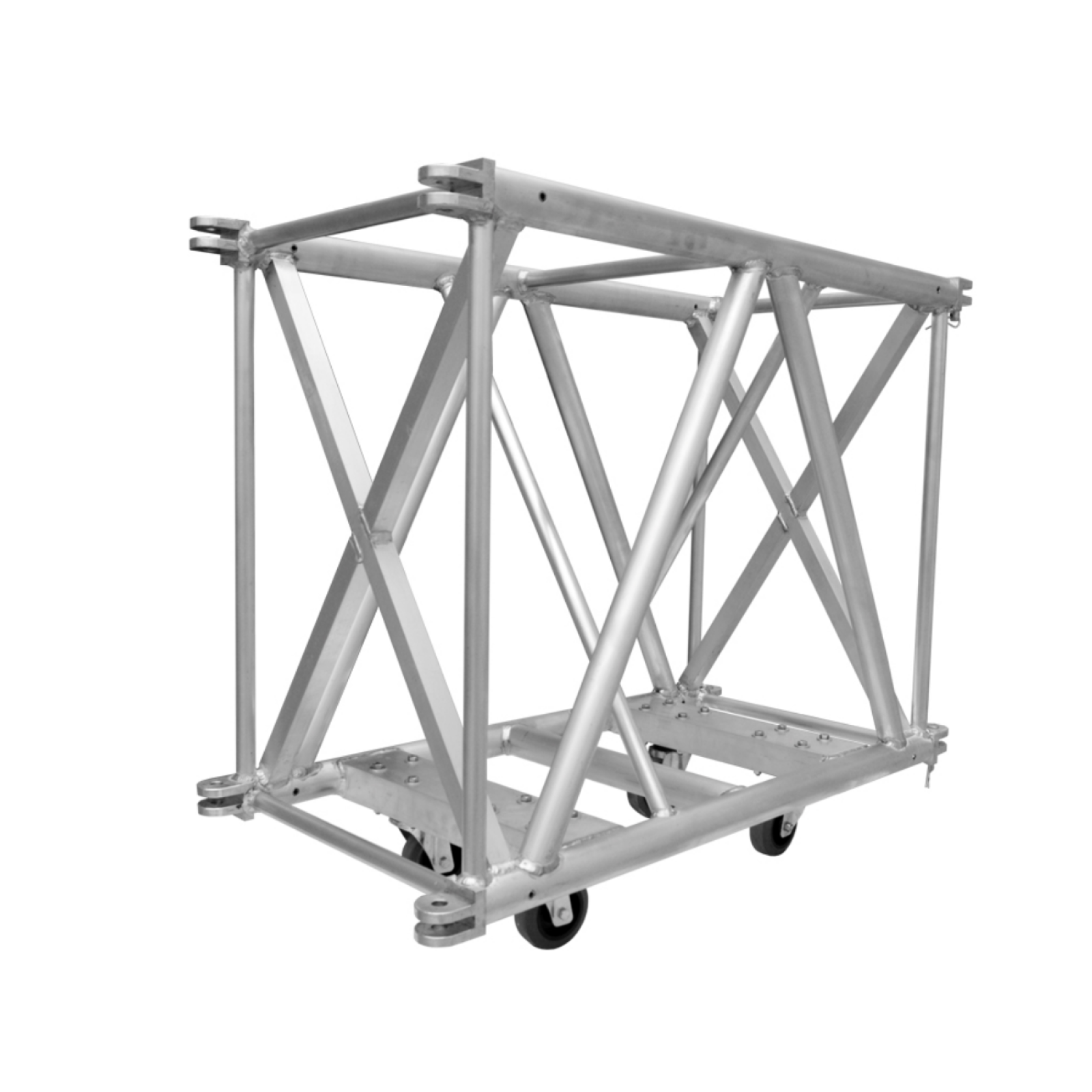

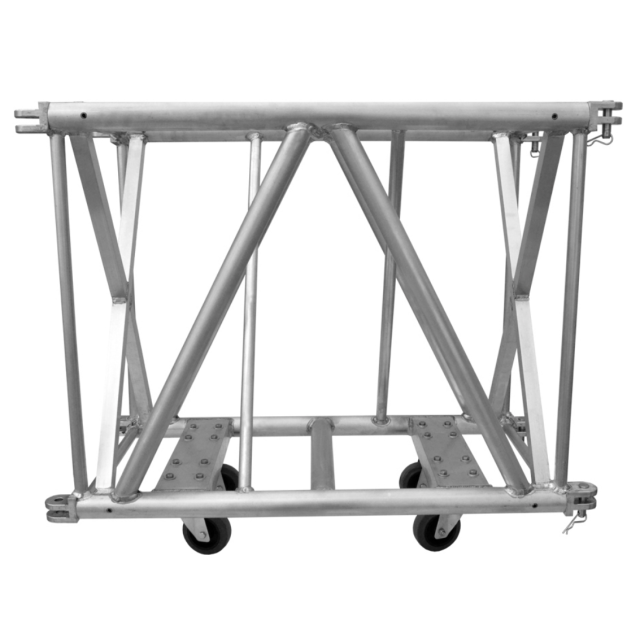

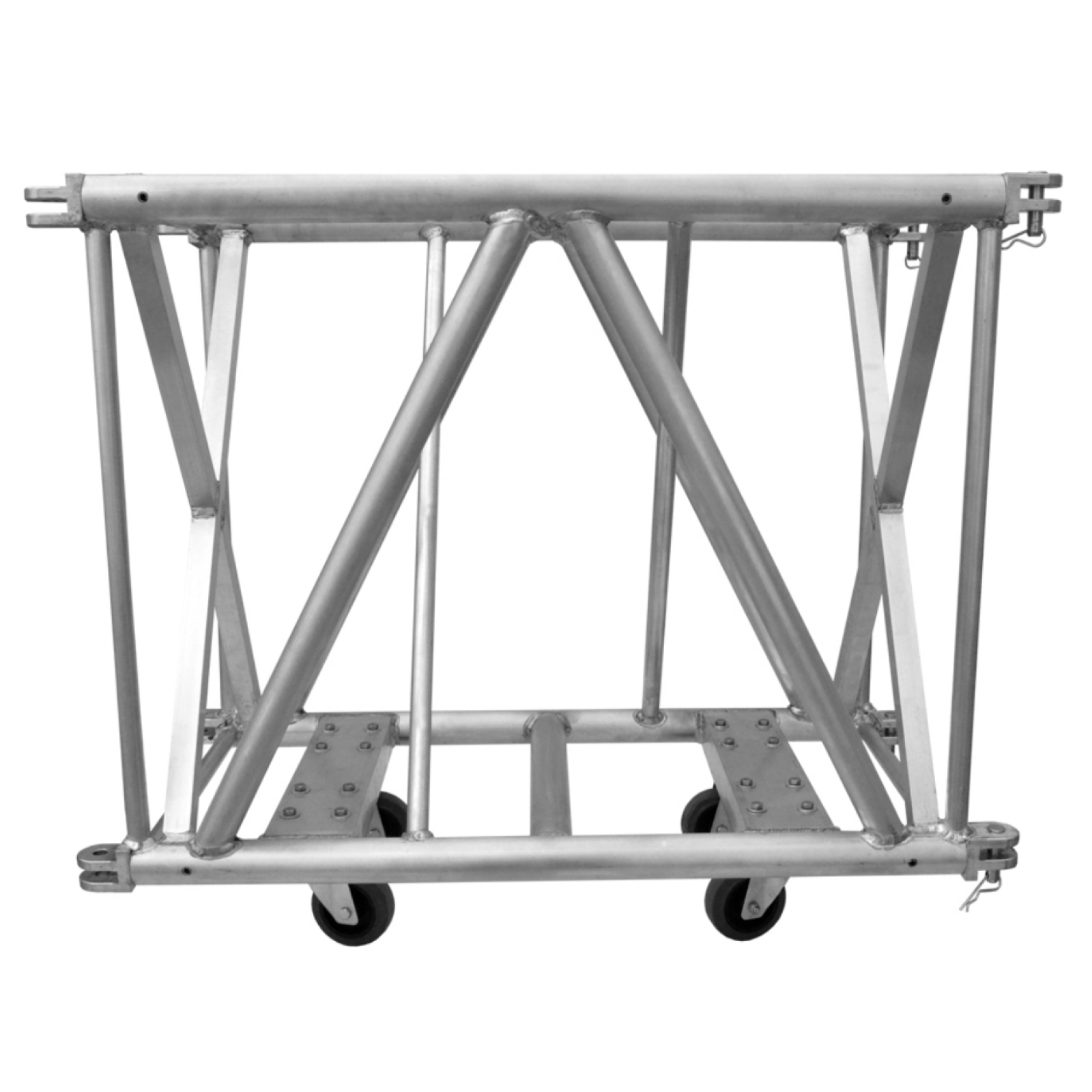

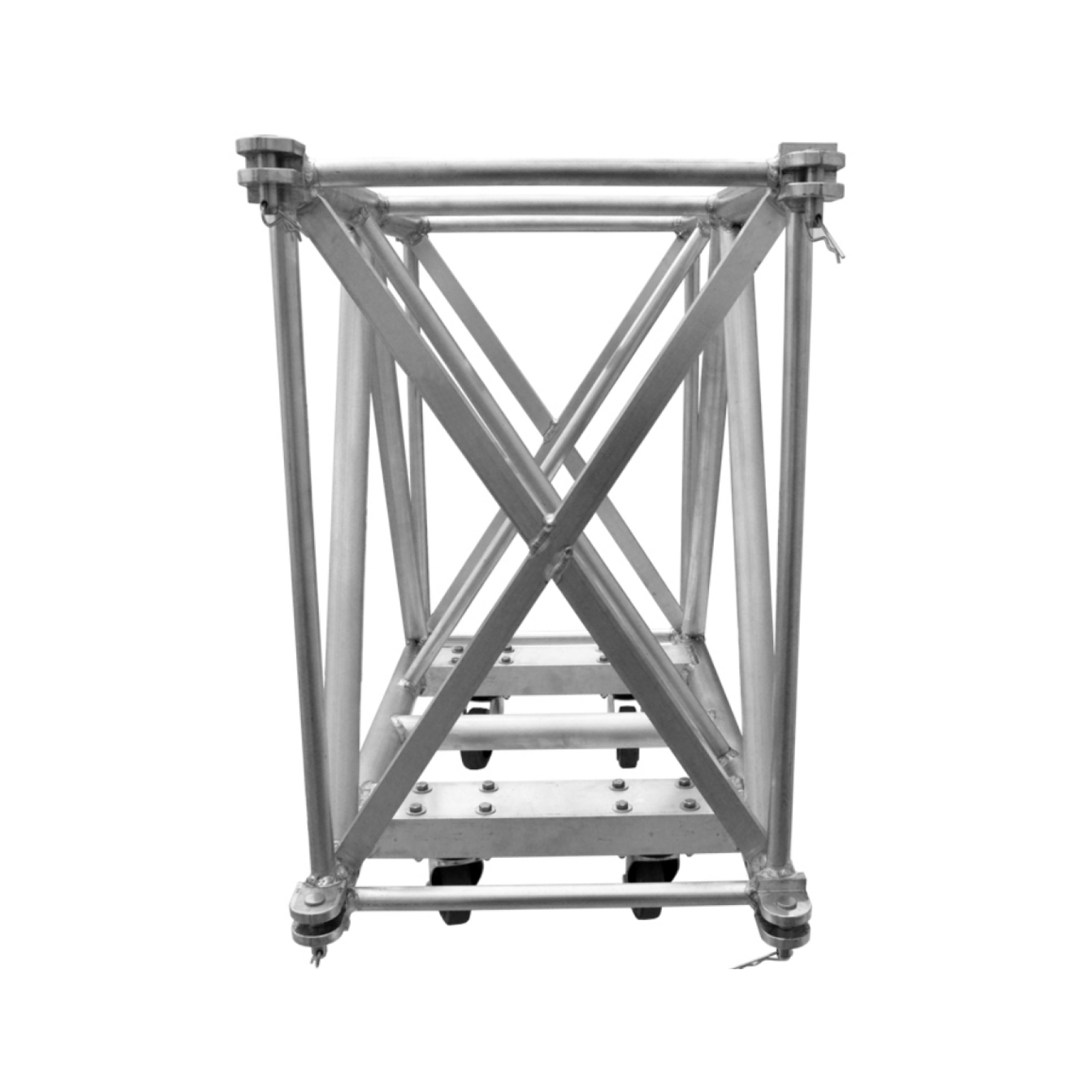

FK76R H200 2 Meters Rectangular Truss Section for Heavy Loads with Wheels (EC762M)
Download product sheetRectangular truss section manufactured with a main tube 50 mm in diameter and 4 mm thick, and an auxiliary tube 38 mm in diameter and 3 mm thick. Maximum load capacity. Highly resistant connection system with CHC76 pin and clip. Available in different sizes. Compatible with FK SERIES.
Rectangular truss section manufactured with a main tube 50 mm in diameter and 4 mm thick, and an auxiliary tube 38 mm in diameter and 3 mm thick. Maximum load capacity. Highly resistant connection system with CHC76 pin and clip. Available in different sizes. Compatible with FK SERIES.
Product downloads
Product details
Key features
- Standard dimensions: 1 - 2 - 3 Metres / 3,28 - 6,56 - 9,84 Feet
- Other sizes available upon request.
- Available in silver and black color.
- Other colours available upon request.
Specifications
-
Main Tube Section50 x 4 mm / 1,97 x 0,16 in
-
Main Tube AlloyEN AW 6082T6
-
Diagonal Tube Section38 x 3 mm / 1.49 x 0.118 in
-
Diagonal Tube AlloyEN AW 6082T6
-
Weight22,9 kg/m - 15.388 lb/ft
-
Area Section23.12 cm² / 3.5836 in²
-
Connection SystemCBC60 / CHC76
-
Weight44,6 kg / 98.326 lb
-
Volume0,7925 m³ / 27.9869 ft³
-
MaterialAluminium
-
ColorSilver
- More Less
Related products
-
FANTEK
FP29P R200
2 Meters Parallel Truss Section (ES292P)
View product
-
FANTEK
FP29Q R300
29 CM SQUARED TRUSS OF 3M. P SERIES. SILVER
View product
-
FANTEK
FP29P R050
0,5 Meters Parallel Truss Section (ES2905P)
View product
-
FANTEK
FP29Q C590
5-Ways Cross Junction Corner with 29 cm Side for Square Truss (29CXBP)
View product
-
FANTEK
FK52Q H300
3 Meters Square Truss Section for Heavy Loads (EC52C3)
View product
-
FANTEK
FP29Q CT390
3-Ways "T" Junction Corner with 29 cm Side for Square Truss (29CTP)
View product
-
FANTEK
GS40Q-H200B
2m Black Truss Mast T140 (F70EGS402)
View product
-
FANTEK
FP29Q CT390B

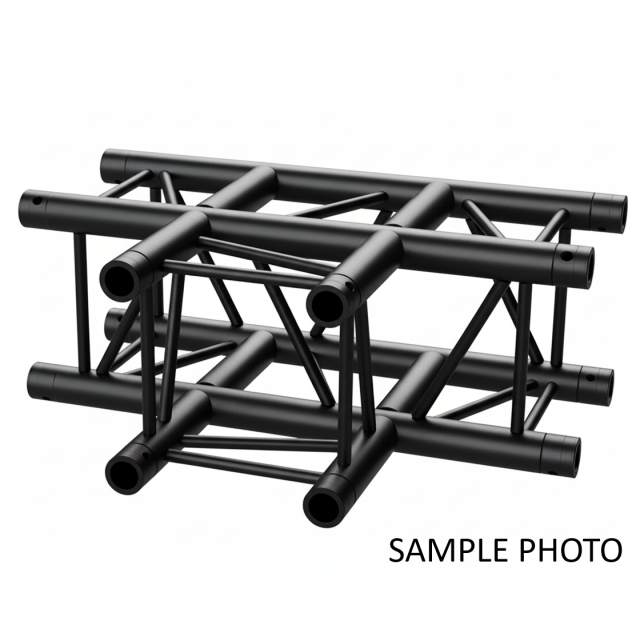

3-Ways "T" Junction Corner with 29 cm Side for Square Truss Black (29CTPB)
