SONIX MWP BK 4" Wall Touch Screen Panel for SoniX M8800 Audio Matrix (Black)

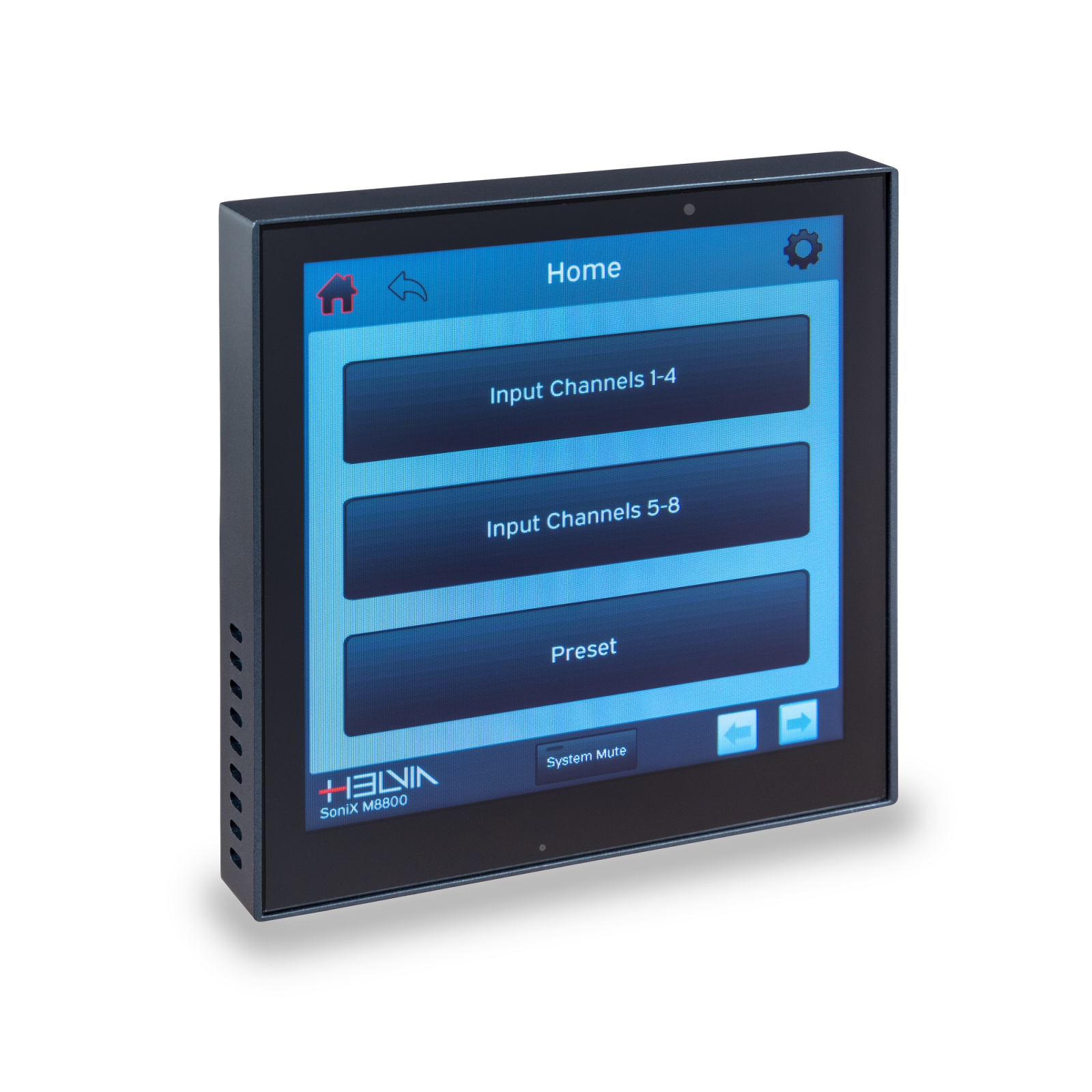

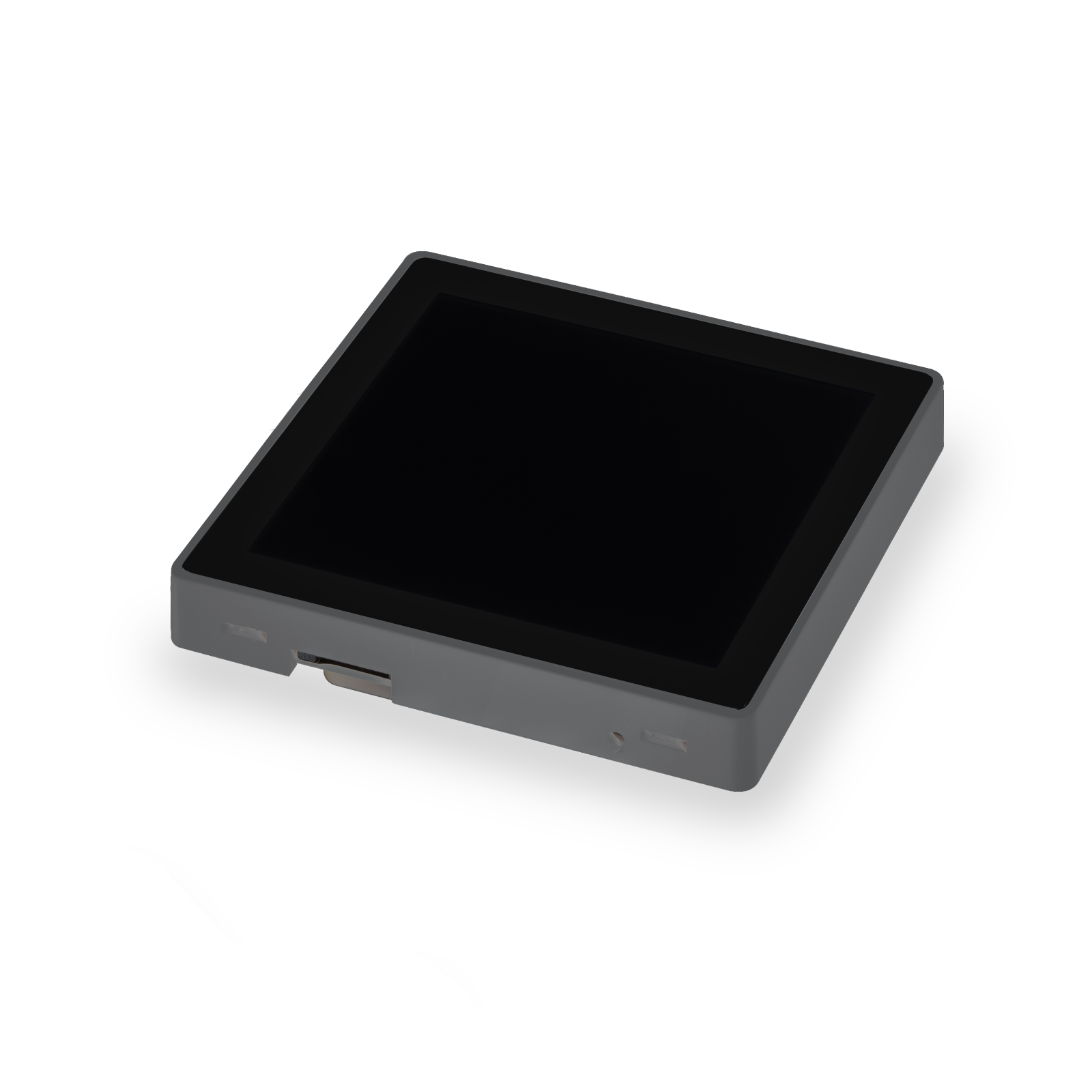

Download product sheetThe SoniX MWP is an in-wall control with a 4” color touch screen designed to control input volumes, mutes, and 8 preset recall of the SoniX M8800 matrix. It comes with an external power adapter, all adapter cables to the standard RJ-45 serial connection, and 80x80mm recessed wall box.
The SoniX MWP is an in-wall control with a 4” color touch screen designed to control input volumes, mutes, and 8 preset recall of the SoniX M8800 matrix. It comes with an external power adapter, all adapter cables to the standard RJ-45 serial connection, and 80x80mm recessed wall box.
Product downloads
Highlights
Easy One-Finger Control
You can instantly control the volume and mute of the 8 inputs, mute the entire system, and recall 8 of the 32 presets available on the SoniX M8800. Each preset can contain all the settings for the 8 inputs and output zones, as well as every control parameter for the numerous processing functions.
Product details
Key features

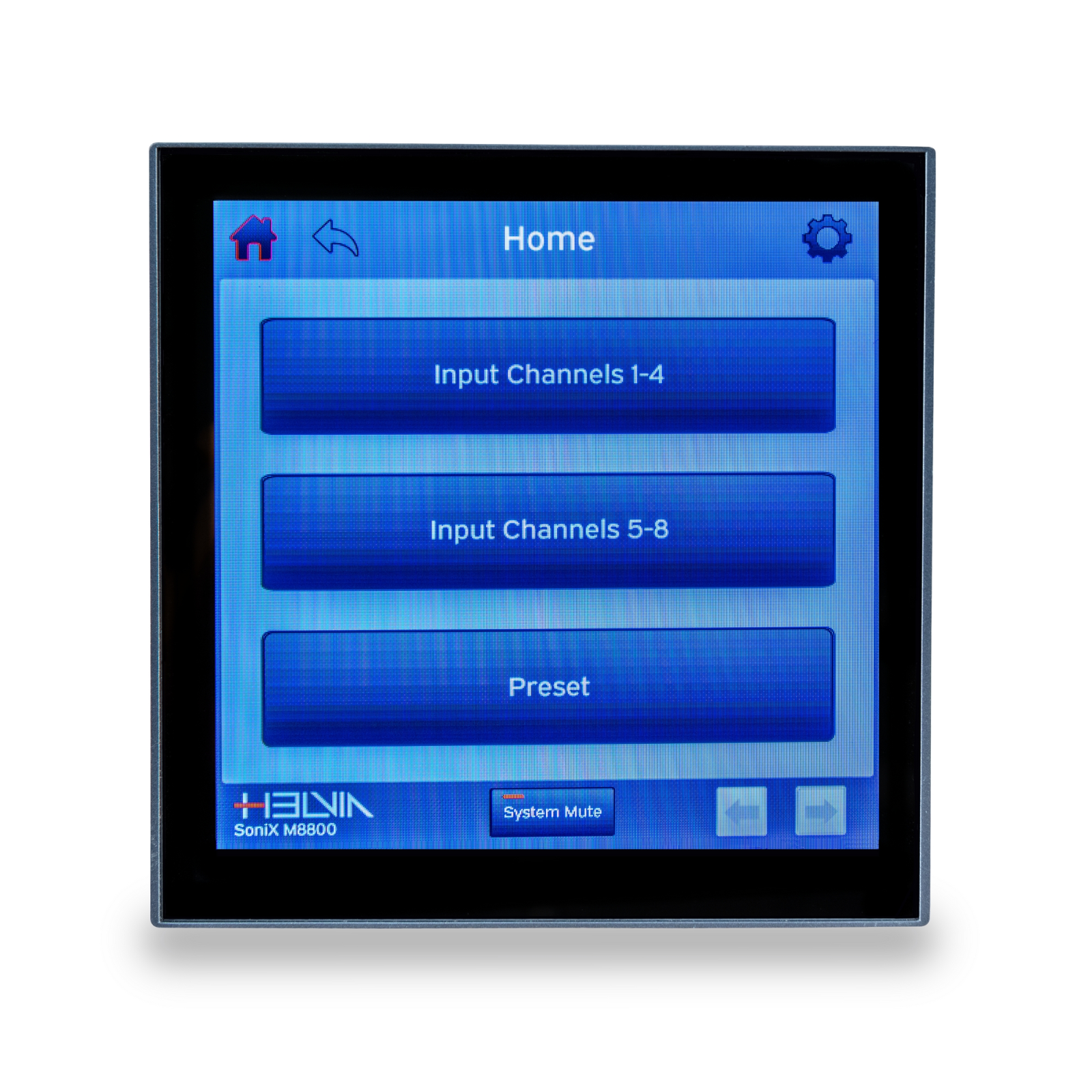

- 4” Touch Screen Wall-Mount Control Panel
- Input Volumes, Mutes and 8 Preset recall Remote Functions
- Easy to Install with all accessories included
Specifications
-
Communication ProtocolRS-485 (19200 Baud Rate)
-

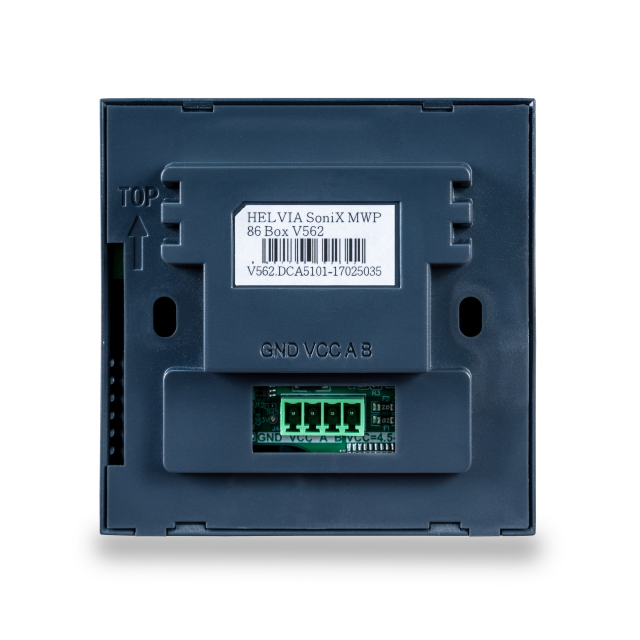

Connections4-Pin x 2.54mm Euroblock
-
Power RequirementsDC24V - 0,1A
-
Power Adapter (Included)Input 100 ~ 240VA, 50/60 Hz / Output DC24V - 2A
-
Product Dimension (WxDxH)90 x 90 x 28 mm (3.5 x 3.5 x 1,1 inchs)
-
Product Weight0,2 kg ca (0,4 lbs. ca)
