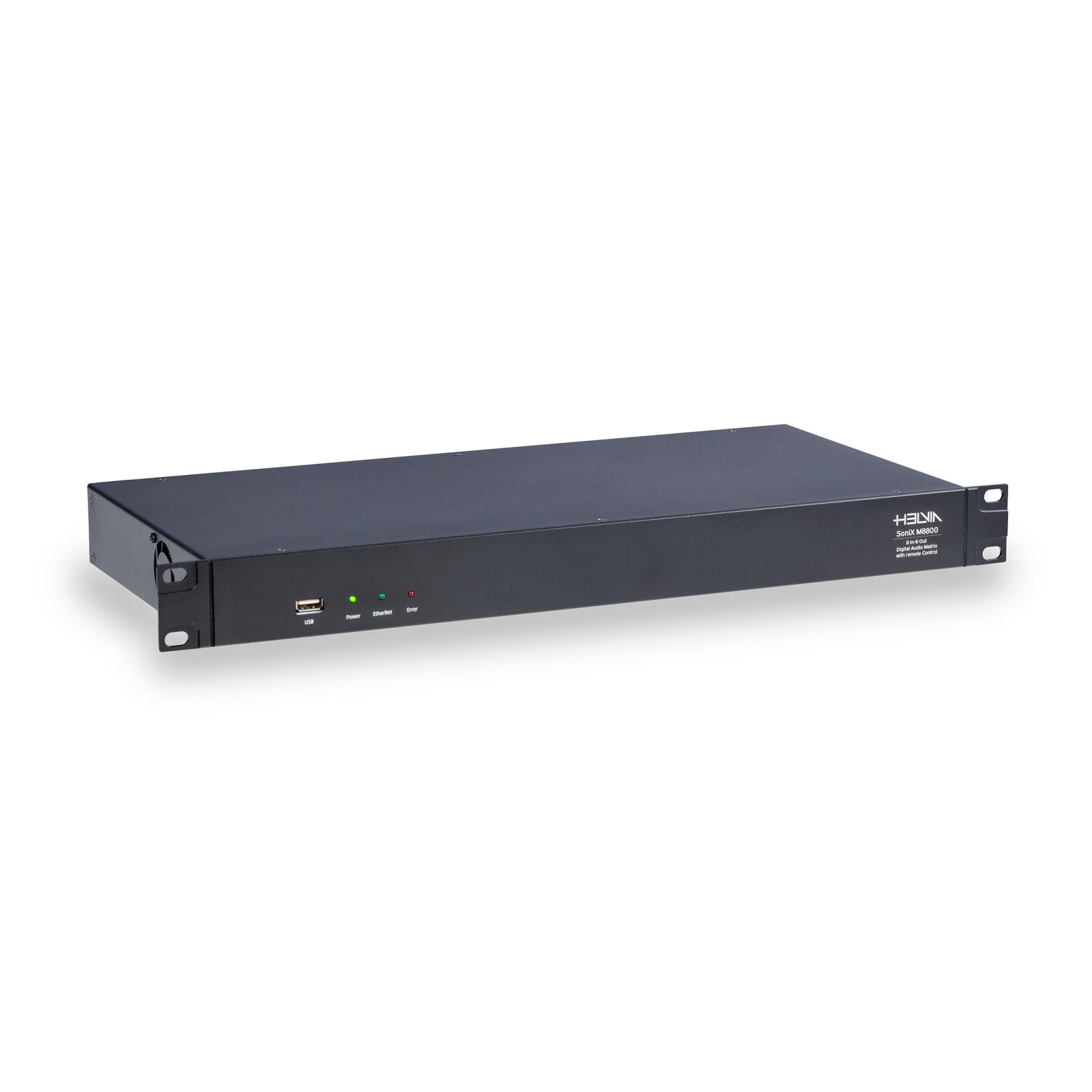

SONIX M8800 8 Inputs – 8 Outputs Audio Matrix with TCP/IP & USB Control Interface

The SoniX M8800 digital matrix is built to be the brain of powerful and flexible multi-zone audio systems. Thanks to its robust hardware and software architecture, it’s ideal for a wide range of installations - from conference setups to complex environments with up to 8 sources and 8 outputs.

At the heart of the system is a high-performance 400MHz floating-point DSP and a 1.2GHz dual-core Linux-based control chip. This gives the M8800 not just the horsepower to handle demanding signal processing, but also the scalability to expand to more inputs and outputs in future configurations. Whether you’re managing audio routing or direct signal processing, this system is ready to grow with your needs.

Where many competing systems cut corners, SoniX delivers ultra-clean, low-noise preamps with a floor noise reduced to as low as -100dB. That means incredible dynamic range, even when working with low-level mic signals.

The system is controlled through a clean, intuitive Windows® software interface that lets you program extensive audio functions in just a few minutes. Control is available via USB or TCP/IP, and for larger setups, you can connect up to 16 wall-mounted touch screen controllers via RS-485. The M8800 also supports full integration with third-party control systems over TCP/IP and RS-232.

Each input features a powerful suite of processing tools, including Adaptive Feedback Suppression, Automatic Echo Cancellation, Auto Input Gain Control, Noise Gate, Limiter and more. Each output includes: 8-band Parametric EQ, HPF & LPF, Delay up to 300ms, Limiter.

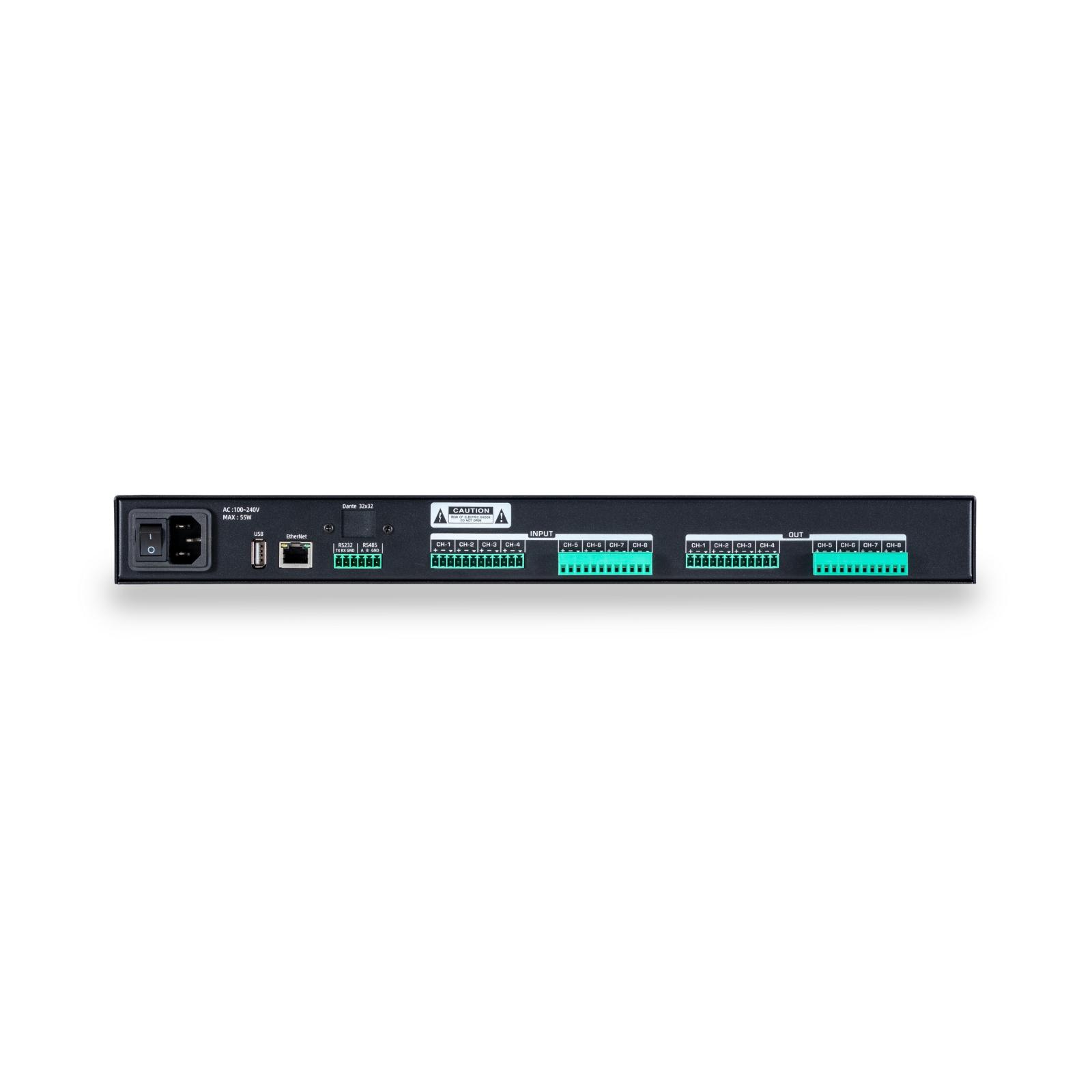

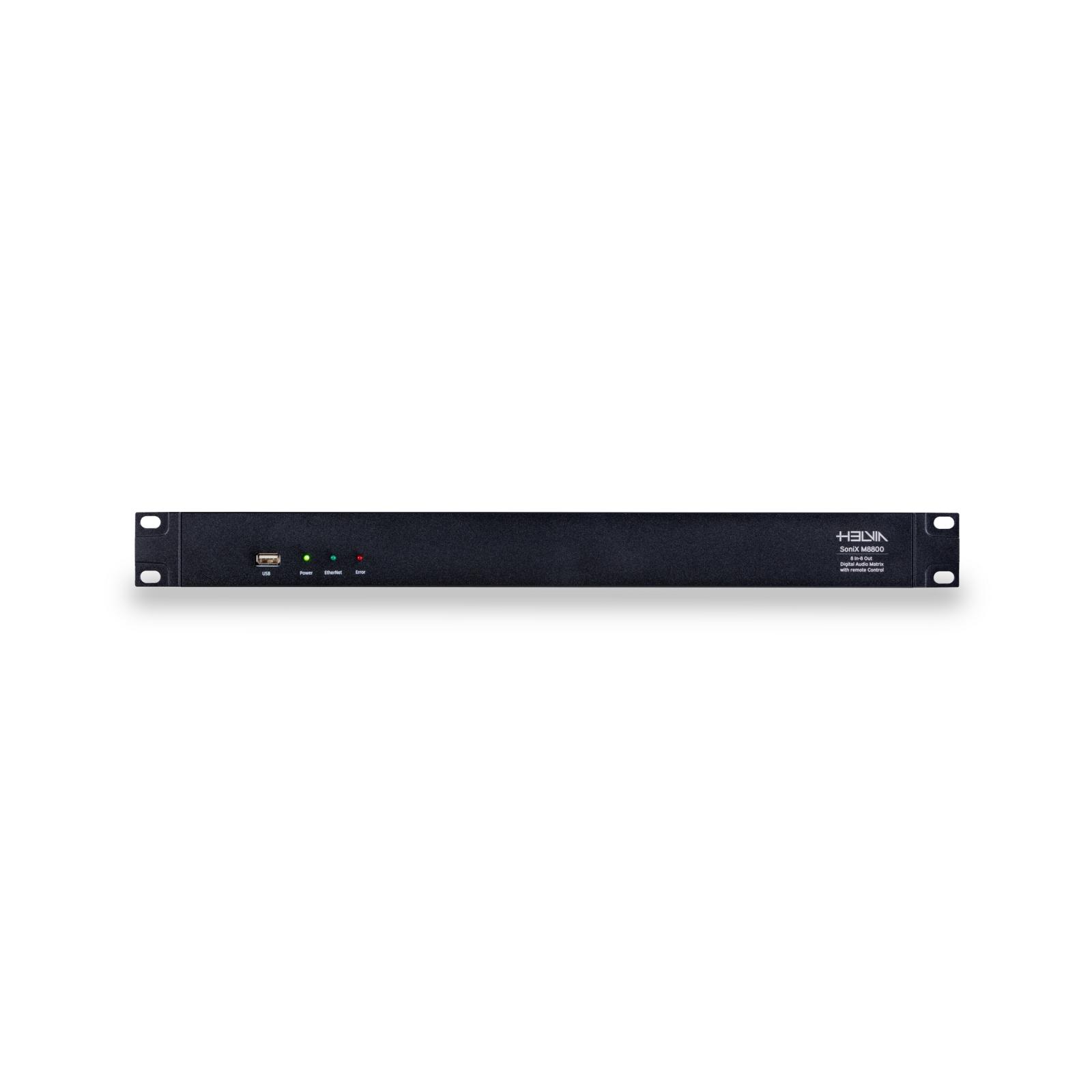

With one USB on the front panel and another on the back, the M8800 gives you flexible access for PC control, real-time audio recording, or USB playlist playback. Both recording and playback functions can be freely routed through the matrix as fully assignable stereo sources or outputs, just like the other inputs and outputs.
