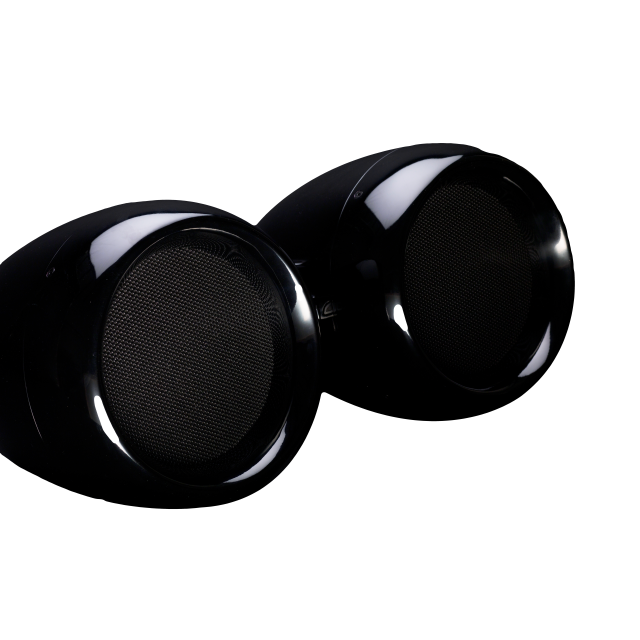

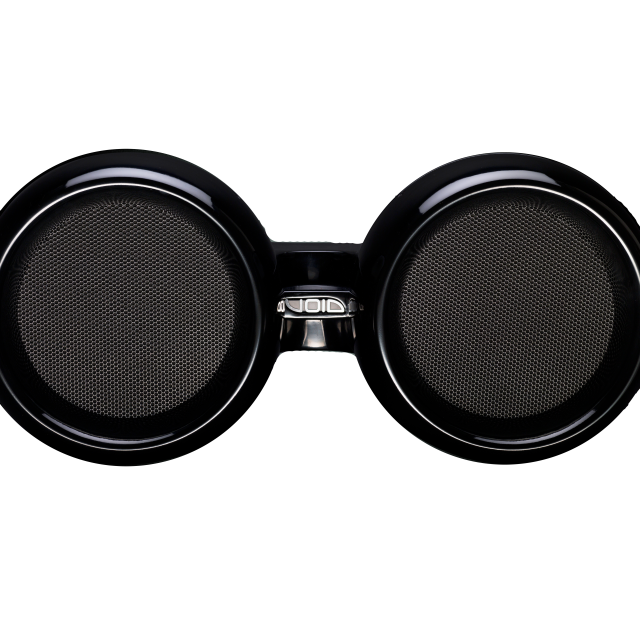

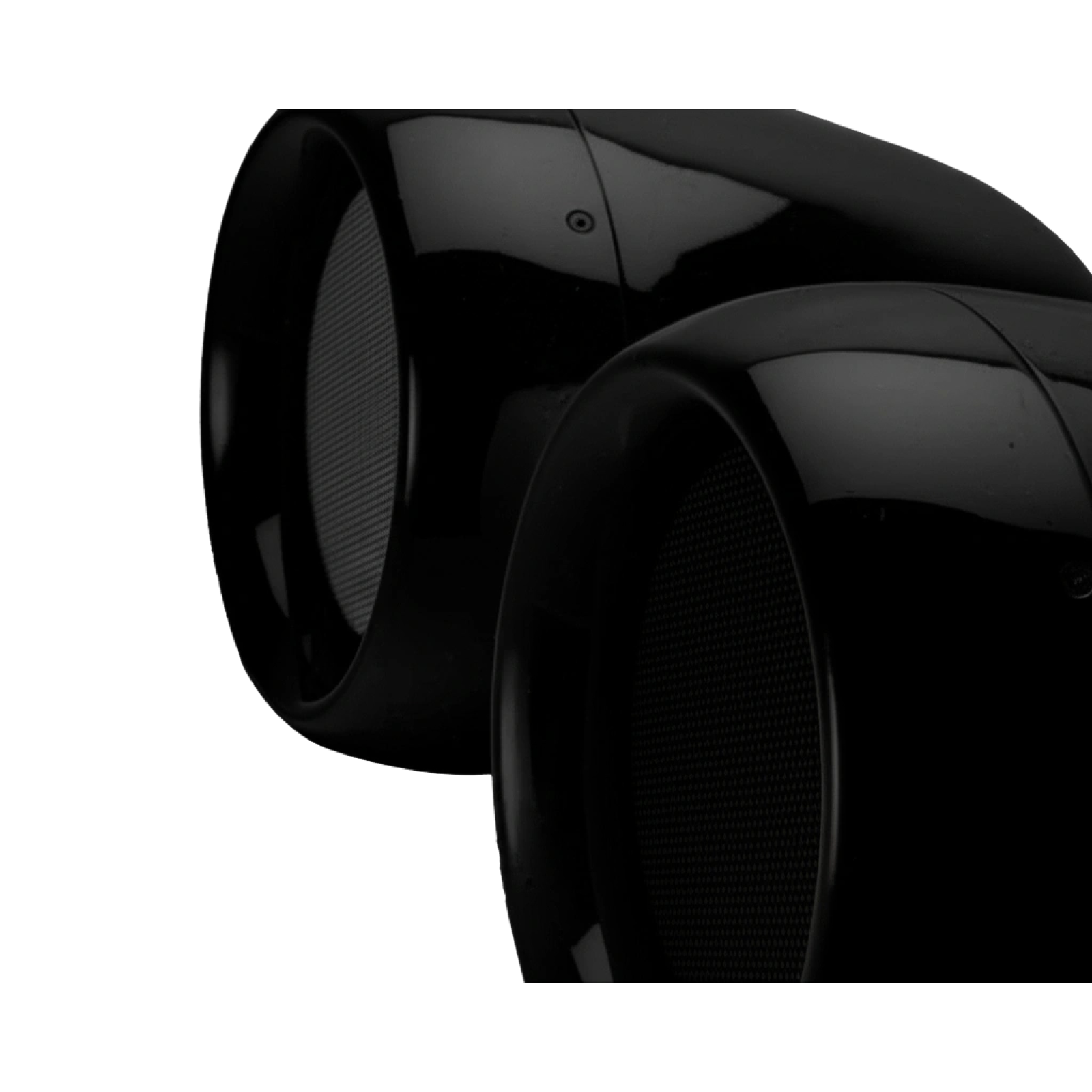

AIRTEN V3 BK - IT3000 Passive coaxial loudspeaker with double 10" drivers (black)
Download product sheetInspired by jet engine design, the Airten V3 is a compact, high-output loudspeaker that fuses ultramodern aesthetics with cutting-edge acoustic technology. Its fiberglass composite enclosure and smooth cellulose finish deliver both visual impact and acoustic performance.
It features two 10” low-resonance woofers and a space-saving coaxial MF/HF driver, ensuri... Read more
Inspired by jet engine design, the Airten V3 is a compact, high-output loudspeaker that fuses ultramodern aesthetics with cutting-edge acoustic technology. Its fiberglass composite enclosure and smooth cellulose finish deliver both visual impact and acoustic performance.
It features two 10” low-resonance woofers and a space-saving coaxial MF/HF driver, ensuring consistent and focused sound projection. The 80° x 80° dispersion pattern offers excellent intelligibility across various applications such as DJ monitoring, professional installations, and compact PA setups.
The newly designed passive crossover enhances frequency linearity and driver coherence, while the FEA-optimized rear port improves airflow, reducing power compression, noise, and distortion.
With a 500 W AES power rating and a peak SPL of 131 dB, the Airten V3 delivers outstanding performance in a compact, iconic enclosure.
Collapse textProduct downloads
Media
Highlights
Low-resonance fibreglass composite construction
Refined crossover for coherence and balance
Rear reflex port FEA simulations guaranteed
The rear reflex port, optimized through FEA simulations, is designed to improve airflow and reduce dynamic compression. This results in cleaner low-frequency response, lower distortion and consistent performance even at high volumes.

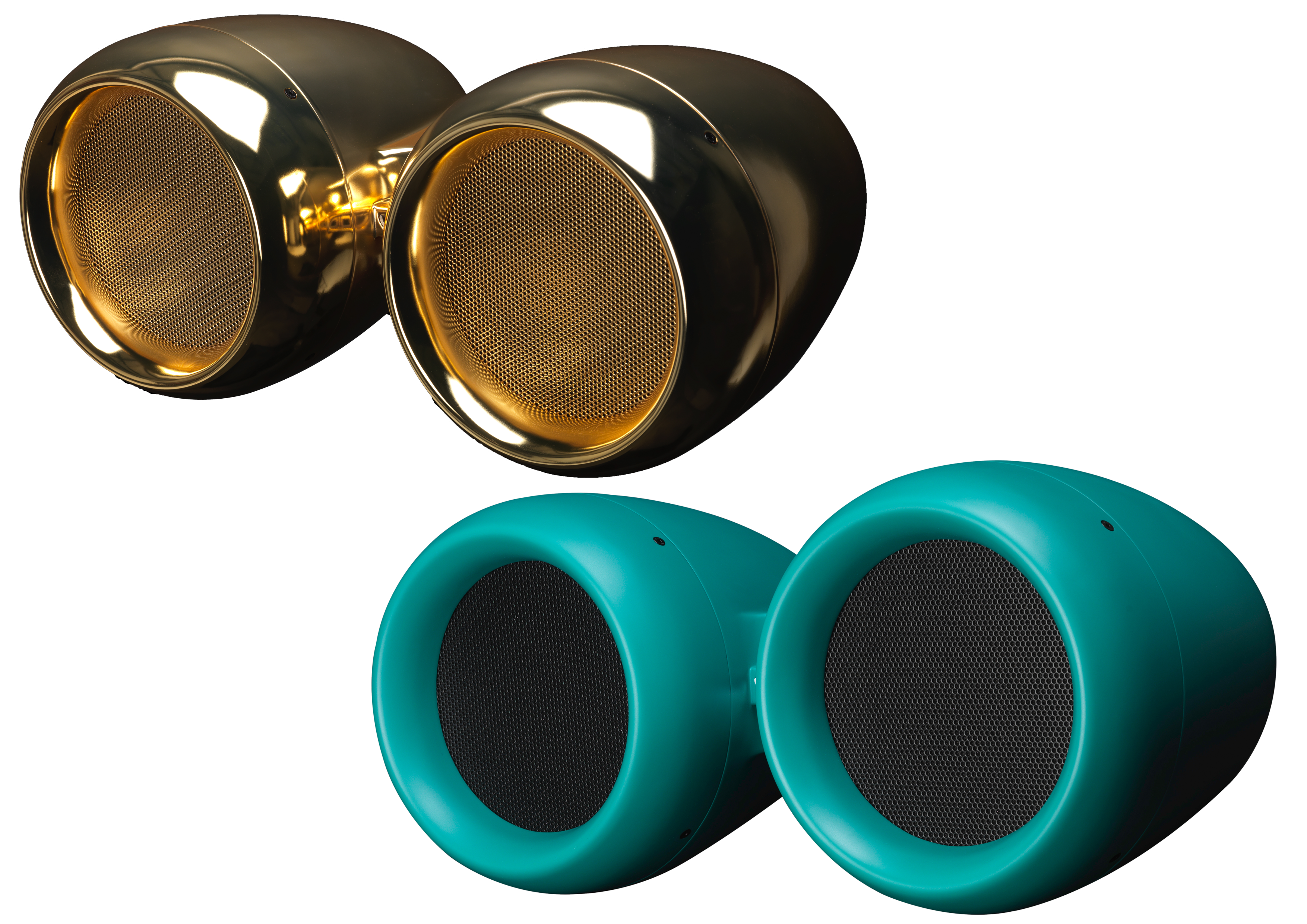

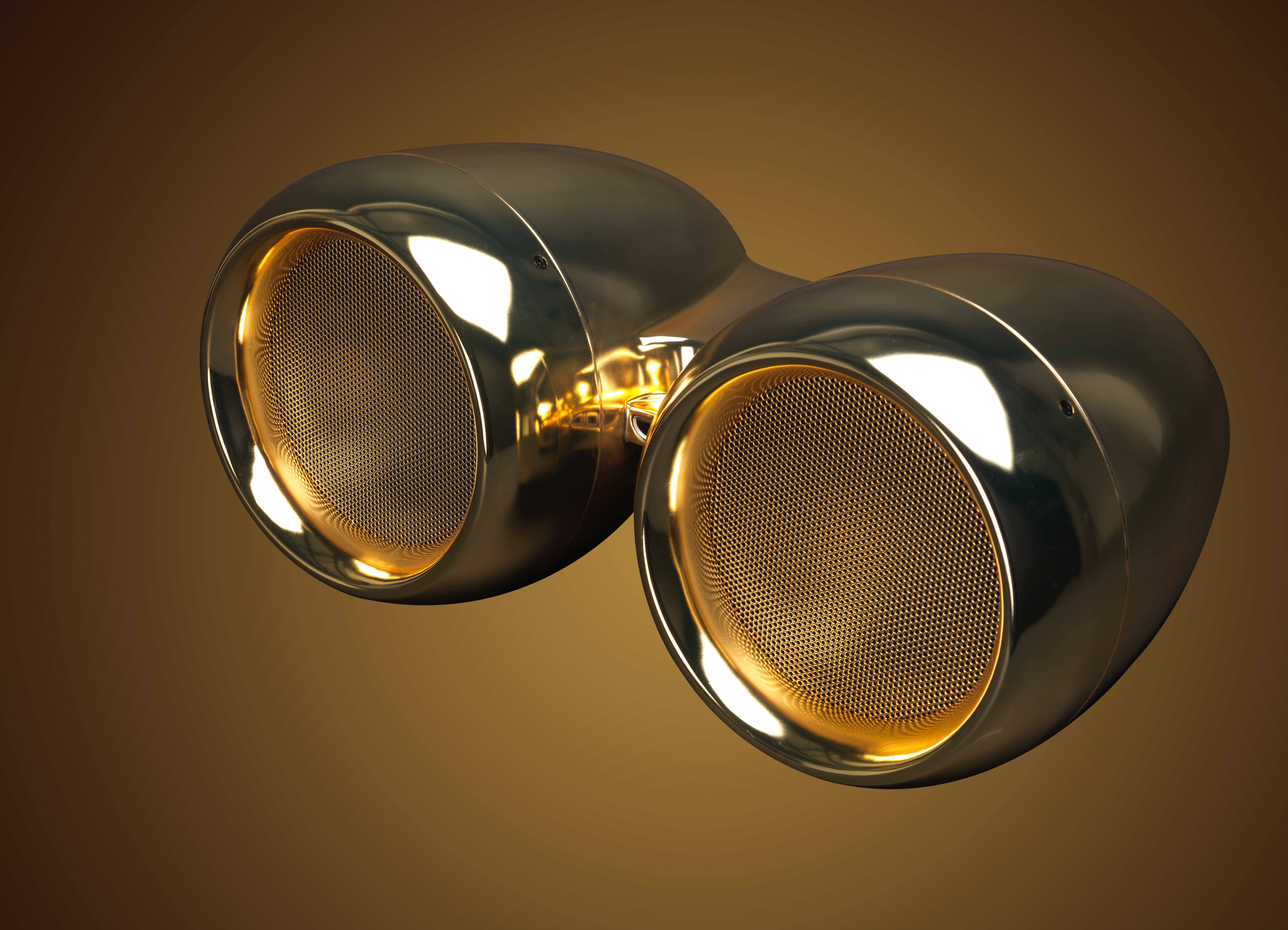

Custom colors available upon request
Product details
Key features
- Dual 10” low-resonance woofers: deliver powerful, defined low-frequency response in a compact chassis.
- Coaxial MF/HF driver: delivers a compact, coherent and focused sound, thanks to the optical alignment between mid and high frequencies.
- Focused 80°H x 80°V dispersion pattern
- Upgraded crossover: ensures better frequency linearity, driver coherence and accurate summation, for a natural and balanced sound.
- Fiberglass composite construction with smooth cellulose finish: premium look, lightweight yet strong, designed to last and withstand harsh conditions.
- Integrated mounting system: facilitates installation and allows for multiple setup configurations.
Specifications
-
Frequency Response60 Hz - 20 kHz ±3 dB
-
Efficiency99 dB 1w/1m (Measured in half space)
-
Crossover PointsPassive 1.2 kHz
-
Impedance4 Ohm
-
Power Handling500 W AES (AES2 - 1984 compliant)
-
Maximum Output125 dB cont, 131 dB peak (Calculated)
-
Driver Configuration2 x 10" LF, 1 x 1.3" HF compression driver
-
Dispersion80°H x 80°V
-

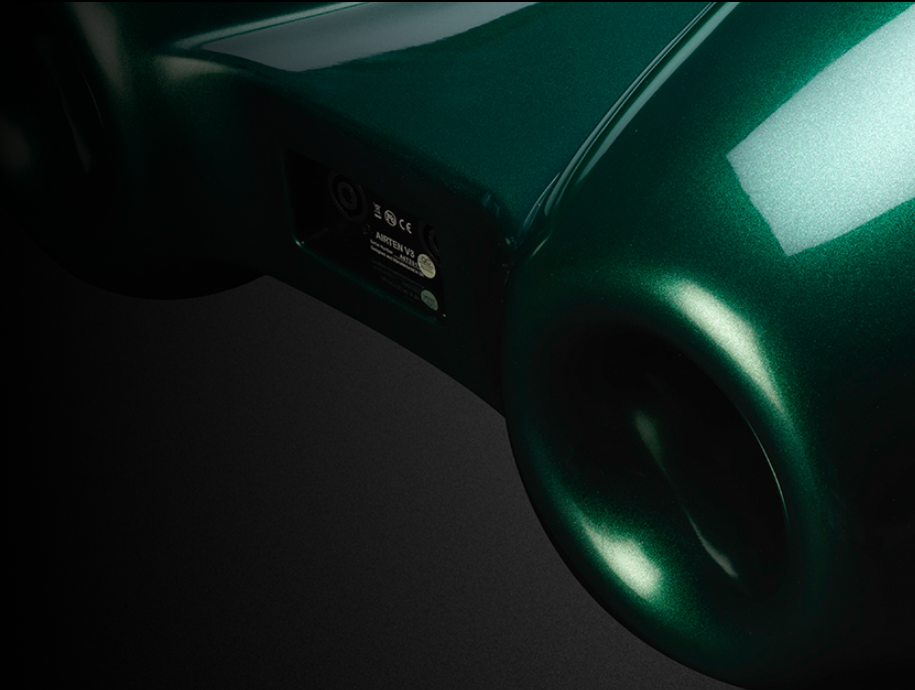

Connectors2 x 4-pole speakON™ NL4
-
Weight20 kg (44.1 lbs)
-
EnclosureFibreglass composite
-
RiggingIntegral mounting system
-
FinishSmooth cellulose
-
ColorsBlack (custom colors available upon request)
-
Dimensions (W x H x D)682mm x 303mm x 366mm
