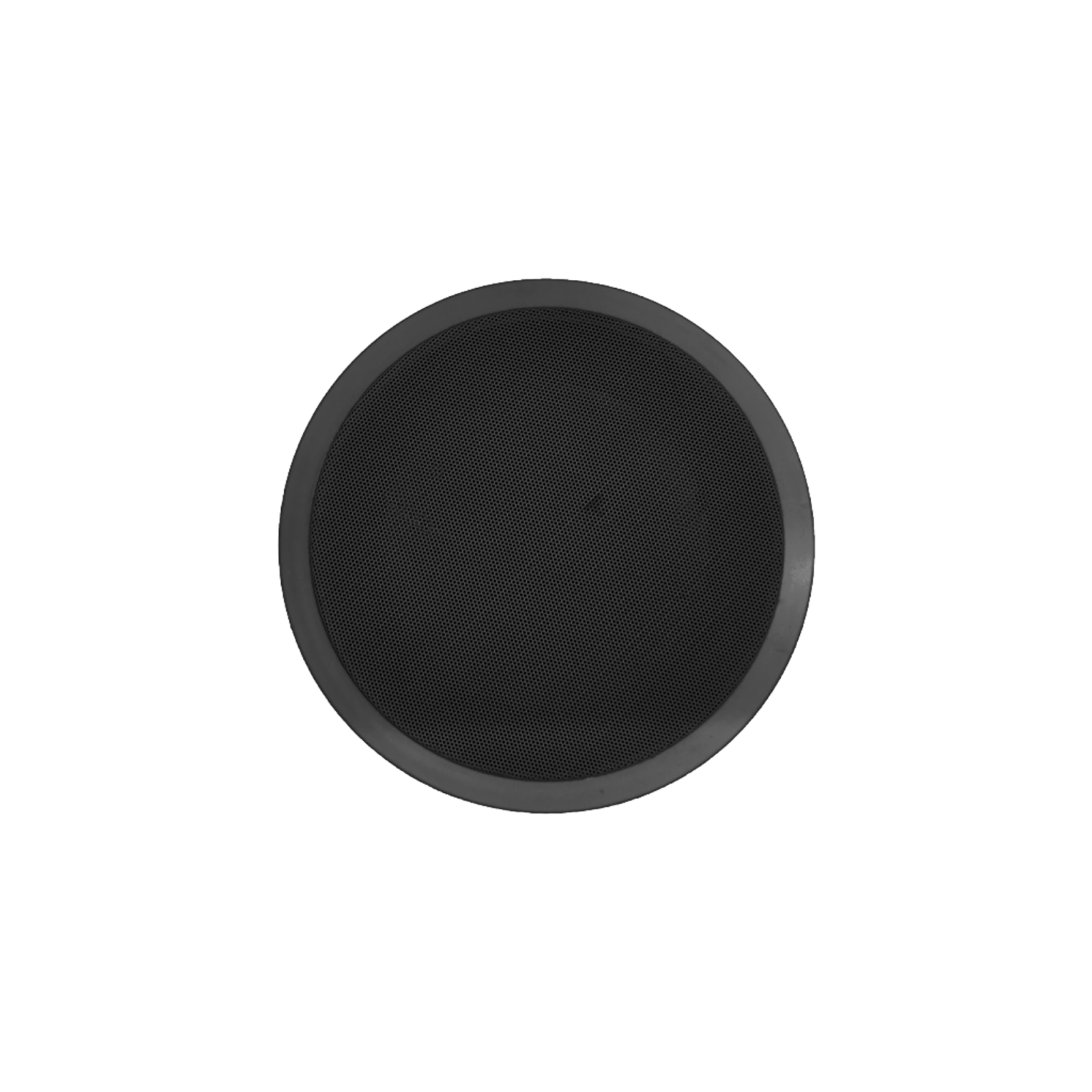

GC8 8" passive 30W speaker ceiling/wall-mounted (round grille, black color)
Download product sheetVersatile and Discreet High-Quality Audio Installations
The GC8 is a passive in-wall speaker designed to deliver high-quality audio in both residential and commercial environments. It features an 8” coaxial woofer with a 1” titanium tweeter, ensuring extended frequency response and clear, dynamic, and detailed sound.
Designed for Any Material and Any Environ... Read more
Versatile and Discreet High-Quality Audio Installations
The GC8 is a passive in-wall speaker designed to deliver high-quality audio in both residential and commercial environments. It features an 8” coaxial woofer with a 1” titanium tweeter, ensuring extended frequency response and clear, dynamic, and detailed sound.
Designed for Any Material and Any Environment
With its 90° coverage, the GC8 ensures uniform sound dispersion even in large or complex spaces. The rear-enclosure-free design makes it ideal for mounting in plasterboard, wood, or other surfaces, leveraging the infinite baffle principle for optimal acoustic performance. Fully compatible with KGEAR amplifiers and subwoofers, the GC8 is a perfect solution for hotels, offices, restaurants, classrooms, public spaces, or residential settings.
Discreet and Customizable Design
The magnetic grille, available in round or square versions, in black or white finish, can be painted to blend seamlessly into any environment.
Product downloads
Product details
Key features
- Wide and uniform diffusion: perfect for distributed sound in environments where wide and uniform coverage is needed, such as retail, hospitality, public places or conference rooms, as well as in residential and/or private settings.
- Balanced audio quality: the coaxial configuration ensures a smooth frequency response (50Hz-20kHz) and better coherence between highs and mids, with a maximum SPL of 112 dB suitable for small- to medium-sized settings.
- Titanium tweeter for precision and clarity: thanks to its lightness and rigidity, titanium enables the tweeter to deliver a fast and precise response, with bright and well-defined high frequencies. Ideal for situations where clarity and intelligibility are essential, such as conferences, acoustic music concerts and public spaces.
- Compact and lightweight design: very easy to install in small spaces or ceiling/wall. Ideal for discreet architectural additions.
- Simplified installation without any rear box: ideal for plasterboard, wood or tile walls or ceilings, taking advantage of the “infinite baffle” principle, the speaker is isolated at the rear from the large wall or ceiling in which it is installed, preventing the front and rear sound waves from cancelling each other out (phase shift between front and back).
Specifications
-
TypePassive loudspeaker
-
Transducers8" coax ferrite magnet woofer + 1" titanium dome tweeter
-
Frequency Response50Hz – 19KHz (-10dB)
-
Max SPL114dB
-
Coverage90°
-
Nominal Impedance8 Ω
-
Rated Power30 W
-
Dimensions (Outer x Inner x Depth)226x202x94 mm (8.9x7.95x3.7 in)
-
Weight1 kg (2.2 lb)
-
MaterialABS
-
ColorsBlack
- More Less
