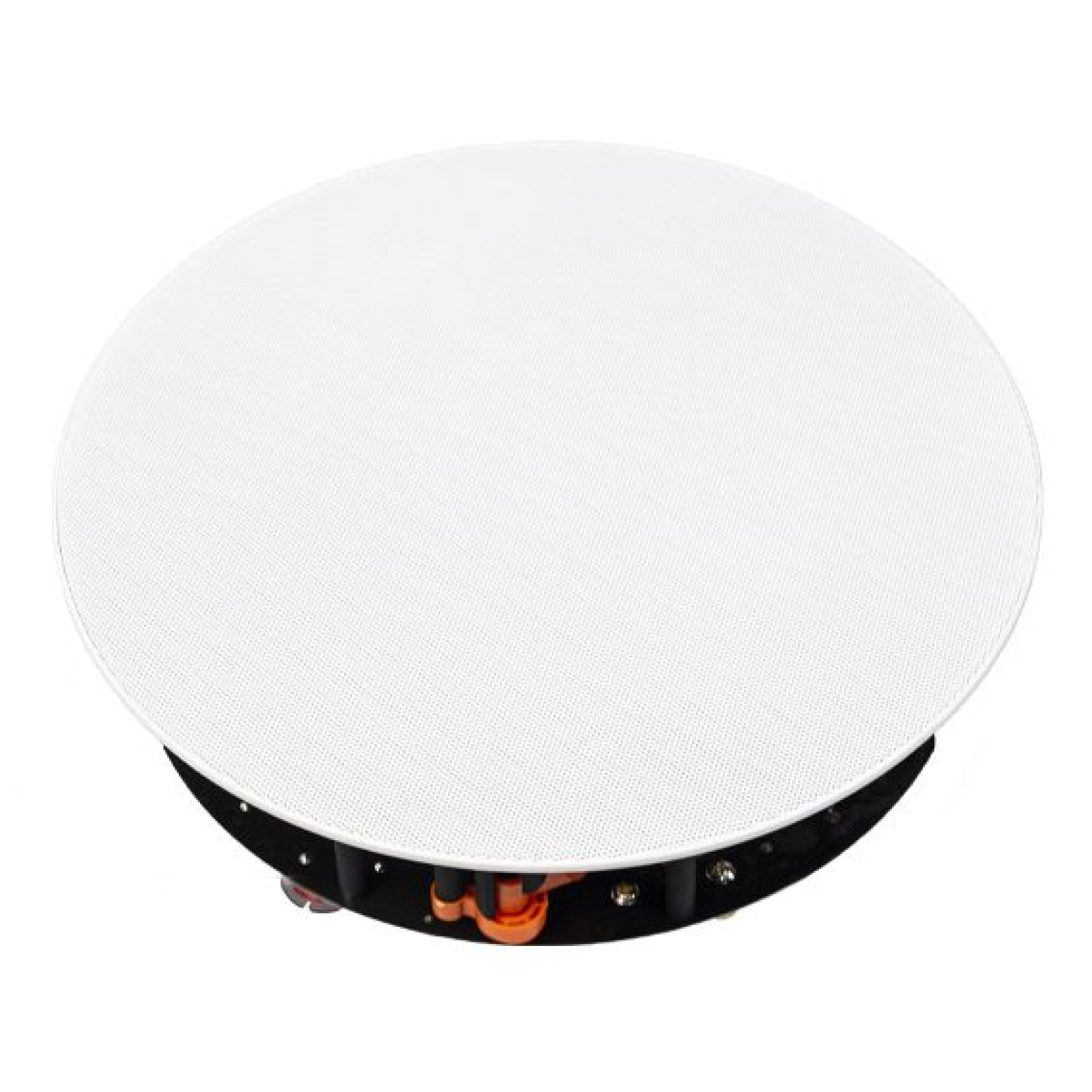

GC8TW 8” passive ceiling/wall-mounted high impedance speaker (round grille, white color)

Download product sheet

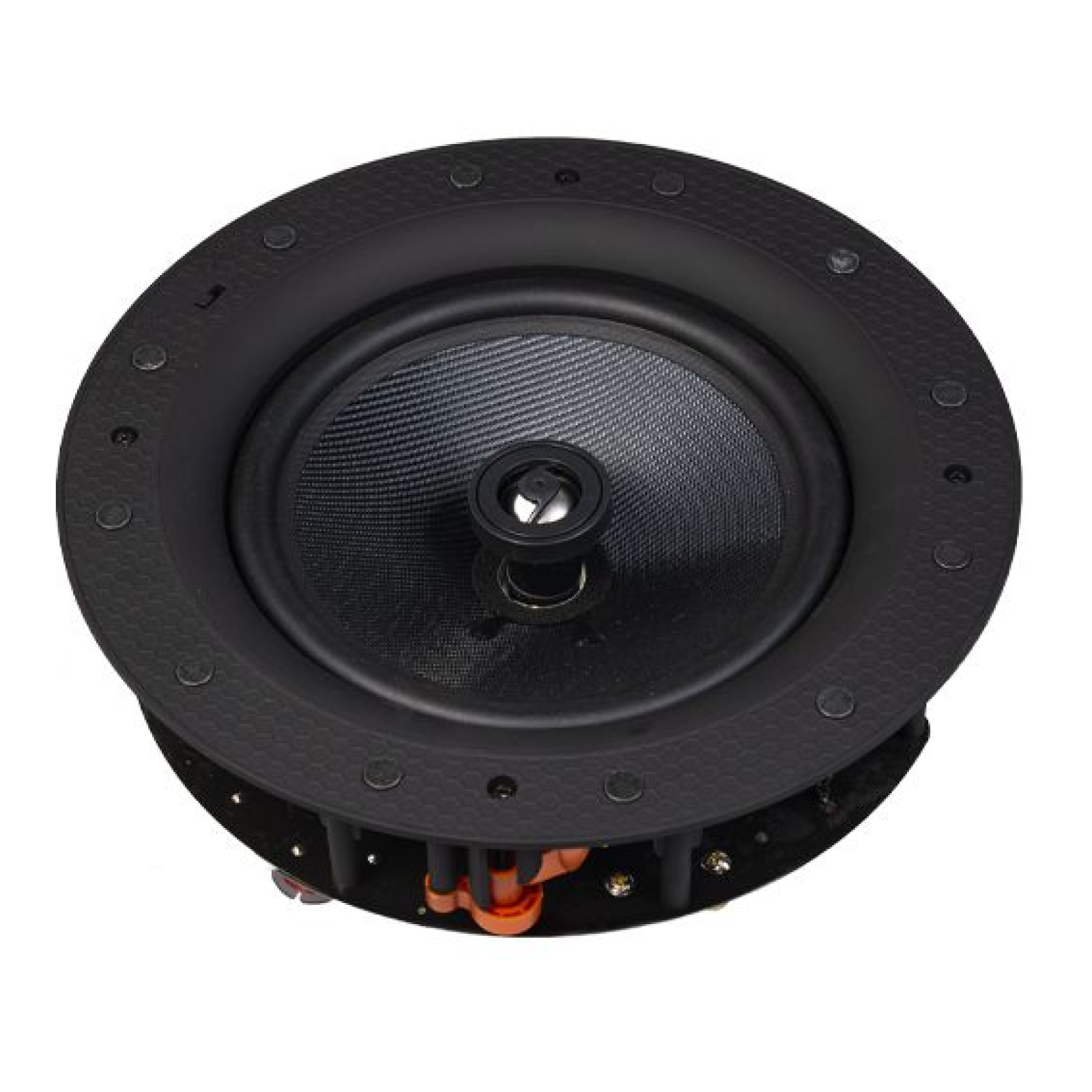

The GC8T is a 2-way passive in-ceiling loudspeaker with a built-in 70/100V transformer, ideal for long-distance distributed systems. The 8" coaxial woofer and 1" titanium tweeter deliver extended response and accurate, vibrant sound, with 130° conical coverage.

Designed for drywall, wood, or other materials, the open-back infinite baffle design ensures consis... Read more

Buy this product online

Search Google Shopping

Product downloads

» KGEAR_GC-GCF-GS8_DS_0.2_alt_12023_12046.pdf

» GS8 I_UG_2023_12023_12046.pdf

Highlights

Adjustable tweeter for customized listening

The RN (round) version of the GC8 integrates an adjustable tweeter, which allows you to precisely direct the high frequencies towards the listening area, for a sound that is always clear and detailed, even in irregular environments or with unconventional configurations. A rare feature in in-wall speakers, which transforms architectural integration into a tailor-made audio experience.

Large-scale installations without compromise

Thanks to the integrated transformer for 100V/70V lines, this high-impedance loudspeaker allows several speakers to be connected in parallel over long distances without significant loss of power or audio quality, making it ideal for distributed systems in hotels, shopping centres, schools or public facilities.

Frameless design for seamless architectural integration

The grille with no visible frame allows the GC8T to virtually disappear after installation, delivering a clean, minimalist aesthetic—ideal for refined interiors or design-sensitive environments.

70V-100V Line

Coaxial Speaker

Frameless

2-Way Speaker

Product details

Key features

Wide and uniform diffusion due to 130° conical coverage: perfect for distributed sound in environments where wide and uniform coverage is needed, such as retail, hospitality, public places or conference rooms, as well as in residential and/or private settings.
Balanced audio quality: the coaxial configuration ensures a smooth frequency response (50Hz-20kHz) and better coherence between highs and mids, with a maximum SPL of 112 dB suitable for small- to medium-sized settings.
Titanium tweeter for precision and definition: titanium, due to its light weight and rigidity, allows the tweeter to offer a quick and precise response, with brilliant and defined high frequencies. Ideal in contexts where clarity and intelligibility are essential, such as conferences, acoustic music concerts and public spaces.
Compact and lightweight design: very easy to install in small spaces or ceiling/wall. Ideal for discreet architectural additions.
Simplified installation without any rear box: ideal for plasterboard, wood or tile walls or ceilings, taking advantage of the “infinite baffle” principle, the speaker is isolated at the rear from the large wall or ceiling in which it is installed, preventing the front and rear sound waves from cancelling each other out (phase shift between front and back).
