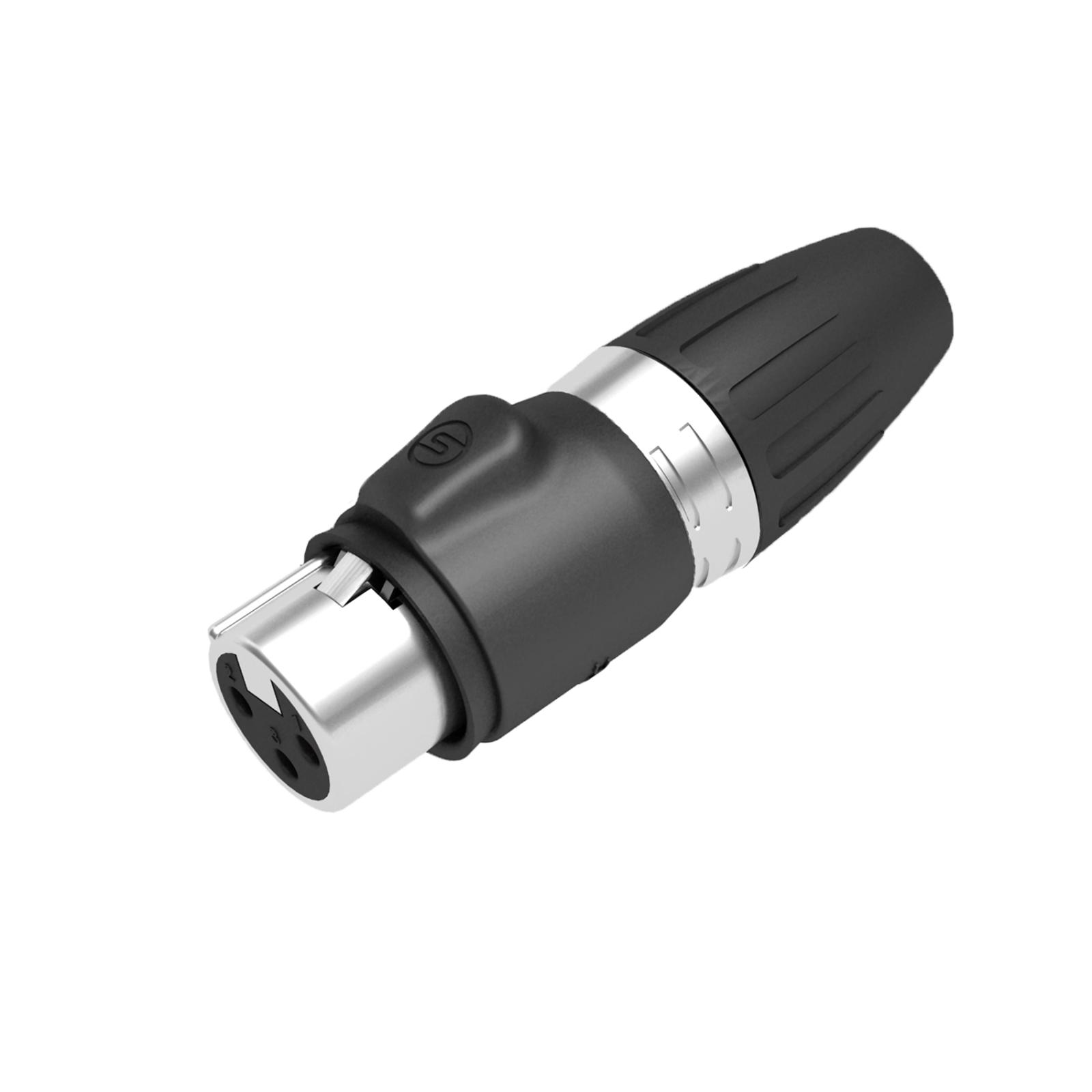

SCWF3 Waterproof DMX connector (XLR 3P F)
Download product sheetSEETRONIC waterproof DMX connector (XLR 3P Female).
SEETRONIC waterproof DMX connector (XLR 3P Female).
Product downloads
Product details
Key features
- Waterproof XLR connector range for outdoor waterproof class IP65
- Strong zinc die-casting shell, long life and high reliability
- Metal housing with inner thread increase retention force and makes assembly easier and faster
- Colored boots available for coding or identification
- Boot with polyurethane gland gives high protection to cable bending stresses
Specifications
-
Capacitance between contacts≤4pF
-
Contact resistance≤3mΩ
-
Dielectric strength1.5kVdc
-
Insulation resistance>10GΩ (initial)
-
Rated current per contact16A
-
Rated voltage<50V
-
Insertion force≤20N
-
Withdrawal force≤20N
-
Service life＞1000 mating cycles
-
WiresizeMax.2.5mm²
-
WiresizeMax.14AWG
-
Locking deviceLatch lock
-
BootPolyurethan
-
ContactsCu alloy
-
Contact platingAu
-
InsertPolyamide (PA66+30%GF)
-
ShellZinc diecast (ZnAl4Cu1)
-
Shell platingCr
-
Strain reliefPolyacetal (POM)
-
Flame-retardant gradeUL94HB
-
Protection classIP65
-
Temperature range-30℃to+80℃
- More Less
