GH4W 4" full range ultra-compact source satellite passive speaker (white color)

Download product sheet

The GH4 is a compact, high-performance satellite speaker designed to deliver clear and controlled sound reproduction in acoustically challenging environments. Equipped with a 4" full-range driver featuring a dual-coil neodymium magnet and selectable impedance (4Ω – 16Ω), it ensures powerful and accurate audio performance. The cabinet design minimizes rear soun... Read more

The GH4 is a compact, high-performance satellite speaker designed to deliver clear and controlled sound reproduction in acoustically challenging environments. Equipped with a 4" full-range driver featuring a dual-coil neodymium magnet and selectable impedance (4Ω – 16Ω), it ensures powerful and accurate audio performance. The cabinet design minimizes rear sound emission, improving directivity and overall system efficiency. Its stainless steel enclosure with an IP64 rating guarantees durability and reliability even in demanding environments. Available in passive or active versions (GH4A), the GH4 can be used as a standalone speaker or in array configurations for enhanced performance. It is ideal for fixed installations in professional settings such as theaters, hospitality, retail, transportation, houses of worship, and residential environments. Supplied with an adjustable wall-mount bracket (GF-WALL), the GH4 offers a flexible and compact solution for high-quality audio system design.

Collapse text

Product downloads

Media

Media

Highlights

Selectable impedance for greater integration flexibility

The GH4 allows you to choose between two selectable impedance levels (4Ω – 16Ω) allowing its use in systems with few speakers as well as in more complex and multi-zone systems.

Low Impedance

Product details

Key features

  • Compact design, high performance: 4" full-range driver with dual voice coil neodymium magnet, for powerful and defined sound output, in an extremely compact format.
  • Selectable impedance (4Ω – 16Ω): allows flexibility of integration into systems with different configurations, simplifying the design of audio systems.
  • Reduced Rear Emission The optimised cabinet design reduces rear dispersion, improving sound directionality and reducing unwanted reflections.
  • Array capability: Can be configured in arrays to increase sound pressure and cover larger areas consistently.
  • Wall Mount Included: The GF-WALL swivel mount is included for easy and precise installation.

Specifications

  • Type
    Passive loudspeaker
  • Transducers
    4” neodymium magnet full-range driver
  • Frequency Response
    150 Hz - 20 kHz (-6dB)
  • Max SPL
    122 dB
  • Rated Power
    140 W
  • Coverage
    V. 90° | H. 90°
  • Connectors

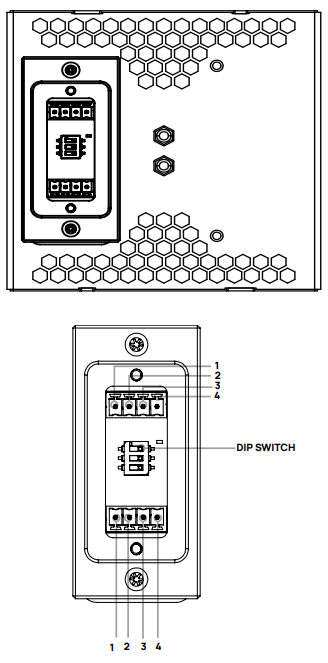

    Phoenix connector (4-pin euroblock)
  • Nominal Impedance
    4 Ω - 16 Ω selectable
  • Dimensions (W x H x D)
    112x112x94 mm (4.41x4.41x3.70 in)
  • Weight
    1,2 kg (2,65 lb)
  • Material
    Stainless steel
  • Colors
    White
  • IP Rating
    P64 (G-IPCAP1 accessory required)
  • More Less
